Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#10414) — 392 parça

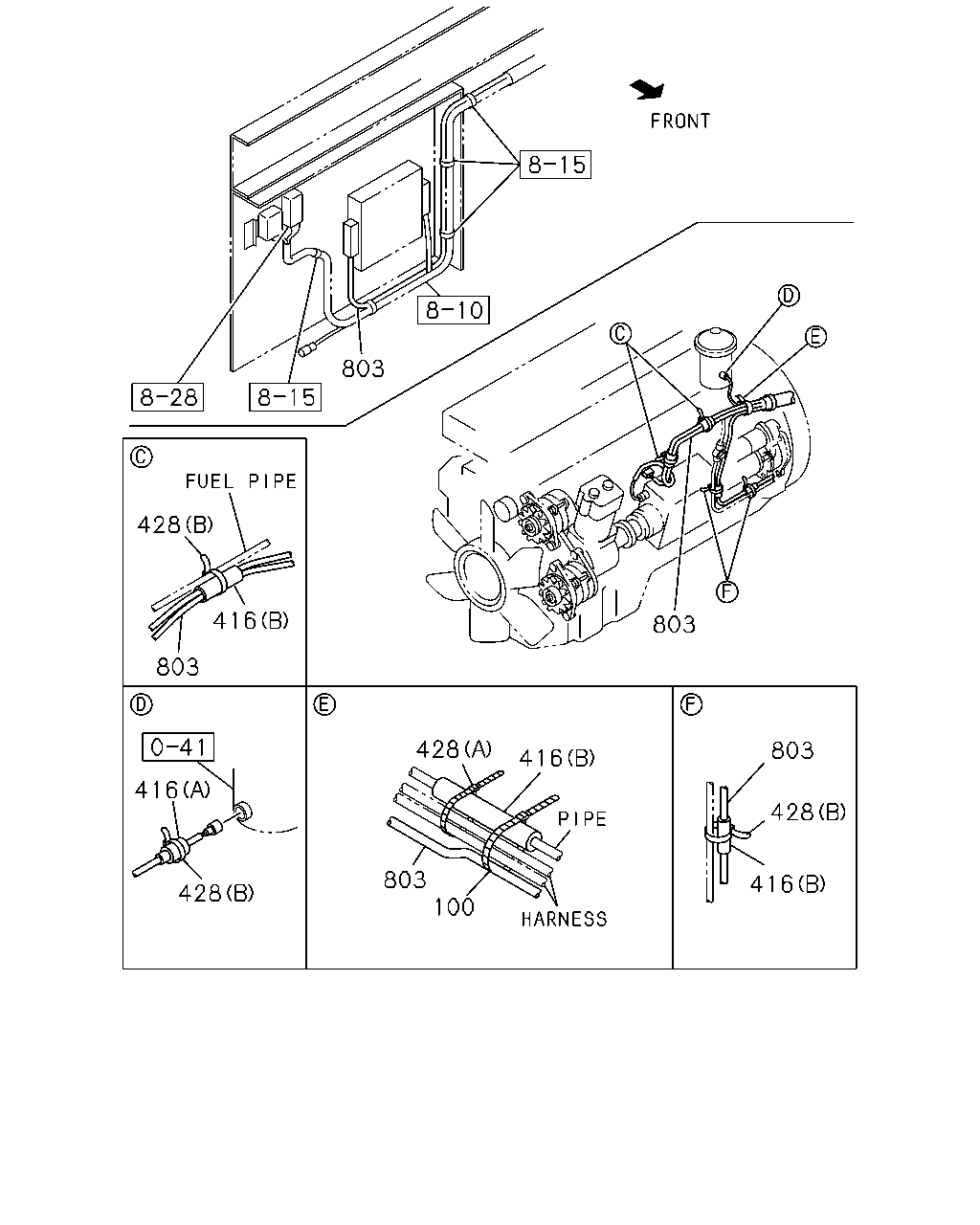

803 428 416 803 803 428 803 416 416 428 803 100 416 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	CLIP; HARNESS L=180	1-09707-162-1	01	1	0103-1207	●
100	CLIP; HARNESS L=180	8-98216-427-0	01	1	1208-	●
416	SLEEVE; RUBBER (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0103-	●
416	SLEEVE; RUBBER (B) ID=10 OD=14 L=30	9-09956-682-0	06	1	0103-	●
428	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0103-	●	●
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0103-1205	●
428	CLIP; HARNESS (A) L=250	8-98216-430-0	02	1	1206-	●
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0103-1205	●
428	CLIP; HARNESS (B) L=140	8-98216-431-0	05	1	1206-	●
428	CLIP; HARNESS (C) L=36	8-94224-891-1	01	1	0103-	●
428	CLIP; HARNESS (D) ID=11 L=28	9-09917-544-0	01	1	0103-	●
803	HARNESS; GOVERNOR	1-82641-152-1	01	1	0103-	●

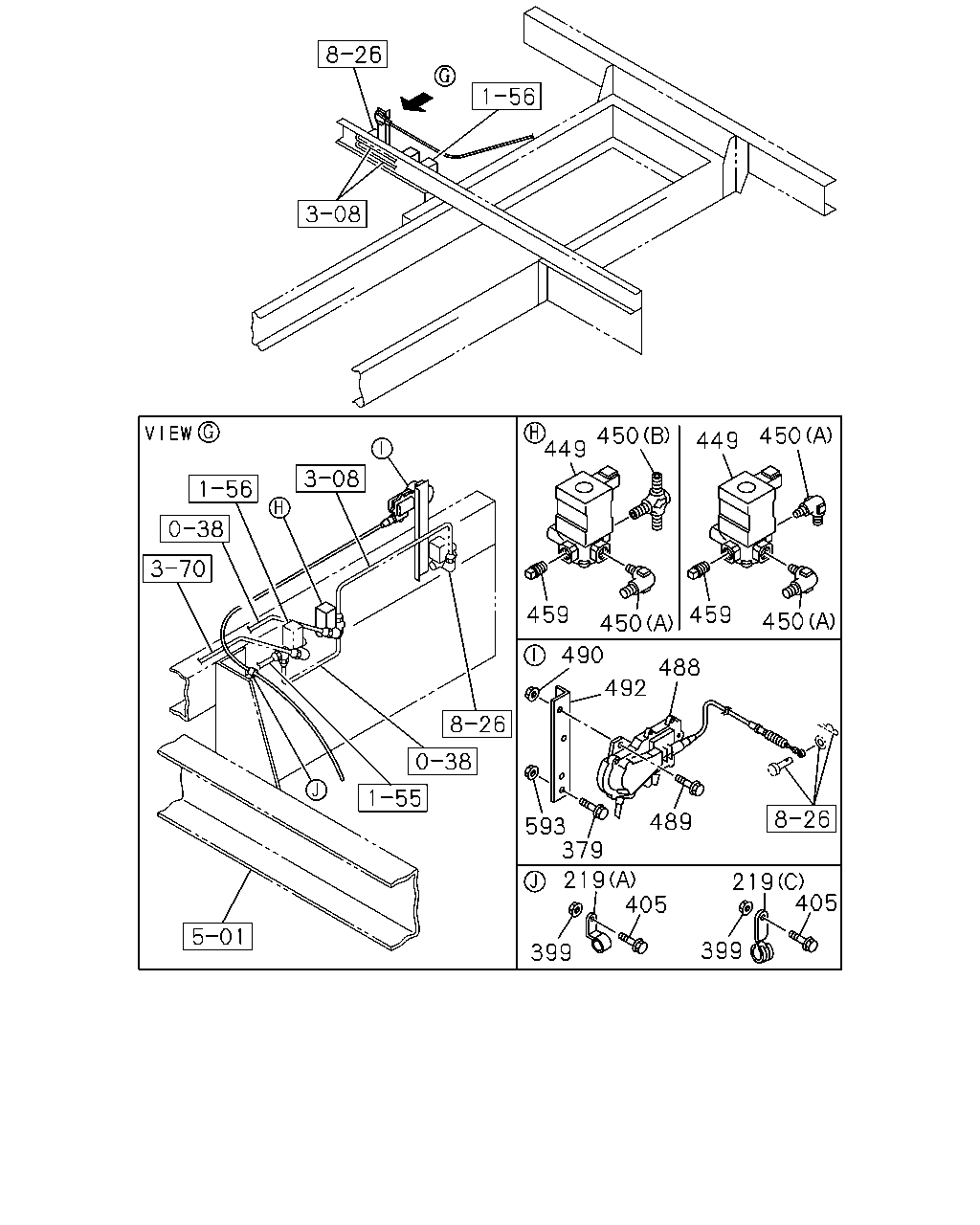

449 450 450 449 459 459 450 450 490 488 492 489 593 379 219 405 219 405 399 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
219	CLIP; ENG STOP CABLE (B) L=350	1-09707-183-0	01	1	0103-0103		●
219	CLIP; ENG STOP CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0103-	●	●
219	CLIP; ENG STOP CABLE RADIATOR FAN DUCT<WF8> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0103-		●
219	CLIP; ENG STOP CABLE (C)	8-94140-424-1	01	1	0108-	●
379	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512	●	●
379	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
399	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0103-0107	●	●
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0103-0107		●
399	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0108-0602	●	●
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0108-0602		●
399	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0108-0602	●
399	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-		●
399	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28680-825-0	01	1	0103-0107	●	●
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	01	1	0103-0107		●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28680-825-0	01	1	0108-0512	●	●
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	01	1	0108-0512		●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28680-825-0	01	1	0108-0512	●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM	1-82563-600-5	01	1	0103-	●
450	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0103-	●
450	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0103-	●
450	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0103-	●
459	PLUG PT1/4	9-99204-513-0	01	1	0103-	●
488	STOPPER; ENG	1-82840-133-3	01	1	0103-		●
488	STOPPER; ENG	1-82840-146-2	01	1	0103-	●
489	BOLT; ENG STOPPER M8X30 FLANGE	0-28680-830-0	02	1	0103-0512	●	●
489	BOLT; ENG STOPPER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
490	NUT; ENG STOP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
492	BRACKET; ENG STOPPER	1-47478-982-0	01	1	0103-		●
492	BRACKET; ENG STOPPER	1-47478-726-0	01	1	0103-	●
593	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
593	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

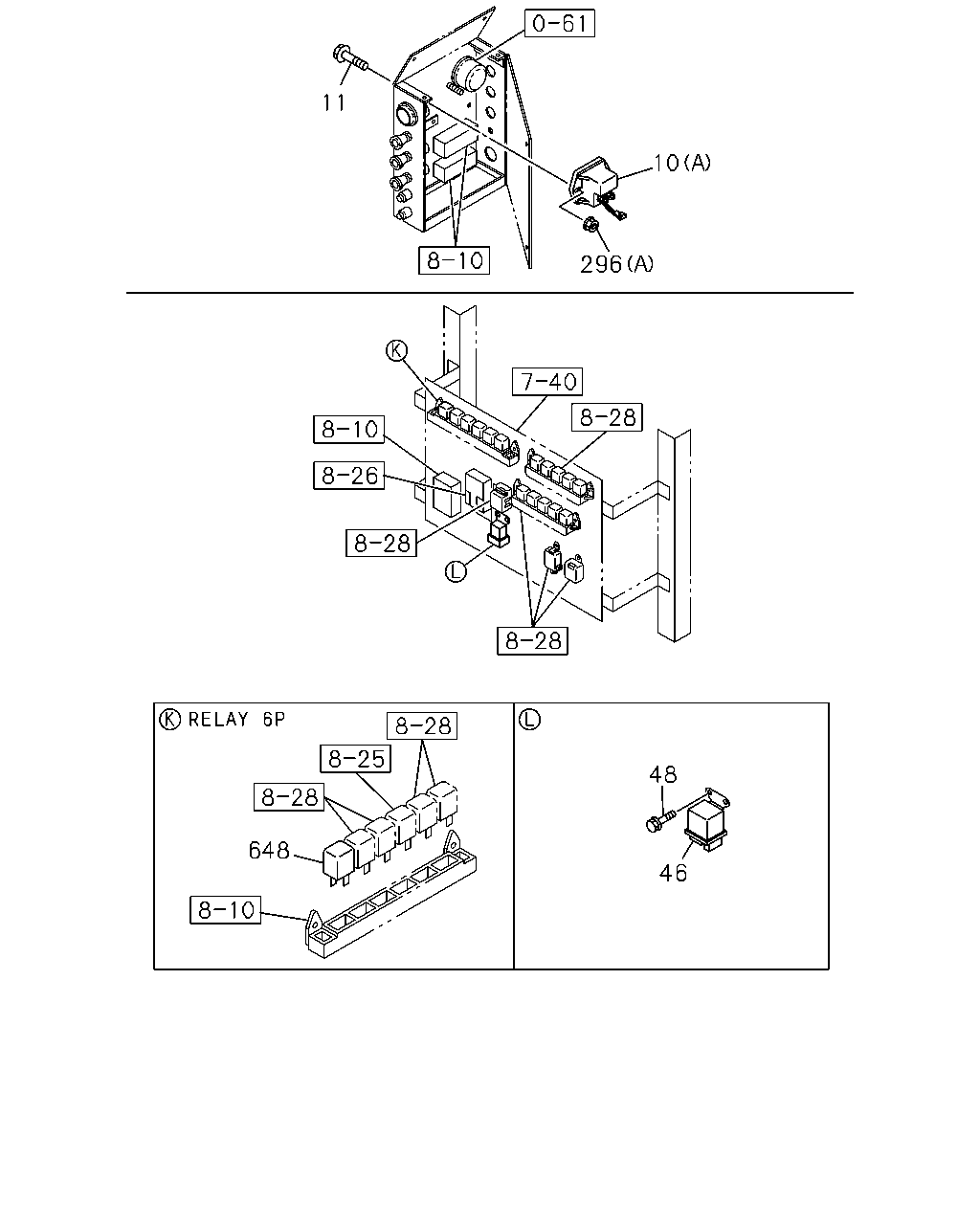

11 10 296 48 648 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) SAWAFUJI	1-81171-082-0	01	1	0103-0109	●	●
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-81171-096-1	01	1	0110-	●	●
10	RELAY; STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) HITACHI	1-81171-088-0	01	1	0103-	●	●
11	BOLT; RELAY STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6X20 FLANGE	0-28680-620-0	02	1	0103-0512	●	●
11	BOLT; RELAY STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●
46	RELAY; GLOW PLUG INTAKE HEATER<SL2>	8-94258-014-0	01	1	0103-	●	●
48	BOLT; GLOW PLUG RELAY INTAKE HEATER<SL2> M6X16 FLANGE	0-28680-616-0	02	1	0103-0512	●	●
48	BOLT; GLOW PLUG RELAY INTAKE HEATER<SL2> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91150-106-0	02	1	0103-0602	●	●
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
648	RELAY; ENG STOPPER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A MITUBA	8-97062-815-1	01	1	0103-0111		●
648	RELAY; ENG STOPPER 24V 12.5A MITUBA	8-97062-815-1	01	1	0103-0111	●
648	RELAY; ENG STOPPER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0902		●
648	RELAY; ENG STOPPER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0902	●
648	RELAY; ENG STOPPER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0903-	●	●

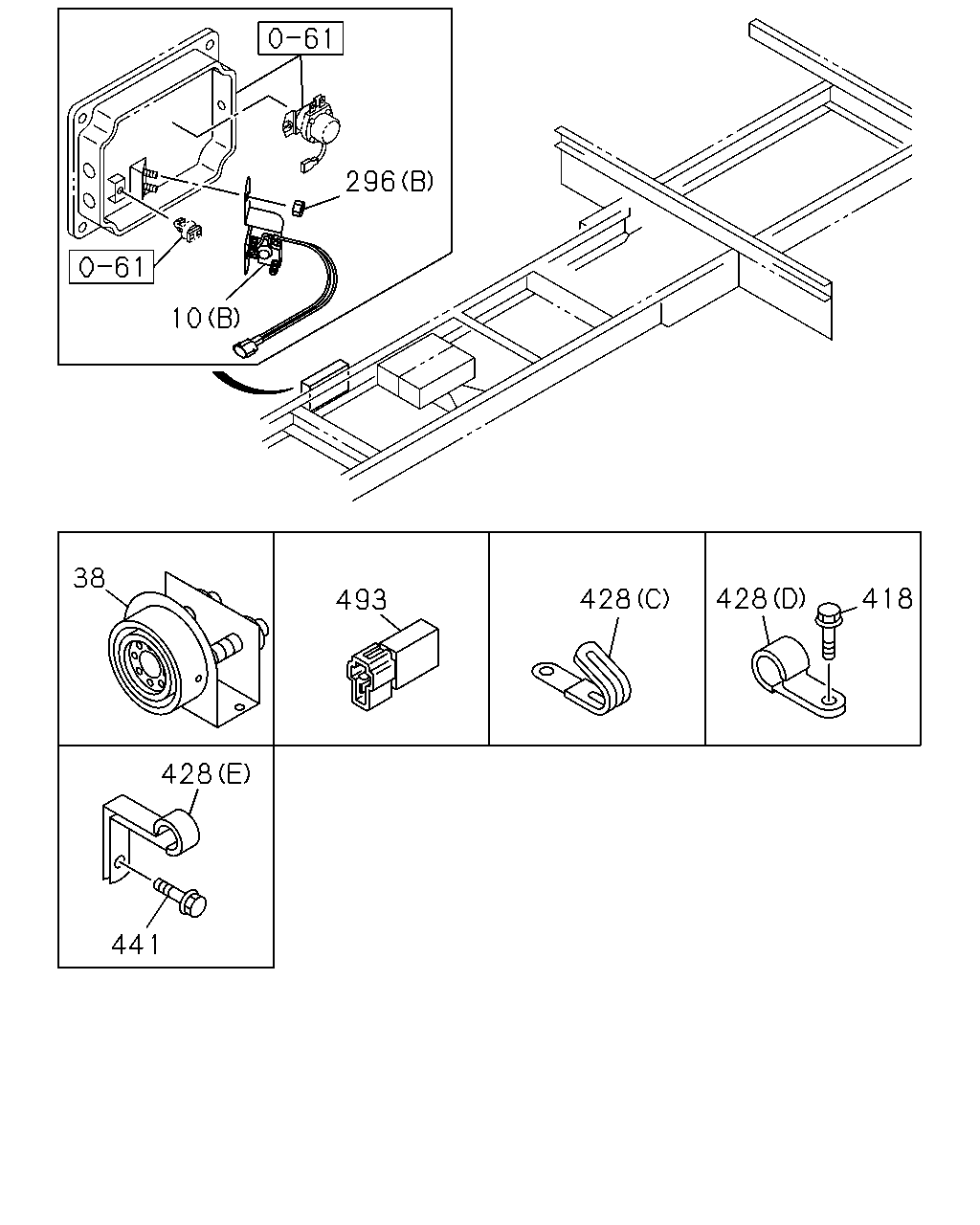

296 10 38 428 418 428 493 428 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) SAWAFUJI	1-81171-082-0	01	1	0103-0109	●	●
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-81171-096-1	01	1	0110-	●	●
10	RELAY; STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) HITACHI	1-81171-088-0	01	1	0103-	●	●
38	RESISTOR; CONT,GLOW PLUG INTAKE HEATER<SL2>	1-81402-008-0	01	1	0103-	●	●
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91150-106-0	02	1	0103-0602	●	●
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	0103-0512	●
418	BOLT; CLIP M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
428	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0103-	●	●
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0103-1205	●
428	CLIP; HARNESS (A) L=250	8-98216-430-0	02	1	1206-	●
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0103-1205	●
428	CLIP; HARNESS (B) L=140	8-98216-431-0	05	1	1206-	●
428	CLIP; HARNESS (C) L=36	8-94224-891-1	01	1	0103-	●
428	CLIP; HARNESS (D) ID=11 L=28	9-09917-544-0	01	1	0103-	●
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28680-835-0	01	1	0103-0512	●	●
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
493	RESISTOR; ENG RESISTANCE NO.1 270 OHM	1-81515-021-0	AR	1	0103-	●
493	RESISTOR; ENG RESISTANCE NO.2 510 OHM	1-81515-022-0	AR	1	0103-	●
493	RESISTOR; ENG RESISTANCE NO.3 826 OHM	1-81515-023-0	AR	1	0103-	●
493	RESISTOR; ENG RESISTANCE NO.4 1.3K OHM	1-81515-024-0	AR	1	0103-	●
493	RESISTOR; ENG RESISTANCE NO.5 2K OHM	1-81515-025-0	AR	1	0103-	●
493	RESISTOR; ENG RESISTANCE NO.6 3.3K OHM	1-81515-026-0	AR	1	0103-	●
493	RESISTOR; ENG RESISTANCE NO.7 5.6K OHM	1-81515-027-0	AR	1	0103-	●
493	RESISTOR; ENG RESISTANCE NO.8 15K OHM	1-81515-028-0	AR	1	0103-	●

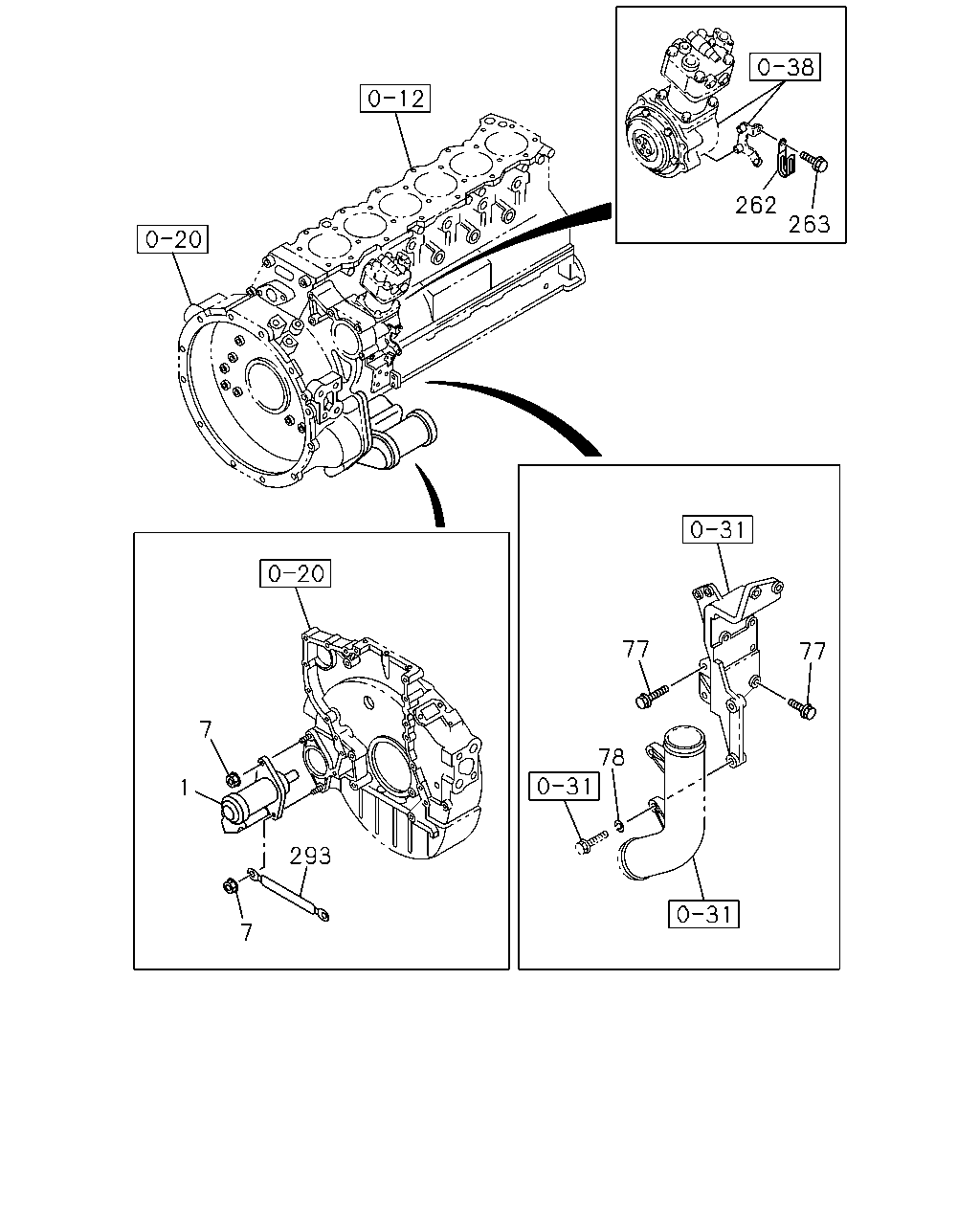

262 263 77 77 7 78 1 293 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-246-3	01	1	0103-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-6	01	1	0103-	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	0103-		●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0103-	●
77	BOLT; BRIDGE BRKT M10X60	0-16806-060-0	02	1	0103-0512		●
77	BOLT; BRIDGE BRKT M10X60	0-16856-060-0	02	1	0601-		●
77	BOLT; BRIDGE BRKT M10X25 FLANGE	0-28781-025-0	01	1	0103-0512		●
77	BOLT; BRIDGE BRKT M10X25 FLANGE	0-28751-025-0	01	1	0601-		●
77	BOLT; BRIDGE BRKT M10X35 FLANGE	0-28781-035-0	01	1	0103-0512		●
77	BOLT; BRIDGE BRKT M10X35 FLANGE	0-28751-035-0	01	1	0601-		●
78	WASHER; LK,BRIDGE BRKT ID=10.2	9-09150-510-0	02	1	0103-0603		●
78	WASHER; LK,BRIDGE BRKT ID=10.2	0-91510-510-0	02	1	0604-		●
262	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	0103-0801		●
262	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-		●
263	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0103-0512		●
263	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0103-	●	●

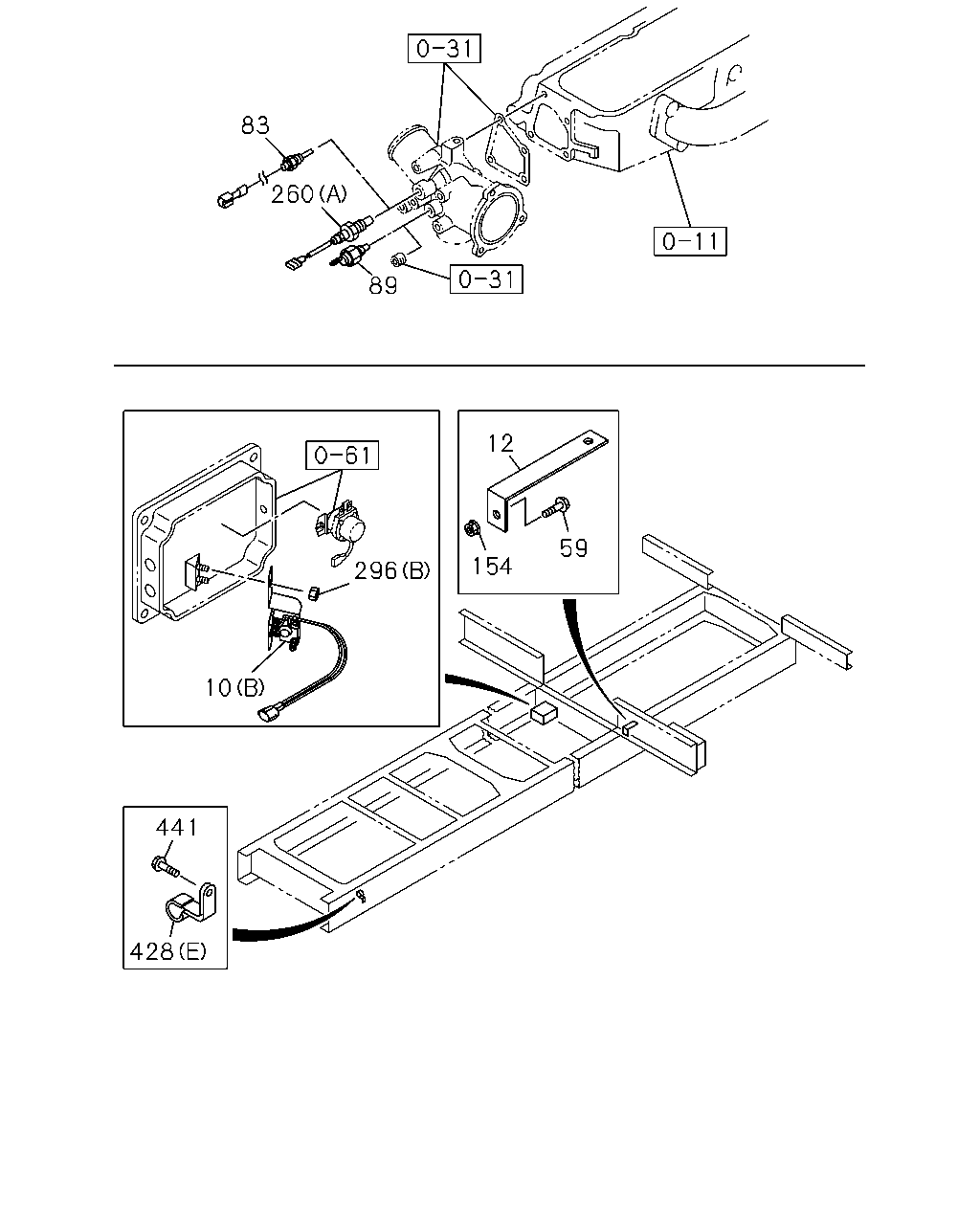

83 260 89 12 59 154 296 10 441 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) SAWAFUJI	1-81171-082-0	01	1	0103-0109	●	●
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-81171-096-1	01	1	0110-	●	●
10	RELAY; STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) HITACHI	1-81171-088-0	01	1	0103-	●	●
12	BRACKET; STARTER RELAY L=160 B=25	1-53441-518-0	01	1	0103-		●
59	BOLT; BRKT,HARNESS CLIP M8X25 FLANGE	0-28680-825-0	01	1	0103-0512		●
59	BOLT; BRKT,HARNESS CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION(THN)	1-83161-031-1	01	1	0103-0907		●
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	0103-		●
154	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0103-0602		●
154	NUT; BRKT FIX RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0103-0602		●
154	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●
154	NUT; BRKT FIX RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-		●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION(THN) (A)	1-80210-004-0	01	1	0103-0907		●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	0103-0907	●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	0908-	●	●
260	SENSOR; WATER TEMP (B)	1-83161-038-0	01	1	0103-	●
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91150-106-0	02	1	0103-0602	●	●
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
428	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0103-	●	●
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0103-1205	●
428	CLIP; HARNESS (A) L=250	8-98216-430-0	02	1	1206-	●
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0103-1205	●
428	CLIP; HARNESS (B) L=140	8-98216-431-0	05	1	1206-	●
428	CLIP; HARNESS (C) L=36	8-94224-891-1	01	1	0103-	●
428	CLIP; HARNESS (D) ID=11 L=28	9-09917-544-0	01	1	0103-	●
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28680-835-0	01	1	0103-0512	●	●
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●

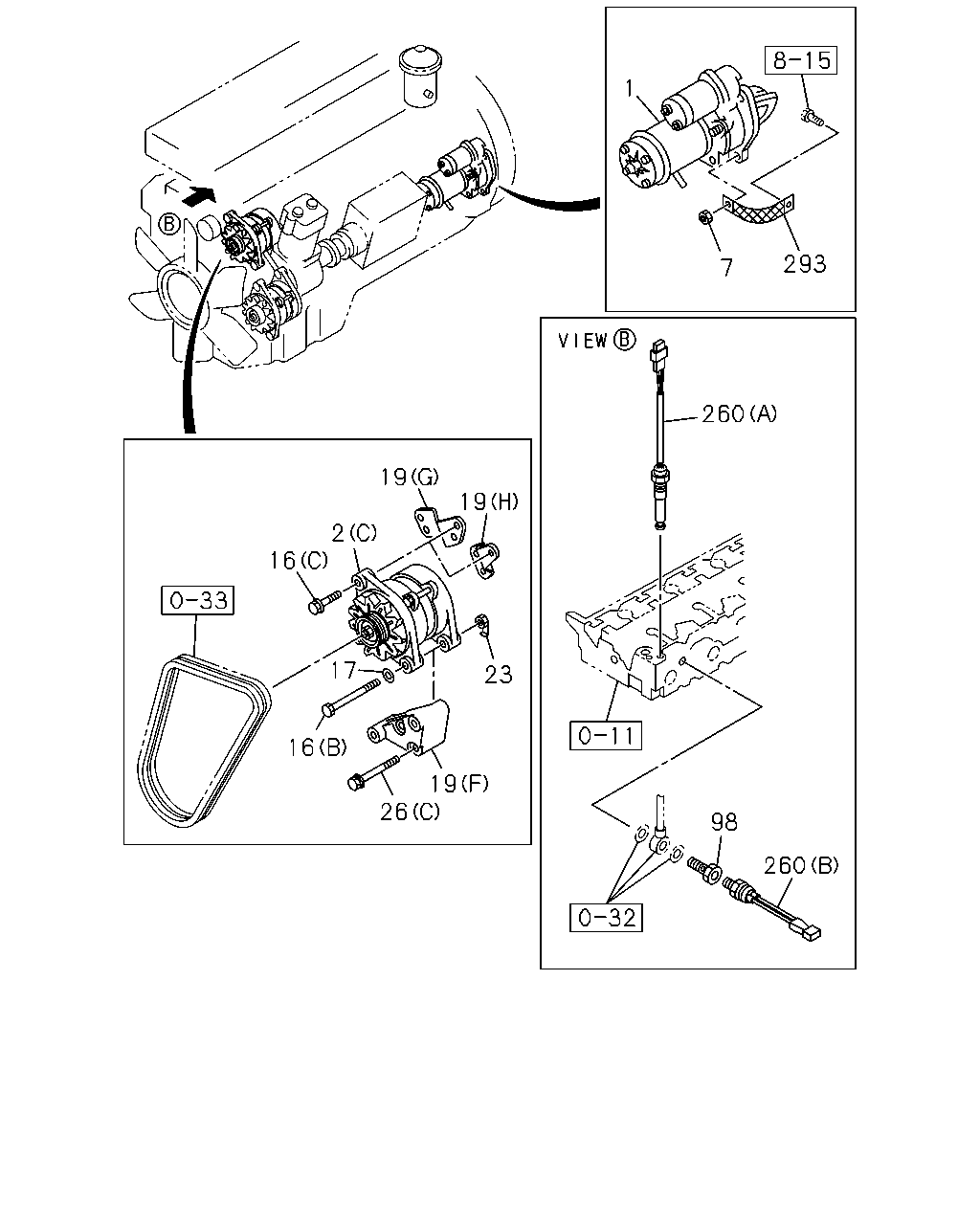

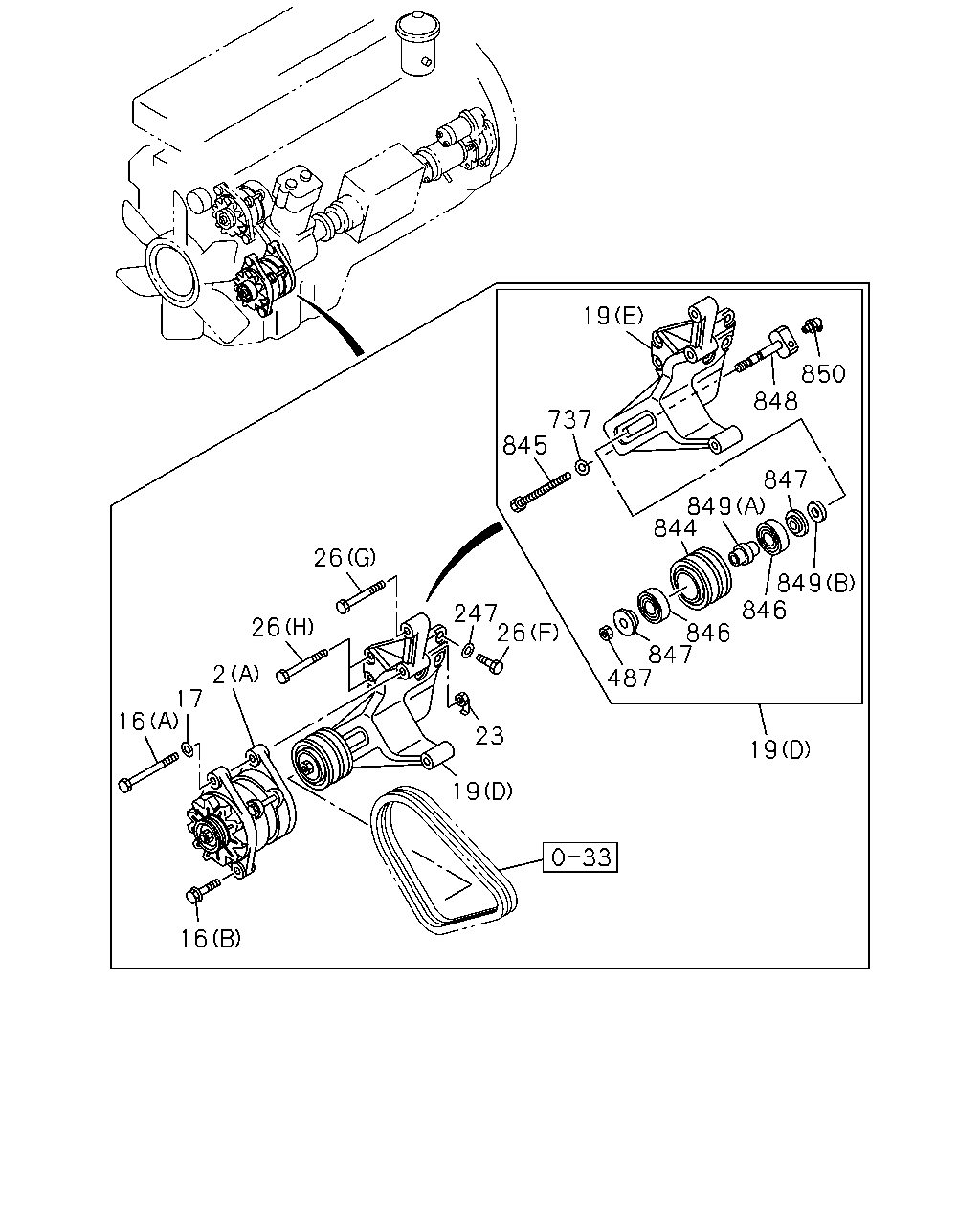

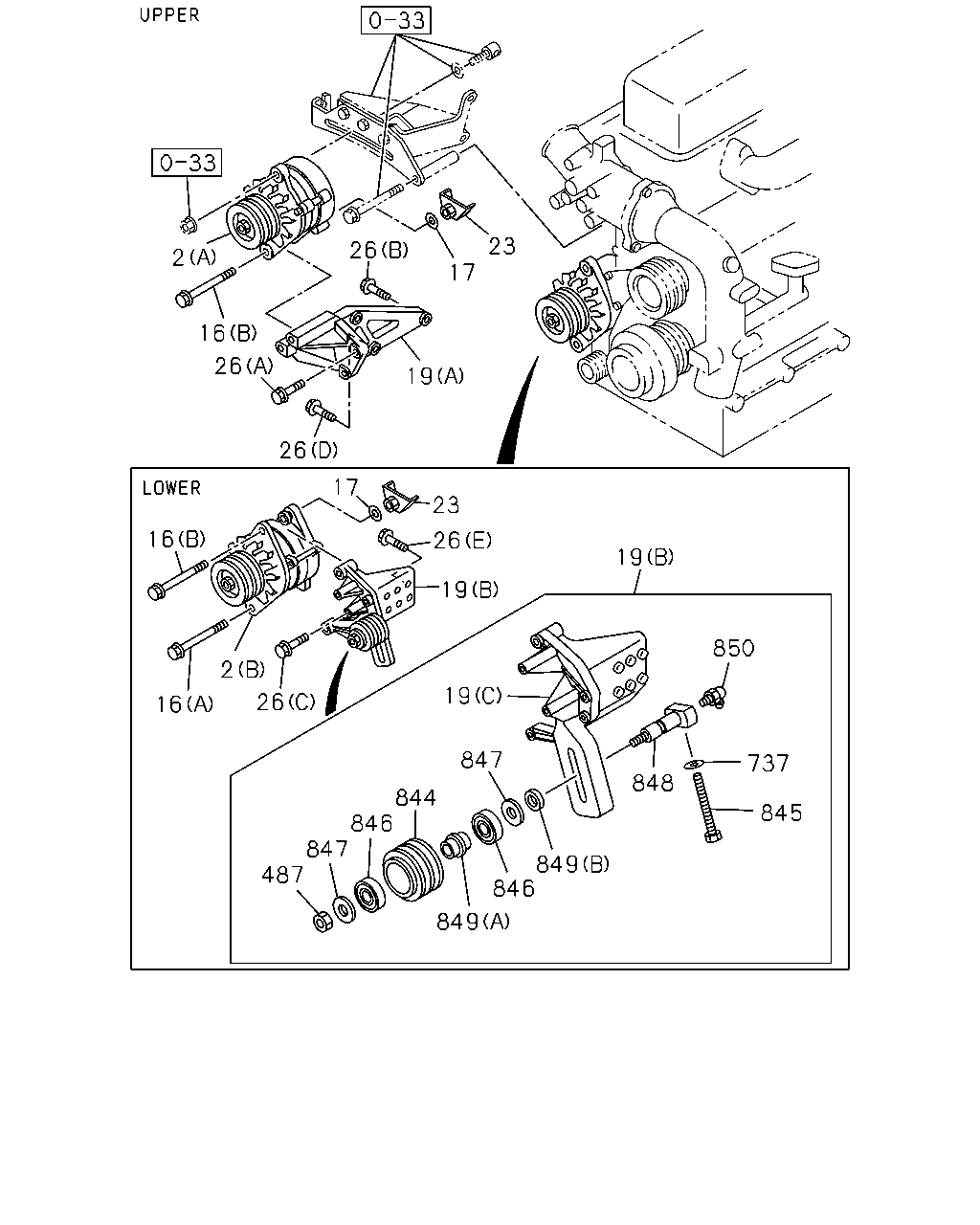

23 26 2 17 16 26 19 26 17 23 16 26 19 19 850 2 19 26 16 847 737 848 844 846 847 487 845 849 846 849

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	1-81200-561-2	01	1	0103-0305		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) 24V 110A MITSUBISHI	1-81200-561-2	01	1	0103-0305	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	1-81200-632-2	01	1	0306-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) 24V 110A MITSUBISHI	1-81200-632-2	01	1	0306-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) 24V 110A MITSUBISHI	1-81200-542-2	01	1	0103-0305		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) 24V 110A MITSUBISHI	1-81200-628-1	01	1	0306-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (C) 24V 110A MITSUBISHI	1-81200-575-2	01	1	0103-0305	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (C) 24V 110A MITSUBISHI	1-81200-650-3	01	1	0306-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	02	1	0103-		●
16	BOLT; GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	01	1	0103-		●
16	BOLT; GEN (B) M14X157	1-09000-071-1	01	1	0103-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	01	1	0103-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) M12X50 FLANGE	0-28181-250-0	01	1	0103-0512	●	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) M12X50 FLANGE	0-28151-250-0	01	1	0601-	●	●
16	BOLT; GEN (C) M12X40 FLANGE	0-28081-240-0	01	1	0103-0512	●
16	BOLT; GEN (C) M12X40 FLANGE	0-28051-240-0	01	1	0601-	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	02	1	0103-0605		●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	02	1	0606-		●
17	WASHER; PL,GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	01	1	0103-0605		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0103-0605	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	01	1	0103-0605	●
17	WASHER; PL,GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	01	1	0606-		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	01	1	0606-	●
19	BRACKET; GEN (A)	1-19711-107-0	01	1	0103-		●
19	BRACKET; GEN (C)	1-19711-116-0	01	1	0103-		●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B)	1-19711-115-1	01	1	0103-		●
19	BRACKET; GEN (F)	1-19711-070-0	01	1	0103-1207	●
19	BRACKET; GEN (H)	8-97606-317-0	01	1	1208-	●
19	BRACKET; GEN (G)	1-19711-082-0	01	1	0103-1207	●
19	BRACKET; GEN (F)	8-97607-133-0	01	1	1208-	●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D)	1-19711-132-1	01	1	0103-	●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (E)	1-19711-133-0	01	1	0103-	●
23	NUT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	02	1	0103-		●
23	NUT; GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	01	1	0103-		●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	0103-	●
23	NUT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	01	1	0103-	●
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28080-860-0	02	1	0103-0512		●
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-		●
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28181-050-0	02	1	0103-0512		●
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28186-011-0	01	1	0103-0512		●
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28156-011-0	01	1	0601-		●
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28781-040-0	06	1	0103-0512		●
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28751-040-0	06	1	0601-		●
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28181-060-0	02	1	0103-0512	●	●
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28151-060-0	02	1	0601-	●	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (F) M14X40 FLANGE	0-28781-440-0	03	1	0103-0512	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (F) M14X40 FLANGE	0-28751-440-0	03	1	0601-	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (G) M14X150	9-09804-172-1	01	1	0103-	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (H) M14X130	9-09804-194-1	02	1	0103-	●
487	NUT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M18	9-99111-518-0	01	1	0103-0512	●	●
487	NUT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M18	0-91111-518-0	01	1	0601-	●	●
737	WASHER; PL GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=10.5 OD=18	9-09160-510-0	01	1	0103-0605	●	●
737	WASHER; PL GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=10.5	0-91610-510-0	01	1	0606-	●	●
844	PULLEY; IDLE GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13663-067-0	01	1	0103-		●
844	PULLEY; IDLE GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13663-111-2	01	1	0103-	●
845	BOLT; ADJ GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M10X160	1-09000-118-1	01	1	0103-	●	●
846	BEARING; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	8-97633-017-0	02	1	0908-		●
846	BEARING; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-09800-176-0	02	1	0103-0907	●	●
846	BEARING; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-09800-176-0	02	1	0908-	●
847	COVER; DUST GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13664-009-2	02	1	0103-	●	●
848	SPINDLE; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13665-035-0	01	1	0103-	●	●
849	SPACER; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A)	1-13666-007-0	01	1	0103-	●	●
849	SPACER; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B)	1-13666-032-0	01	1	0103-	●	●
850	NIPPLE; GREASE,IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) PT1/8 ELBOW	9-09031-210-0	01	1	0103-0512	●	●
850	NIPPLE; GREASE,IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●

293 7 1 260 19 23 17 16 2 19 16 19 26 98 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-246-3	01	1	0103-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-6	01	1	0103-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	1-81200-561-2	01	1	0103-0305		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) 24V 110A MITSUBISHI	1-81200-561-2	01	1	0103-0305	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	1-81200-632-2	01	1	0306-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) 24V 110A MITSUBISHI	1-81200-632-2	01	1	0306-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) 24V 110A MITSUBISHI	1-81200-542-2	01	1	0103-0305		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) 24V 110A MITSUBISHI	1-81200-628-1	01	1	0306-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (C) 24V 110A MITSUBISHI	1-81200-575-2	01	1	0103-0305	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (C) 24V 110A MITSUBISHI	1-81200-650-3	01	1	0306-	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	0103-		●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0103-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	02	1	0103-		●
16	BOLT; GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	01	1	0103-		●
16	BOLT; GEN (B) M14X157	1-09000-071-1	01	1	0103-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	01	1	0103-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) M12X50 FLANGE	0-28181-250-0	01	1	0103-0512	●	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) M12X50 FLANGE	0-28151-250-0	01	1	0601-	●	●
16	BOLT; GEN (C) M12X40 FLANGE	0-28081-240-0	01	1	0103-0512	●
16	BOLT; GEN (C) M12X40 FLANGE	0-28051-240-0	01	1	0601-	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	02	1	0103-0605		●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	02	1	0606-		●
17	WASHER; PL,GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	01	1	0103-0605		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0103-0605	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	01	1	0103-0605	●
17	WASHER; PL,GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	01	1	0606-		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	01	1	0606-	●
19	BRACKET; GEN (A)	1-19711-107-0	01	1	0103-		●
19	BRACKET; GEN (C)	1-19711-116-0	01	1	0103-		●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B)	1-19711-115-1	01	1	0103-		●
19	BRACKET; GEN (F)	1-19711-070-0	01	1	0103-1207	●
19	BRACKET; GEN (H)	8-97606-317-0	01	1	1208-	●
19	BRACKET; GEN (G)	1-19711-082-0	01	1	0103-1207	●
19	BRACKET; GEN (F)	8-97607-133-0	01	1	1208-	●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D)	1-19711-132-1	01	1	0103-	●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (E)	1-19711-133-0	01	1	0103-	●
23	NUT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	02	1	0103-		●
23	NUT; GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	01	1	0103-		●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	0103-	●
23	NUT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	01	1	0103-	●
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28080-860-0	02	1	0103-0512		●
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-		●
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28181-050-0	02	1	0103-0512		●
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28186-011-0	01	1	0103-0512		●
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28156-011-0	01	1	0601-		●
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28781-040-0	06	1	0103-0512		●
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28751-040-0	06	1	0601-		●
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28181-060-0	02	1	0103-0512	●	●
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28151-060-0	02	1	0601-	●	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (F) M14X40 FLANGE	0-28781-440-0	03	1	0103-0512	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (F) M14X40 FLANGE	0-28751-440-0	03	1	0601-	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (G) M14X150	9-09804-172-1	01	1	0103-	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (H) M14X130	9-09804-194-1	02	1	0103-	●
98	ADAPTER; TEMP SENSOR	1-09675-236-0	01	1	0103-	●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION(THN) (A)	1-80210-004-0	01	1	0103-0907		●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	0103-0907	●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	0908-	●	●
260	SENSOR; WATER TEMP (B)	1-83161-038-0	01	1	0103-	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0103-	●	●

11 10 38 296 648 48 46 379 219 593 490 492 489 488 405 219 58 399 154 153 488 219 405 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) SAWAFUJI	1-81171-082-0	01	1	0103-0109	●	●
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-81171-096-1	01	1	0110-	●	●
10	RELAY; STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) HITACHI	1-81171-088-0	01	1	0103-	●	●
11	BOLT; RELAY STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6X20 FLANGE	0-28680-620-0	02	1	0103-0512	●	●
11	BOLT; RELAY STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●
38	RESISTOR; CONT,GLOW PLUG INTAKE HEATER<SL2>	1-81402-008-0	01	1	0103-	●	●
46	RELAY; GLOW PLUG INTAKE HEATER<SL2>	8-94258-014-0	01	1	0103-	●	●
48	BOLT; GLOW PLUG RELAY INTAKE HEATER<SL2> M6X16 FLANGE	0-28680-616-0	02	1	0103-0512	●	●
48	BOLT; GLOW PLUG RELAY INTAKE HEATER<SL2> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
58	BRACKET; CLIP RADIATOR FAN DUCT<WF8> L=40	1-47478-410-0	01	1	0103-		●
153	BOLT; BRKT FIX RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	01	1	0103-0512		●
153	BOLT; BRKT FIX RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
154	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0103-0602		●
154	NUT; BRKT FIX RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0103-0602		●
154	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●
154	NUT; BRKT FIX RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-		●
219	CLIP; ENG STOP CABLE (B) L=350	1-09707-183-0	01	1	0103-0103		●
219	CLIP; ENG STOP CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0103-	●	●
219	CLIP; ENG STOP CABLE RADIATOR FAN DUCT<WF8> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0103-		●
219	CLIP; ENG STOP CABLE (C)	8-94140-424-1	01	1	0108-	●
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91150-106-0	02	1	0103-0602	●	●
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
379	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512	●	●
379	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
399	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0103-0107	●	●
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0103-0107		●
399	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0108-0602	●	●
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0108-0602		●
399	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0108-0602	●
399	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-		●
399	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28680-825-0	01	1	0103-0107	●	●
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	01	1	0103-0107		●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28680-825-0	01	1	0108-0512	●	●
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	01	1	0108-0512		●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28680-825-0	01	1	0108-0512	●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
488	STOPPER; ENG	1-82840-133-3	01	1	0103-		●
488	STOPPER; ENG	1-82840-146-2	01	1	0103-	●
489	BOLT; ENG STOPPER M8X30 FLANGE	0-28680-830-0	02	1	0103-0512	●	●
489	BOLT; ENG STOPPER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
490	NUT; ENG STOP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
492	BRACKET; ENG STOPPER	1-47478-982-0	01	1	0103-		●
492	BRACKET; ENG STOPPER	1-47478-726-0	01	1	0103-	●
593	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
593	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
648	RELAY; ENG STOPPER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A MITUBA	8-97062-815-1	01	1	0103-0111		●
648	RELAY; ENG STOPPER 24V 12.5A MITUBA	8-97062-815-1	01	1	0103-0111	●
648	RELAY; ENG STOPPER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0902		●
648	RELAY; ENG STOPPER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0902	●
648	RELAY; ENG STOPPER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0903-	●	●

19 850 848 737 845 847 849 844 26 849 846 247 26 26 846 847 487 2 17 16 23 19 19 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	1-81200-561-2	01	1	0103-0305		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) 24V 110A MITSUBISHI	1-81200-561-2	01	1	0103-0305	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	1-81200-632-2	01	1	0306-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) 24V 110A MITSUBISHI	1-81200-632-2	01	1	0306-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) 24V 110A MITSUBISHI	1-81200-542-2	01	1	0103-0305		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) 24V 110A MITSUBISHI	1-81200-628-1	01	1	0306-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (C) 24V 110A MITSUBISHI	1-81200-575-2	01	1	0103-0305	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (C) 24V 110A MITSUBISHI	1-81200-650-3	01	1	0306-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	02	1	0103-		●
16	BOLT; GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	01	1	0103-		●
16	BOLT; GEN (B) M14X157	1-09000-071-1	01	1	0103-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	01	1	0103-	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) M12X50 FLANGE	0-28181-250-0	01	1	0103-0512	●	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) M12X50 FLANGE	0-28151-250-0	01	1	0601-	●	●
16	BOLT; GEN (C) M12X40 FLANGE	0-28081-240-0	01	1	0103-0512	●
16	BOLT; GEN (C) M12X40 FLANGE	0-28051-240-0	01	1	0601-	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	02	1	0103-0605		●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	02	1	0606-		●
17	WASHER; PL,GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	01	1	0103-0605		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0103-0605	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	01	1	0103-0605	●
17	WASHER; PL,GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	01	1	0606-		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-	●
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	01	1	0606-	●
19	BRACKET; GEN (A)	1-19711-107-0	01	1	0103-		●
19	BRACKET; GEN (C)	1-19711-116-0	01	1	0103-		●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B)	1-19711-115-1	01	1	0103-		●
19	BRACKET; GEN (F)	1-19711-070-0	01	1	0103-1207	●
19	BRACKET; GEN (H)	8-97606-317-0	01	1	1208-	●
19	BRACKET; GEN (G)	1-19711-082-0	01	1	0103-1207	●
19	BRACKET; GEN (F)	8-97607-133-0	01	1	1208-	●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D)	1-19711-132-1	01	1	0103-	●
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (E)	1-19711-133-0	01	1	0103-	●
23	NUT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	02	1	0103-		●
23	NUT; GEN EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	01	1	0103-		●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	0103-	●
23	NUT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	01	1	0103-	●
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28080-860-0	02	1	0103-0512		●
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-		●
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28181-050-0	02	1	0103-0512		●
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28186-011-0	01	1	0103-0512		●
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28156-011-0	01	1	0601-		●
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28781-040-0	06	1	0103-0512		●
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28751-040-0	06	1	0601-		●
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28181-060-0	02	1	0103-0512	●	●
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28151-060-0	02	1	0601-	●	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (F) M14X40 FLANGE	0-28781-440-0	03	1	0103-0512	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (F) M14X40 FLANGE	0-28751-440-0	03	1	0601-	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (G) M14X150	9-09804-172-1	01	1	0103-	●
26	BOLT; GEN BRKT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (H) M14X130	9-09804-194-1	02	1	0103-	●
247	WASHER; PL,BRKT,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15 OD=26	9-09164-514-0	03	1	0103-	●
487	NUT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M18	9-99111-518-0	01	1	0103-0512	●	●
487	NUT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M18	0-91111-518-0	01	1	0601-	●	●
737	WASHER; PL GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=10.5 OD=18	9-09160-510-0	01	1	0103-0605	●	●
737	WASHER; PL GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=10.5	0-91610-510-0	01	1	0606-	●	●
844	PULLEY; IDLE GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13663-067-0	01	1	0103-		●
844	PULLEY; IDLE GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13663-111-2	01	1	0103-	●
845	BOLT; ADJ GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M10X160	1-09000-118-1	01	1	0103-	●	●
846	BEARING; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	8-97633-017-0	02	1	0908-		●
846	BEARING; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-09800-176-0	02	1	0103-0907	●	●
846	BEARING; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-09800-176-0	02	1	0908-	●
847	COVER; DUST GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13664-009-2	02	1	0103-	●	●
848	SPINDLE; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13665-035-0	01	1	0103-	●	●
849	SPACER; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A)	1-13666-007-0	01	1	0103-	●	●
849	SPACER; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B)	1-13666-032-0	01	1	0103-	●	●
850	NIPPLE; GREASE,IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) PT1/8 ELBOW	9-09031-210-0	01	1	0103-0512	●	●
850	NIPPLE; GREASE,IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
