Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#10413) — 204 parça

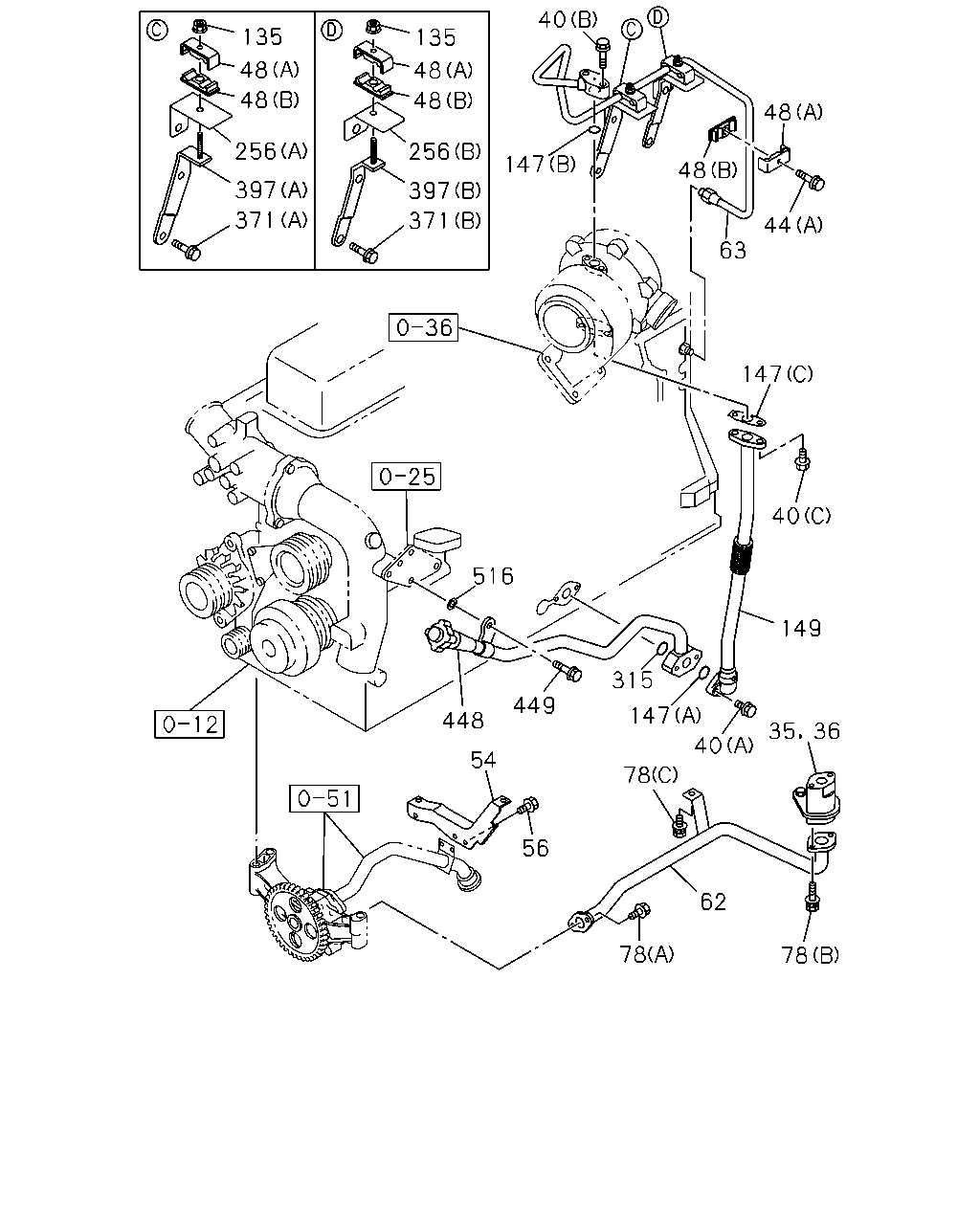

40 135 135 48 48 48 48 48 256 256 147 48 397 397 371 371 44 63 147 40 516 149 315 449 147 448 35 36 40 54 78 56 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13260-086-0	01	1	0103-	●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V>	1-13260-108-0	01	1	0103-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0103-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28080-860-0	02	1	0103-0512	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0103-	●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28181-030-0	04	1	0103-0512		●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28151-030-0	04	1	0601-		●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0103-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0103-0906	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE (C) M6X30 FLANGE	0-28080-630-0	02	1	0103-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X30 FLANGE	0-28050-630-0	02	1	0601-		●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	03	1	0103-	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-2	03	1	0103-	●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	02	1	0103-		●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0103-	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0103-0512	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0103-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0103-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0103-		●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0103-	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0103-0906	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0103-0512	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0103-0602	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.2	1-09623-297-0	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-2	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0103-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=27.7	1-09623-450-0	01	1	0103-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-782-0	01	1	0103-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0103-		●
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	0103-	●
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	0103-	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	0103-	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	0103-0512	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	0103-	●
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	0103-	●
448	FILLER; OIL	1-11740-260-0	01	1	0103-0109	●
448	FILLER; OIL	1-11740-278-0	01	1	0110-	●
449	BOLT; OIL FILLER M8X16 FLANGE	0-28080-816-0	01	1	0103-0109	●
449	BOLT; OIL FILLER M8X25 FLANGE	0-28680-825-0	01	1	0110-0512	●
449	BOLT; OIL FILLER M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
516	WASHER; PL,MOUNT RUBBER ID=8.4 OD=26	9-09164-808-0	01	1	0103-0605	●
516	WASHER; PL,MOUNT RUBBER ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●

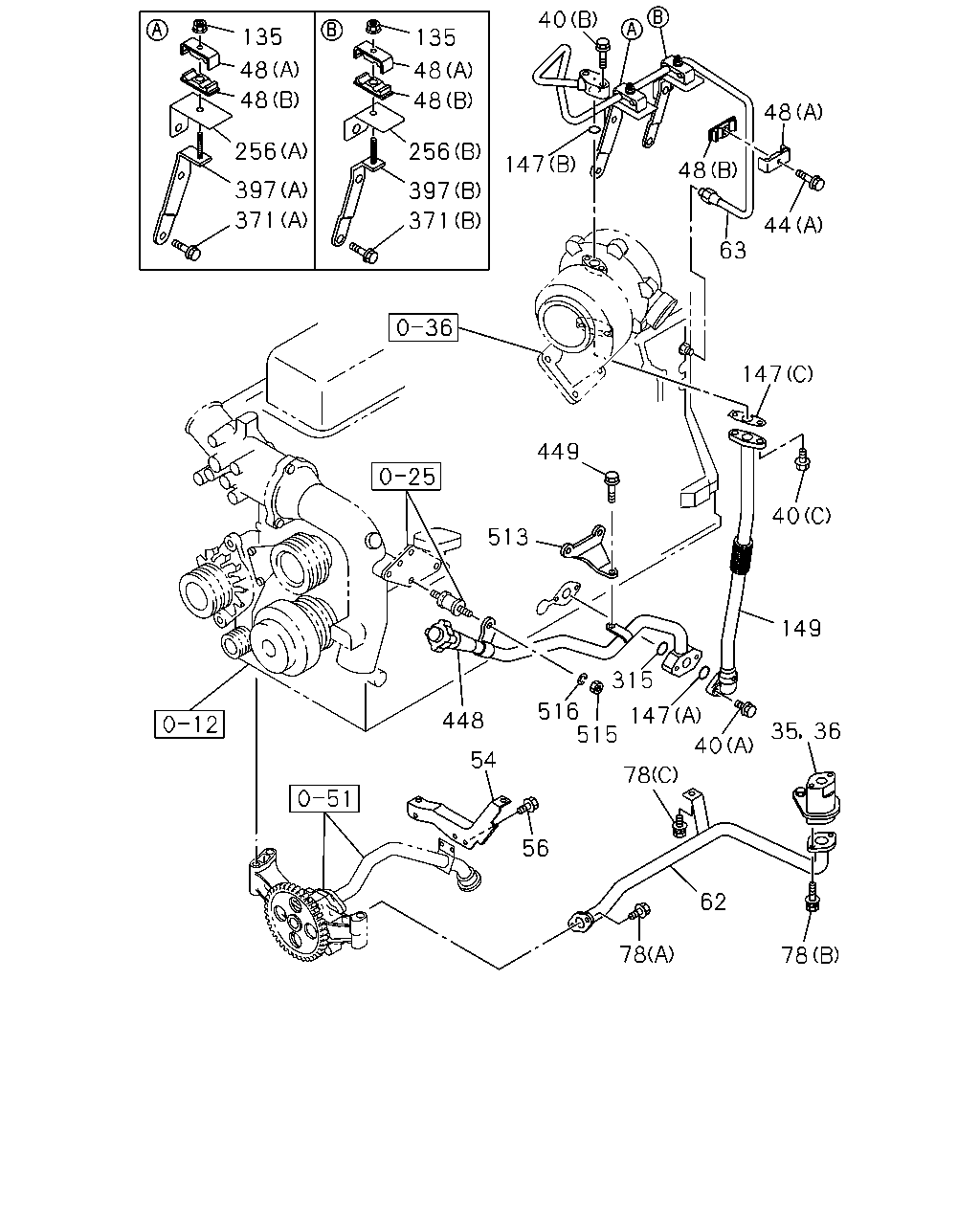

40 135 135 48 48 48 48 48 256 256 147 48 397 397 371 371 44 63 147 449 40 513 149 315 516 515 147 448 35 36 40 54 78 56 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13260-086-0	01	1	0103-	●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V>	1-13260-108-0	01	1	0103-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0103-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28080-860-0	02	1	0103-0512	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0103-	●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28181-030-0	04	1	0103-0512		●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28151-030-0	04	1	0601-		●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0103-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0103-0906	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE (C) M6X30 FLANGE	0-28080-630-0	02	1	0103-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X30 FLANGE	0-28050-630-0	02	1	0601-		●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	03	1	0103-	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-2	03	1	0103-	●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	02	1	0103-		●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0103-	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0103-0512	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0103-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0103-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0103-		●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0103-	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0103-0906	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0103-0512	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0103-0602	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.2	1-09623-297-0	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-2	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0103-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=27.7	1-09623-450-0	01	1	0103-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-782-0	01	1	0103-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0103-		●
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	0103-	●
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	0103-	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	0103-	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	0103-0512	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	0103-	●
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	0103-	●
448	FILLER; OIL	1-11740-260-0	01	1	0103-0109	●
448	FILLER; OIL	1-11740-278-0	01	1	0110-	●
449	BOLT; OIL FILLER M8X16 FLANGE	0-28080-816-0	01	1	0103-0109	●
449	BOLT; OIL FILLER M8X25 FLANGE	0-28680-825-0	01	1	0110-0512	●
449	BOLT; OIL FILLER M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
513	BRACKET; OIL FILLER	1-11769-179-0	01	1	0103-0109	●
515	NUT; MOUNT RUBBER M8 FLANGE	0-91150-108-0	01	1	0103-0109	●
516	WASHER; PL,MOUNT RUBBER ID=8.4 OD=26	9-09164-808-0	01	1	0103-0605	●
516	WASHER; PL,MOUNT RUBBER ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●

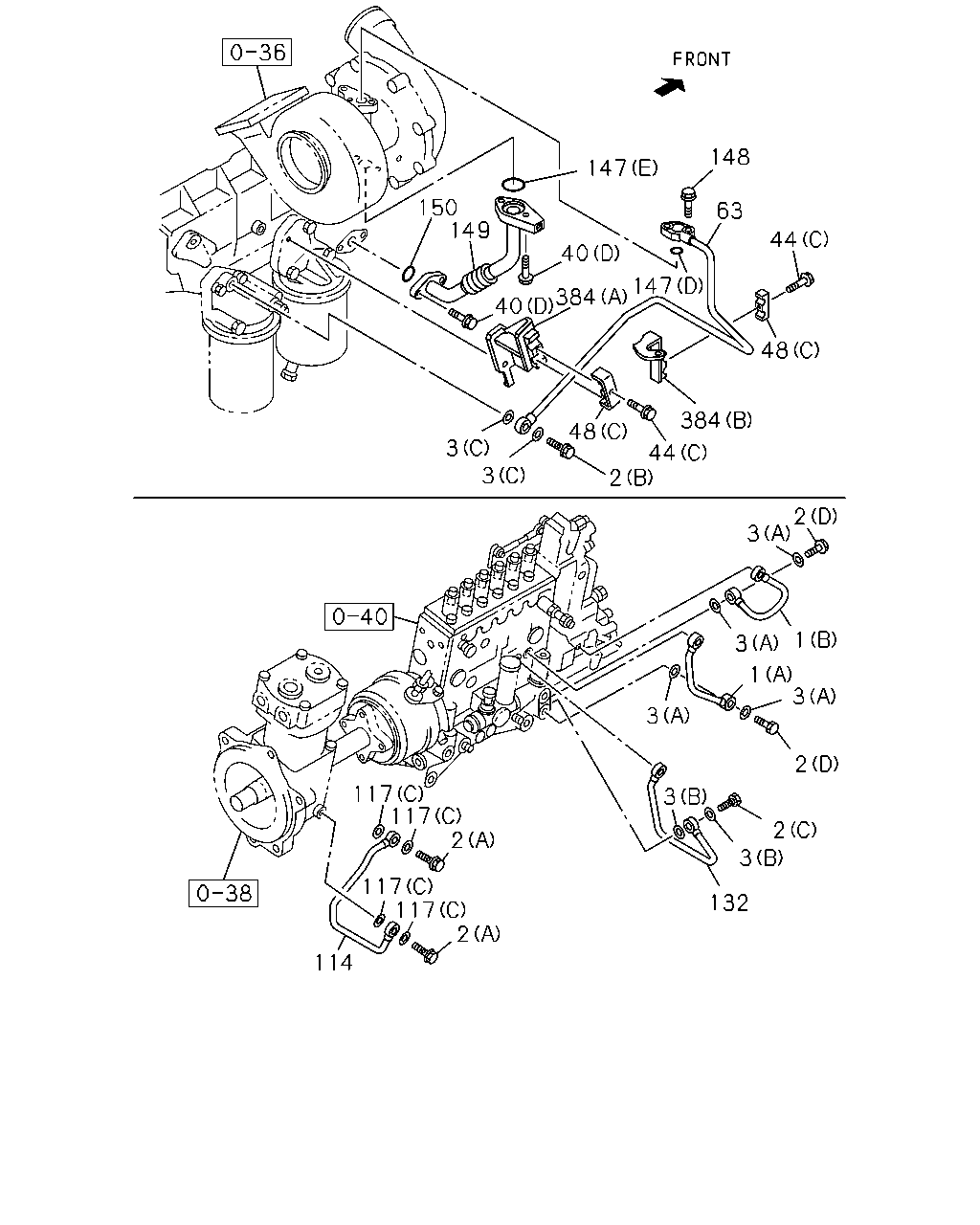

148 147 150 149 63 44 40 147 384 40 48 384 48 3 3 44 2 2 3 1 3 1 3 3 2 117 117 2 3 2 3 117 117 2 132 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION(THN) (C)	1-13313-754-0	01	1	0103-	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION(THN) (C)	1-13313-965-0	01	1	0103-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0103-		●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0103-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0103-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0103-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0103-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●
2	BOLT; EYE,OIL PIPE (D) M14X27 FLANGE	1-09675-086-0	02	1	0103-		●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0103-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0103-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	8-98251-344-0	02	1	1401-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0103-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	0103-		●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0103-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28080-860-0	02	1	0103-0512	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0103-	●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28181-030-0	04	1	0103-0512		●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28151-030-0	04	1	0601-		●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0103-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0103-0906	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE (C) M6X30 FLANGE	0-28080-630-0	02	1	0103-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X30 FLANGE	0-28050-630-0	02	1	0601-		●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	03	1	0103-	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-2	03	1	0103-	●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	02	1	0103-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0103-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0103-		●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13313-891-0	01	1	0103-0207	●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13314-030-1	01	1	0208-	●
114	PIPE ASM; OIL,BODY EXC. EURO2 SPECIFICATION(THN)	1-13313-892-0	01	1	0103-0207	●
114	PIPE ASM; OIL,BODY EXC. EURO2 SPECIFICATION(THN)	1-13314-031-0	01	1	0208-	●
114	PIPE ASM; OIL,BODY	1-13313-642-0	01	1	0103-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0103-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0103-1312	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	04	1	0103-		●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	0103-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.2	1-09623-297-0	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-2	01	1	0103-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0103-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=27.7	1-09623-450-0	01	1	0103-		●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	0103-0512		●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28151-035-0	02	1	0601-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-782-0	01	1	0103-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0103-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0103-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0103-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	0103-		●

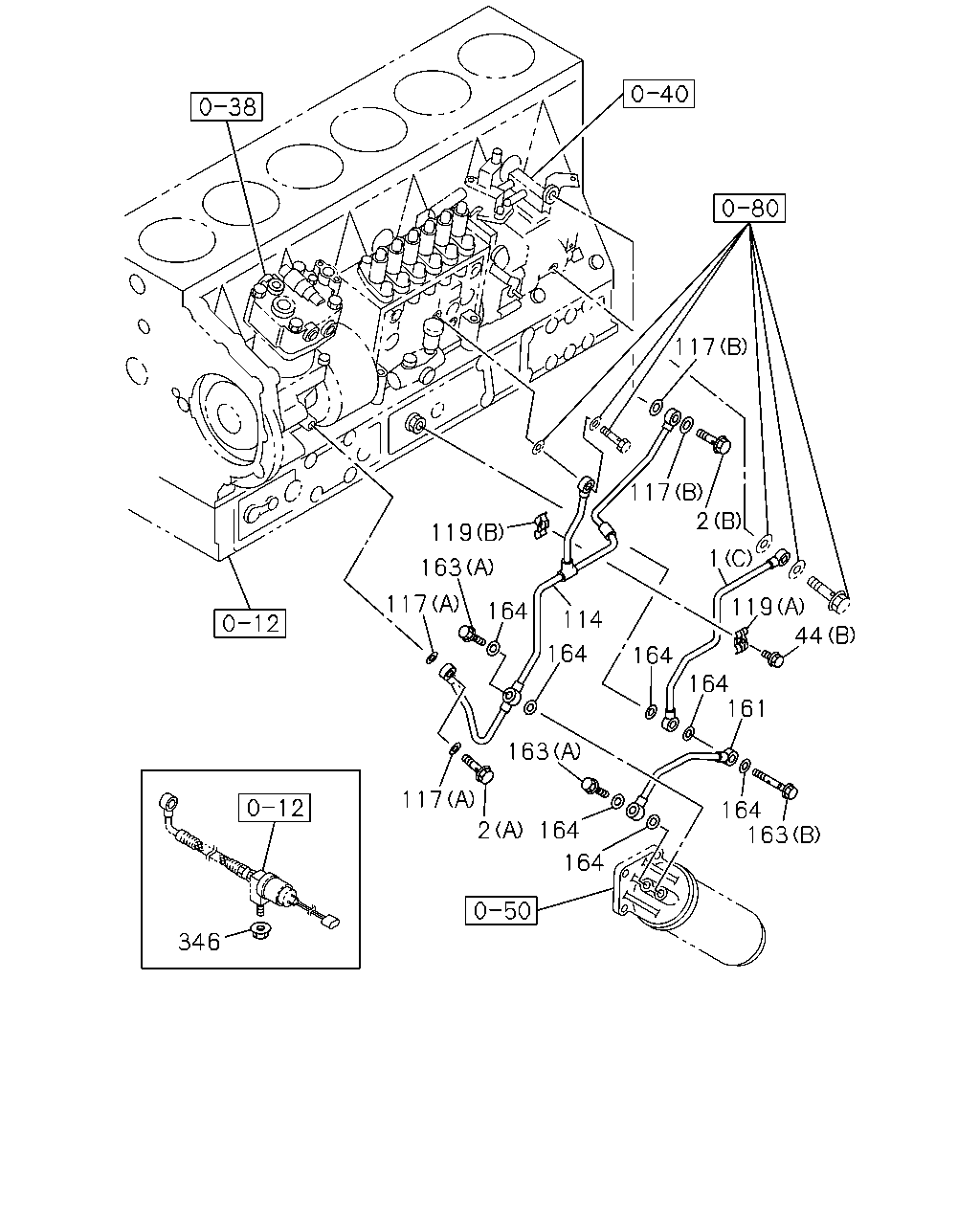

117 117 2 119 1 163 117 119 44 164 114 164 164 164 161 163 117 164 163 2 164 164 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION(THN) (C)	1-13313-754-0	01	1	0103-	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION(THN) (C)	1-13313-965-0	01	1	0103-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0103-		●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0103-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0103-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0103-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0103-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●
2	BOLT; EYE,OIL PIPE (D) M14X27 FLANGE	1-09675-086-0	02	1	0103-		●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0103-		●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0103-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0103-0906	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE (C) M6X30 FLANGE	0-28080-630-0	02	1	0103-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X30 FLANGE	0-28050-630-0	02	1	0601-		●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13313-891-0	01	1	0103-0207	●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13314-030-1	01	1	0208-	●
114	PIPE ASM; OIL,BODY EXC. EURO2 SPECIFICATION(THN)	1-13313-892-0	01	1	0103-0207	●
114	PIPE ASM; OIL,BODY EXC. EURO2 SPECIFICATION(THN)	1-13314-031-0	01	1	0208-	●
114	PIPE ASM; OIL,BODY	1-13313-642-0	01	1	0103-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0103-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0103-1312	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	04	1	0103-		●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0103-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0103-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-753-0	01	1	0103-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (A) M14X27 FLANGE	1-09675-086-0	01	1	0103-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X42	1-09675-090-0	01	1	0103-0805	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X43 EYE-BOLT	8-98037-829-0	01	1	0806-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	05	1	0103-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	05	1	1401-	●
346	NUT; CONNECTOR M10 FLANGE	0-91150-110-0	01	1	0103-0602	●
346	NUT; CONNECTOR M10 FLANGE	0-91180-110-0	01	1	0603-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
