0-51 — OIL PUMP AND OIL STRAINER (#10412) — 95 parça

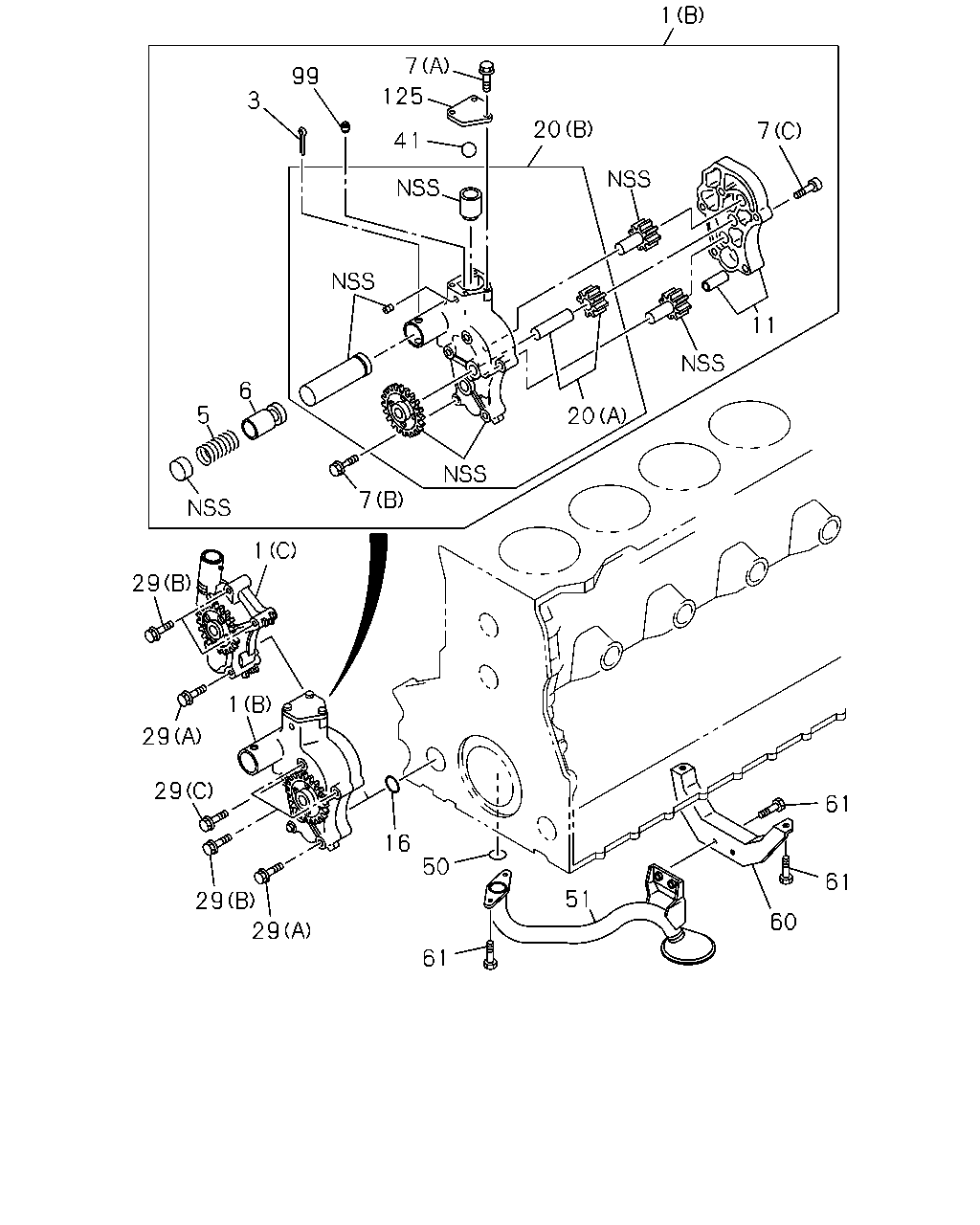

çizim 137549
1 7 20 7 125 41 99 3 11 20 7 1 6 5 29 29 29 1 29 29 16 50 61 51 60 61 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL
(A) 		1-13100-219-1 01 1 0103-0109 ●
1 PUMP ASM; OIL
(A) 		1-13100-191-2 01 1 0110- ●
1 PUMP ASM; OIL
(B) 		1-13100-297-1 01 1 0103-0203 ●
1 PUMP ASM; OIL
(B) 		1-13100-307-1 01 1 0204-0401 ●
1 PUMP ASM; OIL
(B) 		1-13100-311-0 01 1 0402-1005 ●
1 PUMP ASM; OIL
(B) 		1-13100-312-2 01 1 1006-1410 ●
1 PUMP ASM; OIL
(C) 		8-98276-988-0 01 1 1411- ●
3 PIN; SPLIT
L=60 		9-08114-060-0 01 1 0103-1410 ●
5 SPRING; COIL 1-09580-511-1 01 1 0103-1005 ●
5 SPRING; COIL 1-09580-534-0 01 1 1006-1410 ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-021-1 01 1 0103-0109 ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-018-0 01 1 0110- ●
7 BOLT; COVER,OIL PUMP
(D) M8X35 W/LK WASHER 		0-50040-835-0 04 1 0103-0512 ●
7 BOLT; COVER,OIL PUMP
(D) M8X35 W/LK WASHER 		0-50540-835-0 04 1 0601- ●
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 0103-1410 ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28181-060-0 01 1 0103-0512 ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 01 1 0601-1410 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		9-05820-835-0 02 1 0103-0211 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58310-835-0 02 1 0212-0805 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58330-835-0 02 1 0806-1410 ●
11 COVER ASM; OIL PUMP 1-13113-068-0 01 1 0103-1410 ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 0103- ●
20 GEAR; DRIVE,OIL PUMP
(C) 		1-13120-063-0 01 1 0103- ●
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-080-0 01 1 0103-1410 ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-082-1 01 1 0103-0203 ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-088-0 01 1 0204-1005 ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-089-0 01 1 1006-1410 ●
29 BOLT; OIL PUMP
(D) M10X80 		0-16806-080-0 03 1 0103-0512 ●
29 BOLT; OIL PUMP
(D) M10X80 		0-16856-080-0 03 1 0601- ●
29 BOLT; OIL PUMP
(C) 		0-59311-080-0 01 1 0103-0512 ●
29 BOLT; OIL PUMP
(C) M10X80 HEX SOCKET 		0-59331-080-0 01 1 0601-1410 ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0103-1410 ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 02 1 1411- ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 0103-1410 ●
29 BOLT; OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 02 1 1411- ●
41 BALL; OIL RELIEF VLV 1-13161-021-0 01 1 0103-1410 ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 0103- ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 0103- ●
51 STRAINER & PIPE ASM; OIL 1-13312-512-1 01 1 0103- ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-1 01 1 0103-1405 ●
51 STRAINER & PIPE ASM; OIL 8-98260-260-0 01 1 1406- ●
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 0103- ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28181-020-0 06 1 0103-0512 ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28151-020-0 06 1 0601- ●
99 PLUG; OIL PUMP 1-13163-002-0 01 1 0103-1410 ●
125 COVER; BALL 1-13163-003-0 01 1 0103-0211 ●
125 COVER; BALL 1-13163-004-0 01 1 0212-1410 ●

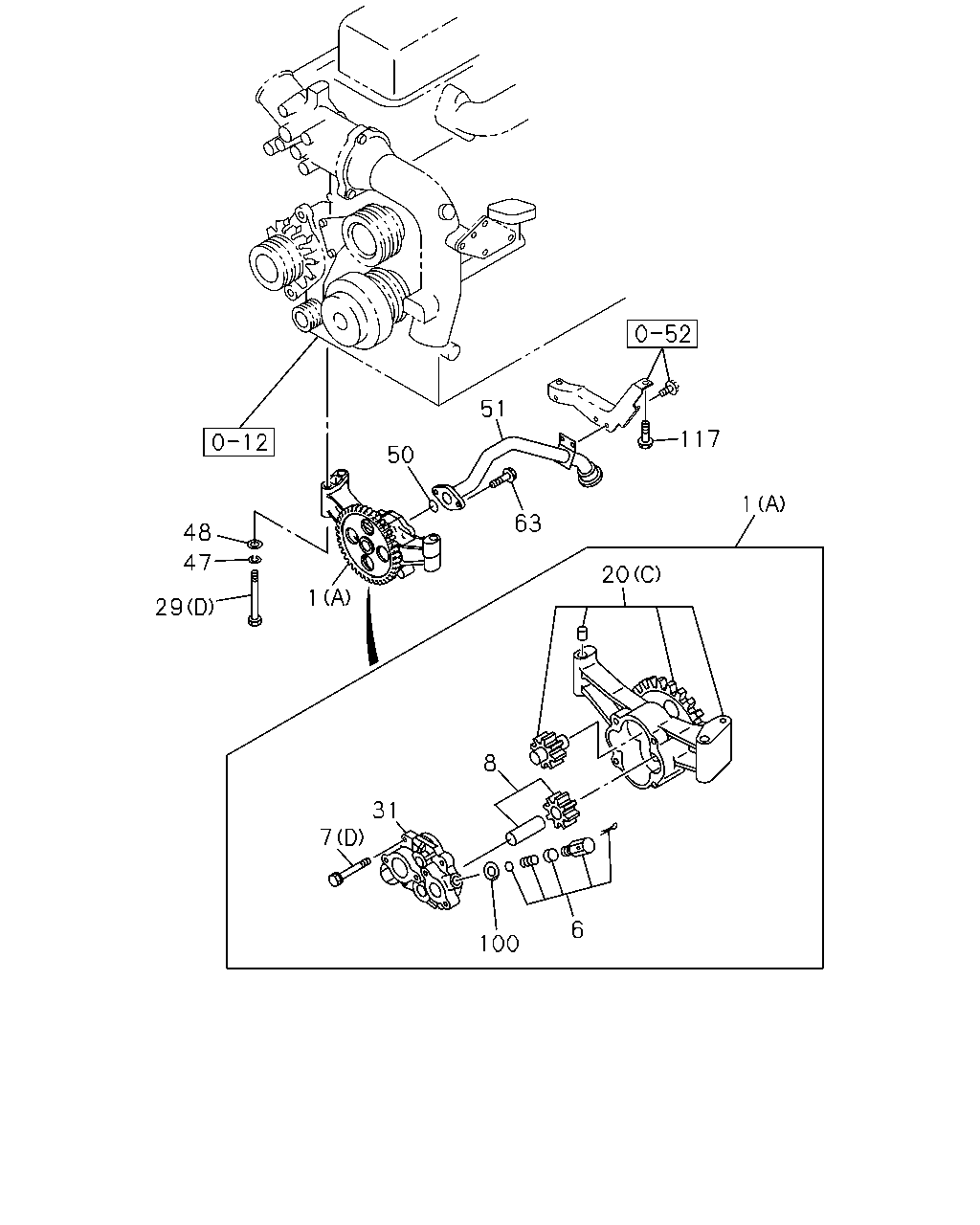

çizim 137646
51 63 117 1 50 48 29 47 1 20 8 31 7 100 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL
(A) 		1-13100-219-1 01 1 0103-0109 ●
1 PUMP ASM; OIL
(A) 		1-13100-191-2 01 1 0110- ●
1 PUMP ASM; OIL
(B) 		1-13100-297-1 01 1 0103-0203 ●
1 PUMP ASM; OIL
(B) 		1-13100-307-1 01 1 0204-0401 ●
1 PUMP ASM; OIL
(B) 		1-13100-311-0 01 1 0402-1005 ●
1 PUMP ASM; OIL
(B) 		1-13100-312-2 01 1 1006-1410 ●
1 PUMP ASM; OIL
(C) 		8-98276-988-0 01 1 1411- ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-021-1 01 1 0103-0109 ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-018-0 01 1 0110- ●
7 BOLT; COVER,OIL PUMP
(D) M8X35 W/LK WASHER 		0-50040-835-0 04 1 0103-0512 ●
7 BOLT; COVER,OIL PUMP
(D) M8X35 W/LK WASHER 		0-50540-835-0 04 1 0601- ●
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 0103-1410 ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28181-060-0 01 1 0103-0512 ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 01 1 0601-1410 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		9-05820-835-0 02 1 0103-0211 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58310-835-0 02 1 0212-0805 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58330-835-0 02 1 0806-1410 ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-059-0 01 1 0103- ●
20 GEAR; DRIVE,OIL PUMP
(C) 		1-13120-063-0 01 1 0103- ●
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-080-0 01 1 0103-1410 ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-082-1 01 1 0103-0203 ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-088-0 01 1 0204-1005 ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-089-0 01 1 1006-1410 ●
29 BOLT; OIL PUMP
(D) M10X80 		0-16806-080-0 03 1 0103-0512 ●
29 BOLT; OIL PUMP
(D) M10X80 		0-16856-080-0 03 1 0601- ●
29 BOLT; OIL PUMP
(C) 		0-59311-080-0 01 1 0103-0512 ●
29 BOLT; OIL PUMP
(C) M10X80 HEX SOCKET 		0-59331-080-0 01 1 0601-1410 ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0103-1410 ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 02 1 1411- ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 0103-1410 ●
29 BOLT; OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 02 1 1411- ●
31 COVER; OIL PUMP 1-13113-057-0 01 1 0103-0109 ●
31 COVER; OIL PUMP 1-13113-058-0 01 1 0110- ●
47 WASHER; LK,OIL PUMP
ID=10.2 		9-09150-810-0 03 1 0103-0603 ●
47 WASHER; LK,OIL PUMP
ID=10.2 		0-91510-810-0 03 1 0604- ●
48 WASHER; PL,OIL PUMP
ID=10.5 OD=22 		9-09164-610-0 03 1 0103-0605 ●
48 WASHER; PL,OIL PUMP
ID=10.5 OD=22 		0-91614-610-0 03 1 0606- ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 0103- ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 0103- ●
51 STRAINER & PIPE ASM; OIL 1-13312-512-1 01 1 0103- ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-1 01 1 0103-1405 ●
51 STRAINER & PIPE ASM; OIL 8-98260-260-0 01 1 1406- ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 FLANGE 		0-28080-820-0 02 1 0103-0512 ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
100 WASHER; LK,RELIEF VLV,OIL PUMP 1-09530-003-0 01 1 0103-0109 ●
100 WASHER; LK,RELIEF VLV,OIL PUMP
OD=34 		1-09530-004-0 01 1 0110- ●
117 BOLT; STAY TO CRANKCASE
M8X16 FLANGE 		0-28080-816-0 01 1 0103-0512 ●
117 BOLT; STAY TO CRANKCASE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
