Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#10411) — 500 parça

338 390 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	0103-	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0103-0303		●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0304-		●
390	BODY; OIL FILTER,PARTIAL (C)	1-13212-089-2	01	1	0103-	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	0103-0303		●
390	BODY; OIL FILTER,PARTIAL (D)	1-13211-284-3	01	1	0304-		●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	0103-0303		●
390	BODY; OIL FILTER,PARTIAL (E)	1-13211-285-0	01	1	0304-		●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	0103-	●
391	CARTRIDGE; OIL FILTER,PARTIAL BEST VALUE PARTS	1-87610-065-0	01	1	0103-	●

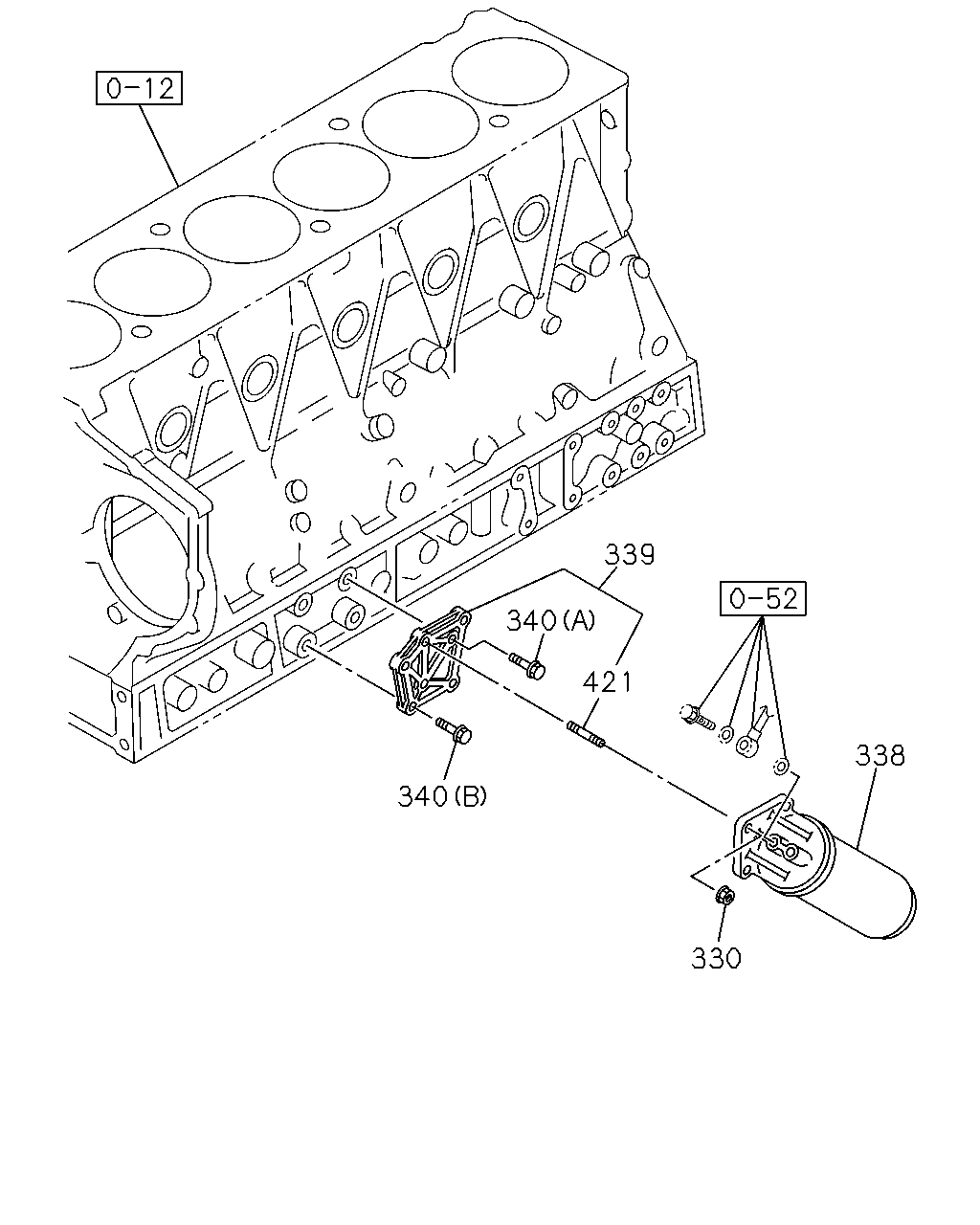

339 340 421 338 340 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
330	NUT; OIL FILTER M10 FLANGE	0-91150-210-0	03	1	0103-0602	●
330	NUT; OIL FILTER M10 FLANGE	0-91180-210-0	03	1	0603-	●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	0103-	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0103-0303		●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0304-		●
339	BRACKET; PARTIAL OIL FILTER	1-19755-175-0	01	1	0103-	●
340	BOLT; BRKT (A) M10X25 FLANGE	0-28781-025-0	01	1	0103-0512	●
340	BOLT; BRKT (A) M10X25 FLANGE	0-28751-025-0	01	1	0601-	●
340	BOLT; BRKT (B) M10X35 FLANGE	0-28781-035-0	03	1	0103-0512	●
340	BOLT; BRKT (B) M10X35 FLANGE	0-28751-035-0	03	1	0601-	●
421	STUD; BRKT,OIL FILTER M10X30 L=45	9-04411-030-0	03	1	0103-0604	●
421	STUD; BRKT,OIL FILTER M10X30 L=45	0-44011-030-0	03	1	0605-	●

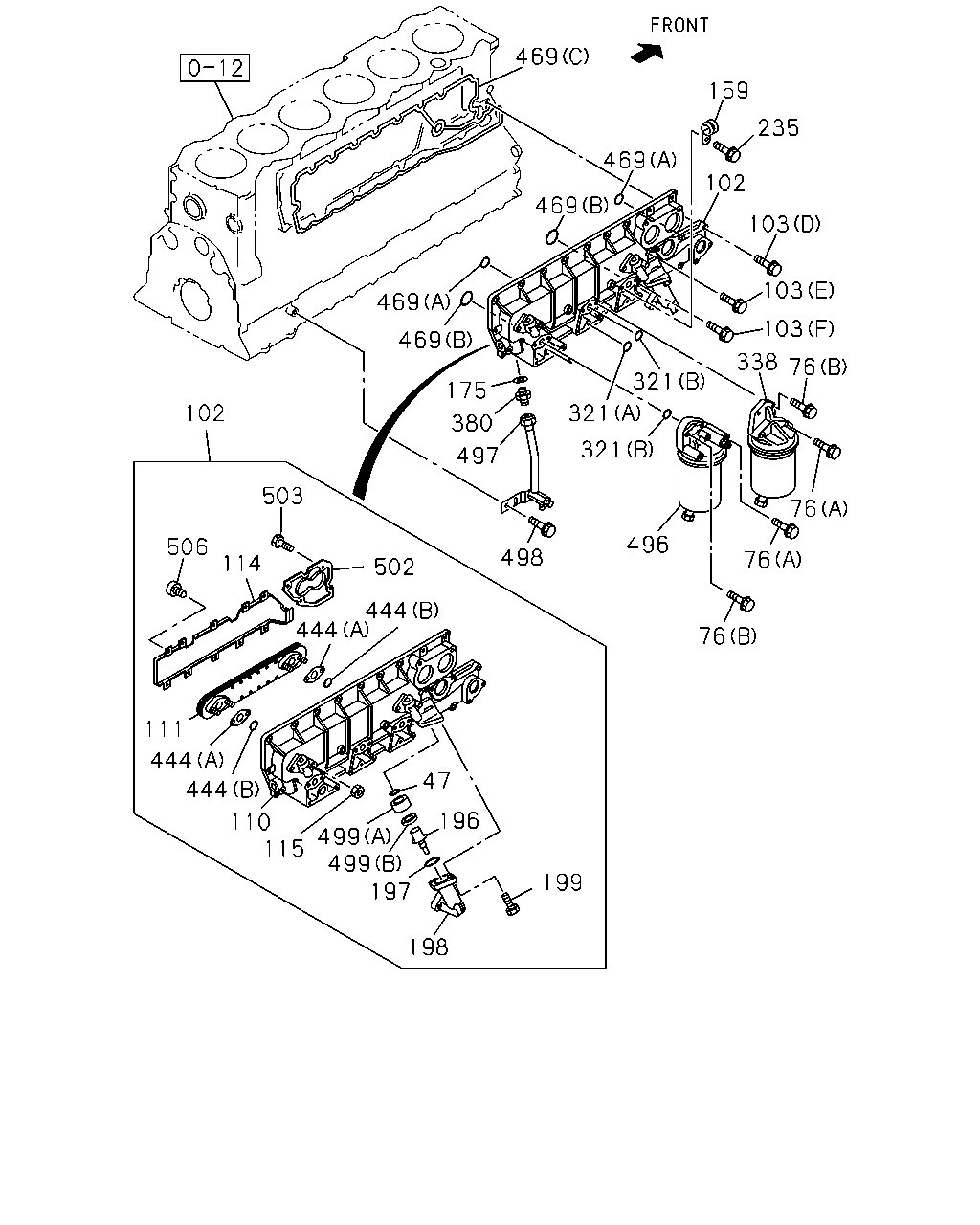

469 159 235 469 102 469 103 103 469 103 469 338 76 321 175 102 321 380 321 497 503 498 76 462 506 496 507 76 76 202 502 444 114 111 444 499 196 110 47 500 501 199 499 197 115 198 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0103-		●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0103-0512		●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-		●
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	0103-0303		●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0304-0512		●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-		●
102	COOLER ASM; OIL	1-21700-337-2	01	1	0103-0106		●
102	COOLER ASM; OIL	1-21700-320-2	01	1	0107-0501		●
102	COOLER ASM; OIL	8-97604-716-5	01	1	0502-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0103-0512	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	0103-	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0103-	●
103	BOLT; OIL COOLER (D) M10X30 FLANGE	0-28181-030-0	17	1	0103-0512		●
103	BOLT; OIL COOLER (D) M10X30 FLANGE	0-28151-030-0	17	1	0601-		●
103	BOLT; OIL COOLER (E) M10X110 FLANGE	0-28186-011-0	01	1	0103-0512		●
103	BOLT; OIL COOLER (E) M10X110 FLANGE	0-28156-011-0	01	1	0601-		●
103	BOLT; OIL COOLER (F) M10X65 FLANGE	8-94344-540-1	08	1	0103-		●
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	0103-0106		●
110	BODY; CASE,OIL COOLER	1-21721-091-7	01	1	0107-		●
111	CORE; OIL COOLER	1-21723-053-1	01	1	0103-0501		●
111	CORE; OIL COOLER	8-97606-643-1	01	1	0502-		●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0103-		●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0103-0501		●
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0502-		●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0103-		●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0103-		●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	0103-		●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0103-		●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0103-		●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	0103-0501		●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0502-		●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0103-0206		●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0401		●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0103-0512		●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0103-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0103-		●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	0103-	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0103-0303		●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0304-		●
380	CONNECTOR; WATER	1-09660-011-1	01	1	0103-		●
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0502-		●
444	GASKET; ELEMENT TO BODY (C)	1-21729-093-1	02	1	0103-0501		●
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0502-		●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0103-	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-1	01	1	0103-	●
462	CLIP; HOSE,DRAIN (C) ID=14	5-09707-004-1	01	1	0103-0401		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	1-11219-177-1	01	1	0103-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0103-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0103-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	0103-0109		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-		●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	0103-	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	0103-0303		●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-1108		●
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-		●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0103-		●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0103-0512		●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-		●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0103-		●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0103-		●
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	0103-0501		●
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	0103-0501		●
502	COVER; THERMOSTAT	1-21722-041-0	01	1	0103-0106		●
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0107-		●
503	BOLT; COVER	1-21729-089-0	04	1	0103-0501		●
503	BOLT; COVER	8-98014-763-0	04	1	0502-1112		●
503	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1201-		●
504	WASHER; PL,COVER	1-21729-090-0	04	1	0103-0501		●
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	0103-0501		●
506	SCREW; BAFFLE	1-09030-036-0	10	1	0502-1112		●
506	SCREW; BAFFLE	8-98197-829-0	10	1	1201-		●
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	0103-0501		●

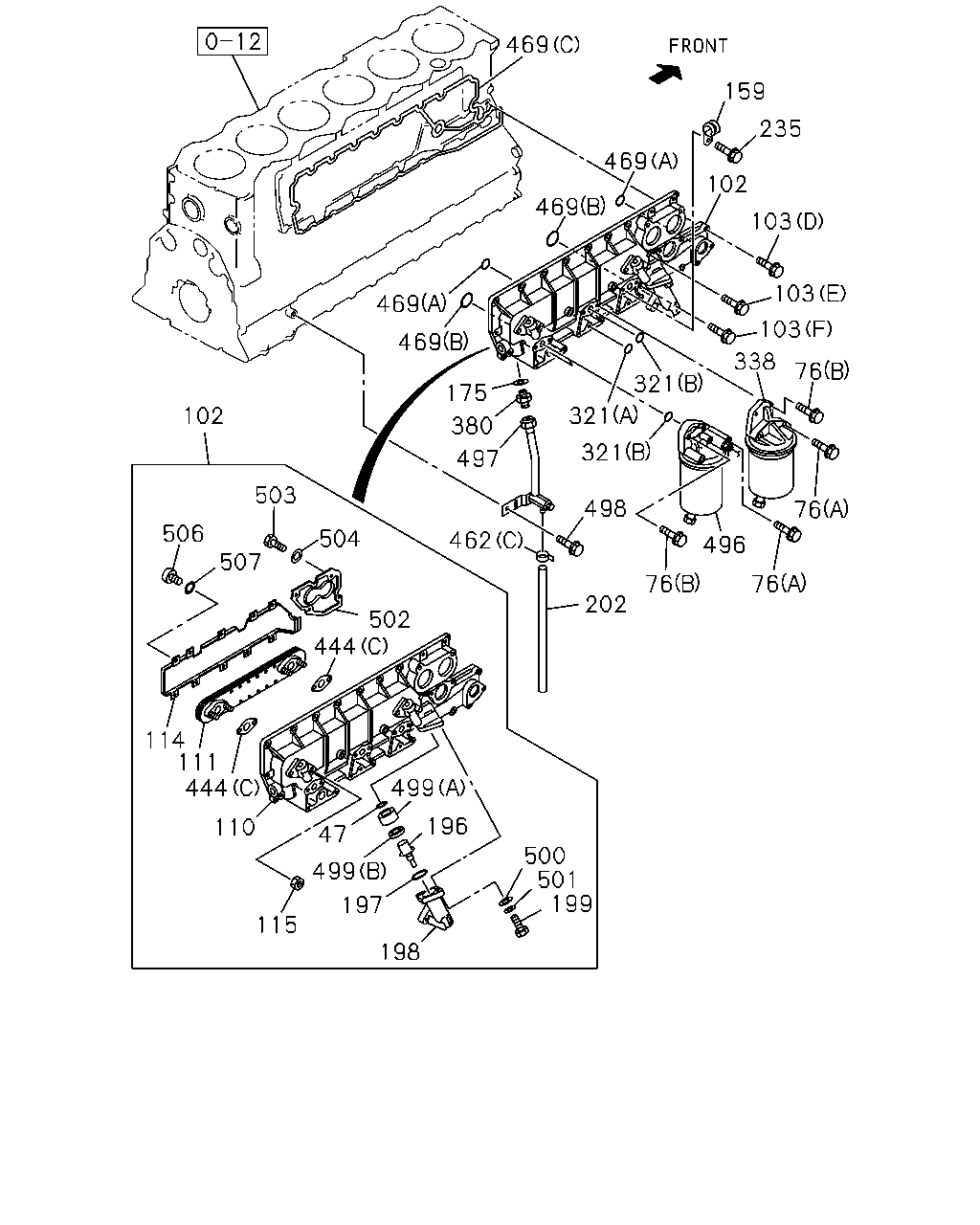

469 159 235 469 102 469 103 103 469 103 469 338 76 321 175 102 321 380 321 497 503 76 496 506 498 76 114 502 444 444 76 111 444 444 47 196 110 115 499 499 197 199 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0103-		●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0103-0512		●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-		●
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	0103-0303		●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0304-0512		●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-		●
102	COOLER ASM; OIL	1-21700-337-2	01	1	0103-0106		●
102	COOLER ASM; OIL	1-21700-320-2	01	1	0107-0501		●
102	COOLER ASM; OIL	8-97604-716-5	01	1	0502-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0103-0512	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	0103-	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0103-	●
103	BOLT; OIL COOLER (D) M10X30 FLANGE	0-28181-030-0	17	1	0103-0512		●
103	BOLT; OIL COOLER (D) M10X30 FLANGE	0-28151-030-0	17	1	0601-		●
103	BOLT; OIL COOLER (E) M10X110 FLANGE	0-28186-011-0	01	1	0103-0512		●
103	BOLT; OIL COOLER (E) M10X110 FLANGE	0-28156-011-0	01	1	0601-		●
103	BOLT; OIL COOLER (F) M10X65 FLANGE	8-94344-540-1	08	1	0103-		●
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	0103-0106		●
110	BODY; CASE,OIL COOLER	1-21721-091-7	01	1	0107-		●
111	CORE; OIL COOLER	1-21723-053-1	01	1	0103-0501		●
111	CORE; OIL COOLER	8-97606-643-1	01	1	0502-		●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0103-		●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0103-0501		●
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0502-		●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0103-		●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0103-		●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	0103-		●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0103-		●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0103-		●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	0103-0501		●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0502-		●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0103-0512		●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0103-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0103-		●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	0103-	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0103-0303		●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0304-		●
380	CONNECTOR; WATER	1-09660-011-1	01	1	0103-		●
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0502-		●
444	GASKET; ELEMENT TO BODY (C)	1-21729-093-1	02	1	0103-0501		●
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0502-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	1-11219-177-1	01	1	0103-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0103-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0103-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	0103-0109		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-		●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	0103-	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	0103-0303		●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-1108		●
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-		●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0103-		●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0103-0512		●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-		●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0103-		●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0103-		●
502	COVER; THERMOSTAT	1-21722-041-0	01	1	0103-0106		●
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0107-		●
503	BOLT; COVER	1-21729-089-0	04	1	0103-0501		●
503	BOLT; COVER	8-98014-763-0	04	1	0502-1112		●
503	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1201-		●
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	0103-0501		●
506	SCREW; BAFFLE	1-09030-036-0	10	1	0502-1112		●
506	SCREW; BAFFLE	8-98197-829-0	10	1	1201-		●

496 265 2 71 292 282 509 508 282 292 280 281 290 287 288 287 290 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (D)	1-87810-075-2	01	1	0103-	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13240-168-1	01	1	0103-	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (E) MAIN	1-13240-233-0	01	1	0304-		●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-234-0	01	1	0304-0402		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-241-0	01	1	0403-		●
2	ELEMENT; OIL FILTER (E) MAIN BEST VALUE PARTS	1-87610-167-0	01	1	0304-		●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	0103-0303		●
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	0103-	●
265	BODY; OIL FILTER	1-13211-216-1	01	1	0103-0303		●
280	CASE ASM; OIL FILTER (A)	1-13210-038-2	01	1	0103-0303		●
280	CASE ASM; OIL FILTER (B)	1-13211-282-0	01	1	0304-		●
280	CASE ASM; OIL FILTER (C)	1-13211-283-0	01	1	0304-		●
281	COVER; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-153-0	01	1	0103-	●
281	COVER; OIL FILTER	1-13211-206-1	01	1	0103-0303		●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	0103-0303		●
282	GASKET; BODY TO CASE (C)	1-09623-643-0	01	1	0304-		●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	0103-0303		●
282	GASKET; BODY TO CASE (D)	1-09623-644-0	01	1	0304-		●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13231-047-0	01	1	0103-	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	0103-0303		●
284	BOLT; CENTER,OIL FILTER (D)	1-13219-348-0	01	1	0304-1108		●
284	BOLT; CENTER,OIL FILTER (D)	8-98193-184-0	01	1	1109-		●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	0103-0303		●
284	BOLT; CENTER,OIL FILTER (E)	1-13219-349-0	01	1	0304-		●
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> (C) ID=15.5	9-09920-694-0	01	1	0103-	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	0103-0303		●
287	GASKET; CENTER BOLT (D)	1-09623-647-0	01	1	0304-		●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	0103-0303		●
287	GASKET; CENTER BOLT (E)	1-09623-648-0	01	1	0304-		●
288	PLUG; OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	0103-	●
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	0103-0303		●
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0304-		●
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> (D) ID=9.8	1-09623-055-0	01	1	0103-	●
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-550-0	02	1	0103-0303		●
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-645-0	01	1	0304-		●
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-646-0	01	1	0304-		●
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V> (D)	9-09941-283-0	01	1	0103-	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	0103-0303		●
292	SPRING; ELEMENT (F)	1-09580-563-0	01	1	0304-		●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	0103-0303		●
292	SPRING; ELEMENT (E)	1-09580-562-0	01	1	0304-		●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	0103-0303		●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	0103-	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	0103-0303		●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-1108		●
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-		●
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	0103-0303		●
508	CHAMBER ASM; SW,FILTER	1-13260-113-1	01	1	0304-0410		●
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	0411-		●
509	GASKET; SW	8-98013-480-0	01	1	0304-		●
509	GASKET; SW	1-09630-114-0	01	1	0103-0303		●

496 338 390 390 509 508 282 282 2 269 292 292 280 2 280 290 287 290 287 288 132 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (D)	1-87810-075-2	01	1	0103-	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13240-168-1	01	1	0103-	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (E) MAIN	1-13240-233-0	01	1	0304-		●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-234-0	01	1	0304-0402		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-241-0	01	1	0403-		●
2	ELEMENT; OIL FILTER (E) MAIN BEST VALUE PARTS	1-87610-167-0	01	1	0304-		●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	0103-0303		●
132	PLUG; PARTIAL OIL FILTER	1-13219-347-0	01	1	0304-		●
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	0103-0303		●
269	WASHER; ELEMENT,OIL FILTER	1-13234-007-0	01	1	0304-1109		●
280	CASE ASM; OIL FILTER (A)	1-13210-038-2	01	1	0103-0303		●
280	CASE ASM; OIL FILTER (B)	1-13211-282-0	01	1	0304-		●
280	CASE ASM; OIL FILTER (C)	1-13211-283-0	01	1	0304-		●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	0103-0303		●
282	GASKET; BODY TO CASE (C)	1-09623-643-0	01	1	0304-		●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	0103-0303		●
282	GASKET; BODY TO CASE (D)	1-09623-644-0	01	1	0304-		●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13231-047-0	01	1	0103-	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	0103-0303		●
284	BOLT; CENTER,OIL FILTER (D)	1-13219-348-0	01	1	0304-1108		●
284	BOLT; CENTER,OIL FILTER (D)	8-98193-184-0	01	1	1109-		●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	0103-0303		●
284	BOLT; CENTER,OIL FILTER (E)	1-13219-349-0	01	1	0304-		●
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> (C) ID=15.5	9-09920-694-0	01	1	0103-	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	0103-0303		●
287	GASKET; CENTER BOLT (D)	1-09623-647-0	01	1	0304-		●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	0103-0303		●
287	GASKET; CENTER BOLT (E)	1-09623-648-0	01	1	0304-		●
288	PLUG; OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	0103-	●
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	0103-0303		●
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0304-		●
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> (D) ID=9.8	1-09623-055-0	01	1	0103-	●
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-550-0	02	1	0103-0303		●
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-645-0	01	1	0304-		●
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-646-0	01	1	0304-		●
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V> (D)	9-09941-283-0	01	1	0103-	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	0103-0303		●
292	SPRING; ELEMENT (F)	1-09580-563-0	01	1	0304-		●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	0103-0303		●
292	SPRING; ELEMENT (E)	1-09580-562-0	01	1	0304-		●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	0103-0303		●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	0103-	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0103-0303		●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0304-		●
390	BODY; OIL FILTER,PARTIAL (C)	1-13212-089-2	01	1	0103-	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	0103-0303		●
390	BODY; OIL FILTER,PARTIAL (D)	1-13211-284-3	01	1	0304-		●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	0103-0303		●
390	BODY; OIL FILTER,PARTIAL (E)	1-13211-285-0	01	1	0304-		●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	0103-	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	0103-0303		●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-1108		●
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-		●
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	0103-0303		●
508	CHAMBER ASM; SW,FILTER	1-13260-113-1	01	1	0304-0410		●
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	0411-		●
509	GASKET; SW	8-98013-480-0	01	1	0304-		●
509	GASKET; SW	1-09630-114-0	01	1	0103-0303		●

338 390 2 282 282 269 292 390 290 287 290 132 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (D)	1-87810-075-2	01	1	0103-	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13240-168-1	01	1	0103-	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (E) MAIN	1-13240-233-0	01	1	0304-		●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-234-0	01	1	0304-0402		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-241-0	01	1	0403-		●
2	ELEMENT; OIL FILTER (E) MAIN BEST VALUE PARTS	1-87610-167-0	01	1	0304-		●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	0103-0303		●
132	PLUG; PARTIAL OIL FILTER	1-13219-347-0	01	1	0304-		●
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	0103-0303		●
269	WASHER; ELEMENT,OIL FILTER	1-13234-007-0	01	1	0304-1109		●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	0103-0303		●
282	GASKET; BODY TO CASE (C)	1-09623-643-0	01	1	0304-		●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	0103-0303		●
282	GASKET; BODY TO CASE (D)	1-09623-644-0	01	1	0304-		●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13231-047-0	01	1	0103-	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	0103-0303		●
284	BOLT; CENTER,OIL FILTER (D)	1-13219-348-0	01	1	0304-1108		●
284	BOLT; CENTER,OIL FILTER (D)	8-98193-184-0	01	1	1109-		●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	0103-0303		●
284	BOLT; CENTER,OIL FILTER (E)	1-13219-349-0	01	1	0304-		●
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> (C) ID=15.5	9-09920-694-0	01	1	0103-	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	0103-0303		●
287	GASKET; CENTER BOLT (D)	1-09623-647-0	01	1	0304-		●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	0103-0303		●
287	GASKET; CENTER BOLT (E)	1-09623-648-0	01	1	0304-		●
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> (D) ID=9.8	1-09623-055-0	01	1	0103-	●
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-550-0	02	1	0103-0303		●
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-645-0	01	1	0304-		●
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-646-0	01	1	0304-		●
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V> (D)	9-09941-283-0	01	1	0103-	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	0103-0303		●
292	SPRING; ELEMENT (F)	1-09580-563-0	01	1	0304-		●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	0103-0303		●
292	SPRING; ELEMENT (E)	1-09580-562-0	01	1	0304-		●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	0103-0303		●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	0103-	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0103-0303		●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0304-		●
390	BODY; OIL FILTER,PARTIAL (C)	1-13212-089-2	01	1	0103-	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	0103-0303		●
390	BODY; OIL FILTER,PARTIAL (D)	1-13211-284-3	01	1	0304-		●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	0103-0303		●
390	BODY; OIL FILTER,PARTIAL (E)	1-13211-285-0	01	1	0304-		●

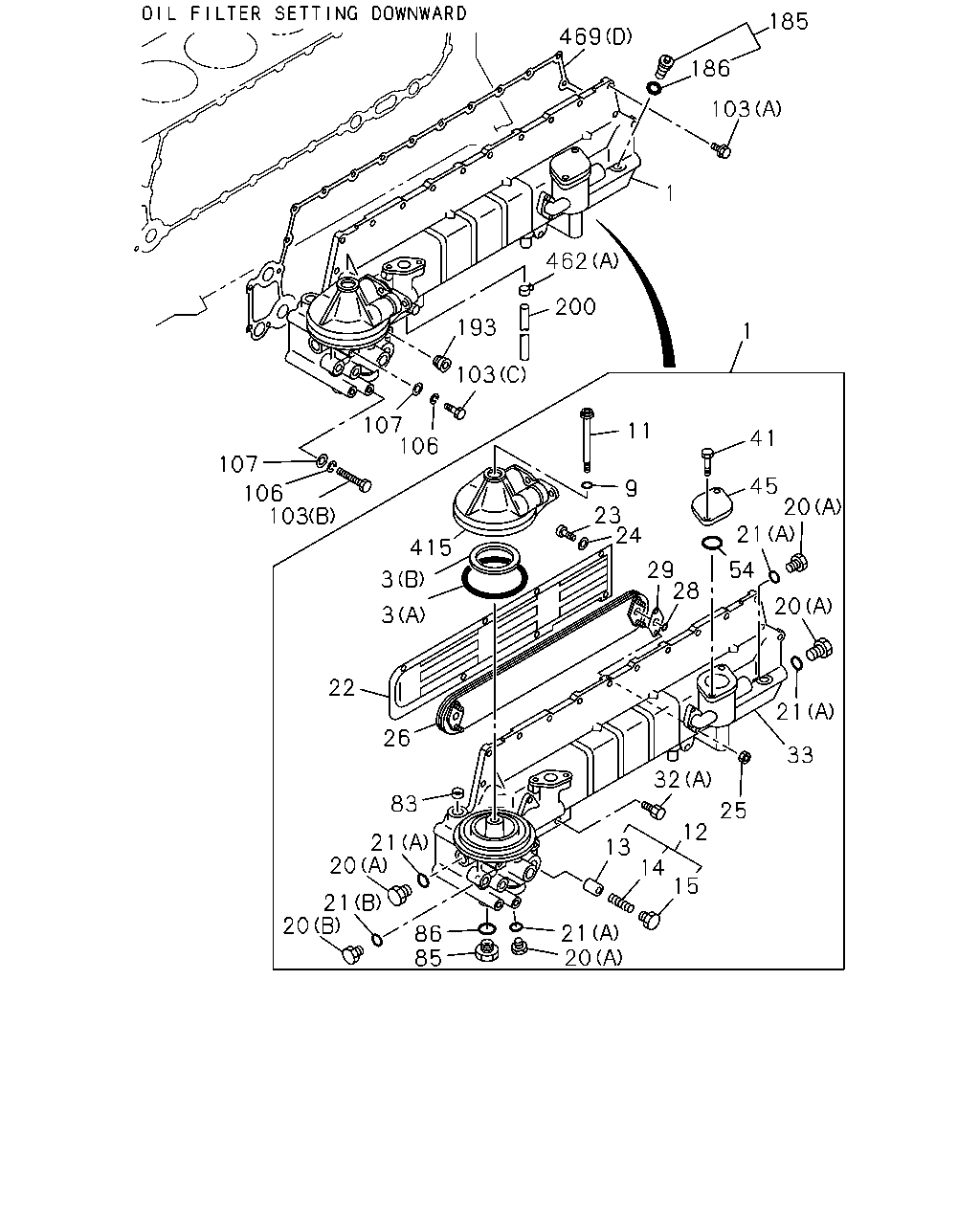

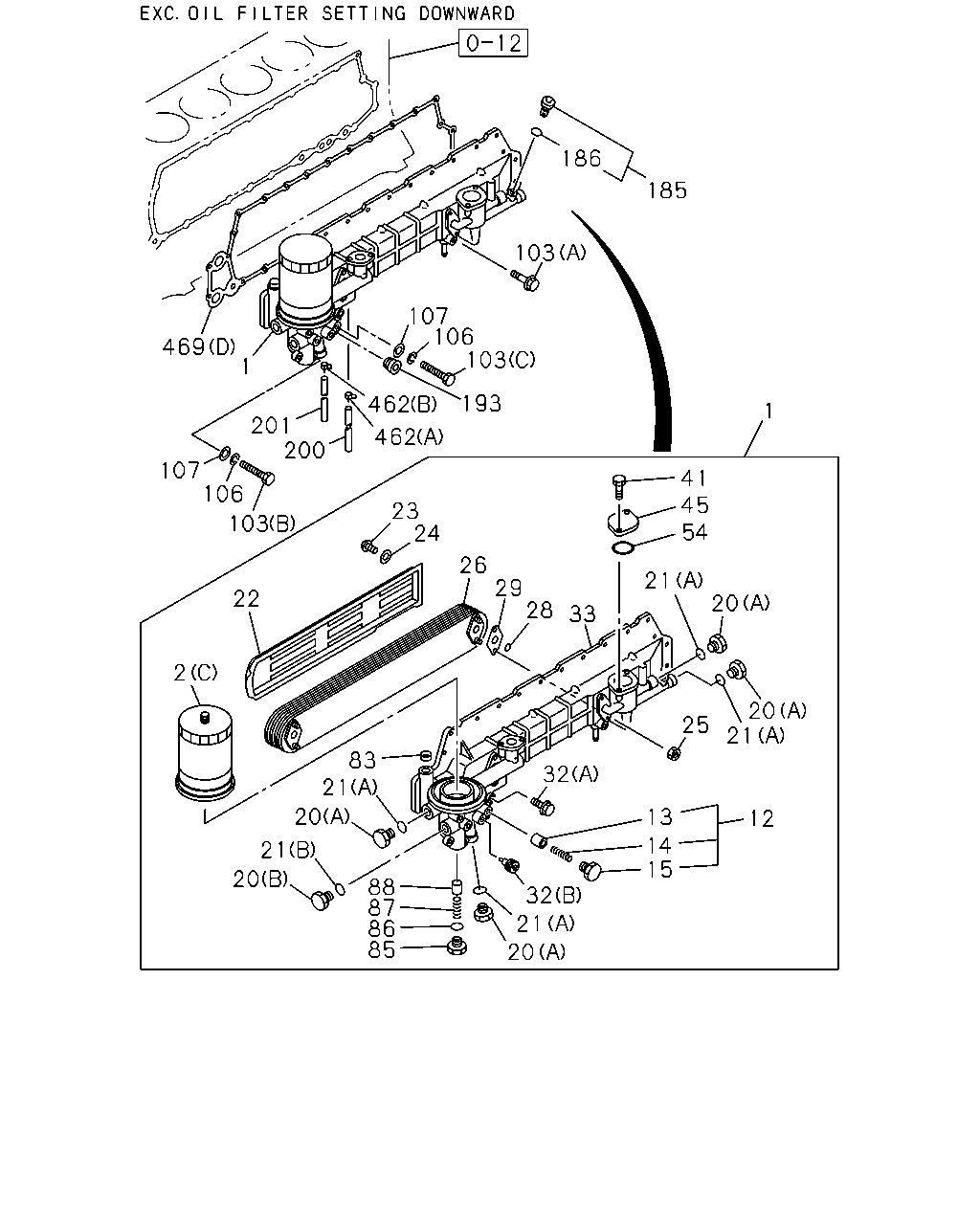

186 185 103 107 106 103 469 1 193 462 1 201 200 462 107 106 41 45 54 23 24 103 26 29 28 21 20 22 33 2 20 21 25 83 21 32 20 13 12 14 15 21 20 88 87 86 85 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-288-2	01	1	0103-0202	●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-368-0	01	1	0203-	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-936-2	01	1	0103-	●
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (D)	1-87810-075-2	01	1	0103-	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13240-168-1	01	1	0103-	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (E) MAIN	1-13240-233-0	01	1	0304-		●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-234-0	01	1	0304-0402		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-241-0	01	1	0403-		●
2	ELEMENT; OIL FILTER (E) MAIN BEST VALUE PARTS	1-87610-167-0	01	1	0304-		●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0103-	●
13	VALVE; RELIEF	9-13262-010-0	01	1	0103-	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	0103-	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	0103-	●
20	PLUG; COOLER BODY (A) M26	1-13219-153-0	04	1	0103-	●
20	PLUG; COOLER BODY (B) M24	1-13219-356-0	01	1	0103-	●
21	GASKET; PLUG (A) M26	1-13219-159-0	04	1	0103-	●
21	GASKET; PLUG (B) M24	8-94396-755-0	01	1	0103-	●
22	GUIDE; WATER	1-13219-155-1	01	1	0103-	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	0103-	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	0103-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0103-	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0103-	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0103-	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	0103-	●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0103-	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-1	01	1	0103-	●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-311-0	01	1	0103-0202	●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-323-0	01	1	0203-	●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-308-0	01	1	0103-	●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0103-	●
45	COVER; OIL PORT	1-13219-172-0	01	1	0103-	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	0103-	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	0103-	●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	0103-	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	0103-	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	0103-	●
87	SPRING; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-148-0	01	1	0103-	●
88	VALVE; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-13262-009-0	01	1	0103-	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0103-0512	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	0103-	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0103-	●
103	BOLT; OIL COOLER (D) M10X30 FLANGE	0-28181-030-0	17	1	0103-0512		●
103	BOLT; OIL COOLER (D) M10X30 FLANGE	0-28151-030-0	17	1	0601-		●
103	BOLT; OIL COOLER (E) M10X110 FLANGE	0-28186-011-0	01	1	0103-0512		●
103	BOLT; OIL COOLER (E) M10X110 FLANGE	0-28156-011-0	01	1	0601-		●
103	BOLT; OIL COOLER (F) M10X65 FLANGE	8-94344-540-1	08	1	0103-		●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	02	1	0103-0603	●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	02	1	0604-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0103-0605	●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0103-	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0103-	●
193	PLUG; TAPER PT3/8 T=8.0	1-09605-066-0	01	1	0103-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	0103-0206	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-	●
201	PIPE; VINYL,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0103-	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0103-	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-1	01	1	0103-	●
462	CLIP; HOSE,DRAIN (C) ID=14	5-09707-004-1	01	1	0103-0401		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	1-11219-177-1	01	1	0103-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0103-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0103-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	0103-0109		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-		●

185 469 186 103 1 462 200 193 1 103 107 106 11 41 107 45 20 21 9 23 24 106 103 415 29 28 54 3 20 3 22 21 26 33 32 83 25 12 21 20 13 14 15 21 20 86 85 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-288-2	01	1	0103-0202	●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-368-0	01	1	0203-	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-936-2	01	1	0103-	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (A)	1-09623-352-0	01	1	0103-	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (B)	1-09630-109-0	01	1	0103-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	0103-	●
11	BOLT; CENTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-062-0	01	1	0103-	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0103-	●
13	VALVE; RELIEF	9-13262-010-0	01	1	0103-	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	0103-	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	0103-	●
20	PLUG; COOLER BODY (A) M26	1-13219-153-0	04	1	0103-	●
20	PLUG; COOLER BODY (B) M24	1-13219-356-0	01	1	0103-	●
21	GASKET; PLUG (A) M26	1-13219-159-0	04	1	0103-	●
21	GASKET; PLUG (B) M24	8-94396-755-0	01	1	0103-	●
22	GUIDE; WATER	1-13219-155-1	01	1	0103-	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	0103-	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	0103-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0103-	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0103-	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0103-	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	0103-	●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0103-	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-1	01	1	0103-	●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-311-0	01	1	0103-0202	●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-323-0	01	1	0203-	●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-308-0	01	1	0103-	●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0103-	●
45	COVER; OIL PORT	1-13219-172-0	01	1	0103-	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	0103-	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	0103-	●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	0103-	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	0103-	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	0103-	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0103-0512	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	0103-	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0103-	●
103	BOLT; OIL COOLER (D) M10X30 FLANGE	0-28181-030-0	17	1	0103-0512		●
103	BOLT; OIL COOLER (D) M10X30 FLANGE	0-28151-030-0	17	1	0601-		●
103	BOLT; OIL COOLER (E) M10X110 FLANGE	0-28186-011-0	01	1	0103-0512		●
103	BOLT; OIL COOLER (E) M10X110 FLANGE	0-28156-011-0	01	1	0601-		●
103	BOLT; OIL COOLER (F) M10X65 FLANGE	8-94344-540-1	08	1	0103-		●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	02	1	0103-0603	●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	02	1	0604-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0103-0605	●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0103-	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0103-	●
193	PLUG; TAPER PT3/8 T=8.0	1-09605-066-0	01	1	0103-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	0103-0206	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-	●
415	COVER; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-21722-031-0	01	1	0103-	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0103-	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-1	01	1	0103-	●
462	CLIP; HOSE,DRAIN (C) ID=14	5-09707-004-1	01	1	0103-0401		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	1-11219-177-1	01	1	0103-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0103-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0103-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	0103-0109		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-		●

1 188 496 410 304 410 304 265 304 188 304 283 410 410 328 328 293 292 496 281 283 287 284 2 287 290 290 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-288-2	01	1	0103-0202	●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-368-0	01	1	0203-	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-936-2	01	1	0103-	●
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (D)	1-87810-075-2	01	1	0103-	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13240-168-1	01	1	0103-	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (E) MAIN	1-13240-233-0	01	1	0304-		●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0103-0303		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-234-0	01	1	0304-0402		●
2	ELEMENT; OIL FILTER (F) PARTIAL	1-13240-241-0	01	1	0403-		●
2	ELEMENT; OIL FILTER (E) MAIN BEST VALUE PARTS	1-87610-167-0	01	1	0304-		●
188	PIPE; BYPASS OIL FILTER SETTING DOWNWARD<E7V>	1-13312-650-0	02	1	0103-	●
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	0103-	●
265	BODY; OIL FILTER	1-13211-216-1	01	1	0103-0303		●
281	COVER; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-153-0	01	1	0103-	●
281	COVER; OIL FILTER	1-13211-206-1	01	1	0103-0303		●
283	GASKET; BODY TO COVER OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-170-0	01	1	0103-	●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (C)	1-13231-047-0	01	1	0103-	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	0103-0303		●
284	BOLT; CENTER,OIL FILTER (D)	1-13219-348-0	01	1	0304-1108		●
284	BOLT; CENTER,OIL FILTER (D)	8-98193-184-0	01	1	1109-		●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	0103-0303		●
284	BOLT; CENTER,OIL FILTER (E)	1-13219-349-0	01	1	0304-		●
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> (C) ID=15.5	9-09920-694-0	01	1	0103-	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	0103-0303		●
287	GASKET; CENTER BOLT (D)	1-09623-647-0	01	1	0304-		●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	0103-0303		●
287	GASKET; CENTER BOLT (E)	1-09623-648-0	01	1	0304-		●
288	PLUG; OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	0103-	●
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	0103-0303		●
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0304-		●
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> (D) ID=9.8	1-09623-055-0	01	1	0103-	●
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-550-0	02	1	0103-0303		●
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-645-0	01	1	0304-		●
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-646-0	01	1	0304-		●
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V> (D)	9-09941-283-0	01	1	0103-	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	0103-0303		●
292	SPRING; ELEMENT (F)	1-09580-563-0	01	1	0304-		●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	0103-0303		●
292	SPRING; ELEMENT (E)	1-09580-562-0	01	1	0304-		●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	0103-0303		●
293	SEAT; SPR OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	01	1	0103-	●
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28080-820-0	08	1	0103-0512	●
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28050-820-0	08	1	0601-	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE	0-28186-014-0	02	1	0103-0512	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE	0-28156-014-0	02	1	0601-	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE	0-28781-035-0	01	1	0103-0512	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-	●
410	GASKET OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-450-0	04	1	0103-	●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	0103-	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	0103-0303		●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-1108		●
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
