◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10852 - LV123/150-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶

0-42 — FUEL PUMP AND PIPE (#10410) — 148 parça

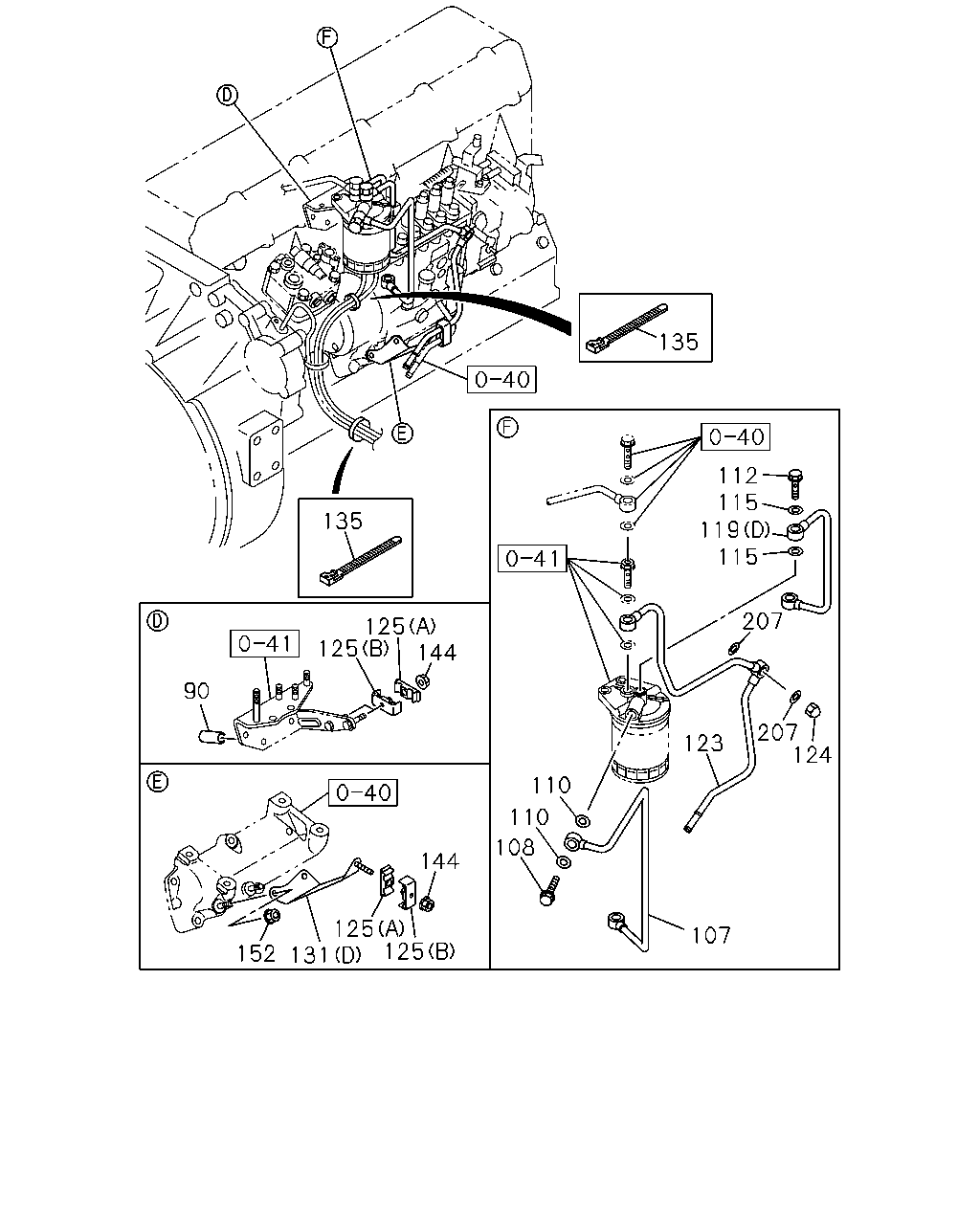

135 112 115 119 115 135 207 125 125 144 90 207 124 123 110 110 108 144 125 131 125 107 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	TUBE; DIST L=43	1-14149-048-1	01	1	0103-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION(THN)	1-15415-950-0	01	1	0103-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION(THN)	1-15415-779-0	01	1	0103-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0103-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0103-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0103-	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0103-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION(THN) (D)	1-15415-951-0	01	1	0103-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION(THN) (C)	1-15415-776-0	01	1	0103-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0103-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0103-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION(THN)	1-15415-952-1	01	1	0103-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION(THN)	1-15415-775-1	01	1	0103-	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0103-	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0103-	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION(THN) (B) ID=9 & 9 L=25	8-94393-280-1	03	1	0103-0106	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	03	1	0107-	●
125	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION(THN) (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0103-	●
125	CLIP; FUEL PIPE (C) ID=9 & 9 L=25	8-94393-280-3	06	1	0103-		●
131	BRACKET; FUEL PIPE CLIP (D)	1-82698-047-0	01	1	0103-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	0103-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	0103-		●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	0103-		●
135	CLIP; HARNESS L=250	5-09707-030-1	01	1	0103-1205	●
135	CLIP; HARNESS L=250	8-98216-430-0	01	1	1206-	●
135	CLIP; HARNESS L=140	5-09707-031-1	01	1	0103-1205	●
135	CLIP; HARNESS L=140	8-98216-431-0	01	1	1206-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	0103-0602	●
144	NUT; CLIP M6 FLANGE	0-91180-106-0	03	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0103-0602		●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0103-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●

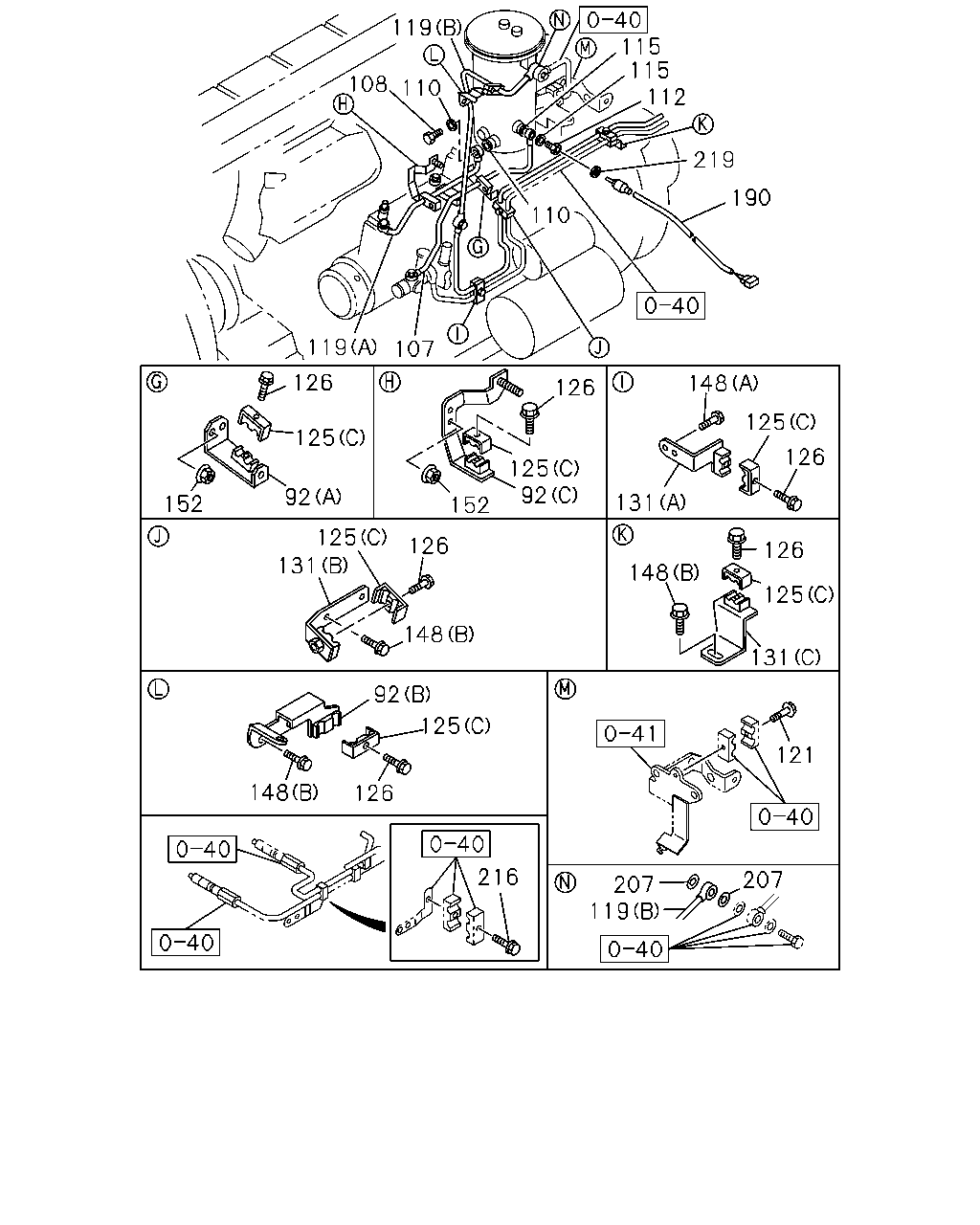

115 115 112 119 108 110 219 190 110 119 107 126 148 126 125 125 126 125 92 92 131 152 152 125 126 126 131 148 125 148 131 92 125 121 148 126 216 207 207 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	BRACKET; FUEL PIPE EXC. EURO2 SPECIFICATION(THN) (D)	1-15419-433-0	01	1	0103-	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	0103-		●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	0103-		●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	0103-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION(THN)	1-15415-950-0	01	1	0103-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION(THN)	1-15415-779-0	01	1	0103-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0103-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0103-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0103-	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0103-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION(THN) (D)	1-15415-951-0	01	1	0103-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION(THN) (C)	1-15415-776-0	01	1	0103-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0103-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0103-		●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0103-0512		●
121	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-		●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0103-	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION(THN) (B) ID=9 & 9 L=25	8-94393-280-1	03	1	0103-0106	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	03	1	0107-	●
125	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION(THN) (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0103-	●
125	CLIP; FUEL PIPE (C) ID=9 & 9 L=25	8-94393-280-3	06	1	0103-		●
126	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28080-635-0	01	1	0103-0512	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0103-0512		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-		●
131	BRACKET; FUEL PIPE CLIP (D)	1-82698-047-0	01	1	0103-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	0103-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	0103-		●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	0103-		●
148	BOLT; BRKT EXC. EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28080-825-0	02	1	0103-0512	●
148	BOLT; BRKT EXC. EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512		●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0103-0512		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0103-0602		●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
190	SENSOR; FUEL TEMP	1-81535-036-7	01	1	0103-		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0103-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	0103-0512		●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0103-1312		●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●

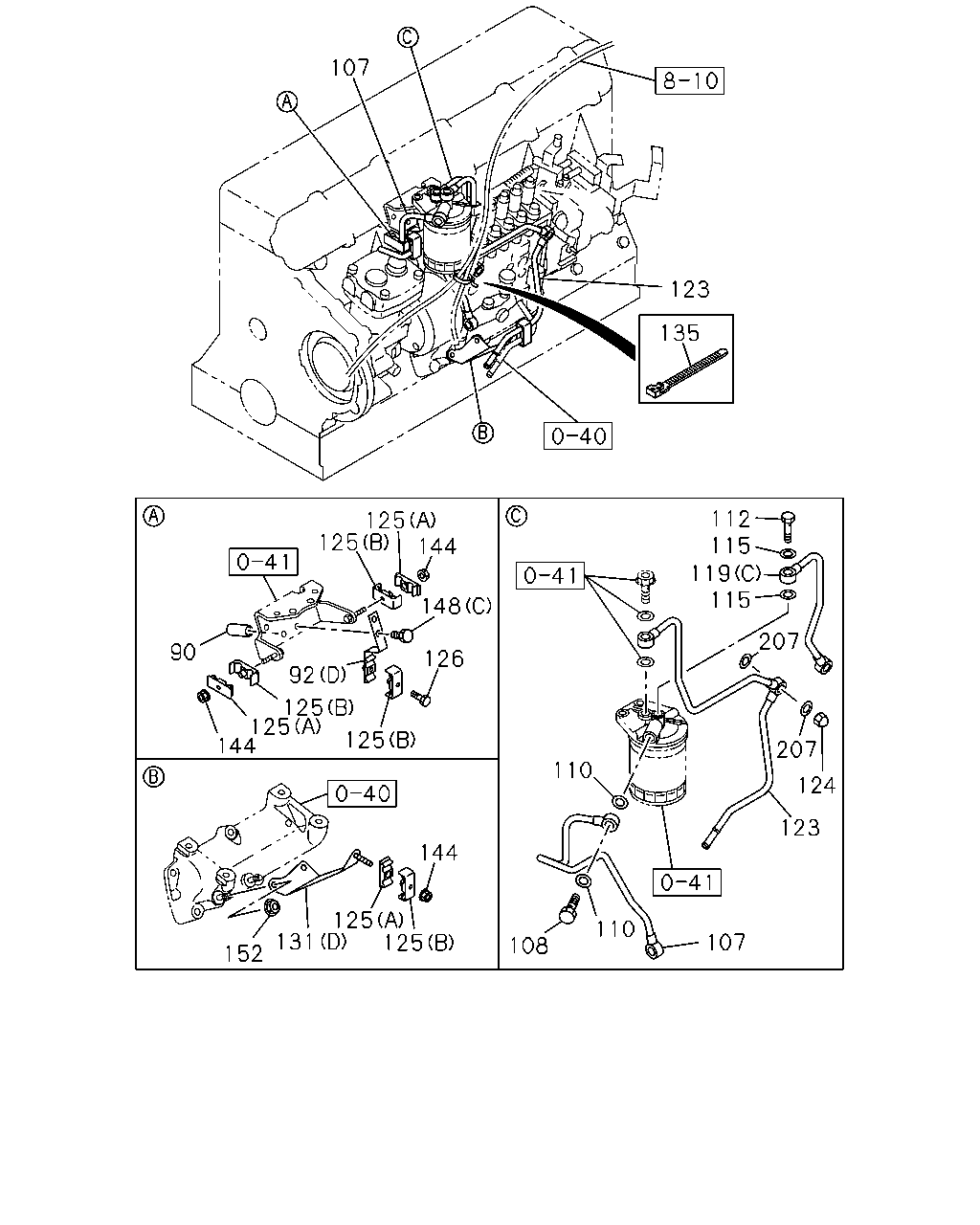

107 123 135 112 115 119 115 125 125 144 148 207 90 126 92 125 125 144 125 207 110 124 123 144 125 131 125 110 107 108 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	TUBE; DIST L=43	1-14149-048-1	01	1	0103-	●
92	BRACKET; FUEL PIPE EXC. EURO2 SPECIFICATION(THN) (D)	1-15419-433-0	01	1	0103-	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	0103-		●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	0103-		●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	0103-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION(THN)	1-15415-950-0	01	1	0103-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION(THN)	1-15415-779-0	01	1	0103-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0103-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0103-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0103-	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0103-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION(THN) (D)	1-15415-951-0	01	1	0103-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION(THN) (C)	1-15415-776-0	01	1	0103-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0103-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0103-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION(THN)	1-15415-952-1	01	1	0103-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION(THN)	1-15415-775-1	01	1	0103-	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0103-	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0103-	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION(THN) (B) ID=9 & 9 L=25	8-94393-280-1	03	1	0103-0106	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	03	1	0107-	●
125	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION(THN) (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0103-	●
125	CLIP; FUEL PIPE (C) ID=9 & 9 L=25	8-94393-280-3	06	1	0103-		●
126	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28080-635-0	01	1	0103-0512	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0103-0512		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-		●
131	BRACKET; FUEL PIPE CLIP (D)	1-82698-047-0	01	1	0103-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	0103-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	0103-		●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	0103-		●
135	CLIP; HARNESS L=250	5-09707-030-1	01	1	0103-1205	●
135	CLIP; HARNESS L=250	8-98216-430-0	01	1	1206-	●
135	CLIP; HARNESS L=140	5-09707-031-1	01	1	0103-1205	●
135	CLIP; HARNESS L=140	8-98216-431-0	01	1	1206-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	0103-0602	●
144	NUT; CLIP M6 FLANGE	0-91180-106-0	03	1	0603-	●
148	BOLT; BRKT EXC. EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28080-825-0	02	1	0103-0512	●
148	BOLT; BRKT EXC. EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512		●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0103-0512		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0103-0602		●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0103-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
