0-51 — OIL PUMP AND OIL STRAINER (#1041) — 80 parça

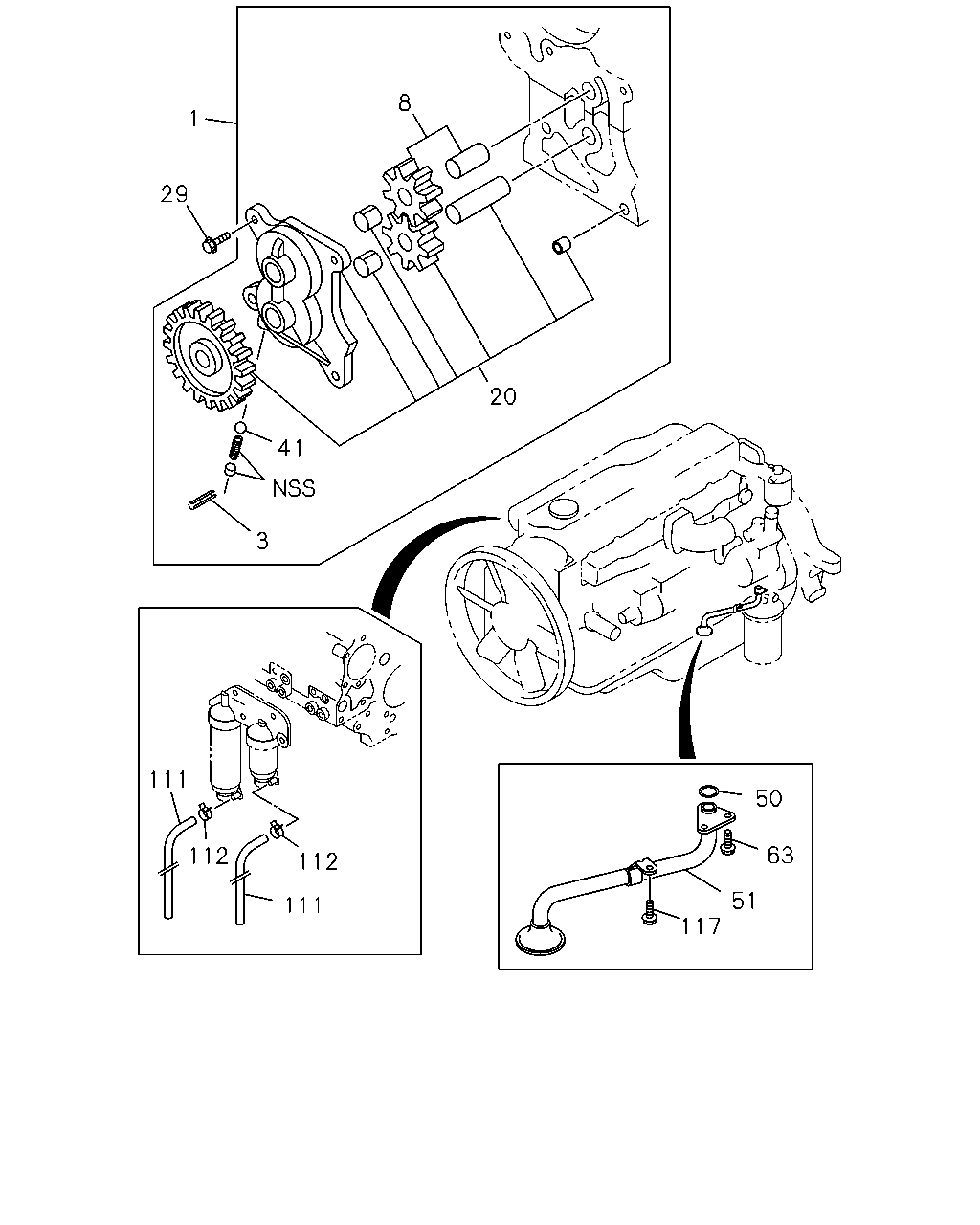

çizim 92445
8 1 29 20 41 3 111 50 63 112 112 51 111 117
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL 1-13100-220-0 01 1 9202-9407 ●
1 PUMP ASM; OIL
EXC. THERMOSTAT VAR 1<Q1U> 		1-13100-220-0 01 1 9408- ●
1 PUMP ASM; OIL 1-13100-209-3 01 1 9202-9407 ●
1 PUMP ASM; OIL
THERMOSTAT VAR 1<Q1U> 		1-13100-209-3 01 1 9408- ●
1 PUMP ASM; OIL 1-13100-209-3 01 1 9408- ●
1 PUMP ASM; OIL 8-94393-830-3 01 1 9202- ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9202- ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-043-0 01 1 9202-9407 ●
8 GEAR; DRIVEN,OIL PUMP
EXC. THERMOSTAT VAR 1<Q1U> 		1-13120-043-0 01 1 9408- ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-059-0 01 1 9202-9407 ●
8 GEAR; DRIVEN,OIL PUMP
THERMOSTAT VAR 1<Q1U> 		1-13120-059-0 01 1 9408- ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-059-0 01 1 9408- ●
8 GEAR; DRIVEN,OIL PUMP 8-94393-834-0 01 1 9202- ●
20 GEAR; DRIVE,OIL PUMP 1-13120-066-0 01 1 9202-9407 ●
20 GEAR; DRIVE,OIL PUMP
EXC. THERMOSTAT VAR 1<Q1U> 		1-13120-066-0 01 1 9408- ●
20 GEAR; DRIVE,OIL PUMP 1-13120-070-0 01 1 9202-9407 ●
20 GEAR; DRIVE,OIL PUMP
THERMOSTAT VAR 1<Q1U> 		1-13120-070-0 01 1 9408- ●
20 GEAR; DRIVE,OIL PUMP 1-13120-070-0 01 1 9408- ●
20 GEAR; DRIVE,OIL PUMP 8-94393-831-3 01 1 9202- ●
29 BOLT; OIL PUMP
M10X70 		0-16806-070-0 03 1 9202- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9202- ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9202- ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 9202- ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9202- ●
51 STRAINER & PIPE ASM; OIL 1-13313-112-0 01 1 9202- ●
51 STRAINER & PIPE ASM; OIL 1-13312-808-2 01 1 9202- ●
51 STRAINER & PIPE ASM; OIL 8-94396-067-0 01 1 9202- ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9202- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9202- ●
111 HOSE; OIL DRAIN 8-94396-950-0 02 1 9202-9211 ●
111 HOSE; OIL DRAIN
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> 		8-94396-950-0 02 1 9212- ●
112 CLIP; HOSE,OIL DRAIN
ID=14 		5-09707-004-1 02 1 9202-9211 ●
112 CLIP; HOSE,OIL DRAIN
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=14 		5-09707-004-1 02 1 9212- ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9202- ●

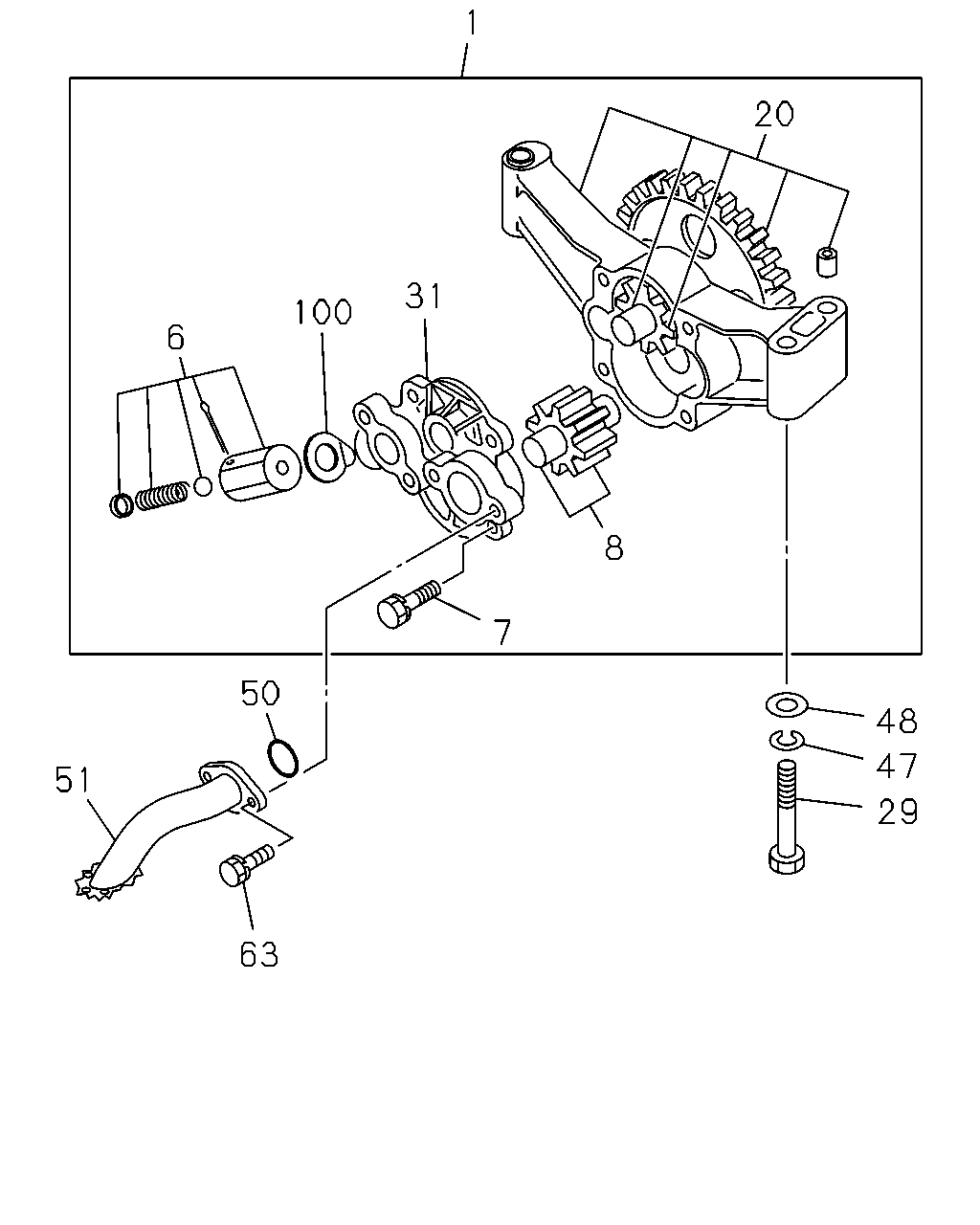

çizim 92495
1 20 31 100 6 8 7 50 48 47 51 29 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL 1-13100-220-0 01 1 9202-9407 ●
1 PUMP ASM; OIL
EXC. THERMOSTAT VAR 1<Q1U> 		1-13100-220-0 01 1 9408- ●
1 PUMP ASM; OIL 1-13100-209-3 01 1 9202-9407 ●
1 PUMP ASM; OIL
THERMOSTAT VAR 1<Q1U> 		1-13100-209-3 01 1 9408- ●
1 PUMP ASM; OIL 1-13100-209-3 01 1 9408- ●
1 PUMP ASM; OIL 8-94393-830-3 01 1 9202- ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-018-0 01 1 9202-9407 ●
6 VALVE ASM; RELIEF,OIL PUMP
EXC. THERMOSTAT VAR 1<Q1U> 		1-13160-018-0 01 1 9408- ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-021-1 01 1 9202-9407 ●
6 VALVE ASM; RELIEF,OIL PUMP
THERMOSTAT VAR 1<Q1U> 		1-13160-021-1 01 1 9408- ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-021-1 01 1 9408- ●
7 BOLT; COVER,OIL PUMP
M8X35 W/LK WASHER 		0-50040-835-0 04 1 9202- ● ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-043-0 01 1 9202-9407 ●
8 GEAR; DRIVEN,OIL PUMP
EXC. THERMOSTAT VAR 1<Q1U> 		1-13120-043-0 01 1 9408- ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-059-0 01 1 9202-9407 ●
8 GEAR; DRIVEN,OIL PUMP
THERMOSTAT VAR 1<Q1U> 		1-13120-059-0 01 1 9408- ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-059-0 01 1 9408- ●
8 GEAR; DRIVEN,OIL PUMP 8-94393-834-0 01 1 9202- ●
20 GEAR; DRIVE,OIL PUMP 1-13120-066-0 01 1 9202-9407 ●
20 GEAR; DRIVE,OIL PUMP
EXC. THERMOSTAT VAR 1<Q1U> 		1-13120-066-0 01 1 9408- ●
20 GEAR; DRIVE,OIL PUMP 1-13120-070-0 01 1 9202-9407 ●
20 GEAR; DRIVE,OIL PUMP
THERMOSTAT VAR 1<Q1U> 		1-13120-070-0 01 1 9408- ●
20 GEAR; DRIVE,OIL PUMP 1-13120-070-0 01 1 9408- ●
20 GEAR; DRIVE,OIL PUMP 8-94393-831-3 01 1 9202- ●
29 BOLT; OIL PUMP
M10X70 		0-16806-070-0 03 1 9202- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9202- ●
31 COVER; OIL PUMP 1-13113-058-0 01 1 9202-9407 ●
31 COVER; OIL PUMP
EXC. THERMOSTAT VAR 1<Q1U> 		1-13113-058-0 01 1 9408- ●
31 COVER; OIL PUMP 1-13113-057-0 01 1 9202-9407 ●
31 COVER; OIL PUMP
THERMOSTAT VAR 1<Q1U> 		1-13113-057-0 01 1 9408- ●
31 COVER; OIL PUMP 1-13113-057-0 01 1 9408- ●
47 WASHER; LK,OIL PUMP
ID=10.2 		9-09150-610-0 03 1 9202-9508 ● ●
47 WASHER; LK,OIL PUMP
ID=10.2 		9-09150-810-0 03 1 9509- ● ●
48 WASHER; PL,OIL PUMP
ID=10.5 OD=22 		9-09164-610-0 03 1 9202- ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 9202- ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9202- ●
51 STRAINER & PIPE ASM; OIL 1-13313-112-0 01 1 9202- ●
51 STRAINER & PIPE ASM; OIL 1-13312-808-2 01 1 9202- ●
51 STRAINER & PIPE ASM; OIL 8-94396-067-0 01 1 9202- ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9202- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9202- ●
100 WASHER; LK,RELIEF VLV,OIL PUMP
OD=32 		1-09530-002-0 01 1 9202-9407 ●
100 WASHER; LK,RELIEF VLV,OIL PUMP
EXC. THERMOSTAT VAR 1<Q1U> OD=32 		1-09530-002-0 01 1 9408- ●
100 WASHER; LK,RELIEF VLV,OIL PUMP 1-09530-003-0 01 1 9202-9407 ●
100 WASHER; LK,RELIEF VLV,OIL PUMP
THERMOSTAT VAR 1<Q1U> 		1-09530-003-0 01 1 9408- ●
100 WASHER; LK,RELIEF VLV,OIL PUMP 1-09530-003-0 01 1 9408- ●
