Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#10408) — 386 parça

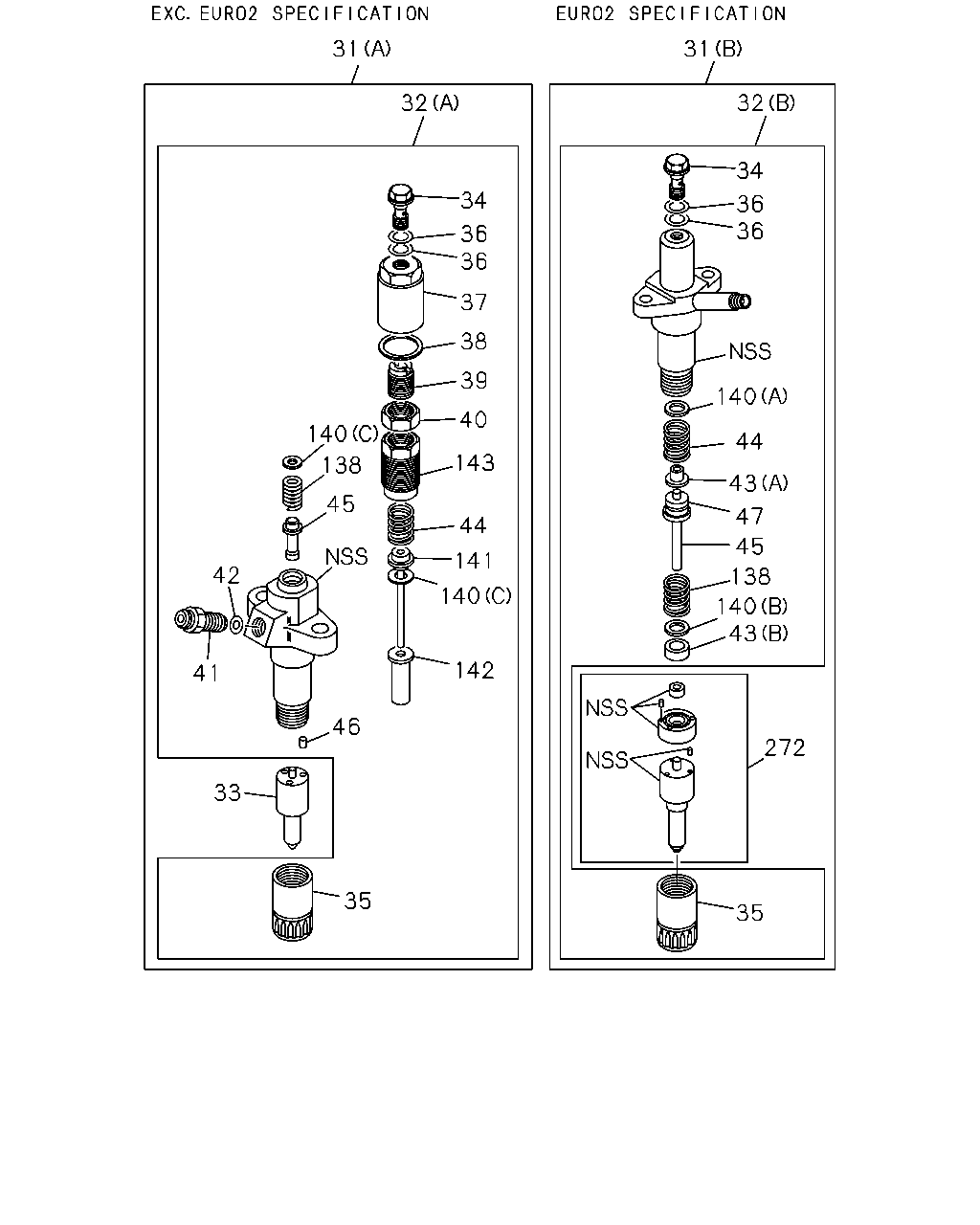

31 32 42 140 44 45 46 47 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-15300-359-0	06	1	0103-	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (B)	1-15300-369-0	06	1	0103-	●
31	NOZZLE ASM; INJ OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN) (B)	1-15300-369-0	06	1	0103-	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION(THN) (A)	1-15300-332-0	06	1	0103-	●
31	NOZZLE ASM; INJ (C)	1-15300-358-1	06	1	0103-		●
32	HOLDER ASM; NOZZLE EURO2 SPECIFICATION(THN) (B)	1-15330-119-0	06	1	0103-	●
32	HOLDER ASM; NOZZLE EXC. EURO2 SPECIFICATION(THN) (A)	1-15330-054-1	06	1	0103-	●
32	HOLDER ASM; NOZZLE (C)	1-15330-114-0	06	1	0103-		●
33	NOZZLE; INJ EXC. EURO2 SPECIFICATION(THN)	1-15311-265-0	06	1	0103-	●
33	NOZZLE; INJ	1-15311-278-0	06	1	0103-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15349-111-0	06	1	0103-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15332-017-0	06	1	0103-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-016-1	06	1	0103-		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	5-15339-003-0	06	1	0103-	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	0103-		●
44	SPRING; NOZZLE,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15343-005-0	06	1	0103-	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	8-94246-531-0	06	1	0103-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	0103-		●
45	ROD; PUSH,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15349-129-0	06	1	0103-	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15341-004-0	06	1	0103-	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	0103-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A)	9-15347-003-0	12	1	0103-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	0103-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15349-128-0	06	1	0103-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.40	1-15349-112-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.50	1-15349-113-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.52	1-15349-114-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.54	1-15349-115-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.56	1-15349-116-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.58	1-15349-117-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.60	1-15349-118-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.70	1-15349-119-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.40	1-15349-120-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.50	1-15349-121-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.52	1-15349-122-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.54	1-15349-123-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.56	1-15349-124-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.58	1-15349-125-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.60	1-15349-126-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.70	1-15349-127-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.50	5-15339-007-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.60	5-15339-008-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.70	5-15339-009-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.80	5-15339-010-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.90	5-15339-011-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=1.00	5-15339-012-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.52	5-15339-018-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.54	5-15339-019-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.56	5-15339-020-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.58	5-15339-021-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.10	8-94128-982-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.20	8-94128-983-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.30	8-94128-984-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.40	8-94128-985-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.500	1-15349-051-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.550	1-15349-053-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.600	1-15349-055-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.650	1-15349-057-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.700	1-15349-059-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.750	1-15349-061-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.800	1-15349-063-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.850	1-15349-065-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.900	1-15349-067-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.950	1-15349-069-0	AR	1	0103-		●

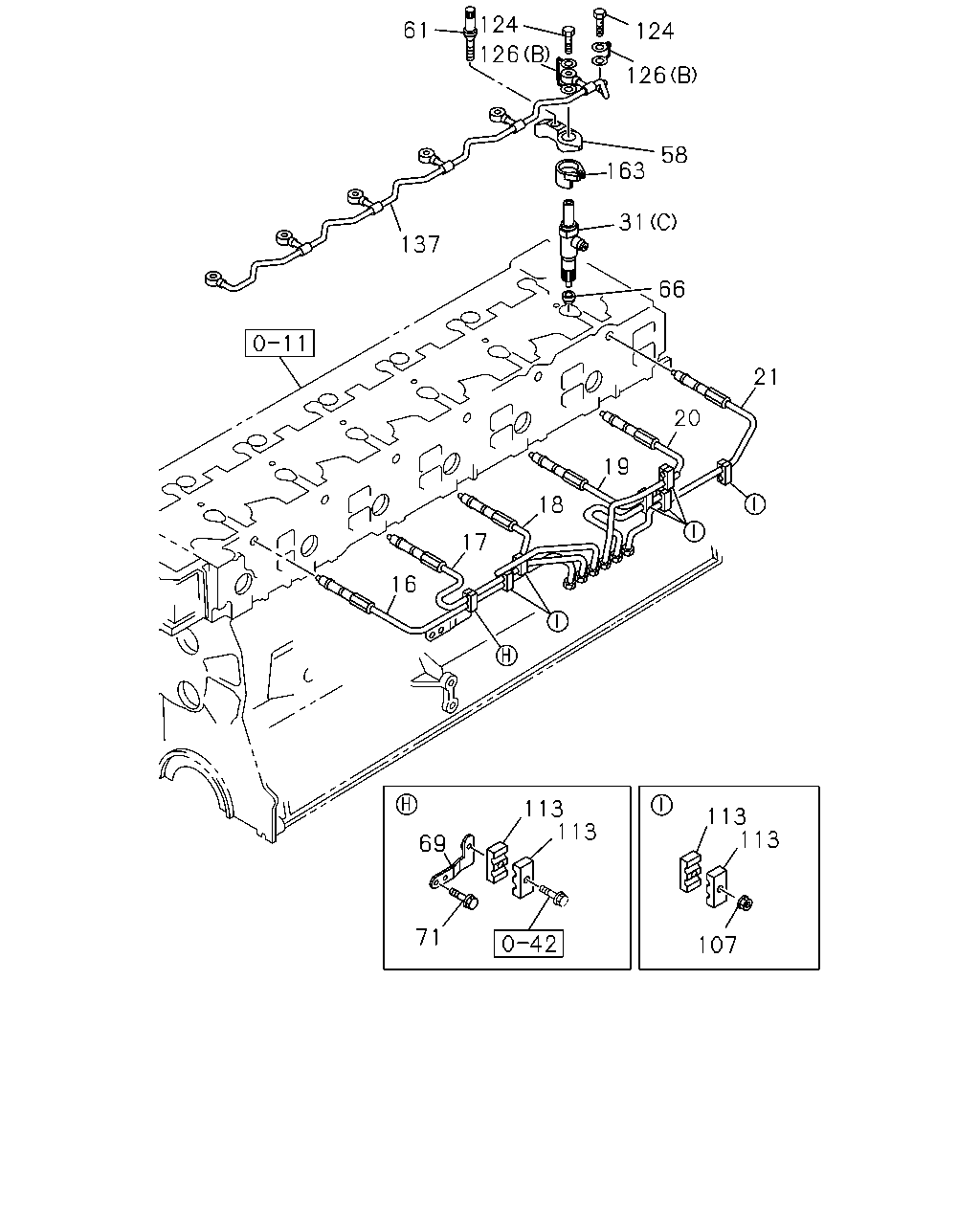

124 61 124 126 126 58 163 31 137 66 21 20 19 18 17 16 113 113 113 113 69 71 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 EURO2 SPECIFICATION(THN)	1-15416-021-0	01	1	0103-	●
16	PIPE; INJ NO.1 EXC. EURO2 SPECIFICATION(THN)	1-15415-763-0	01	1	0103-	●
16	PIPE; INJ NO.1	1-15415-072-7	01	1	0103-		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION(THN)	1-15416-022-0	01	1	0103-	●
17	PIPE; INJ NO.2 EXC. EURO2 SPECIFICATION(THN)	1-15415-764-0	01	1	0103-	●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	0103-		●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION(THN)	1-15416-023-0	01	1	0103-	●
18	PIPE; INJ NO.3 EXC. EURO2 SPECIFICATION(THN)	1-15415-765-0	01	1	0103-	●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	0103-		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION(THN)	1-15416-024-0	01	1	0103-	●
19	PIPE; INJ NO.4 EXC. EURO2 SPECIFICATION(THN)	1-15415-766-0	01	1	0103-	●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	0103-		●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION(THN)	1-15416-025-0	01	1	0103-	●
20	PIPE; INJ NO.5 EXC. EURO2 SPECIFICATION(THN)	1-15415-767-0	01	1	0103-	●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	0103-		●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION(THN)	1-15416-026-0	01	1	0103-	●
21	PIPE; INJ NO.6 EXC. EURO2 SPECIFICATION(THN)	1-15415-768-0	01	1	0103-	●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	0103-		●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-15300-359-0	06	1	0103-	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (B)	1-15300-369-0	06	1	0103-	●
31	NOZZLE ASM; INJ OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN) (B)	1-15300-369-0	06	1	0103-	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION(THN) (A)	1-15300-332-0	06	1	0103-	●
31	NOZZLE ASM; INJ (C)	1-15300-358-1	06	1	0103-		●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	0103-0304		●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-029-0	06	1	0305-		●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	0103-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0103-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	0103-		●
69	BRACKET; INJ PIPE CLIP	1-15419-334-0	01	1	0103-		●
71	BOLT; BRKT EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28080-825-0	02	1	0103-0512	●
71	BOLT; BRKT EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0103-0512		●
71	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0103-0602		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	06	1	0603-		●
113	CLIP; INJ PIPE	1-09701-132-1	14	1	0103-1210	●	●
113	CLIP; INJ PIPE	1-09701-240-0	14	1	1211-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	0103-		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	0103-		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	0103-1312		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-98246-930-0	07	1	1401-		●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	0103-		●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	0103-		●

31 31 32 32 34 34 36 36 36 36 37 38 39 140 40 140 44 143 138 43 45 47 44 45 141 42 138 140 140 43 142 41 46 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-15300-359-0	06	1	0103-	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (B)	1-15300-369-0	06	1	0103-	●
31	NOZZLE ASM; INJ OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN) (B)	1-15300-369-0	06	1	0103-	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION(THN) (A)	1-15300-332-0	06	1	0103-	●
31	NOZZLE ASM; INJ (C)	1-15300-358-1	06	1	0103-		●
32	HOLDER ASM; NOZZLE EURO2 SPECIFICATION(THN) (B)	1-15330-119-0	06	1	0103-	●
32	HOLDER ASM; NOZZLE EXC. EURO2 SPECIFICATION(THN) (A)	1-15330-054-1	06	1	0103-	●
32	HOLDER ASM; NOZZLE (C)	1-15330-114-0	06	1	0103-		●
33	NOZZLE; INJ EXC. EURO2 SPECIFICATION(THN)	1-15311-265-0	06	1	0103-	●
33	NOZZLE; INJ	1-15311-278-0	06	1	0103-		●
34	BOLT; EYE,NOZZLE HOLDER EURO2 SPECIFICATION(THN) M8X18 EYE-BOLT	1-09675-037-1	06	1	0103-	●
34	BOLT; EYE,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15339-009-0	06	1	0103-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15349-111-0	06	1	0103-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15332-017-0	06	1	0103-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-016-1	06	1	0103-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(THN) ID=8.2 OD=13.2	1-09630-082-0	12	1	0103-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION(THN)	1-15339-010-0	12	1	0103-	●
37	NUT; CAP,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15334-010-0	06	1	0103-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION(THN)	9-15339-056-0	06	1	0103-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15345-004-0	06	1	0103-	●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15332-011-0	06	1	0103-	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15351-005-0	06	1	0103-	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	5-15339-003-0	06	1	0103-	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	0103-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A)	1-15342-002-0	06	1	0103-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B)	1-15342-003-0	06	1	0103-	●
44	SPRING; NOZZLE,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15343-005-0	06	1	0103-	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	8-94246-531-0	06	1	0103-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	0103-		●
45	ROD; PUSH,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15349-129-0	06	1	0103-	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15341-004-0	06	1	0103-	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	0103-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A)	9-15347-003-0	12	1	0103-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	0103-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15349-128-0	06	1	0103-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	0103-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EURO2 SPECIFICATION(THN)	1-15343-006-0	06	1	0103-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15343-001-0	06	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.40	1-15349-112-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.50	1-15349-113-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.52	1-15349-114-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.54	1-15349-115-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.56	1-15349-116-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.58	1-15349-117-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.60	1-15349-118-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (A) T=0.70	1-15349-119-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.40	1-15349-120-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.50	1-15349-121-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.52	1-15349-122-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.54	1-15349-123-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.56	1-15349-124-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.58	1-15349-125-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.60	1-15349-126-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION(THN) (B) T=0.70	1-15349-127-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.50	5-15339-007-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.60	5-15339-008-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.70	5-15339-009-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.80	5-15339-010-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.90	5-15339-011-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=1.00	5-15339-012-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.52	5-15339-018-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.54	5-15339-019-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.56	5-15339-020-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.58	5-15339-021-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.10	8-94128-982-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.20	8-94128-983-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.30	8-94128-984-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN) (C) T=0.40	8-94128-985-0	AR	1	0103-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.500	1-15349-051-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.550	1-15349-053-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.600	1-15349-055-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.650	1-15349-057-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.700	1-15349-059-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.750	1-15349-061-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.800	1-15349-063-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.850	1-15349-065-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.900	1-15349-067-0	AR	1	0103-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (D) T=0.950	1-15349-069-0	AR	1	0103-		●
141	ROD; PUSH,UPR,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15341-006-0	06	1	0103-	●
142	SPACER; PUSH ROD EXC. EURO2 SPECIFICATION(THN)	1-15339-093-0	06	1	0103-	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION(THN)	1-15345-003-0	06	1	0103-	●
272	NOZZLE KIT; INJ EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-15319-004-0	12	1	0103-	●
272	NOZZLE KIT; INJ EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15319-005-0	12	1	0103-	●
272	NOZZLE KIT; INJ OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	1-15319-005-0	12	1	0103-	●

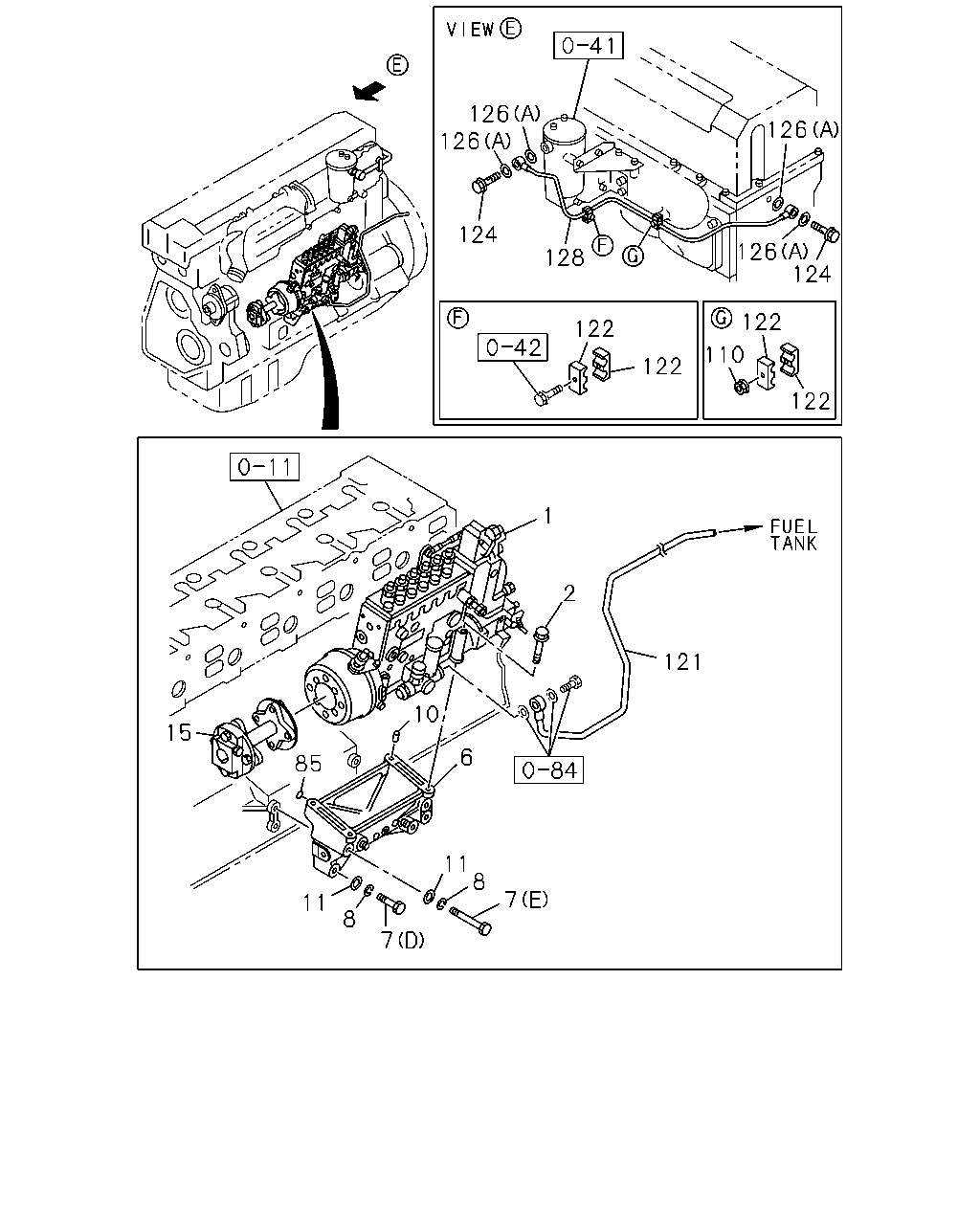

126 126 126 124 126 124 128 122 122 110 122 122 1 2 121 10 15 6 85 11 8 7 11 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-15603-268-5	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INTAKE HEATER<SL2>,INJ PUMP Q SET SPECIAL +5%Q(T1A),TAMPER PROOF INJ PUMP SET<W44>	1-15603-409-2	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. OIL FILTER SETTING DOWNWARD<E7V>	1-15603-360-2	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A), TAMPER PROOF INJ PUMP SET<W44>	1-15603-359-0	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15603-408-0	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-265-5	01	1	0103-		●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0103-0512	●
2	BOLT; INJ PUMP M10X90	0-16856-090-0	04	1	0601-	●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	0103-		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0103-0502	●
6	BRACKET; INJ PUMP TO C/BL	8-97608-455-0	01	1	0503-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	0103-0408		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	0409-		●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0103-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0103-0512	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0601-	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0103-0512	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28751-040-0	01	1	0601-	●
7	BOLT; INJ PUMP BRKT (D) M14X90 FLANGE	0-28981-490-0	02	1	0103-0512		●
7	BOLT; INJ PUMP BRKT (D) M14X90 FLANGE	0-28951-490-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (E) M14X117	9-09804-193-1	02	1	0103-		●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	0103-0603		●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	0-91510-514-0	04	1	0604-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0103-	●	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	0103-0605		●
11	WASHER; INJ PUMP BRKT ID=15	0-91610-514-0	04	1	0606-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15780-202-1	01	1	0103-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	1-15780-202-1	01	1	0103-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15780-111-1	01	1	0103-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-15780-111-1	01	1	0103-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	0103-		●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8	1-09623-478-0	03	1	0103-		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	05	1	0103-0602	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0603-	●
110	NUT; CLIP EXC. EURO2 SPECIFICATION(THN) M6 FLANGE	0-91150-106-0	01	1	0103-0602	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0103-0602		●
110	NUT; CLIP EXC. EURO2 SPECIFICATION(THN) M6 FLANGE	0-91180-106-0	01	1	0603-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0103-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	0103-		●
122	CLIP; LEAK OFF PIPE	1-09701-132-1	04	1	0103-1210		●
122	CLIP; LEAK OFF PIPE	1-09701-240-0	04	1	1211-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	0103-		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	0103-		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	0103-1312		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-98246-930-0	07	1	1401-		●
128	PIPE ASM; INJ	1-15415-543-1	01	1	0103-		●

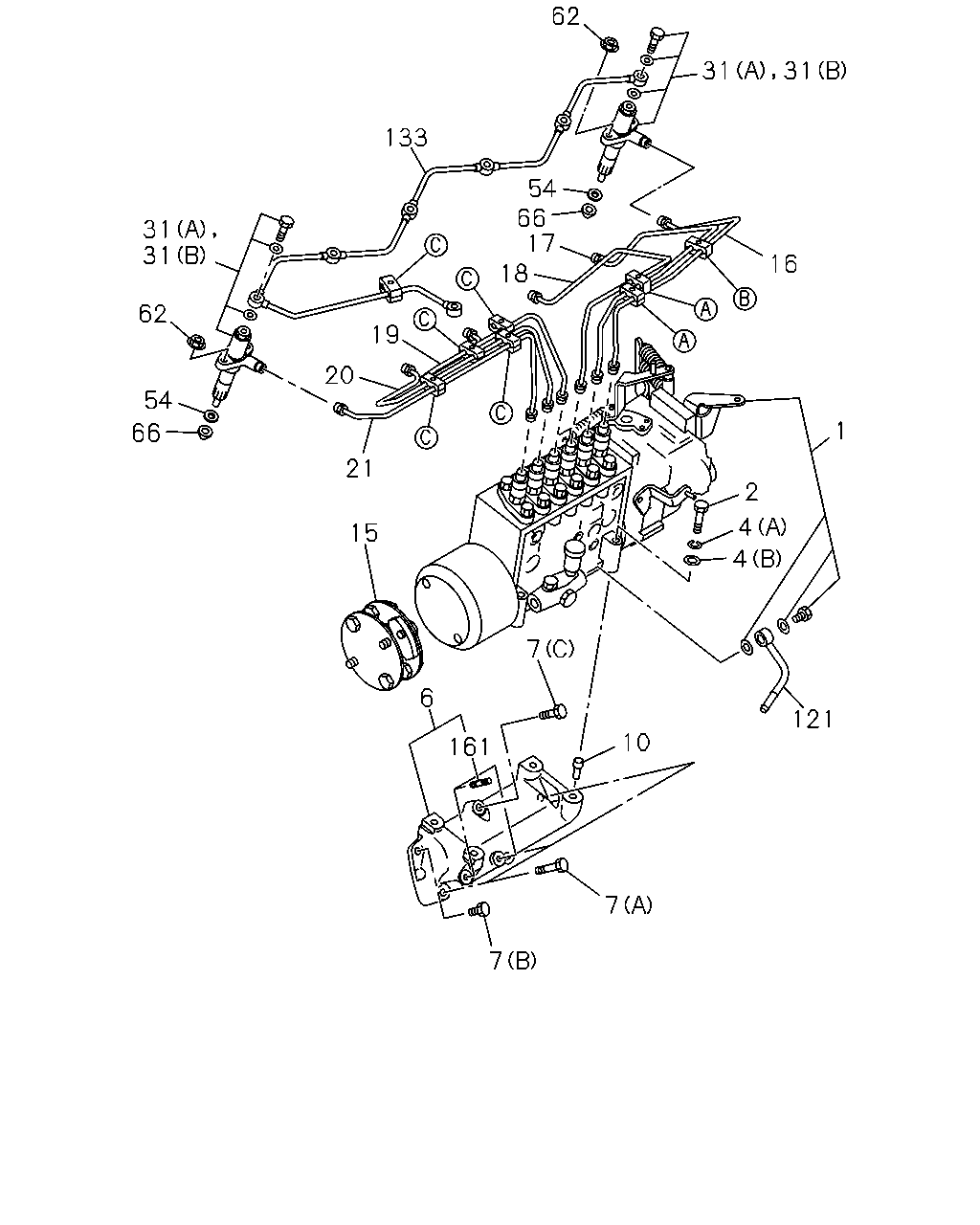

62 31 31 133 54 66 17 18 31 31 16 62 19 20 54 1 66 21 2 4 15 4 7 6 121 10 161 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-15603-268-5	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INTAKE HEATER<SL2>,INJ PUMP Q SET SPECIAL +5%Q(T1A),TAMPER PROOF INJ PUMP SET<W44>	1-15603-409-2	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. OIL FILTER SETTING DOWNWARD<E7V>	1-15603-360-2	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A), TAMPER PROOF INJ PUMP SET<W44>	1-15603-359-0	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15603-408-0	01	1	0103-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-265-5	01	1	0103-		●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0103-0512	●
2	BOLT; INJ PUMP M10X90	0-16856-090-0	04	1	0601-	●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	0103-		●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	0103-0603	●
4	WASHER; INJ PUMP (A) ID=10.2	0-91510-510-0	04	1	0604-	●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	0103-0605	●
4	WASHER; INJ PUMP (B) ID=10.5	0-91610-510-0	04	1	0606-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0103-0502	●
6	BRACKET; INJ PUMP TO C/BL	8-97608-455-0	01	1	0503-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	0103-0408		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	0409-		●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0103-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0103-0512	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0601-	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0103-0512	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28751-040-0	01	1	0601-	●
7	BOLT; INJ PUMP BRKT (D) M14X90 FLANGE	0-28981-490-0	02	1	0103-0512		●
7	BOLT; INJ PUMP BRKT (D) M14X90 FLANGE	0-28951-490-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (E) M14X117	9-09804-193-1	02	1	0103-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0103-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15780-202-1	01	1	0103-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	1-15780-202-1	01	1	0103-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15780-111-1	01	1	0103-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-15780-111-1	01	1	0103-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	0103-		●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION(THN)	1-15416-021-0	01	1	0103-	●
16	PIPE; INJ NO.1 EXC. EURO2 SPECIFICATION(THN)	1-15415-763-0	01	1	0103-	●
16	PIPE; INJ NO.1	1-15415-072-7	01	1	0103-		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION(THN)	1-15416-022-0	01	1	0103-	●
17	PIPE; INJ NO.2 EXC. EURO2 SPECIFICATION(THN)	1-15415-764-0	01	1	0103-	●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	0103-		●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION(THN)	1-15416-023-0	01	1	0103-	●
18	PIPE; INJ NO.3 EXC. EURO2 SPECIFICATION(THN)	1-15415-765-0	01	1	0103-	●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	0103-		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION(THN)	1-15416-024-0	01	1	0103-	●
19	PIPE; INJ NO.4 EXC. EURO2 SPECIFICATION(THN)	1-15415-766-0	01	1	0103-	●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	0103-		●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION(THN)	1-15416-025-0	01	1	0103-	●
20	PIPE; INJ NO.5 EXC. EURO2 SPECIFICATION(THN)	1-15415-767-0	01	1	0103-	●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	0103-		●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION(THN)	1-15416-026-0	01	1	0103-	●
21	PIPE; INJ NO.6 EXC. EURO2 SPECIFICATION(THN)	1-15415-768-0	01	1	0103-	●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	0103-		●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-15300-359-0	06	1	0103-	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (B)	1-15300-369-0	06	1	0103-	●
31	NOZZLE ASM; INJ OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN) (B)	1-15300-369-0	06	1	0103-	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION(THN) (A)	1-15300-332-0	06	1	0103-	●
31	NOZZLE ASM; INJ (C)	1-15300-358-1	06	1	0103-		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0103-	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0103-0602	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0103-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	0103-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0103-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	0103-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION(THN)	1-15416-027-0	01	1	0103-	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO2 SPECIFICATION(THN)	1-15415-777-0	01	1	0103-	●
161	STUD; INJ PUMP M8X20 L=32	9-04110-820-0	02	1	0103-0604	●
161	STUD; INJ PUMP M8X20 L=32	0-41010-820-0	02	1	0605-	●

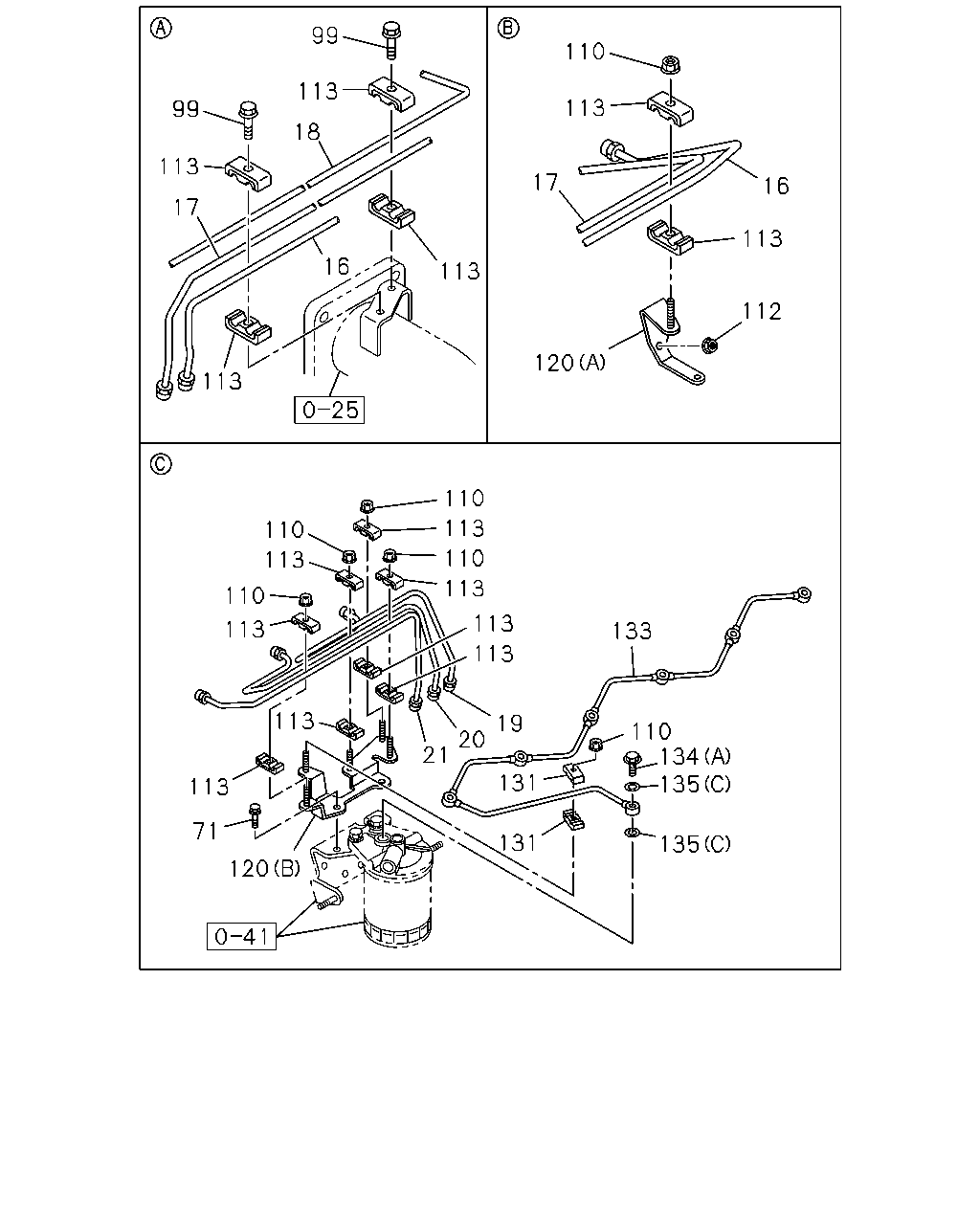

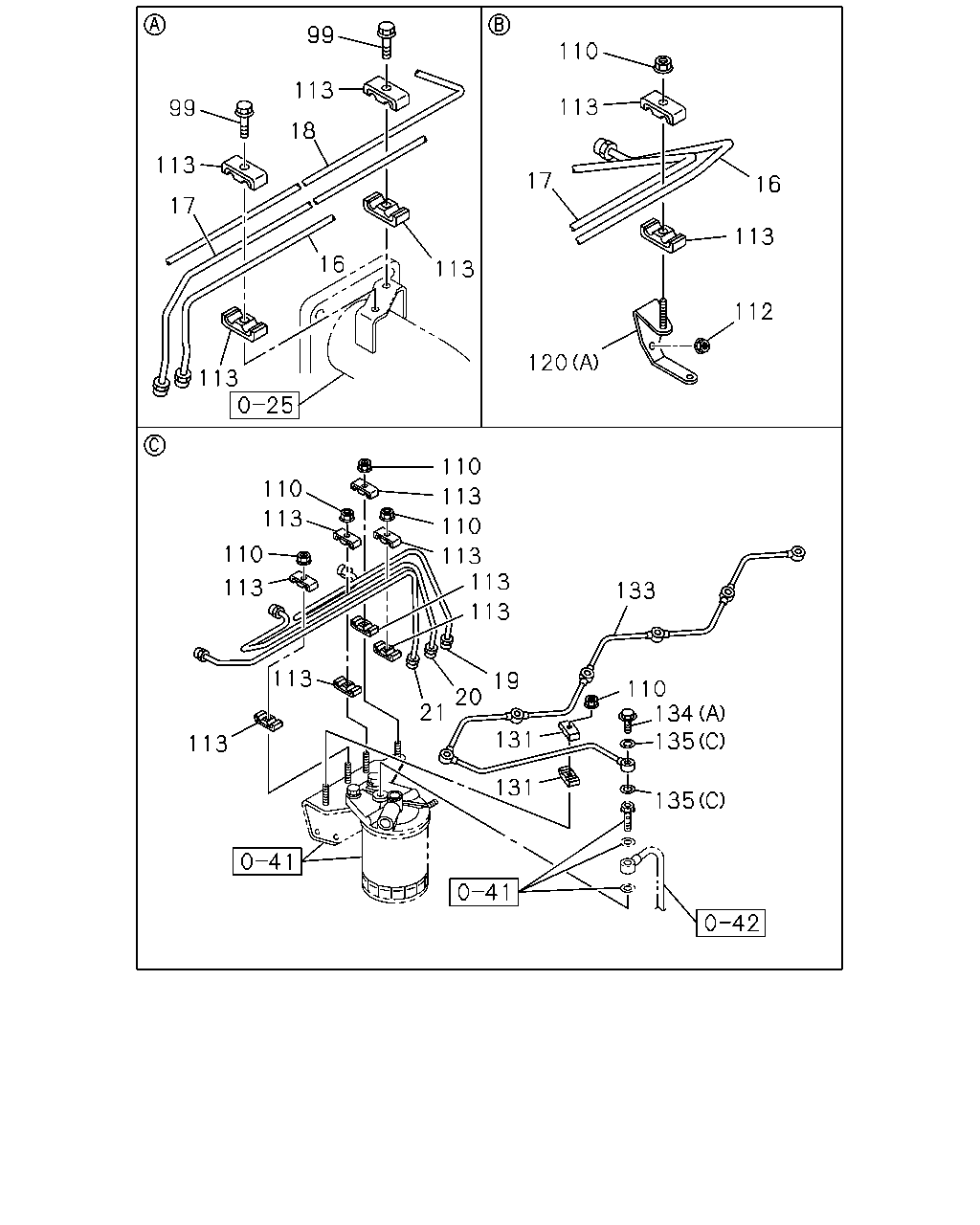

99 110 113 113 99 18 113 17 16 17 113 16 113 112 120 113 110 110 113 113 110 110 113 113 113 133 113 113 19 110 134 135 20 21 131 113 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 EURO2 SPECIFICATION(THN)	1-15416-021-0	01	1	0103-	●
16	PIPE; INJ NO.1 EXC. EURO2 SPECIFICATION(THN)	1-15415-763-0	01	1	0103-	●
16	PIPE; INJ NO.1	1-15415-072-7	01	1	0103-		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION(THN)	1-15416-022-0	01	1	0103-	●
17	PIPE; INJ NO.2 EXC. EURO2 SPECIFICATION(THN)	1-15415-764-0	01	1	0103-	●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	0103-		●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION(THN)	1-15416-023-0	01	1	0103-	●
18	PIPE; INJ NO.3 EXC. EURO2 SPECIFICATION(THN)	1-15415-765-0	01	1	0103-	●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	0103-		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION(THN)	1-15416-024-0	01	1	0103-	●
19	PIPE; INJ NO.4 EXC. EURO2 SPECIFICATION(THN)	1-15415-766-0	01	1	0103-	●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	0103-		●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION(THN)	1-15416-025-0	01	1	0103-	●
20	PIPE; INJ NO.5 EXC. EURO2 SPECIFICATION(THN)	1-15415-767-0	01	1	0103-	●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	0103-		●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION(THN)	1-15416-026-0	01	1	0103-	●
21	PIPE; INJ NO.6 EXC. EURO2 SPECIFICATION(THN)	1-15415-768-0	01	1	0103-	●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	0103-		●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	0103-0512	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	02	1	0601-	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	05	1	0103-0602	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0603-	●
110	NUT; CLIP EXC. EURO2 SPECIFICATION(THN) M6 FLANGE	0-91150-106-0	01	1	0103-0602	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0103-0602		●
110	NUT; CLIP EXC. EURO2 SPECIFICATION(THN) M6 FLANGE	0-91180-106-0	01	1	0603-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0103-0602	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●
113	CLIP; INJ PIPE	1-09701-132-1	14	1	0103-1210	●	●
113	CLIP; INJ PIPE	1-09701-240-0	14	1	1211-	●	●
120	BRACKET; INJ PIPE (A)	1-15419-524-1	01	1	0103-	●
120	BRACKET; INJ PIPE EXC. EURO2 SPECIFICATION(THN) (B)	1-15419-431-0	01	1	0103-	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	0103-1210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-240-0	02	1	1211-	●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION(THN)	1-15416-027-0	01	1	0103-	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO2 SPECIFICATION(THN)	1-15415-777-0	01	1	0103-	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0103-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2	1-09630-082-0	02	1	0103-	●

99 110 113 113 99 18 113 17 16 17 113 16 113 112 120 113 110 113 110 110 113 113 110 113 113 133 113 113 19 110 134 135 20 21 131 113 71 131 135 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 EURO2 SPECIFICATION(THN)	1-15416-021-0	01	1	0103-	●
16	PIPE; INJ NO.1 EXC. EURO2 SPECIFICATION(THN)	1-15415-763-0	01	1	0103-	●
16	PIPE; INJ NO.1	1-15415-072-7	01	1	0103-		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION(THN)	1-15416-022-0	01	1	0103-	●
17	PIPE; INJ NO.2 EXC. EURO2 SPECIFICATION(THN)	1-15415-764-0	01	1	0103-	●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	0103-		●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION(THN)	1-15416-023-0	01	1	0103-	●
18	PIPE; INJ NO.3 EXC. EURO2 SPECIFICATION(THN)	1-15415-765-0	01	1	0103-	●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	0103-		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION(THN)	1-15416-024-0	01	1	0103-	●
19	PIPE; INJ NO.4 EXC. EURO2 SPECIFICATION(THN)	1-15415-766-0	01	1	0103-	●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	0103-		●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION(THN)	1-15416-025-0	01	1	0103-	●
20	PIPE; INJ NO.5 EXC. EURO2 SPECIFICATION(THN)	1-15415-767-0	01	1	0103-	●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	0103-		●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION(THN)	1-15416-026-0	01	1	0103-	●
21	PIPE; INJ NO.6 EXC. EURO2 SPECIFICATION(THN)	1-15415-768-0	01	1	0103-	●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	0103-		●
71	BOLT; BRKT EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28080-825-0	02	1	0103-0512	●
71	BOLT; BRKT EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0103-0512		●
71	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	0103-0512	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	02	1	0601-	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	05	1	0103-0602	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0603-	●
110	NUT; CLIP EXC. EURO2 SPECIFICATION(THN) M6 FLANGE	0-91150-106-0	01	1	0103-0602	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0103-0602		●
110	NUT; CLIP EXC. EURO2 SPECIFICATION(THN) M6 FLANGE	0-91180-106-0	01	1	0603-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0103-0602	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●
113	CLIP; INJ PIPE	1-09701-132-1	14	1	0103-1210	●	●
113	CLIP; INJ PIPE	1-09701-240-0	14	1	1211-	●	●
120	BRACKET; INJ PIPE (A)	1-15419-524-1	01	1	0103-	●
120	BRACKET; INJ PIPE EXC. EURO2 SPECIFICATION(THN) (B)	1-15419-431-0	01	1	0103-	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	0103-1210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-240-0	02	1	1211-	●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION(THN)	1-15416-027-0	01	1	0103-	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO2 SPECIFICATION(THN)	1-15415-777-0	01	1	0103-	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0103-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2	1-09630-082-0	02	1	0103-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
