0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#10406) — 151 parça

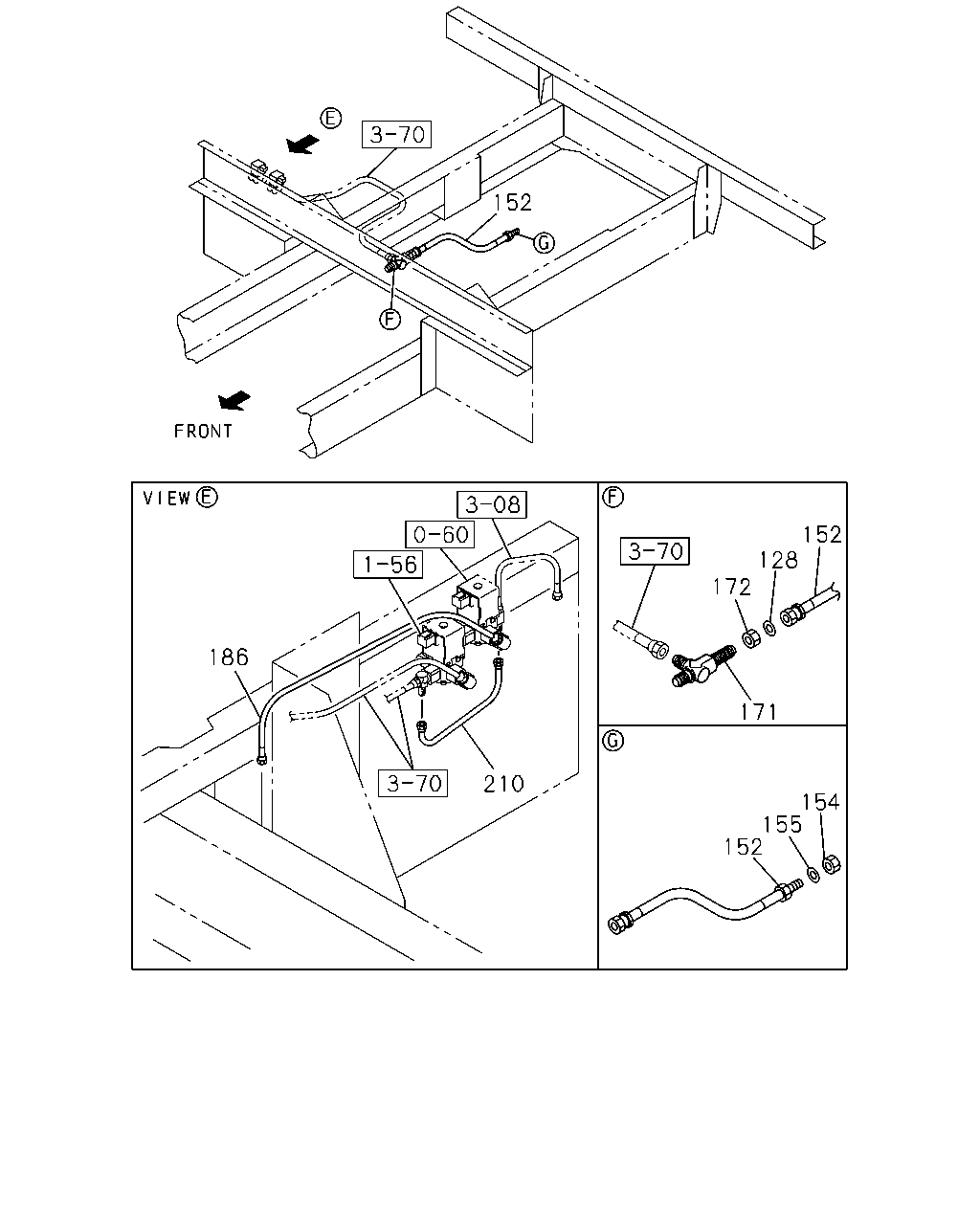

152 152 128 172 186 171 210 154 155 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0103-0603	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-	●
152	HOSE; FLEX L=300	1-09363-608-0	01	1	0103-	●
154	NUT; FLEX HOSE FIX M12	9-09840-280-0	01	1	0103-	●
155	WASHER; LK,FLEX HOSE FIX ID=12.2	9-09150-512-0	01	1	0103-0603	●
155	WASHER; LK,FLEX HOSE FIX ID=12.2	0-91510-512-0	01	1	0604-	●
171	UNION M12 2WAY	1-09654-059-2	01	1	0103-	●
172	JOINT; EYE,AIR PIPE GOV M12	9-99111-412-0	01	1	0103-0512	●
172	JOINT; EYE,AIR PIPE GOV M12	0-91111-512-0	01	1	0601-	●
186	PIPE; AIR,MAG VLV TO FLEX HOSE	1-49122-610-0	01	1	0103-	●
210	PIPE; AIR,MAG VLV	1-49122-308-0	01	1	0103-	●

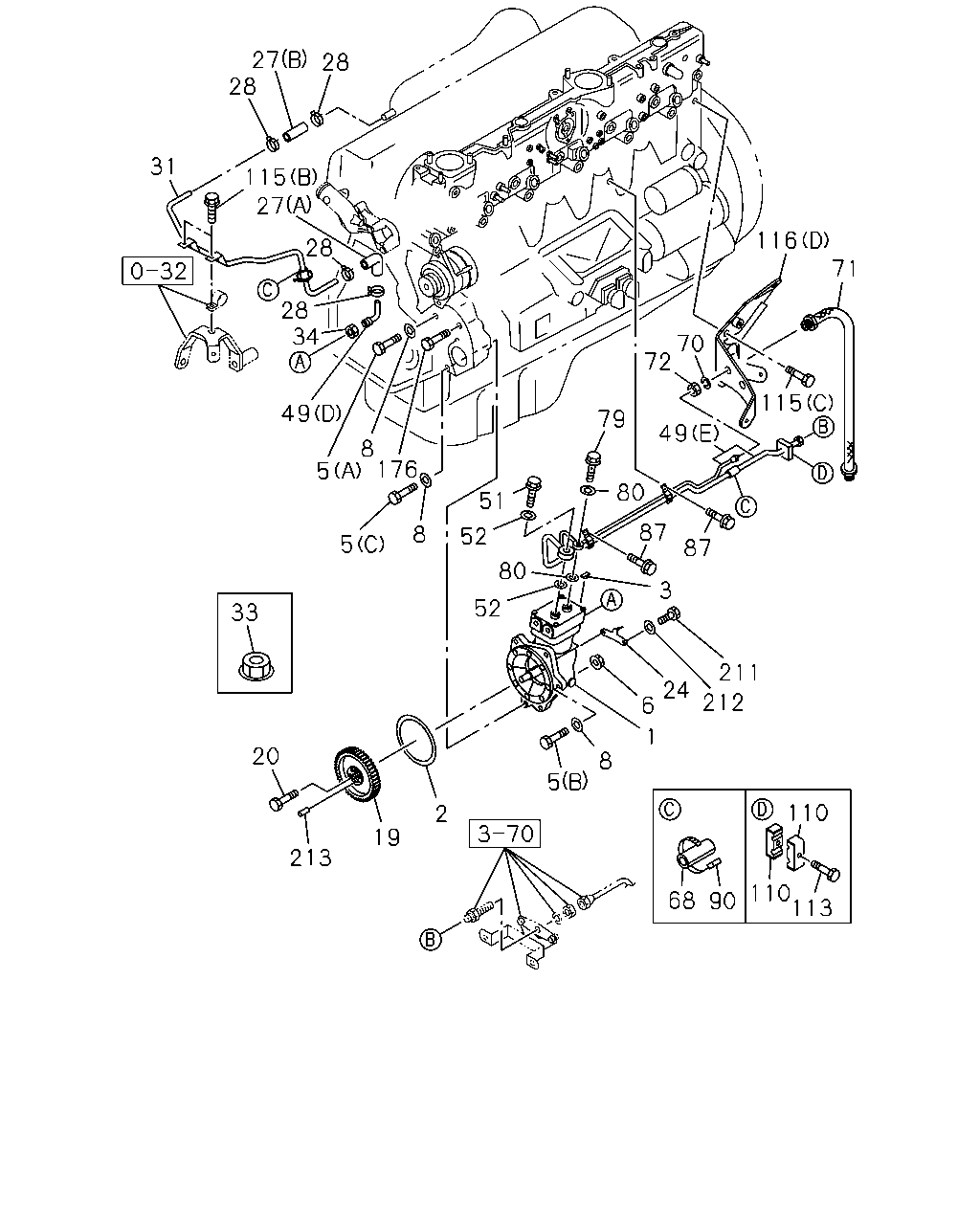

27 28 28 31 115 27 116 71 28 28 34 70 72 115 49 79 49 8 176 5 80 51 87 8 52 5 87 80 3 52 33 211 24 6 212 1 20 8 5 110 2 19 213 110 113 68 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0103-0302		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-1306		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-645-1	01	1	1307-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-292-5	01	1	0103-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	0103-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0103-	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0103-	●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28186-215-0	02	1	0103-0512		●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28156-215-0	02	1	0601-		●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0103-	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	0103-0512	●
5	BOLT; AIR CMPR FIX (C) M14X100	0-16956-400-0	01	1	0601-	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0103-0512	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0103-0602		●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	02	1	0603-		●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0103-	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0103-	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0103-		●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0103-0202	●
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0203-	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0103-		●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0103-	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0103-		●
24	POINTER; AIR CMPR	1-11327-040-1	01	1	0103-	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0103-		●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	0103-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0103-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0103-		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	04	1	0103-	●
31	PIPE; AIR,AIR CMPR SUCTION	1-19192-991-0	01	1	0103-	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0103-0602	●
33	NUT; PIPE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	01	1	0103-	●
49	PIPE; AIR,CHARGE (C)	1-19193-366-0	01	1	0103-		●
49	PIPE; AIR,CHARGE (E)	1-19193-291-0	01	1	0103-	●
49	PIPE; AIR,CHARGE (D)	9-19119-032-0	01	1	0103-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0103-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0103-	●	●
68	SLEEVE; RUBBER ID=9 OD=14 L=35	8-94127-043-0	01	1	0103-	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0103-	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0103-0603	●
70	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0103-	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0103-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0103-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	0103-0103		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0104-0512		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0103-0512	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0103-1205	●
90	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-	●
110	CLIP; AIR PIPE	1-09701-208-0	02	1	0103-	●
113	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28680-635-0	02	1	0103-0512		●
113	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28650-635-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0103-0512	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512		●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
115	BOLT; AIR PIPE (B) M8X20 FLANGE	0-28080-820-0	02	1	0103-0512	●
115	BOLT; AIR PIPE (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28181-020-0	02	1	0103-0512	●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●
116	BRACKET; AIR PIPE (C)	1-19199-357-0	01	1	0103-		●
116	BRACKET; AIR PIPE (D)	1-19199-212-1	01	1	0103-	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0103-	●
211	BOLT; POINTER M10X16	0-23801-016-0	02	1	0103-	●
212	WASHER; LK,POINTER ID=10.2	9-09150-510-0	02	1	0103-0603	●
212	WASHER; LK,POINTER ID=10.2	0-91510-510-0	02	1	0604-	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08160-510-0	01	1	0103-	●

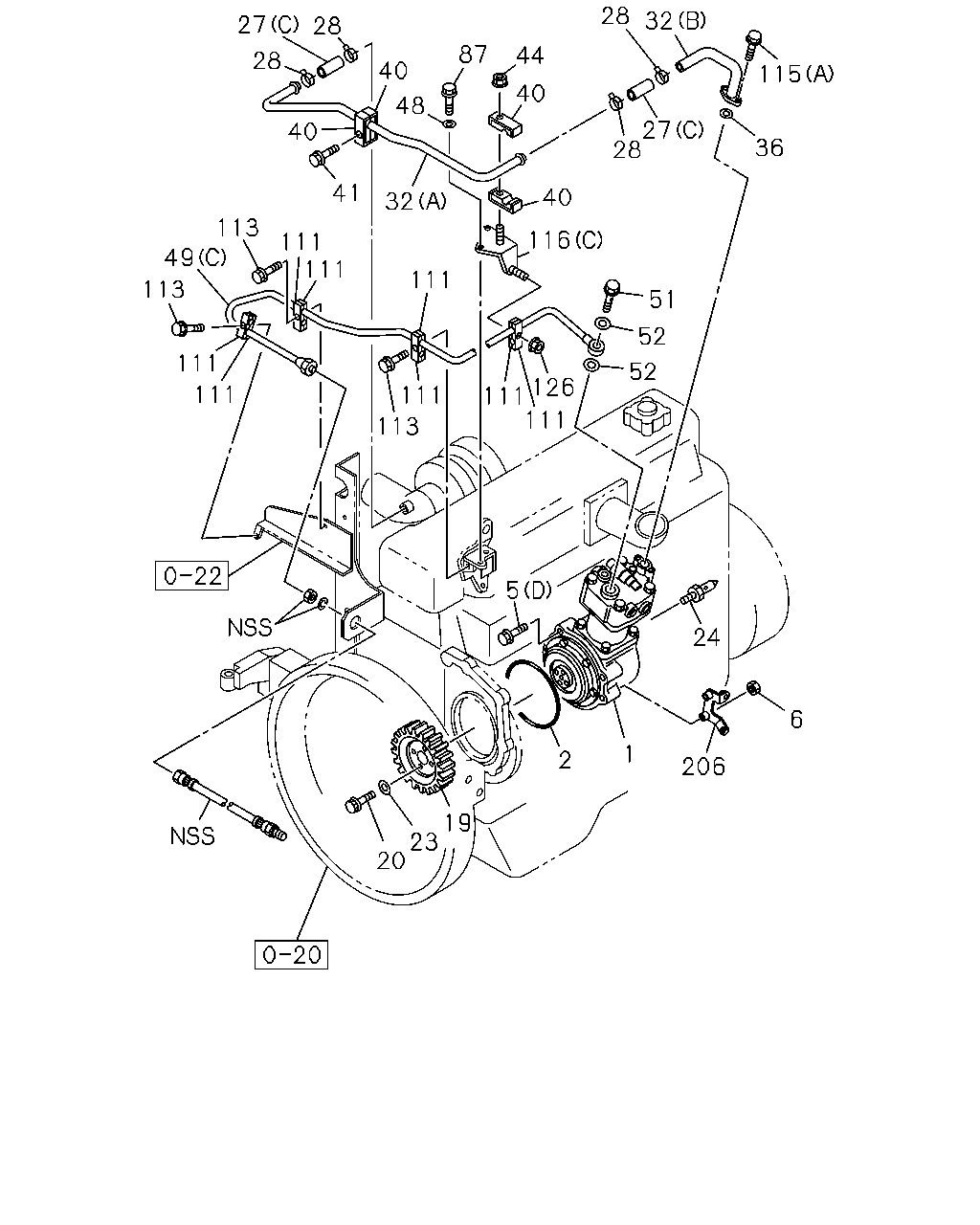

28 32 27 28 87 44 28 40 115 40 48 27 28 40 36 41 40 32 113 49 116 111 111 111 113 51 52 111 52 126 111 111 111 111 113 5 24 6 1 2 206 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0103-0302		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-1306		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-645-1	01	1	1307-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-292-5	01	1	0103-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	0103-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0103-	●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28186-215-0	02	1	0103-0512		●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28156-215-0	02	1	0601-		●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0103-	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	0103-0512	●
5	BOLT; AIR CMPR FIX (C) M14X100	0-16956-400-0	01	1	0601-	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0103-0512	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0103-0602		●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	02	1	0603-		●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0103-	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0103-		●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0103-0202	●
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0203-	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0103-		●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0103-	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0103-		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0103-		●
24	POINTER; AIR CMPR	1-11327-040-1	01	1	0103-	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0103-		●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	0103-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0103-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0103-		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	04	1	0103-	●
32	PIPE; AIR,AIR CMPR (A)	1-19193-271-0	01	1	0103-		●
32	PIPE; AIR,AIR CMPR (B)	1-19193-367-0	01	1	0103-0802		●
32	PIPE; AIR,AIR CMPR (B)	8-98100-018-0	01	1	0803-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0103-0802		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0803-		●
40	CLIP; AIR PIPE	1-09701-281-1	04	1	0103-		●
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	0103-0512		●
41	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
44	NUT M6 FLANGE	0-91150-106-0	01	1	0103-0602		●
44	NUT M6 FLANGE	0-91180-106-0	01	1	0603-		●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0104-0605		●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-		●
49	PIPE; AIR,CHARGE (C)	1-19193-366-0	01	1	0103-		●
49	PIPE; AIR,CHARGE (E)	1-19193-291-0	01	1	0103-	●
49	PIPE; AIR,CHARGE (D)	9-19119-032-0	01	1	0103-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0103-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0103-	●	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	0103-0103		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0104-0512		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0103-0512	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-	●
111	CLIP; AIR PIPE	1-09701-208-0	08	1	0103-		●
113	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28680-635-0	02	1	0103-0512		●
113	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28650-635-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0103-0512	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512		●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
115	BOLT; AIR PIPE (B) M8X20 FLANGE	0-28080-820-0	02	1	0103-0512	●
115	BOLT; AIR PIPE (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28181-020-0	02	1	0103-0512	●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●
116	BRACKET; AIR PIPE (C)	1-19199-357-0	01	1	0103-		●
116	BRACKET; AIR PIPE (D)	1-19199-212-1	01	1	0103-	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0103-0602		●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-		●
206	BRACKET; CLIP,HARNESS	1-19199-385-0	01	1	0103-		●
