0-37 — TURBOCHARGER (#10405) — 122 parça

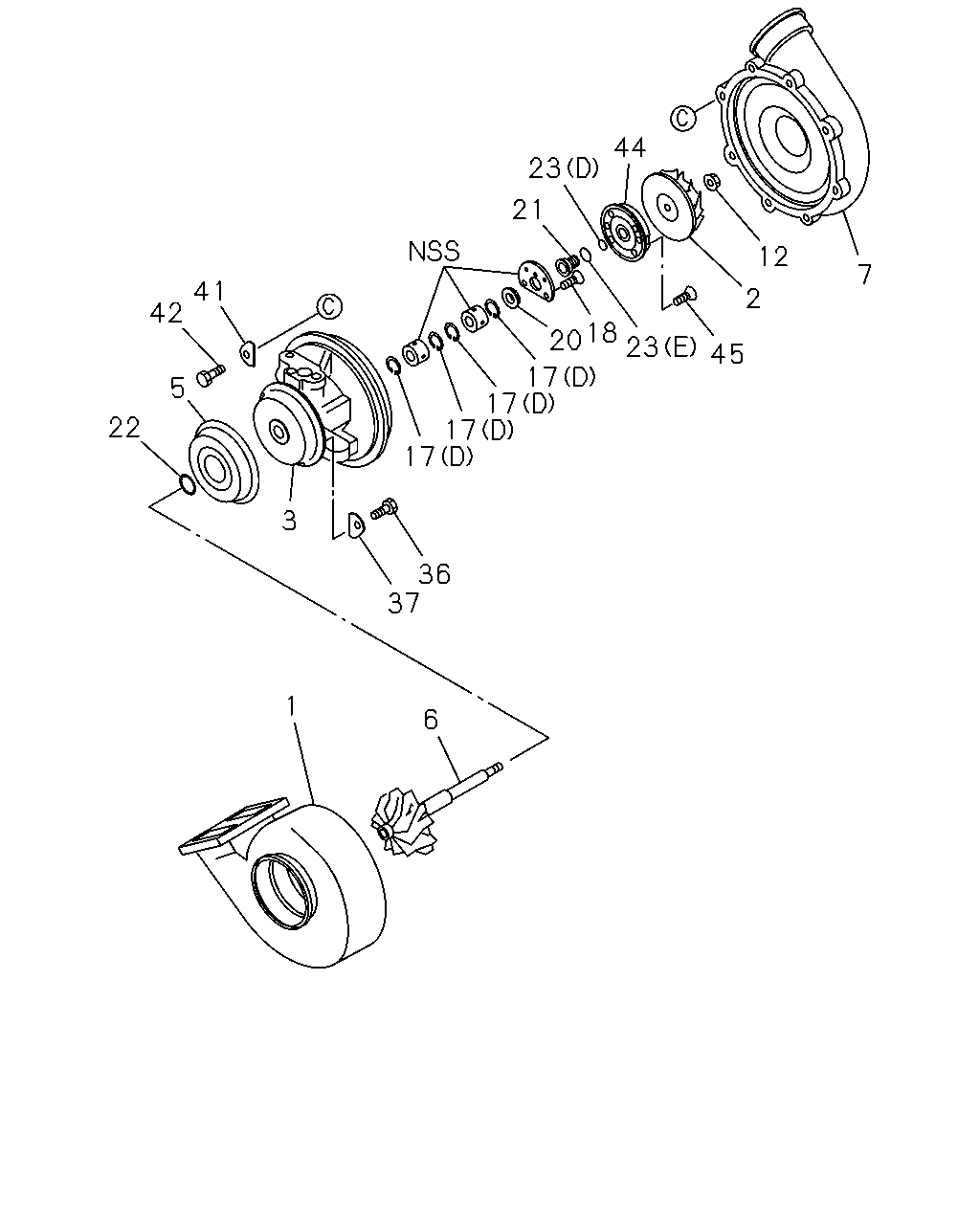

44 23 21 12 7 41 42 2 18 20 23 45 17 17 17 17 5 22 3 36 37 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14415-090-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14415-102-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14415-118-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 1-14400-441-0	1-14415-120-1	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14451-059-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14451-071-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 1-14400-441-0	1-14451-087-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14411-044-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14411-056-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14425-017-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-027-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14450-038-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14450-051-1	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14450-065-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14414-066-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14414-116-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09400-047-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-028-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-073-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14455-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09000-405-0	10	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-611-0	08	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14421-018-0	10	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14421-016-0	08	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14421-016-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-404-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09000-404-0	08	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14425-007-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-026-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-026-0	04	1	-

10 23 18 23 45 17 17 17 17 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-041-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-082-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-026-0	04	1	-

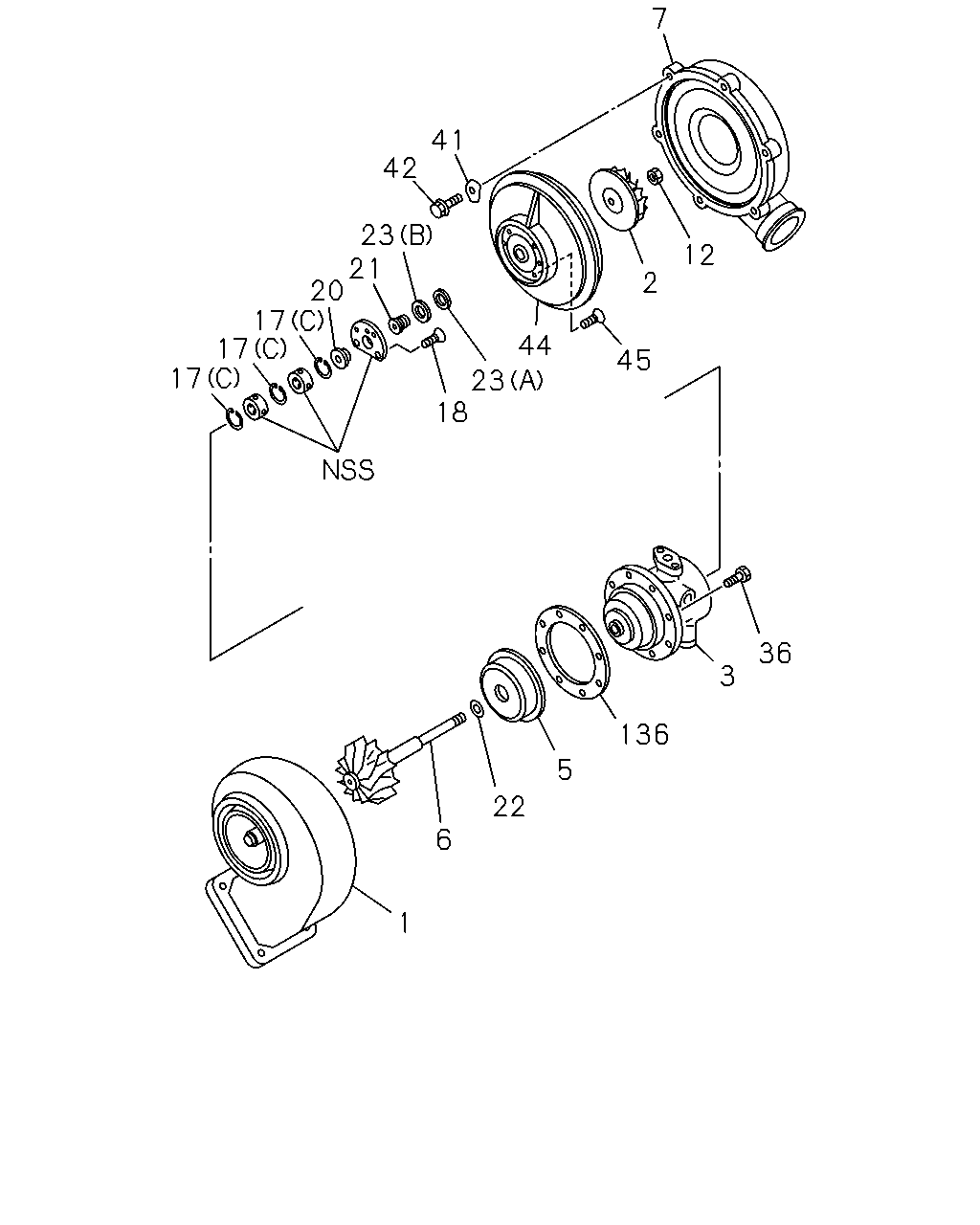

7 41 42 23 21 20 17 17 17 12 2 44 45 23 18 36 3 136 5 22 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14415-090-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14415-102-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14415-118-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 1-14400-441-0	1-14415-120-1	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14451-059-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14451-071-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 1-14400-441-0	1-14451-087-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14411-044-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14411-056-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14425-017-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-027-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14450-038-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14450-051-1	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14450-065-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14414-066-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14414-116-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09400-047-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-028-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-073-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14455-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09000-405-0	10	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-611-0	08	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14421-016-0	08	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14421-016-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-404-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09000-404-0	08	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14425-007-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-026-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-026-0	04	1	-
136	GASKET; TURBINE HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14412-007-0	01	1	-

10 23 17 17 17 23 18 45 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-041-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-082-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, E = 1-14400-441-0	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-026-0	04	1	-
