0-36 — TURBOCHARGER SYSTEM (#10404) — 83 parça

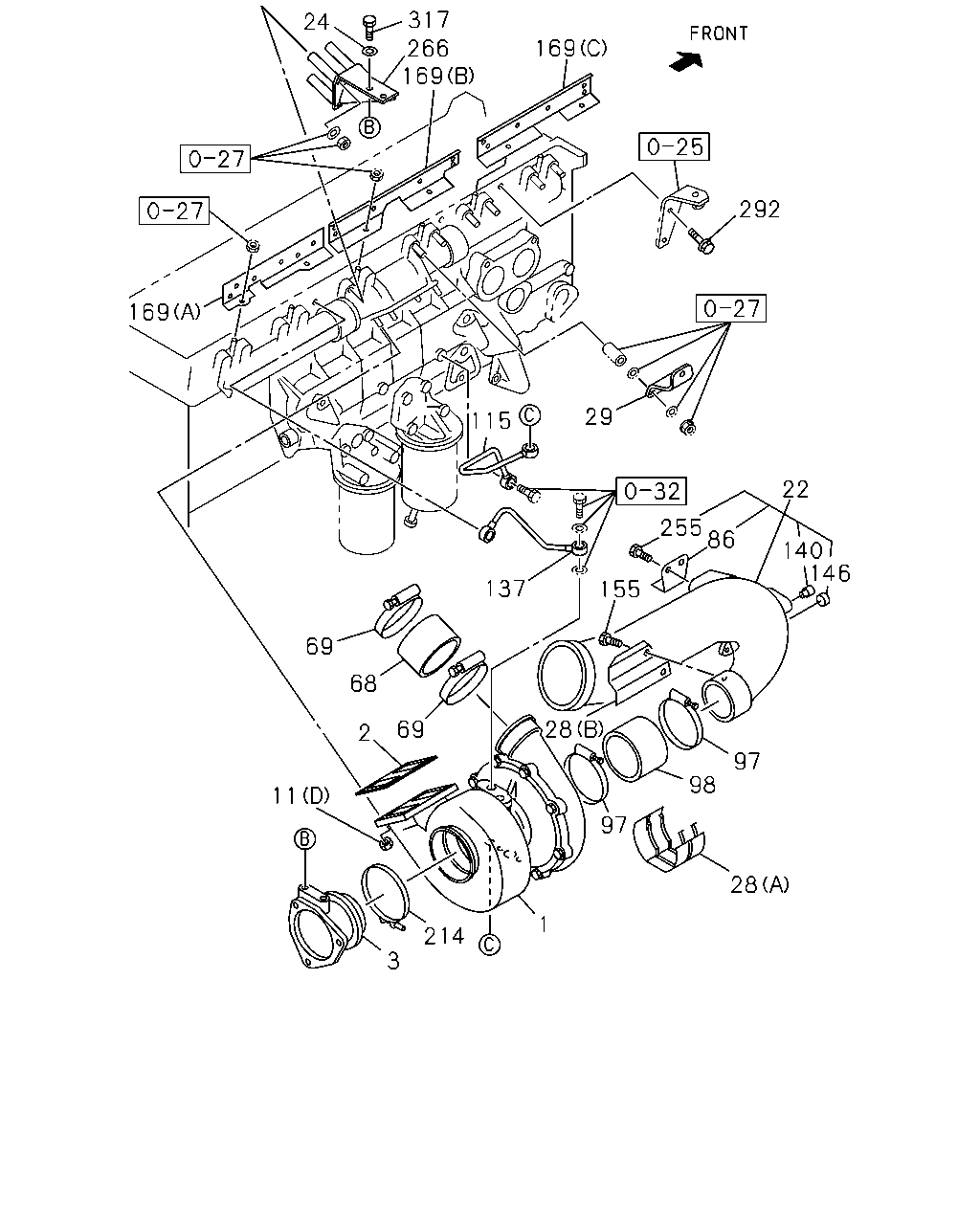

317 266 169 24 169 292 169 29 115 22 255 86 140 146 137 155 69 68 28 69 2 97 98 11 97 28 1 214 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-14400-356-1	01	1	0103-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-14400-366-1	01	1	0103-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	1-14400-366-1	01	1	0103-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION(THN)	1-14400-339-5	01	1	0103-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-290-2	01	1	0103-0401		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-441-0	01	1	0402-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	0103-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-187-0	01	1	0103-		●
3	PIPE; EXH,TURBOCHARGER	1-14144-542-1	01	1	0103-		●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	0103-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0103-	●
11	NUT; TURBOCHARGER (D) M10	1-09420-005-0	04	1	0103-		●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-357-0	01	1	0103-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-388-0	01	1	0103-		●
24	WASHER; PL,PIPE ID=10.5 OD=22	1-09500-007-0	02	1	0103-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-221-0	01	1	0103-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-244-0	01	1	0103-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	1-14181-272-0	01	1	0103-		●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-392-0	01	1	0103-		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	1-09360-917-0	01	1	0103-		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=77-95	1-09707-114-0	02	1	0103-0306		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=77-95	1-09707-198-0	04	1	0307-0809		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=77-95	1-09707-198-0	02	1	0810-0810		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=77-95	1-09707-114-0	02	1	0811-		●
86	BRACKET; INL PIPE	1-14119-361-0	01	1	0103-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0103-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0103-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0307-0809		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0810-0811		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0812-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0103-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=89 L=80	1-09360-356-1	01	1	0103-		●
115	PIPE; WATER,TURBOCHARGER OUT	1-13721-605-0	01	1	0103-		●
137	PIPE; WATER,TURBOCHARGER IN	1-13721-506-2	01	1	0103-		●
140	PIPE; AIR PIPE	9-14119-228-1	01	1	0103-		●
146	PLUG; INL PIPE OD=25	1-09600-016-0	01	1	0808-		●
155	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	02	1	0103-0512		●
155	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
169	PROTECTOR; HEAT,HD COVER (C)	1-14181-301-1	01	1	0103-0110		●
169	PROTECTOR; HEAT,HD COVER (B)	1-14181-302-1	01	1	0103-		●
169	PROTECTOR; HEAT,HD COVER (A)	1-14181-320-0	01	1	0103-		●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	1-09709-094-1	01	1	0103-0609		●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	8-98059-890-0	01	1	0610-		●
255	BOLT; INL PIPE M10X20 FLANGE	0-28181-020-0	02	1	0103-0512		●
255	BOLT; INL PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-		●
266	BRACKET; EXH PIPE	1-14149-195-0	01	1	0103-		●
292	BOLT; BRKT TO CYL HD M10X16 FLANGE	0-28181-016-0	04	1	0103-0512		●
292	BOLT; BRKT TO CYL HD M10X16 FLANGE	0-28151-016-0	04	1	0601-		●
317	BOLT; EXH PIPE M10X20	1-09020-073-2	02	1	0103-		●

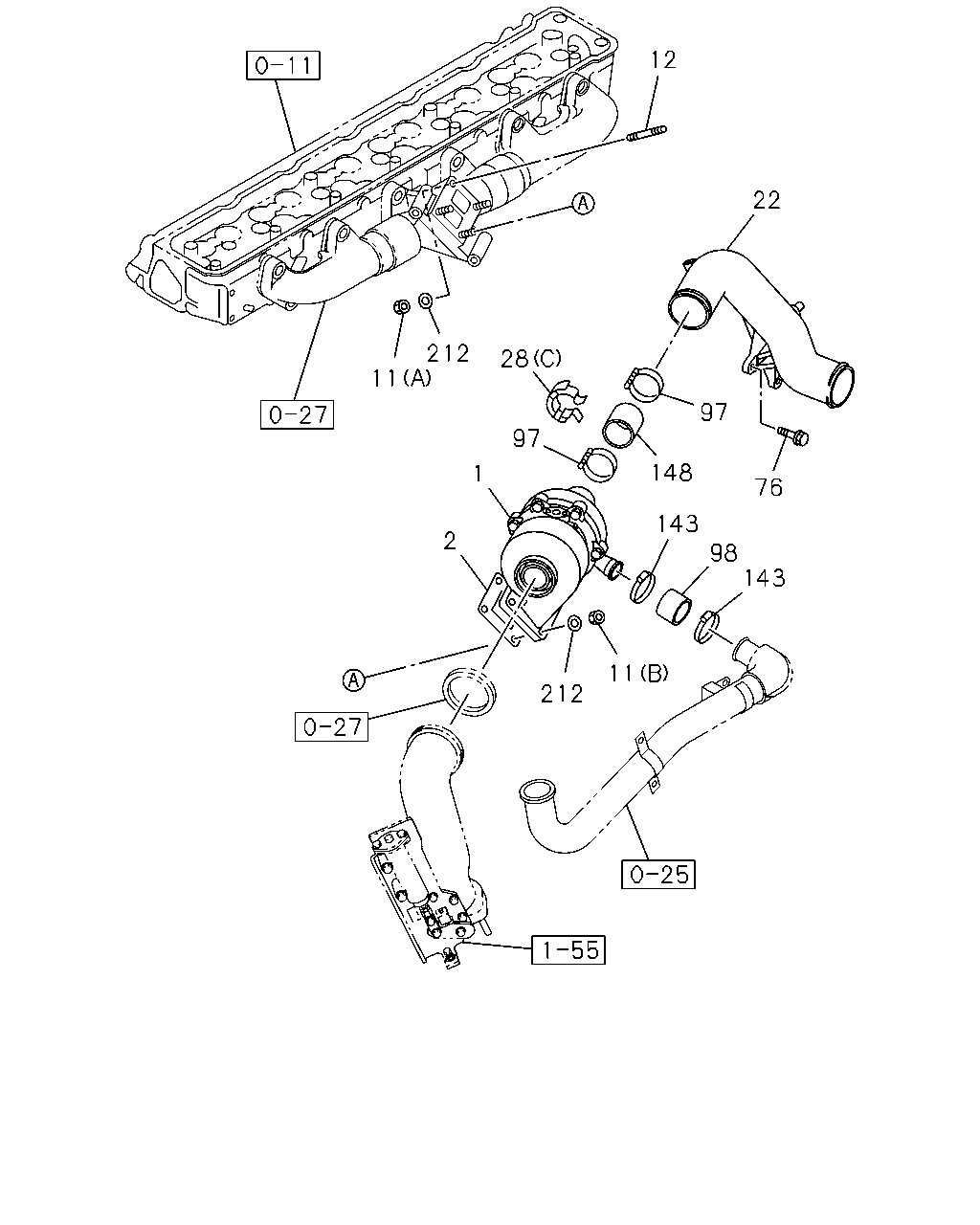

12 22 212 28 11 97 97 148 1 76 143 2 98 143 11 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-14400-356-1	01	1	0103-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-14400-366-1	01	1	0103-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	1-14400-366-1	01	1	0103-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION(THN)	1-14400-339-5	01	1	0103-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-290-2	01	1	0103-0401		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-441-0	01	1	0402-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	0103-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-187-0	01	1	0103-		●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	0103-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0103-	●
11	NUT; TURBOCHARGER (D) M10	1-09420-005-0	04	1	0103-		●
12	STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	01	1	0103-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-357-0	01	1	0103-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-388-0	01	1	0103-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-221-0	01	1	0103-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-244-0	01	1	0103-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	1-14181-272-0	01	1	0103-		●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	0103-0512	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0103-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0103-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0307-0809		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0810-0811		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0812-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0103-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=89 L=80	1-09360-356-1	01	1	0103-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0103-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	0103-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0103-	●
