0-33 — FAN AND FAN BELT (#10402) — 116 parça

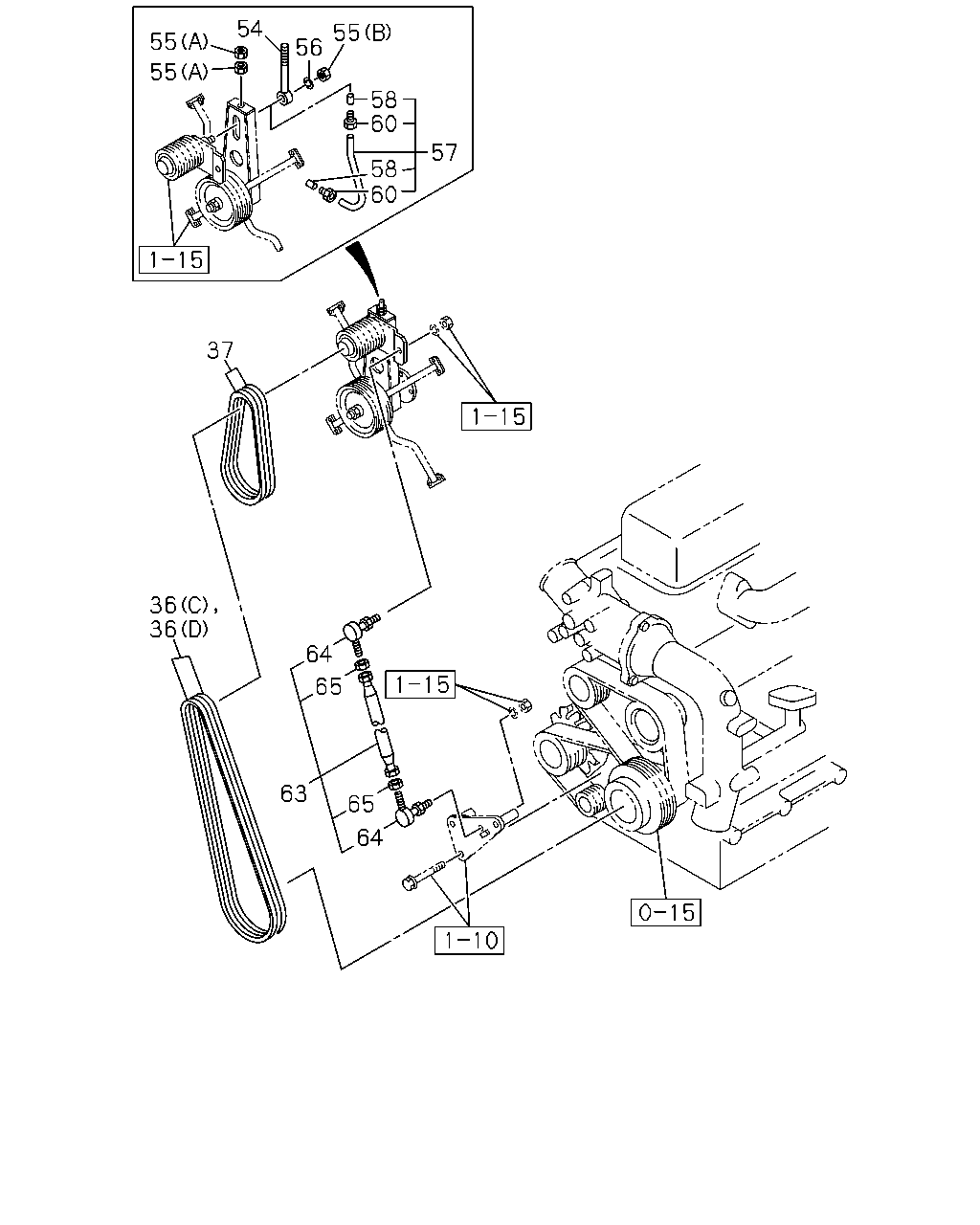

54 55 55 56 55 58 60 57 58 60 37 36 36 64 65 63 65 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	BELT; COOLING FAN (C) 1 SET=2 PIECE(9136713160) MITSUBOSHI	1-13671-323-0	01	1	0103-	●
36	BELT; COOLING FAN (B) L=1378	1-13671-456-0	01	1	0103-	●
36	BELT; COOLING FAN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) L=1323	1-13671-454-0	01	1	0103-	●
36	BELT; COOLING FAN (D) 1 SET=2 PIECE(1136710010) MITSUBOSHI	1-13671-305-1	01	1	0103-		●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE 1 SET=2 PIECE(1136714470) MITSUBOSHI	1-13671-448-0	01	1	0103-	●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE 1 SET=2 PIECE(1136714810) MITSUBOSHI	1-13671-480-0	01	1	0103-		●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-036-0	01	1	0103-	●	●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-510-0	02	1	0103-0512	●	●
55	NUT; IDLE PULLEY RET (A) M10	0-91110-510-0	02	1	0601-	●	●
55	NUT; IDLE PULLEY RET (B) M24	9-99111-524-0	01	1	0103-0512	●	●
55	NUT; IDLE PULLEY RET (B) M24	0-91111-524-0	01	1	0601-	●	●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	9-09150-524-0	01	1	0103-0603	●	●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	0-91510-524-0	01	1	0604-	●	●
57	PIPE; GREASE,IDLE PULLEY L=180	1-59461-674-0	01	1	0103-	●	●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	02	1	0103-1503	●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	02	1	1504-	●	●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	01	1	0103-1503		●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	02	1	0103-1503	●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	02	1	1504-	●	●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	01	1	0103-1503		●
63	LINK ASM; ADJ,COOLING FAN DRIVE PULLEY	1-21629-041-2	01	1	0103-	●
63	LINK ASM; ADJ,COOLING FAN DRIVE PULLEY	1-21629-053-0	01	1	0103-		●
64	ROD ASM; END,SWING ARM,FAN DRIVE LH THREAD	1-09760-034-3	01	1	0103-	●	●
64	ROD ASM; END,SWING ARM,FAN DRIVE RH THREAD	1-09760-035-3	01	1	0103-	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY M12 LH THREAD	9-09840-247-1	01	1	0103-	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY M12 RH THREAD	9-99111-412-0	01	1	0103-0512	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY M12	0-91111-512-0	01	1	0601-	●	●

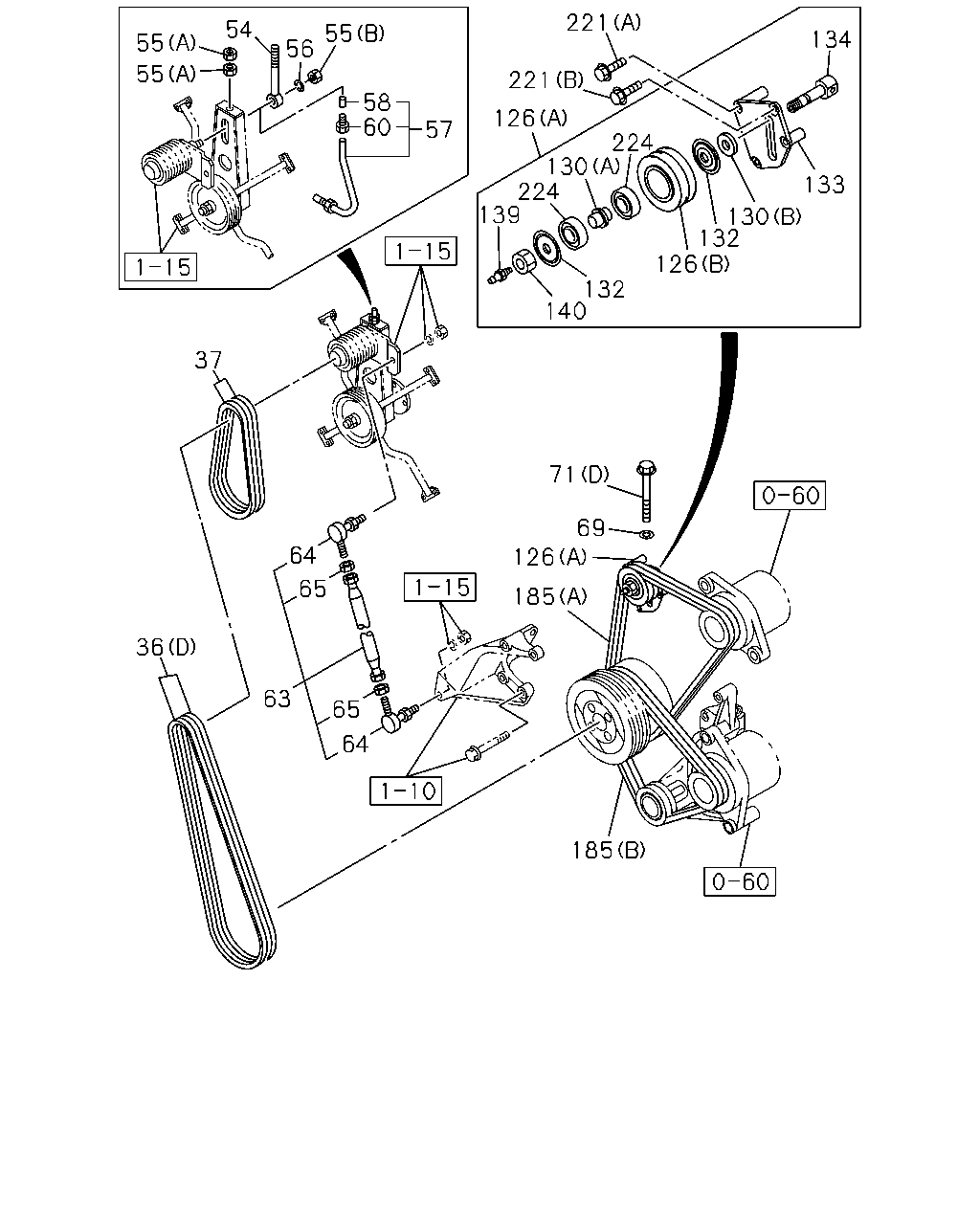

221 54 55 134 55 56 55 221 58 60 126 57 224 130 224 139 133 130 132 126 132 140 37 71 69 64 126 65 185 36 63 65 64 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	BELT; COOLING FAN (C) 1 SET=2 PIECE(9136713160) MITSUBOSHI	1-13671-323-0	01	1	0103-	●
36	BELT; COOLING FAN (B) L=1378	1-13671-456-0	01	1	0103-	●
36	BELT; COOLING FAN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) L=1323	1-13671-454-0	01	1	0103-	●
36	BELT; COOLING FAN (D) 1 SET=2 PIECE(1136710010) MITSUBOSHI	1-13671-305-1	01	1	0103-		●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE 1 SET=2 PIECE(1136714470) MITSUBOSHI	1-13671-448-0	01	1	0103-	●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE 1 SET=2 PIECE(1136714810) MITSUBOSHI	1-13671-480-0	01	1	0103-		●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-036-0	01	1	0103-	●	●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-510-0	02	1	0103-0512	●	●
55	NUT; IDLE PULLEY RET (A) M10	0-91110-510-0	02	1	0601-	●	●
55	NUT; IDLE PULLEY RET (B) M24	9-99111-524-0	01	1	0103-0512	●	●
55	NUT; IDLE PULLEY RET (B) M24	0-91111-524-0	01	1	0601-	●	●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	9-09150-524-0	01	1	0103-0603	●	●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	0-91510-524-0	01	1	0604-	●	●
57	PIPE; GREASE,IDLE PULLEY L=180	1-59461-674-0	01	1	0103-	●	●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	02	1	0103-1503	●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	02	1	1504-	●	●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	01	1	0103-1503		●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	02	1	0103-1503	●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	02	1	1504-	●	●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	01	1	0103-1503		●
63	LINK ASM; ADJ,COOLING FAN DRIVE PULLEY	1-21629-041-2	01	1	0103-	●
63	LINK ASM; ADJ,COOLING FAN DRIVE PULLEY	1-21629-053-0	01	1	0103-		●
64	ROD ASM; END,SWING ARM,FAN DRIVE LH THREAD	1-09760-034-3	01	1	0103-	●	●
64	ROD ASM; END,SWING ARM,FAN DRIVE RH THREAD	1-09760-035-3	01	1	0103-	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY M12 LH THREAD	9-09840-247-1	01	1	0103-	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY M12 RH THREAD	9-99111-412-0	01	1	0103-0512	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY M12	0-91111-512-0	01	1	0601-	●	●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	0103-0605		●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5	0-91610-510-0	01	1	0606-		●
71	BOLT; ADJ PLATE,GEN (A) M12X140 FLANGE	0-28186-214-0	01	1	0103-0512	●
71	BOLT; ADJ PLATE,GEN (A) M12X140 FLANGE	0-28156-214-0	01	1	0601-	●
71	BOLT; ADJ PLATE,GEN (B) M10X35 FLANGE	0-28681-035-0	03	1	0103-0512	●
71	BOLT; ADJ PLATE,GEN (B) M10X35 FLANGE	0-28651-035-0	03	1	0601-	●
71	BOLT; ADJ PLATE,GEN (C) M10X25 FLANGE	0-28781-025-0	02	1	0103-0512	●
71	BOLT; ADJ PLATE,GEN (C) M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
71	BOLT; ADJ PLATE,GEN (D) M10X140	1-09000-104-1	01	1	0103-		●
126	PULLEY; IDLE (A)	1-13660-336-1	01	1	0103-		●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	0103-		●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	0103-		●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	0103-		●
132	COVER; DUST	1-13664-009-2	02	1	0103-		●
133	BRACKET; IDLE PULLEY	1-13669-191-0	01	1	0103-		●
134	SPINDLE; IDLE PULLEY	1-13665-060-1	01	1	0103-		●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 STRAIGHT	9-09031-010-0	01	1	0103-0512		●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●
140	NUT; IDLE PULLEY M18	9-99111-518-0	01	1	0103-0512		●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	0601-		●
185	BELT; GEN DRIVE (B)	1-13671-479-0	01	1	0103-		●
185	BELT; GEN DRIVE GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A)	1-13671-478-0	01	1	0103-		●
221	BOLT; IDLE PULLEY (A) M10X80 FLANGE	0-28181-080-0	03	1	0103-0512		●
221	BOLT; IDLE PULLEY (A) M10X80 FLANGE	0-28151-080-0	03	1	0601-		●
221	BOLT; IDLE PULLEY (B) M10X90 FLANGE	0-28181-090-0	01	1	0103-0512		●
221	BOLT; IDLE PULLEY (B) M10X90 FLANGE	0-28151-090-0	01	1	0601-		●
224	BEARING; IDLE PULLEY	1-09800-176-0	02	1	0103-0907		●
224	BEARING; IDLE PULLEY	8-97633-017-0	02	1	0908-		●

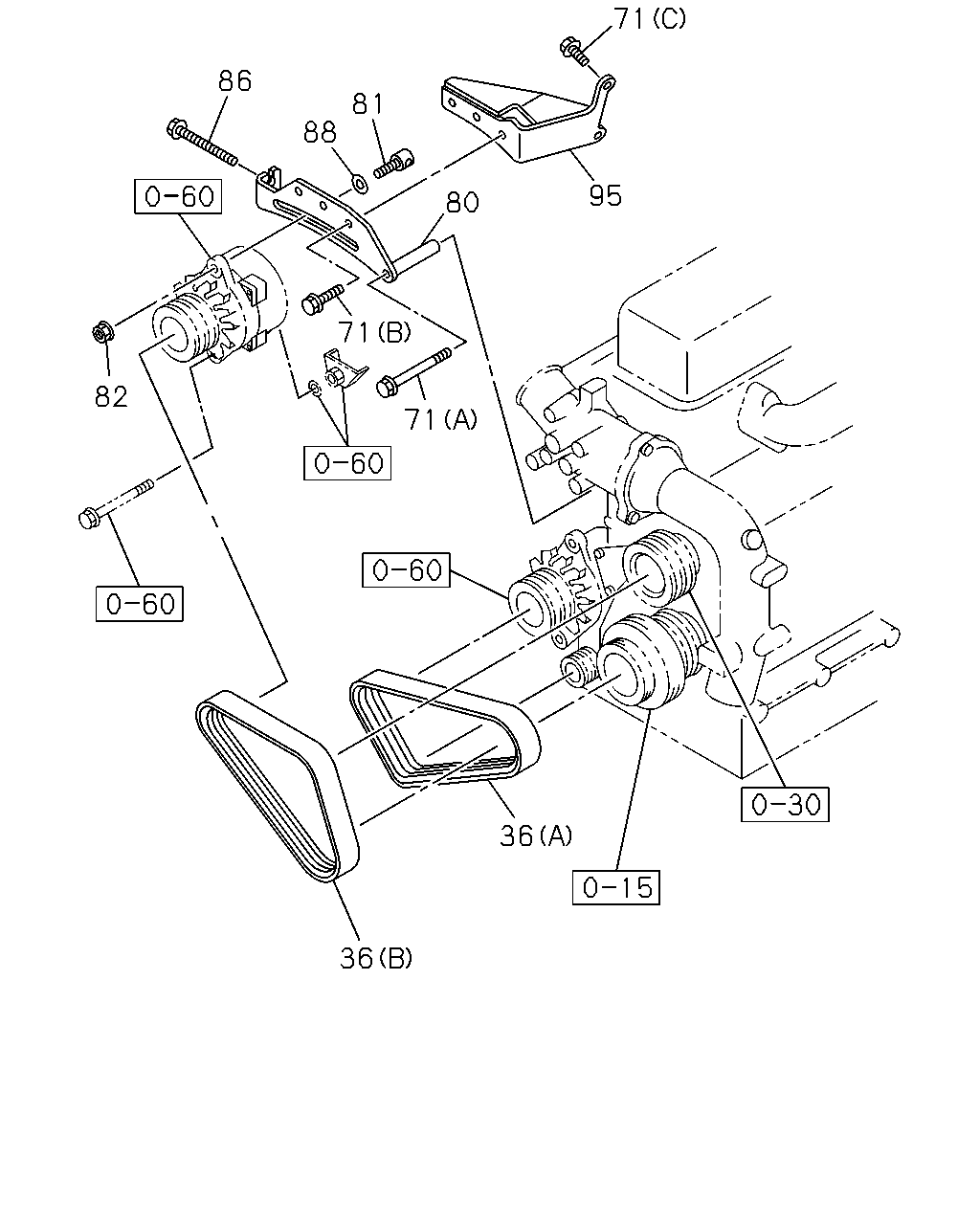

71 86 81 88 95 80 71 82 71 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	BELT; COOLING FAN (C) 1 SET=2 PIECE(9136713160) MITSUBOSHI	1-13671-323-0	01	1	0103-	●
36	BELT; COOLING FAN (B) L=1378	1-13671-456-0	01	1	0103-	●
36	BELT; COOLING FAN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) L=1323	1-13671-454-0	01	1	0103-	●
36	BELT; COOLING FAN (D) 1 SET=2 PIECE(1136710010) MITSUBOSHI	1-13671-305-1	01	1	0103-		●
71	BOLT; ADJ PLATE,GEN (A) M12X140 FLANGE	0-28186-214-0	01	1	0103-0512	●
71	BOLT; ADJ PLATE,GEN (A) M12X140 FLANGE	0-28156-214-0	01	1	0601-	●
71	BOLT; ADJ PLATE,GEN (B) M10X35 FLANGE	0-28681-035-0	03	1	0103-0512	●
71	BOLT; ADJ PLATE,GEN (B) M10X35 FLANGE	0-28651-035-0	03	1	0601-	●
71	BOLT; ADJ PLATE,GEN (C) M10X25 FLANGE	0-28781-025-0	02	1	0103-0512	●
71	BOLT; ADJ PLATE,GEN (C) M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
71	BOLT; ADJ PLATE,GEN (D) M10X140	1-09000-104-1	01	1	0103-		●
80	PLATE; ADJ	1-13674-272-0	01	1	0103-	●
81	PIECE; SLIDING M12X59	1-13674-161-0	01	1	0103-	●
82	NUT; ADJ PLATE M12 FLANGE	0-91150-112-0	01	1	0103-0602	●
82	NUT; ADJ PLATE M12 FLANGE	0-91180-112-0	01	1	0603-	●
86	BOLT; ADJ	1-09009-169-0	01	1	0103-	●
88	WASHER; PL,ADJ PLATE ID=12.5 OD=32	9-09160-712-0	01	1	0103-	●
95	BRACKET; ADJ PLATE	1-21559-410-0	01	1	0103-	●

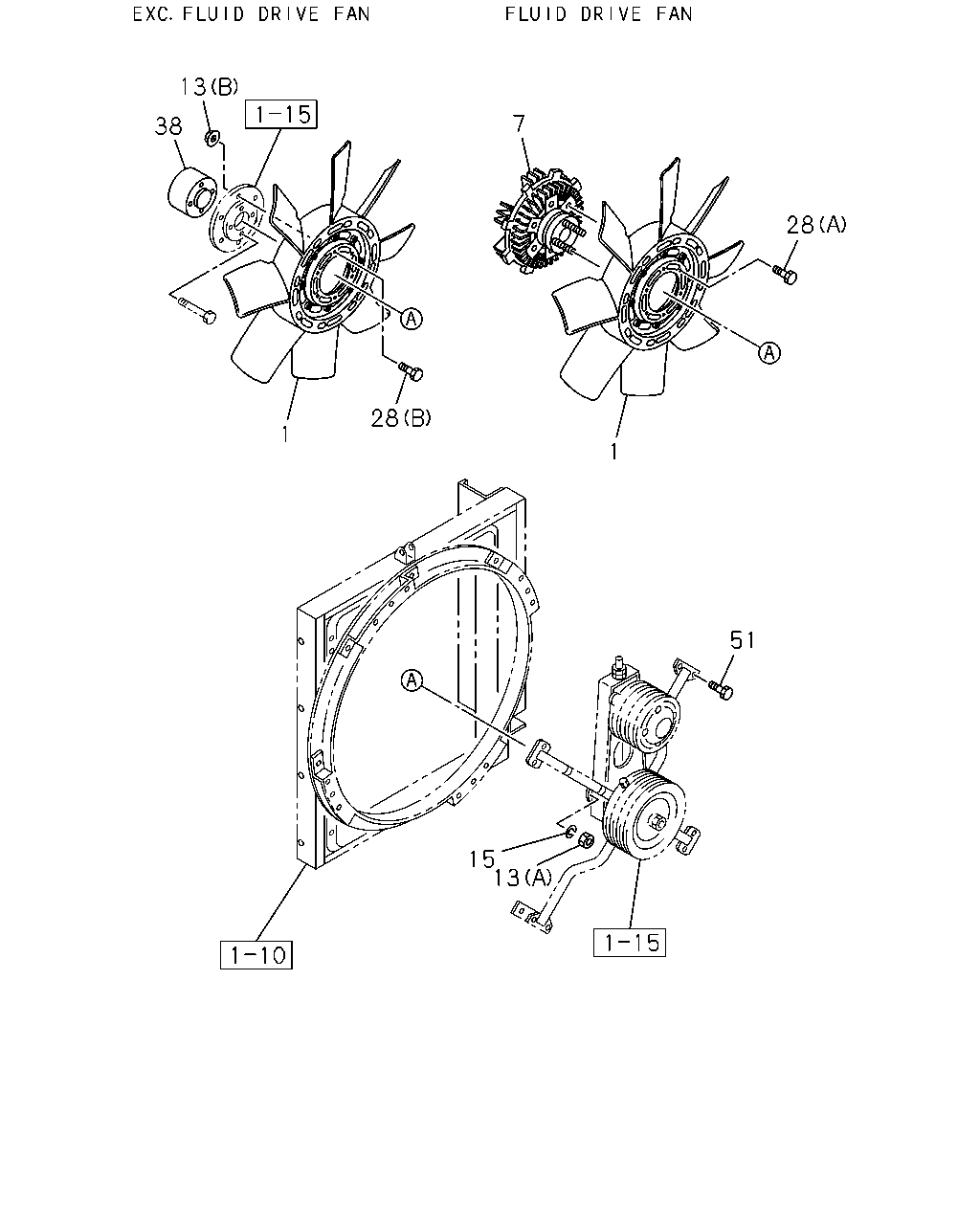

13 7 38 28 28 1 1 51 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FAN; COOLING	1-13660-277-2	01	1	0103-	●	●
7	COUPLING; FAN FLUID DRIVE FAN<KA3>	1-21650-193-1	01	1	0103-	●	●
13	NUT; COOLING FAN FLUID DRIVE FAN<KA3> (A) M10	9-09110-410-0	04	1	0103-0512	●	●
13	NUT; COOLING FAN FLUID DRIVE FAN<KA3> (A) M10	0-91110-510-0	04	1	0601-	●	●
13	NUT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602	●	●
13	NUT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> (B) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
15	WASHER; LK,COOLING FAN FLUID DRIVE FAN<KA3> ID=10.2	9-09150-510-0	04	1	0103-0603	●	●
15	WASHER; LK,COOLING FAN FLUID DRIVE FAN<KA3> ID=10.2	0-91510-510-0	04	1	0604-	●	●
28	BOLT; COOLING FAN FLUID DRIVE FAN<KA3> (A) M10X16 FLANGE	0-28181-016-0	06	1	0103-0512	●	●
28	BOLT; COOLING FAN FLUID DRIVE FAN<KA3> (A) M10X16 FLANGE	0-28151-016-0	06	1	0601-	●	●
28	BOLT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512	●	●
28	BOLT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-	●	●
38	SPACER; FAN EXC. FLUID DRIVE FAN<KA3>	1-13669-192-0	01	1	0103-	●	●
51	BOLT; FAN DRIVE PULLEY M10X30 FLANGE	0-28681-030-0	08	1	0103-0304	●	●
51	BOLT; FAN DRIVE PULLEY M10X35 FLANGE	0-28681-035-0	08	1	0305-0512	●	●
51	BOLT; FAN DRIVE PULLEY M10X35 FLANGE	0-28651-035-0	08	1	0601-	●	●
