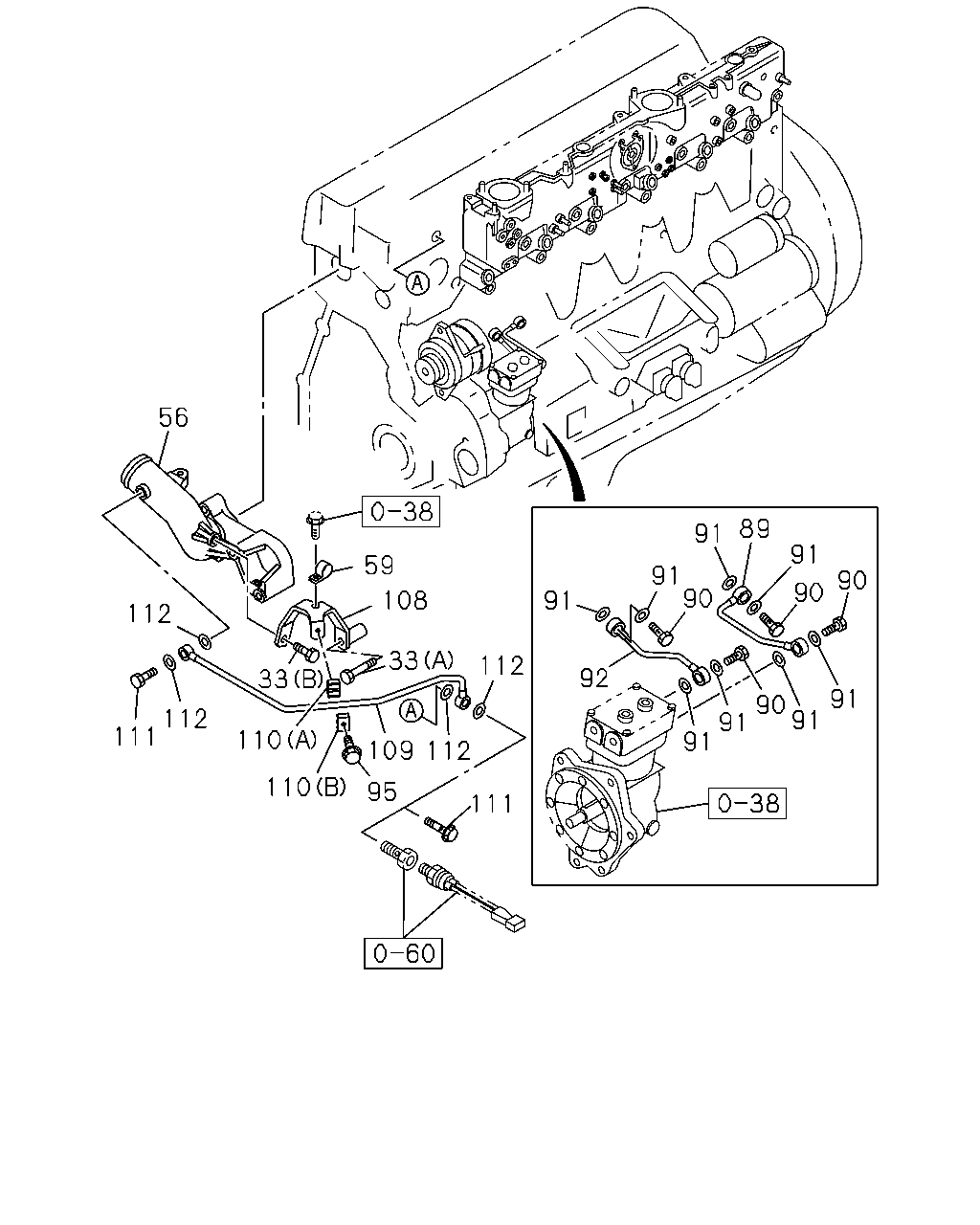

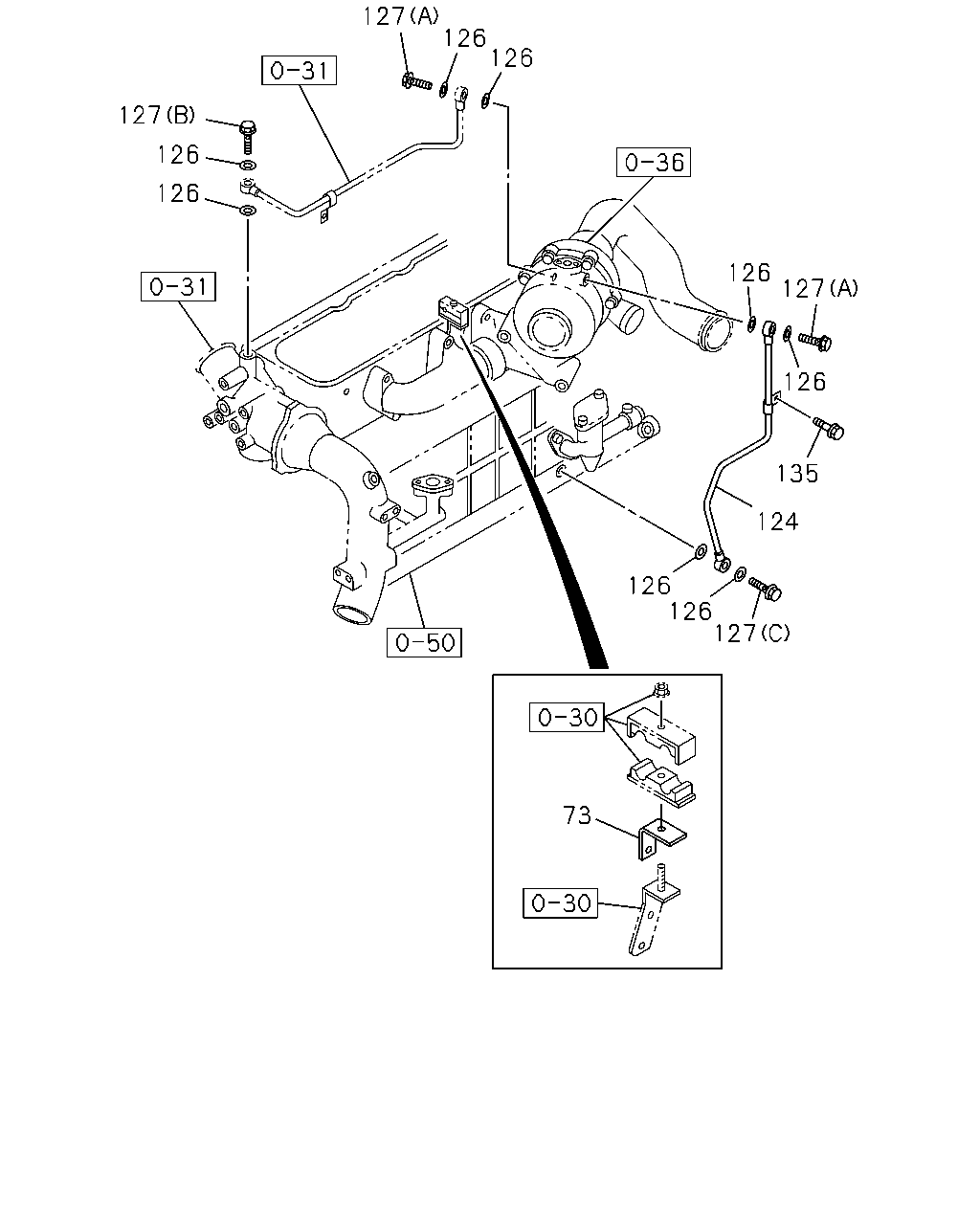

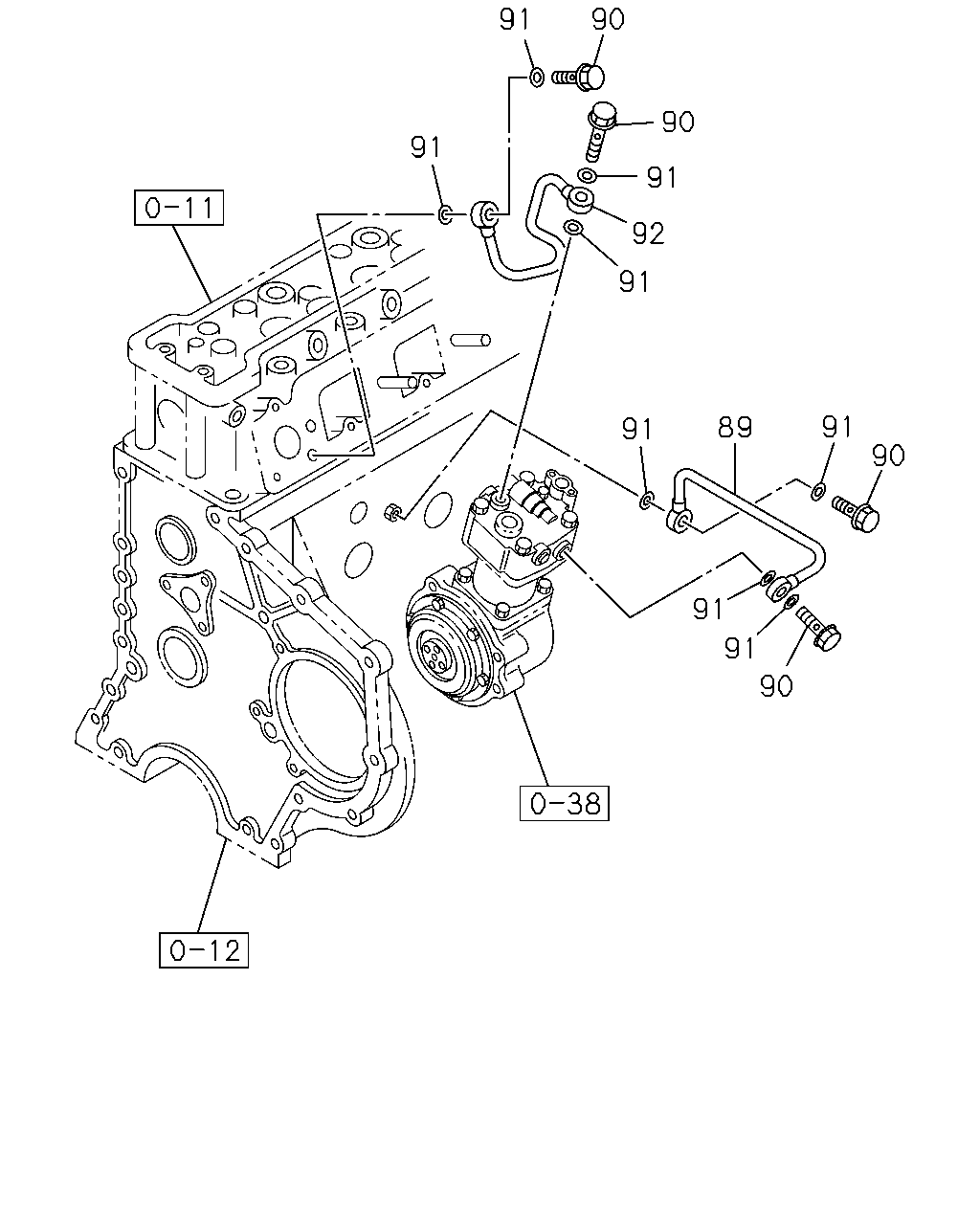

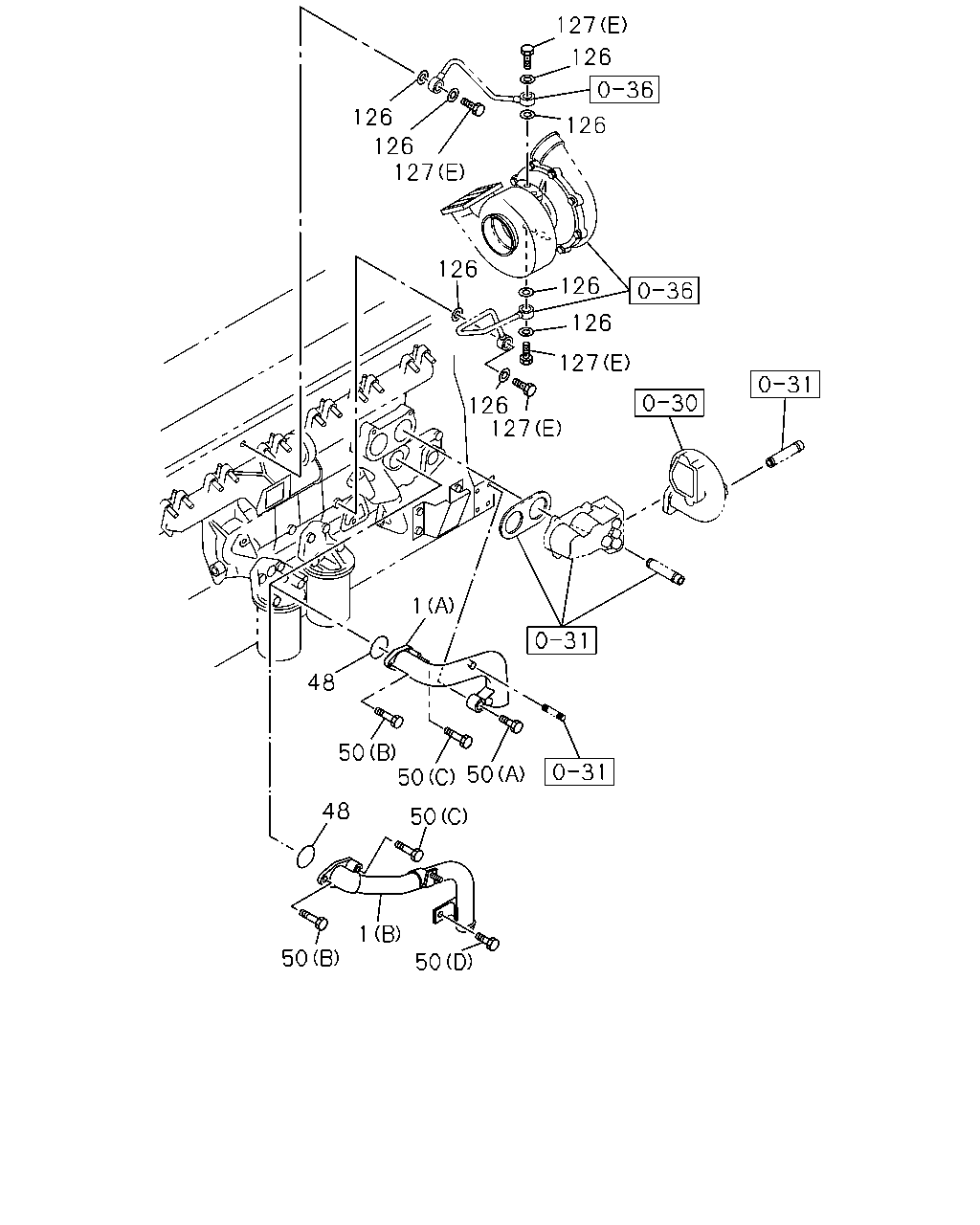

0-32 — WATER PIPING; ENGINE (#10401) — 70 parça

127 126 126 126 126 127 126 126 126 127 126 127 1 48 50 50 50 48 50 1 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL (A)	1-13711-718-0	01	1	0103-0106	●
1	PIPE; WATER PUMP,INL (A)	1-13711-611-2	01	1	0107-0512	●
1	PIPE; WATER PUMP,INL (B)	8-97606-255-2	01	1	0601-	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0103-	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0103-0512	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0601-	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0103-0512	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0601-	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0103-0512	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28981-425-0	01	1	0601-0601	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28951-425-0	01	1	0601-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0103-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0103-0703	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0103-		●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0103-		●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0103-		●
127	BOLT; EYE (E) M14X27 EYE-BOLT	1-09675-193-0	04	1	0103-	●

56 89 91 91 59 91 90 90 90 108 91 112 33 33 112 92 91 90 91 112 91 111 110 91 109 112 110 95 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT (A) M10X60 FLANGE	0-28181-060-0	01	1	0103-0512	●
33	BOLT; BRKT (A) M10X60 FLANGE	0-28151-060-0	01	1	0601-	●
33	BOLT; BRKT (B) M10X30 FLANGE	0-28781-030-0	01	1	0103-0512	●
33	BOLT; BRKT (B) M10X30 FLANGE	0-28751-030-0	01	1	0601-	●
56	PIPE; WATER OUTLET	1-13721-880-0	01	1	0103-	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0103-0606	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	0-95235-035-0	02	1	0607-	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-862-0	01	1	0103-0203		●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0204-		●
89	PIPE; WATER,AIR CMPR,IN	1-13711-594-1	01	1	0103-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0103-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0103-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0103-	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-861-0	01	1	0103-0203		●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0204-		●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-593-1	01	1	0103-	●
95	BOLT; CLIP M6X30 FLANGE	0-28680-630-0	01	1	0103-0512	●
95	BOLT; CLIP M6X30 FLANGE	0-28650-630-0	01	1	0601-	●
108	BRACKET; WATER CHARGE	1-13719-110-0	01	1	0103-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-976-0	01	1	0103-	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	01	1	0103-	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	01	1	0103-	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0103-	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0103-	●

127 126 126 127 126 126 126 127 126 135 124 126 126 127 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	0103-		●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-1	01	1	0103-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0103-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0103-0703	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0103-		●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0103-		●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0103-		●
127	BOLT; EYE (E) M14X27 EYE-BOLT	1-09675-193-0	04	1	0103-	●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28080-825-0	01	1	0103-0512		●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28050-825-0	01	1	0601-		●

91 90 90 91 91 92 91 91 89 91 90 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN	1-13721-862-0	01	1	0103-0203		●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0204-		●
89	PIPE; WATER,AIR CMPR,IN	1-13711-594-1	01	1	0103-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0103-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0103-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0103-	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-861-0	01	1	0103-0203		●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0204-		●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-593-1	01	1	0103-	●
