Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#1040) — 514 parça

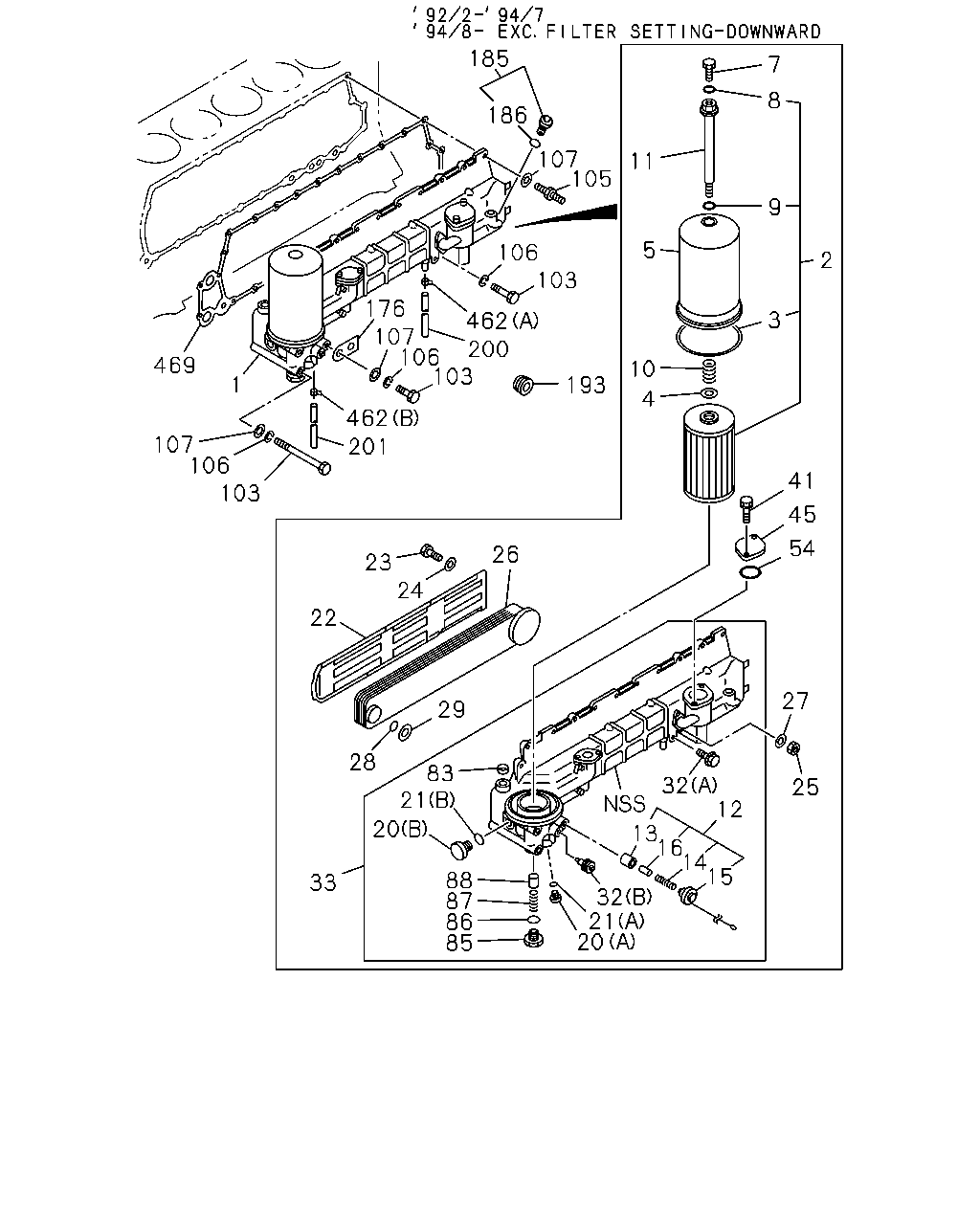

185 7 8 186 107 105 11 9 5 106 103 2 176 107 200 106 103 3 462 469 10 193 1 4 462 107 106 103 201 41 45 54 26 23 24 22 27 29 28 83 21 32 12 25 20 13 16 14 15 88 87 86 85 33 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9202-9407	●	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-904-0	01	1	9408-	●	●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-235-4	01	1	9408-	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	1-87810-075-2	01	1	9202-	●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9202-		●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13240-077-1	01	1	9202-	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-501-0	01	1	9212-9302			●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-375-4	01	1	9303-			●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9202-9211			●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13240-132-0	01	1	9212-			●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9202-9211			●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-87810-372-1	01	1	9212-			●
3	GASKET	9-09920-311-0	01	1	9202-9407	●	●
3	GASKET EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-09920-311-0	01	1	9408-	●	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (A)	1-09623-352-0	01	1	9408-	●	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (B)	1-09630-109-0	01	1	9408-	●	●
4	WASHER; ELEMENT	1-13219-173-0	01	1	9202-9407	●	●
4	WASHER; ELEMENT EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	01	1	9408-	●	●
5	CASE; OIL FILTER	1-13211-125-1	01	1	9202-9407	●	●
5	CASE; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-125-1	01	1	9408-	●	●
5	CASE; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-21722-031-0	01	1	9408-	●	●
7	PLUG; CENTER BOLT M10	1-09000-105-0	01	1	9202-9407	●	●
7	PLUG; CENTER BOLT EXC. OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	9408-	●	●
8	GASKET; PLUG ID=9.8	1-09623-055-0	01	1	9202-9407	●	●
8	GASKET; PLUG EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=9.8	1-09623-055-0	01	1	9408-	●	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5	9-09920-694-0	01	1	9202-	●	●
10	SPRING; ELEMENT	9-09941-283-0	01	1	9202-9407	●	●
10	SPRING; ELEMENT EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-09941-283-0	01	1	9408-	●	●
11	BOLT; CENTER	1-13231-047-0	01	1	9202-9407	●	●
11	BOLT; CENTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●	●
11	BOLT; CENTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-062-0	01	1	9408-	●	●
12	VALVE ASM; BYPASS	1-13260-070-0	01	1	9202-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9202-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9202-	●	●
15	PLUG; RELIEF VLV	1-13265-021-0	01	1	9202-	●	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9202-	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9202-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9202-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9202-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9202-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9202-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9202-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9202-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9202-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9202-	●	●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9202-	●	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9202-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9202-	●	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9202-	●	●
32	PLUG; DRAIN (B)	1-13219-295-0	01	1	9202-9407	●	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-0	01	1	9408-	●	●
33	HOUSING ASM; COOLER	1-13211-176-2	01	1	9202-9407	●	●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-176-2	01	1	9408-	●	●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-170-3	01	1	9408-	●	●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9202-9407	●	●
41	BOLT; COVER FIX EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-161-0	02	1	9408-	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9202-	●	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9202-	●	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9202-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9202-9407	●	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	9408-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	9408-	●	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9202-	●	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9202-9407	●	●
87	SPRING; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-148-0	01	1	9408-	●	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9202-9407	●	●
88	VALVE; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-13262-009-0	01	1	9408-	●	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9202-9407	●
103	BOLT; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
105	STUD; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9202-9407	●
105	STUD; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9408-	●
105	STUD; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9408-	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9202-	●	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9202-9407	●
107	WASHER; PL,OIL COOLER HONG KONG EQUIPMENT(PQ1) ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	04	1	9202-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9202-		●
176	BRACKET; HARNESS CLIP	1-82699-182-0	01	1	9202-9407	●	●
176	BRACKET; HARNESS CLIP EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-82699-182-0	01	1	9408-	●	●
176	BRACKET; HARNESS CLIP OIL FILTER SETTING DOWNWARD<E7V>	1-82699-304-0	01	1	9408-	●	●
185	VALVE; OIL RELIEF,OIL COOLER THERMOSTAT VAR 1<Q1U>	1-13160-031-0	01	1	9306-	●	●
185	VALVE; OIL RELIEF,OIL COOLER EXC. THERMOSTAT VAR 1<Q1U>	1-13160-017-1	01	1	9202-	●	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. THERMOSTAT VAR 1<Q1U> ID=27.7	9-09565-228-0	01	1	9202-	●	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 T=8.0	1-09605-066-0	01	1	9202-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9202-	●	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9407	●	●
201	PIPE; VINYL,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9408-	●	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9202-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9202-9407	●	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-0	01	1	9408-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-			●

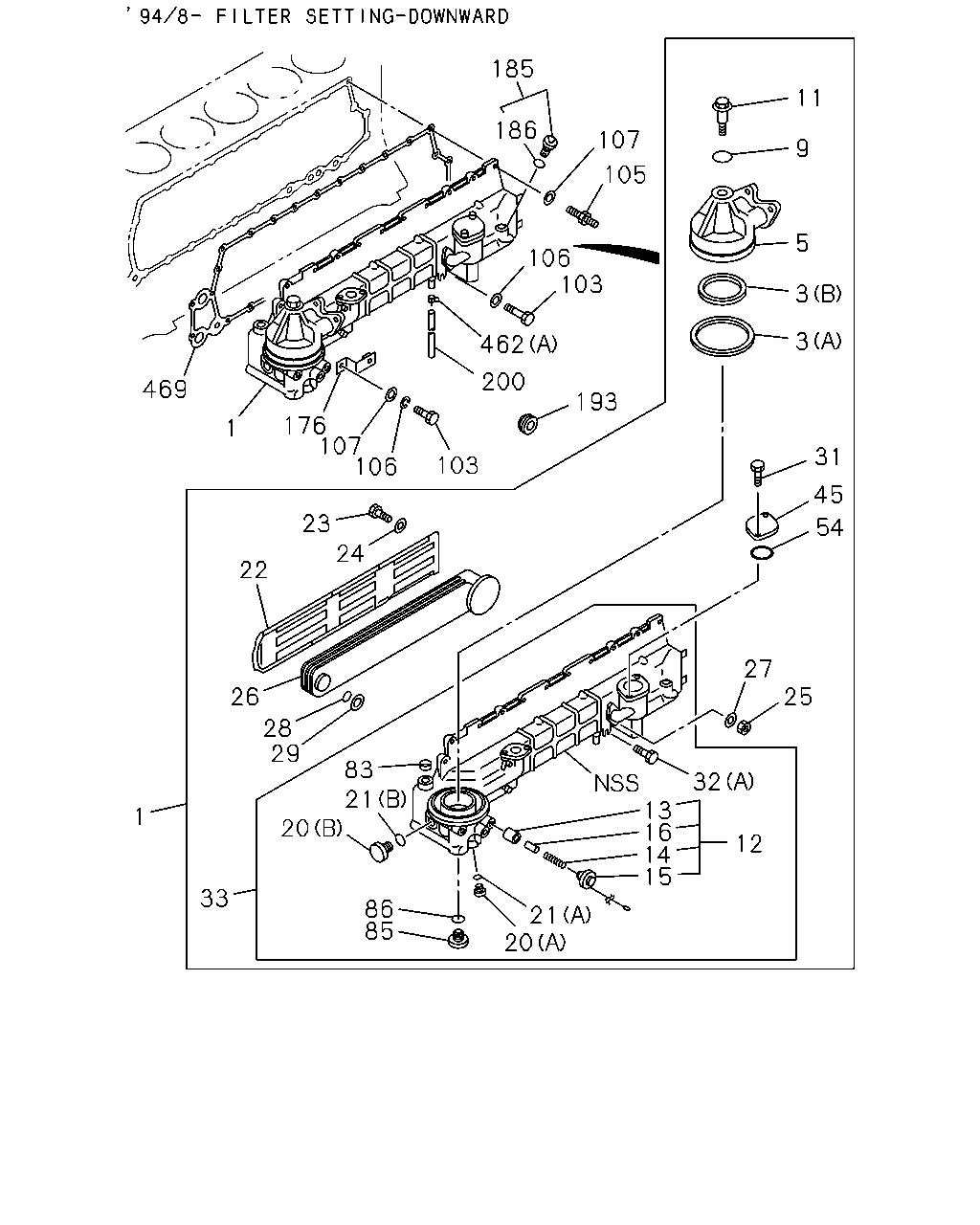

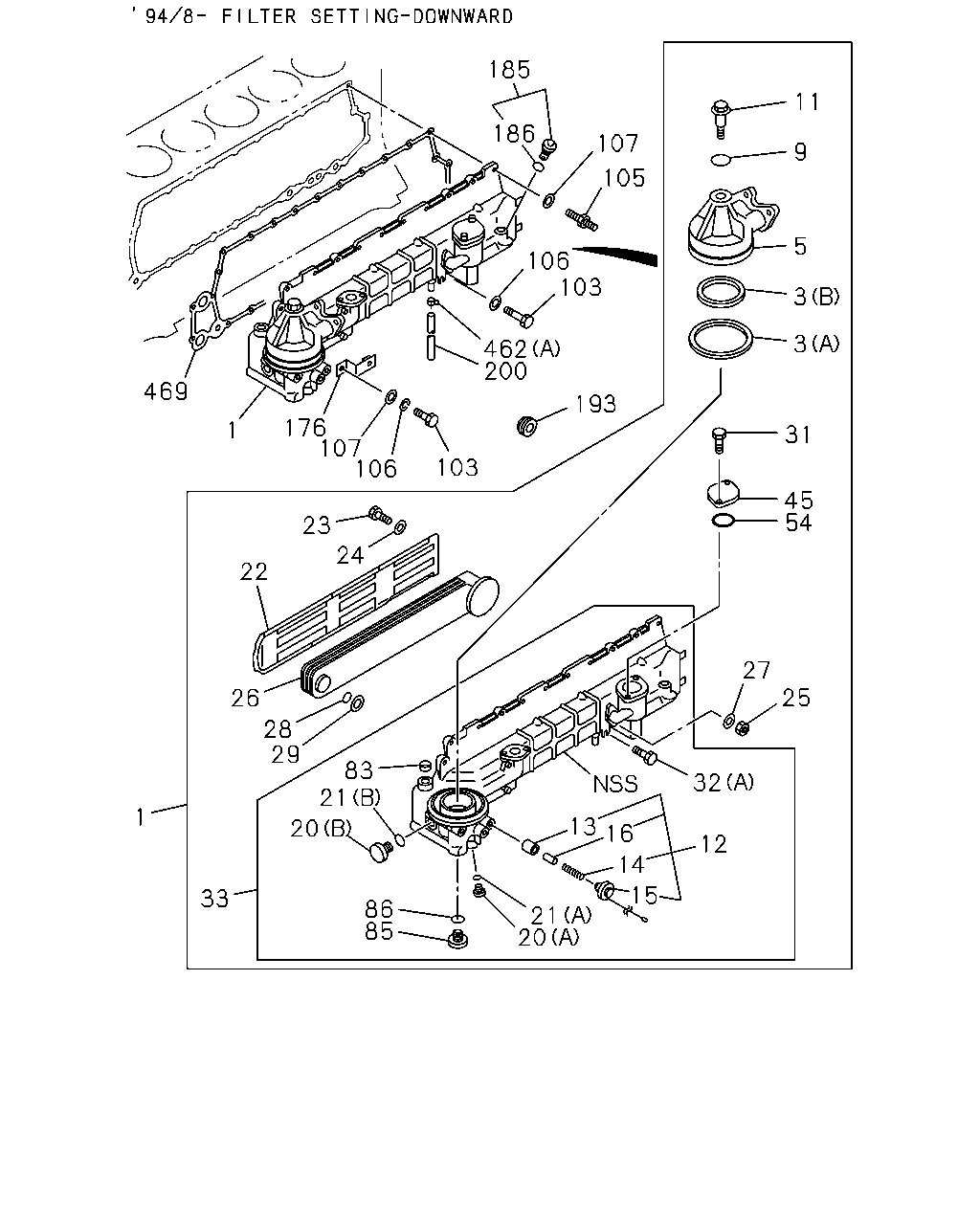

185 11 186 107 9 105 5 106 103 3 3 462 200 469 193 176 107 106 1 31 103 45 23 24 54 22 27 25 26 28 29 83 21 20 32 13 16 14 15 1 12 33 86 85 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9202-9407	●	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-904-0	01	1	9408-	●	●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-235-4	01	1	9408-	●	●
3	GASKET	9-09920-311-0	01	1	9202-9407	●	●
3	GASKET EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-09920-311-0	01	1	9408-	●	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (A)	1-09623-352-0	01	1	9408-	●	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (B)	1-09630-109-0	01	1	9408-	●	●
5	CASE; OIL FILTER	1-13211-125-1	01	1	9202-9407	●	●
5	CASE; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-125-1	01	1	9408-	●	●
5	CASE; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-21722-031-0	01	1	9408-	●	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5	9-09920-694-0	01	1	9202-	●	●
11	BOLT; CENTER	1-13231-047-0	01	1	9202-9407	●	●
11	BOLT; CENTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●	●
11	BOLT; CENTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-062-0	01	1	9408-	●	●
12	VALVE ASM; BYPASS	1-13260-070-0	01	1	9202-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9202-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9202-	●	●
15	PLUG; RELIEF VLV	1-13265-021-0	01	1	9202-	●	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9202-	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9202-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9202-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9202-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9202-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9202-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9202-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9202-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9202-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9202-	●	●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9202-	●	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9202-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9202-	●	●
31	BOLT; OIL PIPE OIL FILTER SETTING DOWNWARD<E7V>	1-13219-161-0	02	1	9408-	●	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9202-	●	●
32	PLUG; DRAIN (B)	1-13219-295-0	01	1	9202-9407	●	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-0	01	1	9408-	●	●
33	HOUSING ASM; COOLER	1-13211-176-2	01	1	9202-9407	●	●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-176-2	01	1	9408-	●	●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-170-3	01	1	9408-	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9202-	●	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9202-	●	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9202-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9202-9407	●	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	9408-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	9408-	●	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9202-	●	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9202-9407	●
103	BOLT; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
105	STUD; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9202-9407	●
105	STUD; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9408-	●
105	STUD; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9408-	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9202-	●	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9202-9407	●
107	WASHER; PL,OIL COOLER HONG KONG EQUIPMENT(PQ1) ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	04	1	9202-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9202-		●
176	BRACKET; HARNESS CLIP	1-82699-182-0	01	1	9202-9407	●	●
176	BRACKET; HARNESS CLIP EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-82699-182-0	01	1	9408-	●	●
176	BRACKET; HARNESS CLIP OIL FILTER SETTING DOWNWARD<E7V>	1-82699-304-0	01	1	9408-	●	●
185	VALVE; OIL RELIEF,OIL COOLER THERMOSTAT VAR 1<Q1U>	1-13160-031-0	01	1	9306-	●	●
185	VALVE; OIL RELIEF,OIL COOLER EXC. THERMOSTAT VAR 1<Q1U>	1-13160-017-1	01	1	9202-	●	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. THERMOSTAT VAR 1<Q1U> ID=27.7	9-09565-228-0	01	1	9202-	●	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 T=8.0	1-09605-066-0	01	1	9202-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9202-	●	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9202-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9202-9407	●	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-0	01	1	9408-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-			●

185 11 186 107 9 105 5 106 103 3 3 462 200 469 193 176 107 106 1 31 103 45 54 23 24 22 27 25 26 28 29 83 21 32 1 13 20 16 12 14 15 33 86 85 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9202-9407	●	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-904-0	01	1	9408-	●	●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-235-4	01	1	9408-	●	●
3	GASKET	9-09920-311-0	01	1	9202-9407	●	●
3	GASKET EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-09920-311-0	01	1	9408-	●	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (A)	1-09623-352-0	01	1	9408-	●	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (B)	1-09630-109-0	01	1	9408-	●	●
5	CASE; OIL FILTER	1-13211-125-1	01	1	9202-9407	●	●
5	CASE; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-125-1	01	1	9408-	●	●
5	CASE; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-21722-031-0	01	1	9408-	●	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5	9-09920-694-0	01	1	9202-	●	●
11	BOLT; CENTER	1-13231-047-0	01	1	9202-9407	●	●
11	BOLT; CENTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●	●
11	BOLT; CENTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-062-0	01	1	9408-	●	●
12	VALVE ASM; BYPASS	1-13260-070-0	01	1	9202-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9202-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9202-	●	●
15	PLUG; RELIEF VLV	1-13265-021-0	01	1	9202-	●	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9202-	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9202-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9202-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9202-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9202-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9202-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9202-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9202-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9202-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9202-	●	●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9202-	●	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9202-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9202-	●	●
31	BOLT; OIL PIPE OIL FILTER SETTING DOWNWARD<E7V>	1-13219-161-0	02	1	9408-	●	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9202-	●	●
32	PLUG; DRAIN (B)	1-13219-295-0	01	1	9202-9407	●	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-0	01	1	9408-	●	●
33	HOUSING ASM; COOLER	1-13211-176-2	01	1	9202-9407	●	●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-176-2	01	1	9408-	●	●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-170-3	01	1	9408-	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9202-	●	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9202-	●	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9202-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9202-9407	●	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	9408-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	9408-	●	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9202-	●	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9202-9407	●
103	BOLT; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
105	STUD; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9202-9407	●
105	STUD; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9408-	●
105	STUD; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9408-	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9202-	●	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9202-9407	●
107	WASHER; PL,OIL COOLER HONG KONG EQUIPMENT(PQ1) ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	04	1	9202-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9202-		●
176	BRACKET; HARNESS CLIP	1-82699-182-0	01	1	9202-9407	●	●
176	BRACKET; HARNESS CLIP EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-82699-182-0	01	1	9408-	●	●
176	BRACKET; HARNESS CLIP OIL FILTER SETTING DOWNWARD<E7V>	1-82699-304-0	01	1	9408-	●	●
185	VALVE; OIL RELIEF,OIL COOLER THERMOSTAT VAR 1<Q1U>	1-13160-031-0	01	1	9306-	●	●
185	VALVE; OIL RELIEF,OIL COOLER EXC. THERMOSTAT VAR 1<Q1U>	1-13160-017-1	01	1	9202-	●	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. THERMOSTAT VAR 1<Q1U> ID=27.7	9-09565-228-0	01	1	9202-	●	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 T=8.0	1-09605-066-0	01	1	9202-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9202-	●	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9202-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9202-9407	●	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-0	01	1	9408-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-			●

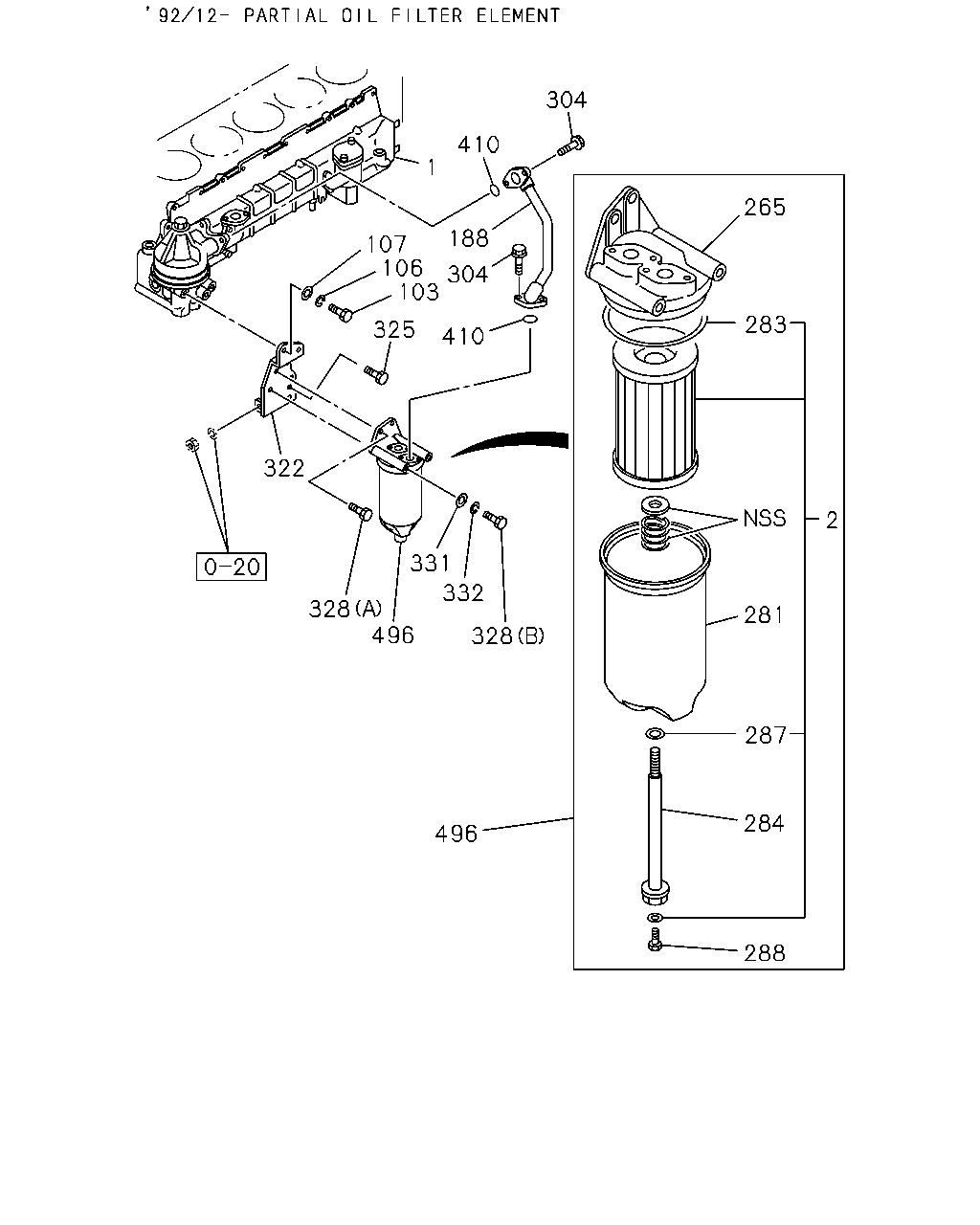

304 410 1 265 188 107 106 304 103 283 325 410 322 2 331 332 328 496 281 328 287 284 496 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9202-9407	●	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-904-0	01	1	9408-	●	●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-235-4	01	1	9408-	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	1-87810-075-2	01	1	9202-	●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9202-		●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13240-077-1	01	1	9202-	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-501-0	01	1	9212-9302			●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-375-4	01	1	9303-			●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9202-9211			●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13240-132-0	01	1	9212-			●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9202-9211			●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-87810-372-1	01	1	9212-			●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9202-9407	●
103	BOLT; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9202-	●	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9202-9407	●
107	WASHER; PL,OIL COOLER HONG KONG EQUIPMENT(PQ1) ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	04	1	9202-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9202-		●
188	PIPE; BYPASS OIL FILTER SETTING DOWNWARD<E7V>	1-13312-650-0	02	1	9408-	●	●
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	9408-	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-373-0	01	1	9212-9403			●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94394-527-0	01	1	9404-			●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9202-9211			●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-503-0	01	1	9212-			●
281	COVER; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-153-0	01	1	9408-	●	●
283	GASKET; BODY TO COVER OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-170-0	01	1	9408-	●	●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13212-064-1	01	1	9202-	●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9202-9211			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-13231-069-0	01	1	9212-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9202-9211			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13231-070-1	01	1	9212-			●
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	9408-	●	●
288	PLUG; OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	9408-	●	●
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28080-820-0	08	1	9408-	●	●
322	BRACKET; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-19755-121-1	01	1	9408-	●	●
325	BOLT; BRKT TO BODY OIL FILTER SETTING DOWNWARD<E7V> M10X22 W/LK WASHER	0-50051-022-0	02	1	9408-	●	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9408-	●	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X142	5-09000-160-1	02	1	9408-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9202-			●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	9212-			●
328	BOLT; OIL FILTER (B) M10X135	8-94397-139-1	03	1	9202-9211			●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B) M10X135	8-94397-139-1	03	1	9212-			●
331	WASHER; PL,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> ID=10.5 OD=18	9-09160-510-0	02	1	9408-	●	●
332	WASHER; LK,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> ID=10.2	9-09150-510-0	02	1	9408-	●	●
410	GASKET OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-450-0	04	1	9408-	●	●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	9408-	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-450-0	01	1	9212-9403			●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-315-3	01	1	9404-			●
496	FILTER ASM; OIL	8-94393-427-0	01	1	9202-9211			●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-427-1	01	1	9212-			●

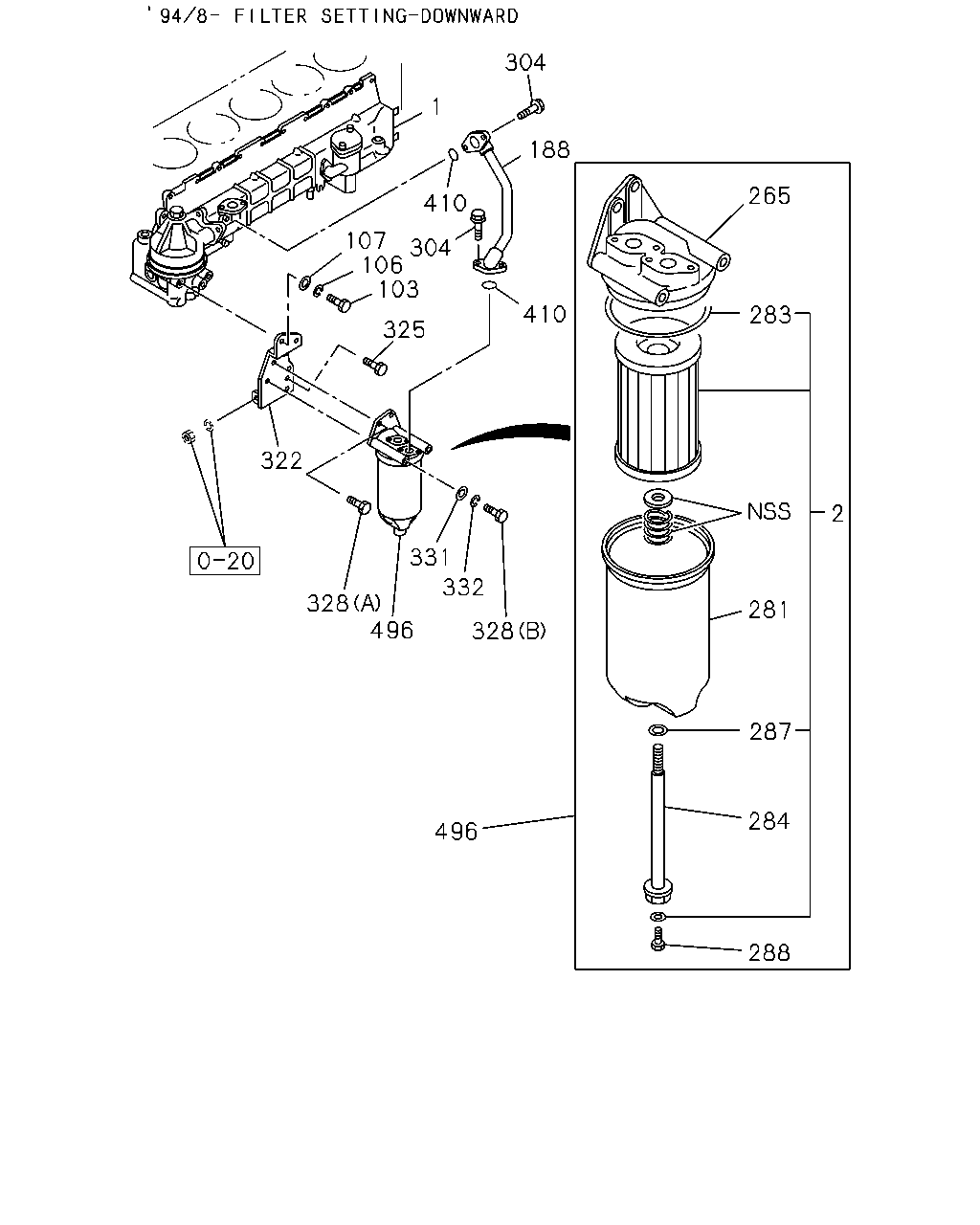

304 1 188 265 410 107 304 106 103 410 283 325 322 2 331 332 328 496 281 328 287 284 496 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9202-9407	●	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-904-0	01	1	9408-	●	●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-235-4	01	1	9408-	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	1-87810-075-2	01	1	9202-	●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9202-		●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13240-077-1	01	1	9202-	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-501-0	01	1	9212-9302			●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-375-4	01	1	9303-			●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9202-9211			●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13240-132-0	01	1	9212-			●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9202-9211			●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-87810-372-1	01	1	9212-			●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9202-9407	●
103	BOLT; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9202-	●	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9202-9407	●
107	WASHER; PL,OIL COOLER HONG KONG EQUIPMENT(PQ1) ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	07	1	9408-	●
107	WASHER; PL,OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	04	1	9202-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9202-		●
188	PIPE; BYPASS OIL FILTER SETTING DOWNWARD<E7V>	1-13312-650-0	02	1	9408-	●	●
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	9408-	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-373-0	01	1	9212-9403			●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94394-527-0	01	1	9404-			●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9202-9211			●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-503-0	01	1	9212-			●
281	COVER; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-153-0	01	1	9408-	●	●
283	GASKET; BODY TO COVER OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-170-0	01	1	9408-	●	●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13212-064-1	01	1	9202-	●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9202-9211			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-13231-069-0	01	1	9212-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9202-9211			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13231-070-1	01	1	9212-			●
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	9408-	●	●
288	PLUG; OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	9408-	●	●
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28080-820-0	08	1	9408-	●	●
322	BRACKET; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-19755-121-1	01	1	9408-	●	●
325	BOLT; BRKT TO BODY OIL FILTER SETTING DOWNWARD<E7V> M10X22 W/LK WASHER	0-50051-022-0	02	1	9408-	●	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9408-	●	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X142	5-09000-160-1	02	1	9408-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9202-			●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	9212-			●
328	BOLT; OIL FILTER (B) M10X135	8-94397-139-1	03	1	9202-9211			●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B) M10X135	8-94397-139-1	03	1	9212-			●
331	WASHER; PL,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> ID=10.5 OD=18	9-09160-510-0	02	1	9408-	●	●
332	WASHER; LK,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> ID=10.2	9-09150-510-0	02	1	9408-	●	●
410	GASKET OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-450-0	04	1	9408-	●	●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	9408-	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-450-0	01	1	9212-9403			●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-315-3	01	1	9404-			●
496	FILTER ASM; OIL	8-94393-427-0	01	1	9202-9211			●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-427-1	01	1	9212-			●

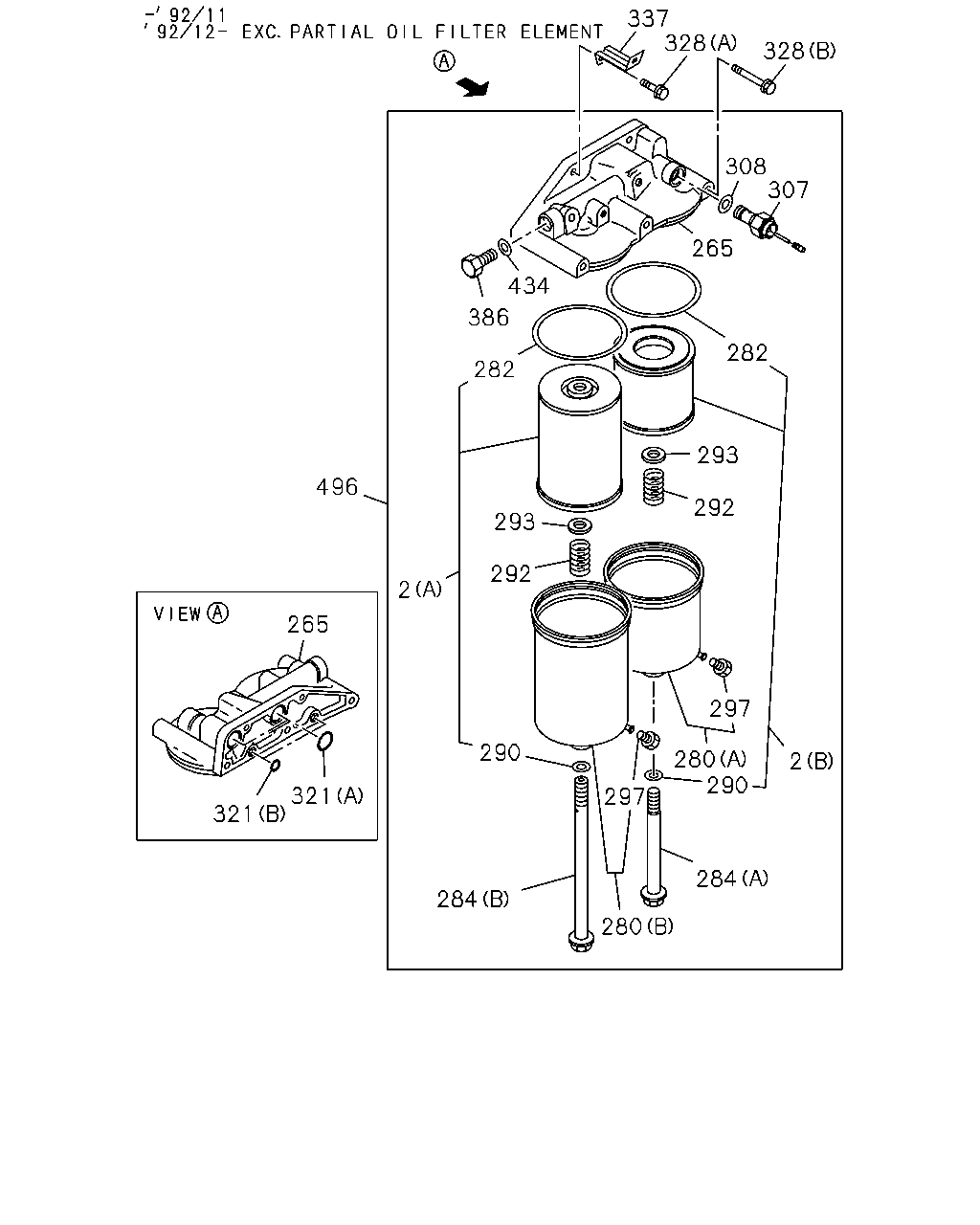

337 328 328 308 307 265 434 386 282 282 293 496 292 293 292 2 265 297 290 280 290 2 297 321 321 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	1-87810-075-2	01	1	9202-	●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9202-		●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13240-077-1	01	1	9202-	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-501-0	01	1	9212-9302			●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-375-4	01	1	9303-			●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9202-9211			●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13240-132-0	01	1	9212-			●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9202-9211			●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-87810-372-1	01	1	9212-			●
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	9408-	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-373-0	01	1	9212-9403			●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94394-527-0	01	1	9404-			●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9202-9211			●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-503-0	01	1	9212-			●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13212-150-0	01	1	9202-	●
280	CASE ASM; OIL FILTER (A)	8-94393-504-0	01	1	9202-9211			●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	8-94393-504-1	01	1	9212-			●
280	CASE ASM; OIL FILTER (B)	8-94393-505-0	01	1	9202-9211			●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	8-94393-505-1	01	1	9212-			●
282	GASKET; BODY TO CASE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=27.7	1-09623-170-0	01	1	9202-	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9202-9211			●
282	GASKET; BODY TO CASE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09920-311-0	02	1	9212-			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13212-064-1	01	1	9202-	●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9202-9211			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-13231-069-0	01	1	9212-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9202-9211			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13231-070-1	01	1	9212-			●
290	GASKET; PLUG,OIL DRAIN EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=9.8	1-09623-055-0	01	1	9202-	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9202-9211			●
290	GASKET; PLUG,OIL DRAIN EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=15.5	9-09920-694-0	02	1	9212-			●
292	SPRING; ELEMENT EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09941-283-0	01	1	9202-	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9202-9211			●
292	SPRING; ELEMENT EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09941-283-0	02	1	9212-			●
293	SEAT; SPR EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13219-173-0	01	1	9202-	●
293	SEAT; SPR	9-13239-025-0	02	1	9202-9211			●
293	SEAT; SPR EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-13239-025-0	02	1	9212-			●
297	PLUG; COVER	1-13219-275-0	02	1	9202-9211			●
297	PLUG; COVER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13219-275-0	02	1	9212-			●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-374-0	01	1	9212-			●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9202-9211			●
307	VALVE; OVERFLOW EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13260-066-1	01	1	9212-			●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9202-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9202-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9202-			●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9408-	●	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X142	5-09000-160-1	02	1	9408-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9202-			●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	9212-			●
328	BOLT; OIL FILTER (B) M10X135	8-94397-139-1	03	1	9202-9211			●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B) M10X135	8-94397-139-1	03	1	9212-			●
337	BRACKET; FUEL PIPE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94399-726-0	01	1	9202-9407			●
337	BRACKET; FUEL PIPE	8-94399-726-0	01	1	9408-			●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9202-9211			●
386	PLUG; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> M16X9	9-13226-011-0	01	1	9212-			●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9202-9211			●
434	GASKET; PLUG,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09920-526-0	01	1	9212-			●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	9408-	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-450-0	01	1	9212-9403			●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-315-3	01	1	9404-			●
496	FILTER ASM; OIL	8-94393-427-0	01	1	9202-9211			●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-427-1	01	1	9212-			●

339 339 338 338 390 390 391 340 340 282 341 341 293 292 391 280 291 284 290 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
132	PLUG; PARTIAL OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> M10	1-09000-105-0	01	1	9202-	●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13212-150-0	01	1	9202-	●
280	CASE ASM; OIL FILTER (A)	8-94393-504-0	01	1	9202-9211			●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	8-94393-504-1	01	1	9212-			●
280	CASE ASM; OIL FILTER (B)	8-94393-505-0	01	1	9202-9211			●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	8-94393-505-1	01	1	9212-			●
282	GASKET; BODY TO CASE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=27.7	1-09623-170-0	01	1	9202-	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9202-9211			●
282	GASKET; BODY TO CASE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09920-311-0	02	1	9212-			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13212-064-1	01	1	9202-	●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9202-9211			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-13231-069-0	01	1	9212-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9202-9211			●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13231-070-1	01	1	9212-			●
290	GASKET; PLUG,OIL DRAIN EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=9.8	1-09623-055-0	01	1	9202-	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9202-9211			●
290	GASKET; PLUG,OIL DRAIN EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=15.5	9-09920-694-0	02	1	9212-			●
291	GASKET; OIL DRAIN,CENTER BOLT EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=15.5	9-09920-694-0	01	1	9202-	●
292	SPRING; ELEMENT EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09941-283-0	01	1	9202-	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9202-9211			●
292	SPRING; ELEMENT EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09941-283-0	02	1	9212-			●
293	SEAT; SPR EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13219-173-0	01	1	9202-	●
293	SEAT; SPR	9-13239-025-0	02	1	9202-9211			●
293	SEAT; SPR EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-13239-025-0	02	1	9212-			●
338	FILTER ASM; OIL PARTIAL PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13200-744-0	01	1	9202-	●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	9202-		●
338	FILTER ASM; OIL PARTIAL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13200-704-1	01	1	9202-	●
339	BRACKET; PARTIAL OIL FILTER	1-19755-062-1	01	1	9202-	●	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-	●	●
341	BOLT; OIL FILTER,PARTIAL M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	9202-	●	●
390	BODY; OIL FILTER,PARTIAL PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13212-089-2	01	1	9202-	●
390	BODY; OIL FILTER,PARTIAL	1-13212-089-2	01	1	9202-		●
390	BODY; OIL FILTER,PARTIAL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13212-141-0	01	1	9202-	●
391	CARTRIDGE; OIL FILTER,PARTIAL PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13240-103-0	01	1	9202-9302	●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-103-0	01	1	9202-9302		●
391	CARTRIDGE; OIL FILTER,PARTIAL PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13240-163-2	01	1	9303-	●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	9303-		●
391	CARTRIDGE; OIL FILTER,PARTIAL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13240-077-1	01	1	9202-	●

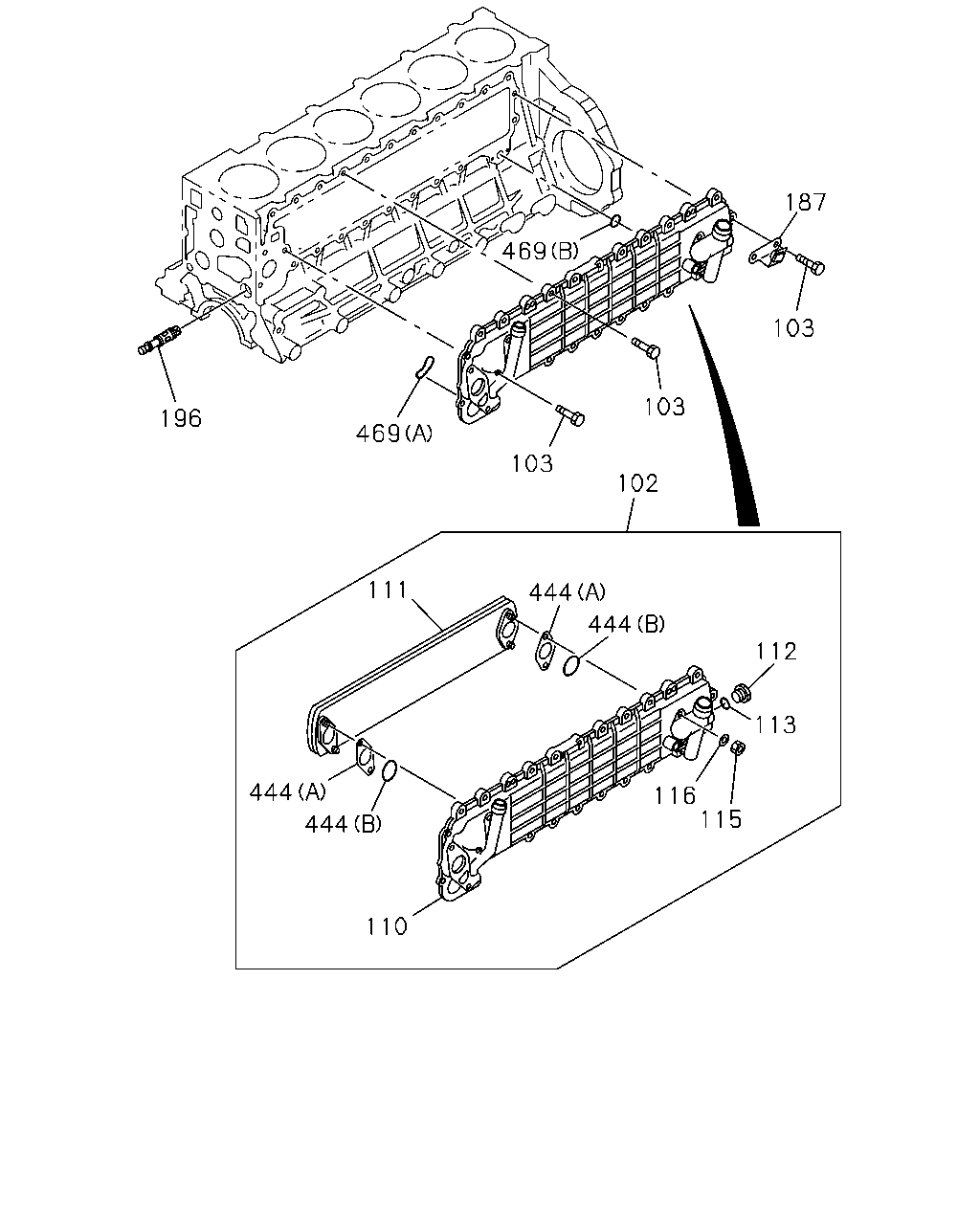

187 469 103 103 196 469 103 102 111 444 444 112 113 444 116 115 444 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
102	COOLER ASM; OIL	8-94397-459-3	01	1	9202-9307			●
102	COOLER ASM; OIL	8-94393-320-1	01	1	9308-			●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9202-9407	●
103	BOLT; OIL COOLER HONG KONG EQUIPMENT(PQ1) M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9408-	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
110	BODY; CASE,OIL COOLER	8-94396-714-2	01	1	9202-			●
111	CORE; OIL COOLER	8-94396-715-0	01	1	9202-9307			●
111	CORE; OIL COOLER	8-94396-716-0	01	1	9308-			●
112	PLUG; OIL COOLER CASE	8-94396-753-0	03	1	9202-			●
113	GASKET; PLUG,OIL COOLER CASE M24	8-94396-755-0	03	1	9202-			●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9202-			●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9202-			●
187	CLIP; PIPE TO PIPE	8-94396-688-1	01	1	9202-			●
196	THERMOSTAT; OIL COOLER 90?C	8-94393-347-2	01	1	9202-9412			●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9501-			●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9202-			●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
