0-28 — VENTILATION SYSTEM (#10398) — 23 parça
çizim 137591
91 10 1 9 59 106 11 10 106 10 90 90
BalonParca AdiParca NoAdetTipApplied Date A B
1 BREATHER; AIR 1-11740-181-1 01 1 0103- ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 0103- ●
10 CLIP; AIR BREATHER
(B) ID=31 L=30 		1-09700-969-0 02 1 0103- ●
10 CLIP; AIR BREATHER
(A) ID=28.5 		1-09707-150-0 01 1 0103- ●
11 HOSE; RUBBER,AIR 1-11742-073-3 01 1 0103- ●
59 CLIP; HOSE
ID=33.6 		8-94362-518-0 01 1 0103- ●
90 CLIP; RUBBER HOSE
L=250 		5-09707-030-1 02 1 0103-1205 ●
90 CLIP; RUBBER HOSE
L=250 		8-98216-430-0 02 1 1206- ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28081-020-0 02 1 0103-0106 ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28181-020-0 02 1 0107-0512 ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
106 BOLT; DRAIN PIPE
M8X12 FLANGE 		0-28080-812-0 02 1 0103-0512 ●
106 BOLT; DRAIN PIPE
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●

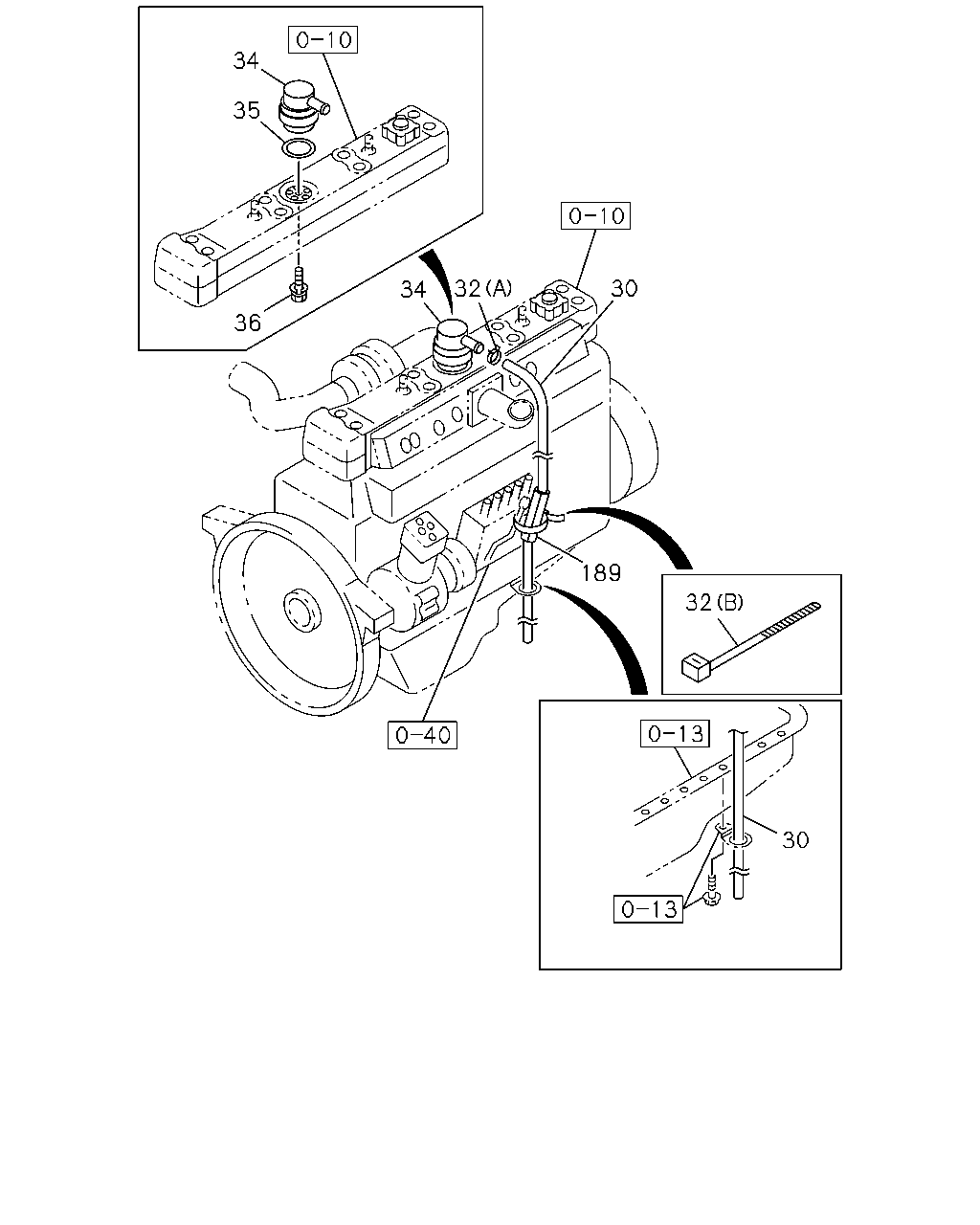

çizim 137623
34 35 32 30 34 36 189 32 30
BalonParca AdiParca NoAdetTipApplied Date A B
30 HOSE; VENTILATOR,CYL HD COVER 1-09360-730-1 01 1 0103- ●
32 CLIP; VENT HOSE
(A) ID=20 		1-09707-084-1 01 1 0103- ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 03 1 0103-0106 ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 02 1 0107-1205 ●
32 CLIP; VENT HOSE
(B) L=140 		8-98216-431-0 02 1 1206- ●
34 VENTILATOR 1-11740-172-2 01 1 0103- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-209-0 01 1 0103- ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50051-025-0 01 1 0103-0906 ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50551-025-0 01 1 0907- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0107- ●
