Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#10394) — 241 parça

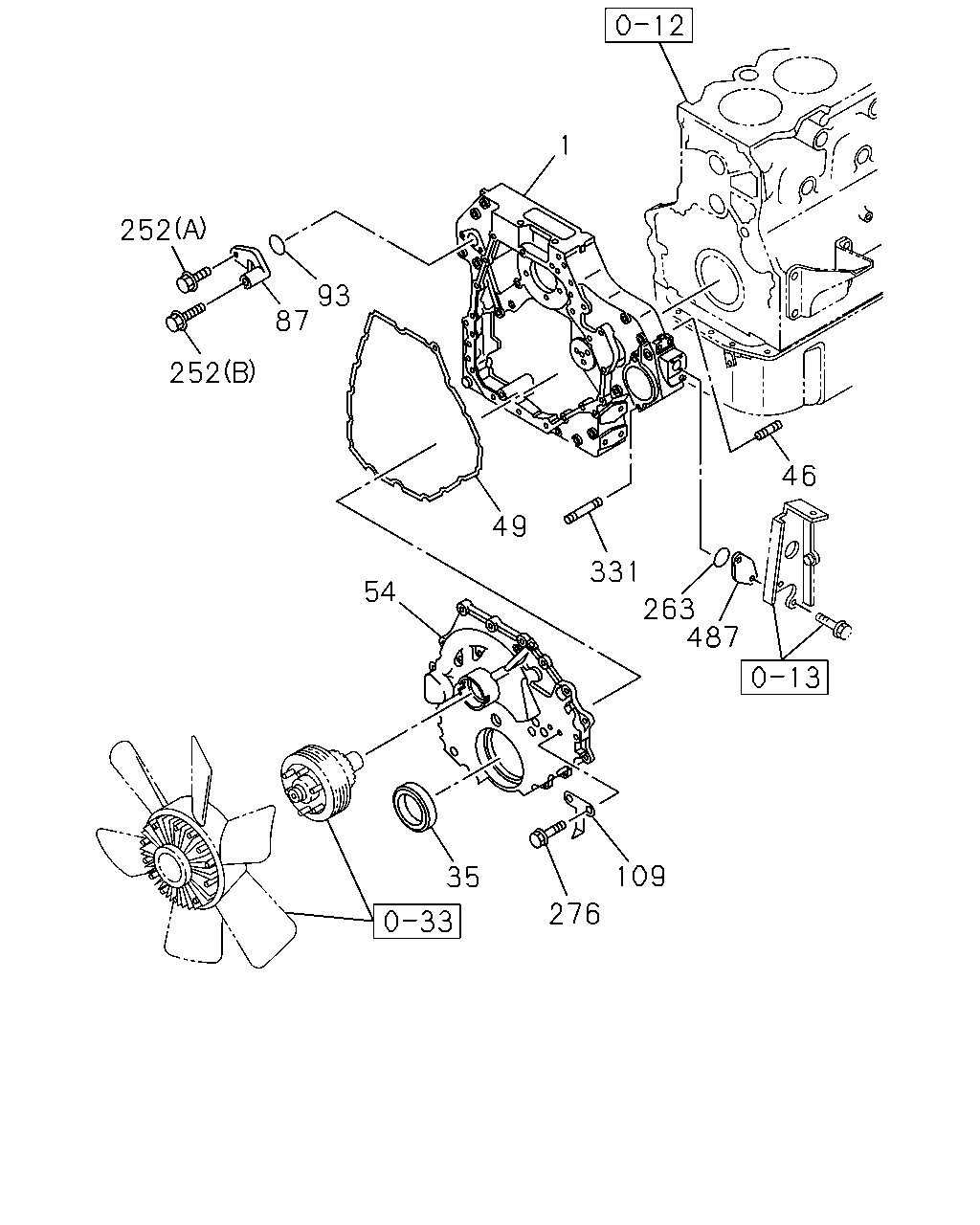

1 252 93 87 252 46 49 331 54 263 487 109 35 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	1-11310-053-5	01	1	0103-0512	●
1	CASE; TIMING GEAR	8-98030-095-0	01	1	0601-0608	●
1	CASE; TIMING GEAR	8-98032-286-4	01	1	0609-1001	●
1	CASE; TIMING GEAR	8-98152-249-0	01	1	1002-1309	●
1	CASE; TIMING GEAR	8-98249-370-0	01	1	1310-	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	0103-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-2	01	1	0103-0611	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	8-97617-308-0	01	1	0612-	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	0103-0604	●
46	STUD; BRG COVER,RR M14X45 L=66	0-44011-445-0	01	1	0605-	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	0103-0701	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98061-423-0	01	1	0702-	●
54	COVER; GEAR CASE	1-11321-162-0	01	1	0103-0312	●
54	COVER; GEAR CASE	1-11321-153-4	01	1	0401-1502	●
54	COVER; GEAR CASE	8-97648-246-0	01	1	1503-	●
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	0103-	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	0103-	●
109	POINTER; TIMING	1-11327-048-1	01	1	0103-	●
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28080-820-0	01	1	0103-0512	●
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28080-860-0	01	1	0103-0512	●
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28050-860-0	01	1	0601-0907	●
252	BOLT; GEAR BOX (B) M8X65 FLANGE	1-09044-072-1	01	1	0908-	●
263	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	0103-	●
276	BOLT; POINTER M6X12 FLANGE	0-28080-612-0	02	1	0103-0512	●
276	BOLT; POINTER M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	0103-0604	●
331	STUD; P/S PUMP M10X25 L=40	0-44011-025-0	02	1	0605-1009	●
331	STUD; P/S PUMP M10X28 L=39	8-98178-056-0	02	1	1010-	●
487	COVER; HOLE	1-11319-012-0	01	1	0103-	●

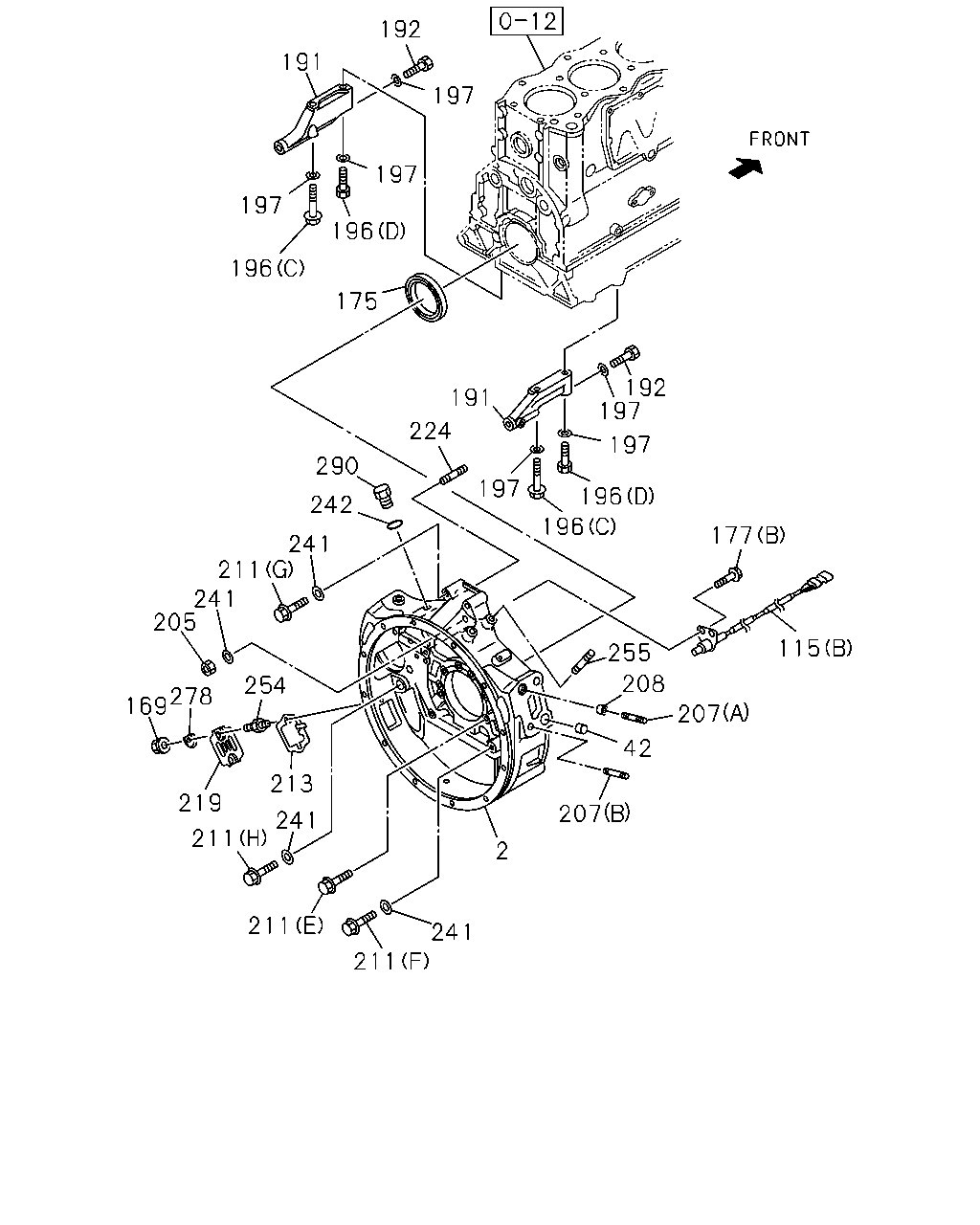

192 191 197 197 197 196 196 175 192 197 191 224 197 290 197 196 242 196 177 241 211 241 205 115 255 254 208 278 169 207 42 213 219 207 241 211 2 211 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	1-11341-548-2	01	1	0103-0403		●
2	HOUSING; FLYWHEEL	1-11340-360-0	01	1	0404-0406		●
2	HOUSING; FLYWHEEL	1-11341-548-2	01	1	0407-		●
2	HOUSING; FLYWHEEL	1-11340-271-9	01	1	0103-	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0103-	●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION(THN) (A)	1-80240-003-3	01	1	0103-0907		●
115	SENSOR; REVOLUTION,ENG SPD (A)	1-80240-003-3	01	1	0908-		●
115	SENSOR; REVOLUTION,ENG SPD (B)	1-81510-426-6	01	1	0103-	●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0103-0602	●
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	0103-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	0103-0611	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	0612-	●
177	BOLT; SENSOR EURO2 SPECIFICATION(THN) (A) M8X20 FLANGE	0-28680-820-0	01	1	0103-0512		●
177	BOLT; SENSOR EURO2 SPECIFICATION(THN) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0907		●
177	BOLT; SENSOR (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-		●
177	BOLT; SENSOR (B) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512	●
177	BOLT; SENSOR (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
191	STAY; FLYWHEEL HSG	1-11349-176-0	01	1	0103-		●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0103-1207	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0103-1207	●
192	BOLT; STAY TO HSG M10X90	9-01666-090-0	01	1	0103-0512		●
192	BOLT; STAY TO HSG M10X90	0-16956-090-0	01	1	0601-		●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0103-1207	●
196	BOLT; STAY TO C/BL (B) M10X70	9-01661-070-0	03	1	0103-0512		●
196	BOLT; STAY TO C/BL (B) M10X70	0-16961-070-0	03	1	0601-		●
196	BOLT; STAY TO C/BL (A) M10X90	9-01666-090-0	01	1	0103-0512		●
196	BOLT; STAY TO C/BL (A) M10X90	0-16956-090-0	01	1	0601-		●
196	BOLT; STAY TO C/BL (C) M14X100	9-91666-400-0	02	1	0103-0512	●
196	BOLT; STAY TO C/BL (C) M14X100	0-16956-400-0	02	1	0601-1207	●
196	BOLT; STAY TO C/BL (D) M14X70	9-91666-470-0	02	1	0103-1207	●
197	WASHER; PL,STAY ID=10.5	9-09851-866-0	04	1	0103-		●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0103-1207	●
205	NUT; HSG M12	9-99110-412-0	01	1	0103-0512		●
205	NUT; HSG M12	0-91110-512-0	01	1	0601-		●
205	NUT; HSG M14	9-99110-514-0	01	1	0103-0512	●
205	NUT; HSG M14	0-91110-514-0	01	1	0601-	●
207	STUD; ENG FOOT (A)	8-97253-931-0	04	1	0103-	●
207	STUD; ENG FOOT (B) M18X80 L=116	9-04321-880-0	04	1	0103-0604	●
207	STUD; ENG FOOT (B) M18X80 L=116	0-43211-880-0	04	1	0605-	●
208	DOWEL; ENG FOOT OD=26 L=12	1-11229-016-0	04	1	0103-		●
208	DOWEL; ENG FOOT	1-43249-001-0	08	1	0103-	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0103-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	10	1	0103-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	10	1	0601-		●
211	BOLT; HSG (C) M12X153	1-09020-054-1	01	1	0103-		●
211	BOLT; HSG (D) M12X75	9-01666-275-0	05	1	0103-		●
211	BOLT; HSG (E) M8X35 FLANGE	0-28080-835-0	08	1	0103-0512	●
211	BOLT; HSG (E) M8X35 FLANGE	0-28050-835-0	08	1	0601-	●
211	BOLT; HSG (F) M14X50	9-91666-450-0	02	1	0103-0512	●
211	BOLT; HSG (F) M14X50	0-16956-450-0	02	1	0601-	●
211	BOLT; HSG (G) M14X70	9-91666-470-0	02	1	0103-	●
211	BOLT; HSG (H) M14X45	9-92361-445-0	10	1	0103-	●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	0103-		●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0103-	●
219	COVER; POINTER	1-11349-131-0	01	1	0103-	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	0103-0604		●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	0103-0604	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	0605-	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	0103-		●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	0103-	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION(THN). ID=20.5 OD=28.0	9-09571-420-0	01	1	0103-0907		●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	0103-0907	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	0908-	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0103-	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	0103-0604	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	0-44011-230-0	03	1	0605-0609	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	0610-	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	0103-	●	●
290	PLUG; SENSOR HOLE EXC. EURO2 SPECIFICATION(THN)	9-99202-720-0	01	1	0103-0907		●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	0103-0805	●
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	0806-	●

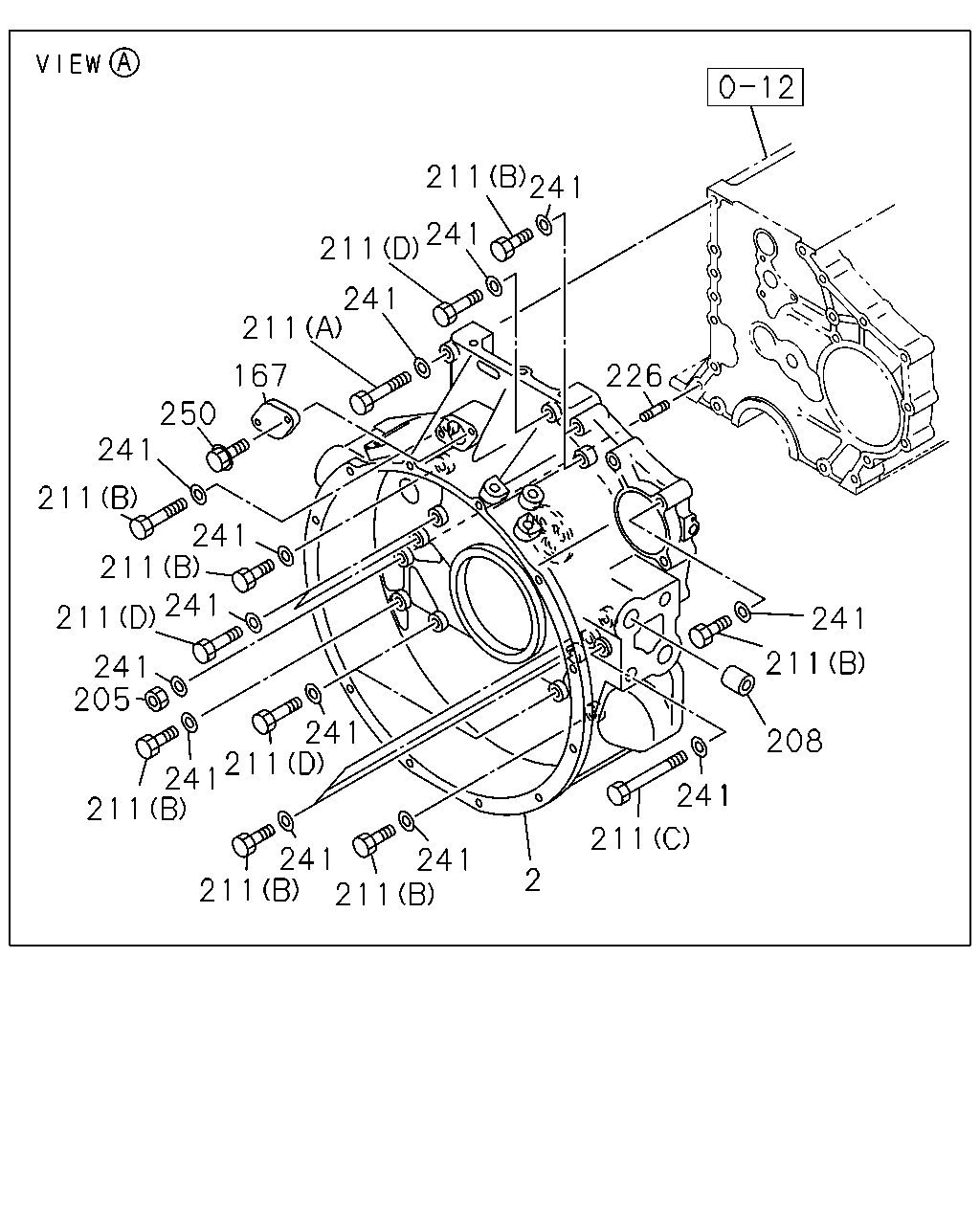

211 241 241 211 241 211 167 226 250 241 211 241 211 241 211 241 211 241 205 241 211 241 211 208 241 211 241 241 211 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	1-11341-548-2	01	1	0103-0403		●
2	HOUSING; FLYWHEEL	1-11340-360-0	01	1	0404-0406		●
2	HOUSING; FLYWHEEL	1-11341-548-2	01	1	0407-		●
2	HOUSING; FLYWHEEL	1-11340-271-9	01	1	0103-	●
167	COVER; OIL	1-11749-103-0	01	1	0103-		●
205	NUT; HSG M12	9-99110-412-0	01	1	0103-0512		●
205	NUT; HSG M12	0-91110-512-0	01	1	0601-		●
205	NUT; HSG M14	9-99110-514-0	01	1	0103-0512	●
205	NUT; HSG M14	0-91110-514-0	01	1	0601-	●
208	DOWEL; ENG FOOT OD=26 L=12	1-11229-016-0	04	1	0103-		●
208	DOWEL; ENG FOOT	1-43249-001-0	08	1	0103-	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0103-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	10	1	0103-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	10	1	0601-		●
211	BOLT; HSG (C) M12X153	1-09020-054-1	01	1	0103-		●
211	BOLT; HSG (D) M12X75	9-01666-275-0	05	1	0103-		●
211	BOLT; HSG (E) M8X35 FLANGE	0-28080-835-0	08	1	0103-0512	●
211	BOLT; HSG (E) M8X35 FLANGE	0-28050-835-0	08	1	0601-	●
211	BOLT; HSG (F) M14X50	9-91666-450-0	02	1	0103-0512	●
211	BOLT; HSG (F) M14X50	0-16956-450-0	02	1	0601-	●
211	BOLT; HSG (G) M14X70	9-91666-470-0	02	1	0103-	●
211	BOLT; HSG (H) M14X45	9-92361-445-0	10	1	0103-	●
226	STUD; HSG M12X60 L=78	9-94411-260-0	01	1	0103-0604		●
226	STUD; HSG M12X60 L=78	0-44011-260-0	01	1	0605-		●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	0103-		●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	0103-	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	0103-0512		●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-		●

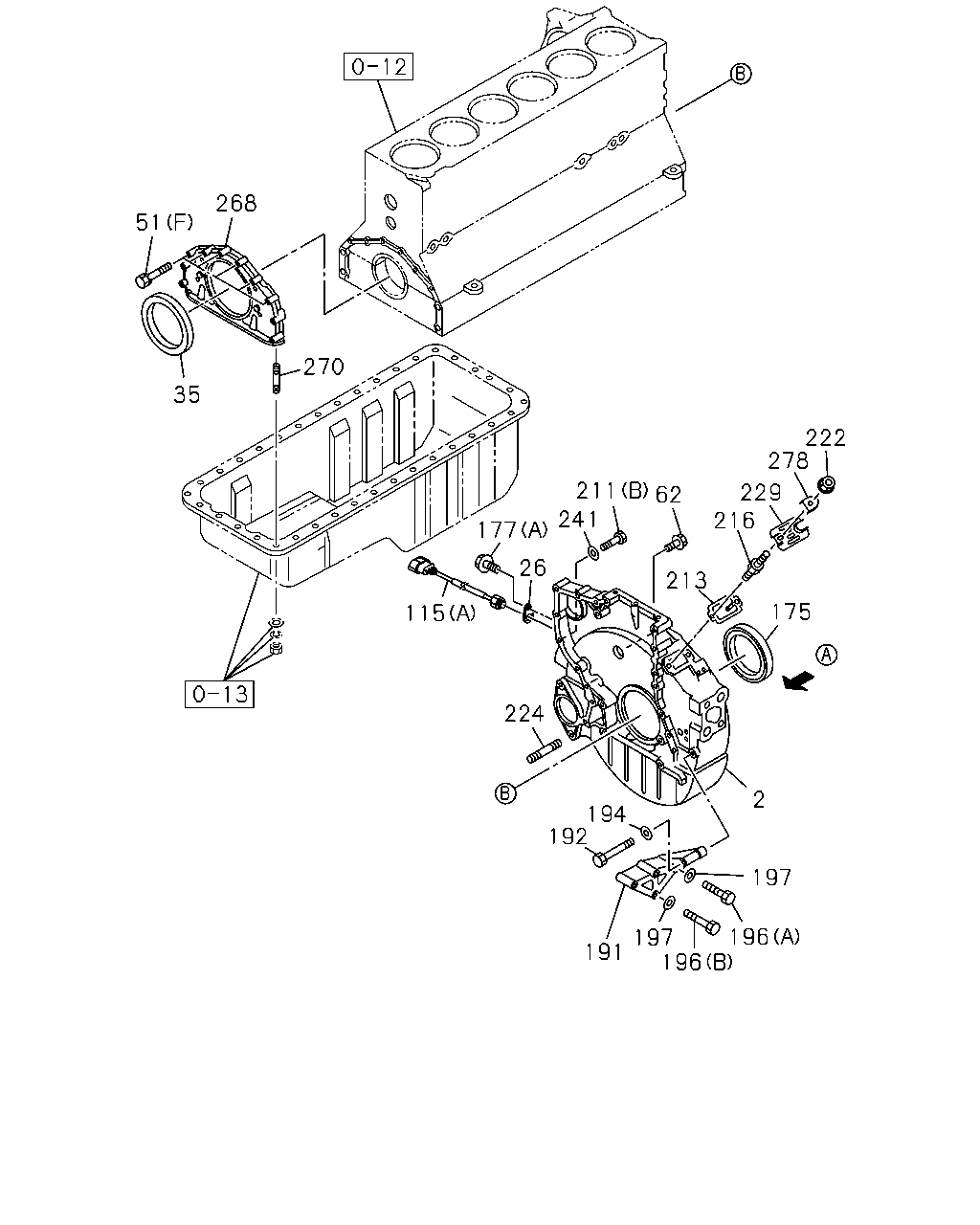

268 51 270 35 222 278 211 62 229 216 241 177 26 213 175 115 224 2 194 192 197 197 196 196 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	1-11341-548-2	01	1	0103-0403		●
2	HOUSING; FLYWHEEL	1-11340-360-0	01	1	0404-0406		●
2	HOUSING; FLYWHEEL	1-11341-548-2	01	1	0407-		●
2	HOUSING; FLYWHEEL	1-11340-271-9	01	1	0103-	●
26	ADAPTER EURO2 SPECIFICATION(THN)	1-81519-012-0	01	1	0103-0907		●
26	ADAPTER	1-81519-012-0	01	1	0908-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	0103-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-2	01	1	0103-0611	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	8-97617-308-0	01	1	0612-	●
51	BOLT; GEAR CASE COVER (F) M8X45 W/LK&PL WASHER	0-50140-845-0	06	1	0103-0906		●
51	BOLT; GEAR CASE COVER (F) M8X45 W/LK&PL WASHER	0-50640-845-0	06	1	0907-		●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	0103-0512	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	0103-0512	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28151-040-0	01	1	0601-	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	0103-0312	●
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	02	1	0401-	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	01	1	0103-0805	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	0103-0512	●
51	BOLT; GEAR CASE COVER (E) M8X40	0-10955-840-0	03	1	0601-	●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	0103-		●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION(THN) (A)	1-80240-003-3	01	1	0103-0907		●
115	SENSOR; REVOLUTION,ENG SPD (A)	1-80240-003-3	01	1	0908-		●
115	SENSOR; REVOLUTION,ENG SPD (B)	1-81510-426-6	01	1	0103-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	0103-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	0103-0611	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	0612-	●
177	BOLT; SENSOR EURO2 SPECIFICATION(THN) (A) M8X20 FLANGE	0-28680-820-0	01	1	0103-0512		●
177	BOLT; SENSOR EURO2 SPECIFICATION(THN) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0907		●
177	BOLT; SENSOR (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-		●
177	BOLT; SENSOR (B) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512	●
177	BOLT; SENSOR (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
191	STAY; FLYWHEEL HSG	1-11349-176-0	01	1	0103-		●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0103-1207	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0103-1207	●
192	BOLT; STAY TO HSG M10X90	9-01666-090-0	01	1	0103-0512		●
192	BOLT; STAY TO HSG M10X90	0-16956-090-0	01	1	0601-		●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0103-1207	●
194	WASHER; PL,STAY TO HSG ID=10.5	9-09851-866-0	01	1	0103-		●
196	BOLT; STAY TO C/BL (B) M10X70	9-01661-070-0	03	1	0103-0512		●
196	BOLT; STAY TO C/BL (B) M10X70	0-16961-070-0	03	1	0601-		●
196	BOLT; STAY TO C/BL (A) M10X90	9-01666-090-0	01	1	0103-0512		●
196	BOLT; STAY TO C/BL (A) M10X90	0-16956-090-0	01	1	0601-		●
196	BOLT; STAY TO C/BL (C) M14X100	9-91666-400-0	02	1	0103-0512	●
196	BOLT; STAY TO C/BL (C) M14X100	0-16956-400-0	02	1	0601-1207	●
196	BOLT; STAY TO C/BL (D) M14X70	9-91666-470-0	02	1	0103-1207	●
197	WASHER; PL,STAY ID=10.5	9-09851-866-0	04	1	0103-		●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0103-1207	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0103-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	10	1	0103-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	10	1	0601-		●
211	BOLT; HSG (C) M12X153	1-09020-054-1	01	1	0103-		●
211	BOLT; HSG (D) M12X75	9-01666-275-0	05	1	0103-		●
211	BOLT; HSG (E) M8X35 FLANGE	0-28080-835-0	08	1	0103-0512	●
211	BOLT; HSG (E) M8X35 FLANGE	0-28050-835-0	08	1	0601-	●
211	BOLT; HSG (F) M14X50	9-91666-450-0	02	1	0103-0512	●
211	BOLT; HSG (F) M14X50	0-16956-450-0	02	1	0601-	●
211	BOLT; HSG (G) M14X70	9-91666-470-0	02	1	0103-	●
211	BOLT; HSG (H) M14X45	9-92361-445-0	10	1	0103-	●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	0103-		●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0103-	●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	0103-		●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91150-108-0	02	1	0103-0602		●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91180-108-0	02	1	0603-		●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	0103-0604		●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	0103-0604	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	0605-	●
229	COVER; TIMING CHECK HOLE	1-11349-126-0	01	1	0103-		●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	0103-		●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	0103-	●
268	COVER; FRT	1-11321-159-0	01	1	0103-		●
270	STUD; FRT COVER M8X20	9-04010-820-0	06	1	0103-		●
278	WASHER; COVER FIX	1-11349-127-0	01	1	0103-	●	●

37 36 1 36 36 36 37 36 37 37 36 36 36 37 36 51 51 54 356 51 51 356 51 83 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	1-11310-053-5	01	1	0103-0512	●
1	CASE; TIMING GEAR	8-98030-095-0	01	1	0601-0608	●
1	CASE; TIMING GEAR	8-98032-286-4	01	1	0609-1001	●
1	CASE; TIMING GEAR	8-98152-249-0	01	1	1002-1309	●
1	CASE; TIMING GEAR	8-98249-370-0	01	1	1310-	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28181-000-0	03	1	0103-0512	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28151-000-0	03	1	0601-	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28181-025-0	04	1	0103-0512	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28151-025-0	04	1	0601-	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28181-035-0	01	1	0103-0512	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28151-035-0	01	1	0601-	●
36	BOLT; GEAR CASE (A) M14X110	1-09020-007-0	10	1	0103-	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	0103-	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	9-09164-514-0	11	1	0103-1301	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	0-91614-514-0	11	1	1302-	●
51	BOLT; GEAR CASE COVER (F) M8X45 W/LK&PL WASHER	0-50140-845-0	06	1	0103-0906		●
51	BOLT; GEAR CASE COVER (F) M8X45 W/LK&PL WASHER	0-50640-845-0	06	1	0907-		●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	0103-0512	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	0103-0512	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28151-040-0	01	1	0601-	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	0103-0312	●
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	02	1	0401-	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	01	1	0103-0805	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	0103-0512	●
51	BOLT; GEAR CASE COVER (E) M8X40	0-10955-840-0	03	1	0601-	●
54	COVER; GEAR CASE	1-11321-162-0	01	1	0103-0312	●
54	COVER; GEAR CASE	1-11321-153-4	01	1	0401-1502	●
54	COVER; GEAR CASE	8-97648-246-0	01	1	1503-	●
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	0103-	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	0103-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
