0-12 — CYLINDER BLOCK (#10390) — 151 parça

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-3	06	1	0103-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-3	06	1	0103-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-837-5	06	1	0103-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-838-5	06	1	0103-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	0103-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	0103-		●

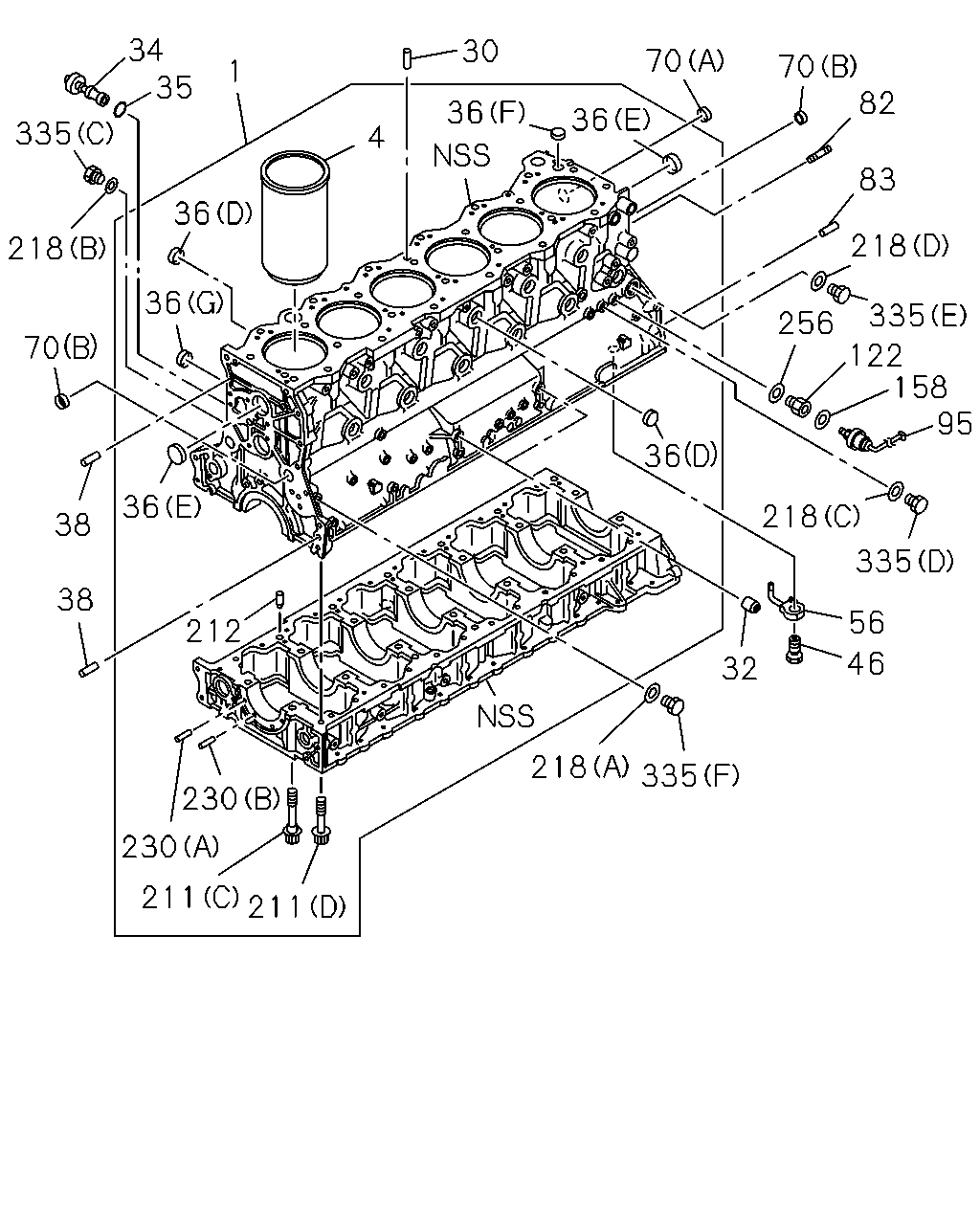

34 35 30 70 70 82 1 36 36 335 4 83 36 218 218 36 36 335 256 70 122 158 95 36 212 218 38 335 38 56 230 46 32 218 335 230 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98319-410-0	01	1	1507-	●
1	BLOCK ASM; CYL	1-11210-620-5	01	1	0103-	●
1	BLOCK ASM; CYL	1-11210-664-6	01	1	0103-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	0103-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	0103-		●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0103-	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0103-0807		●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	02	1	0808-		●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0103-	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0103-		●
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	0103-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	0712-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	0103-0508		●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0103-	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0103-	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0103-	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0103-		●
36	CUP; SEALING,WATER JACKET (F) OD=25	1-09600-016-0	01	1	0103-		●
36	CUP; SEALING,WATER JACKET (G) OD=40	1-09600-065-1	02	1	0103-		●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	0103-		●
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	0103-		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	0103-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0103-		●
56	JET; OIL,PISTON COOLING	1-13342-127-1	06	1	0103-	●
56	JET; OIL,PISTON COOLING	1-13342-125-5	06	1	0103-		●
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	0103-		●
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	0103-		●
82	STUD; FLYWHEEL HSG M14X35 L=56	9-04411-435-0	01	1	0103-0604		●
82	STUD; FLYWHEEL HSG M14X35 L=56	0-44011-435-0	01	1	0605-		●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0103-	●
83	PIN; FLYWHEEL HSG OD=14 L=28	9-08161-428-0	02	1	0103-		●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0103-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	0103-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0103-	●	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0103-	●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0103-1107	●
211	BOLT; CRANKCASE (B) M10X95 FLANGE	8-98141-538-0	24	1	1108-	●
211	BOLT; CRANKCASE (D) M12X114	1-09070-087-3	28	1	0103-		●
211	BOLT; CRANKCASE (C) M18X150	1-09070-151-0	14	1	0103-		●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	0103-	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	0103-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2 OD=15.2	1-09630-083-0	01	1	0103-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	1-09630-084-0	01	1	0103-1312		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	8-98251-344-0	01	1	1401-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=14.2 OD=19.2	1-09630-085-0	01	1	0103-1312		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) LH SIDE ID=22	1-09630-089-0	01	1	0103-		●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	1507-		●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	1507-		●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0103-1506	●	●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	1507-	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0103-1506	●	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	1507-	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0103-		●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0103-	●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	03	1	0103-	●
335	PLUG; C/BL,SIDE (E) M22X12	1-09604-035-0	01	1	0103-		●
335	PLUG; C/BL,SIDE (F) M10X7	1-09604-094-0	01	1	0103-		●
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	0103-0805		●
335	PLUG; C/BL,SIDE (C) M12X9	8-98047-054-0	01	1	0806-		●
335	PLUG; C/BL,SIDE (D) M14X9	9-99202-314-0	01	1	0103-0805		●
335	PLUG; C/BL,SIDE (D) M14X9	8-98042-944-0	01	1	0806-		●

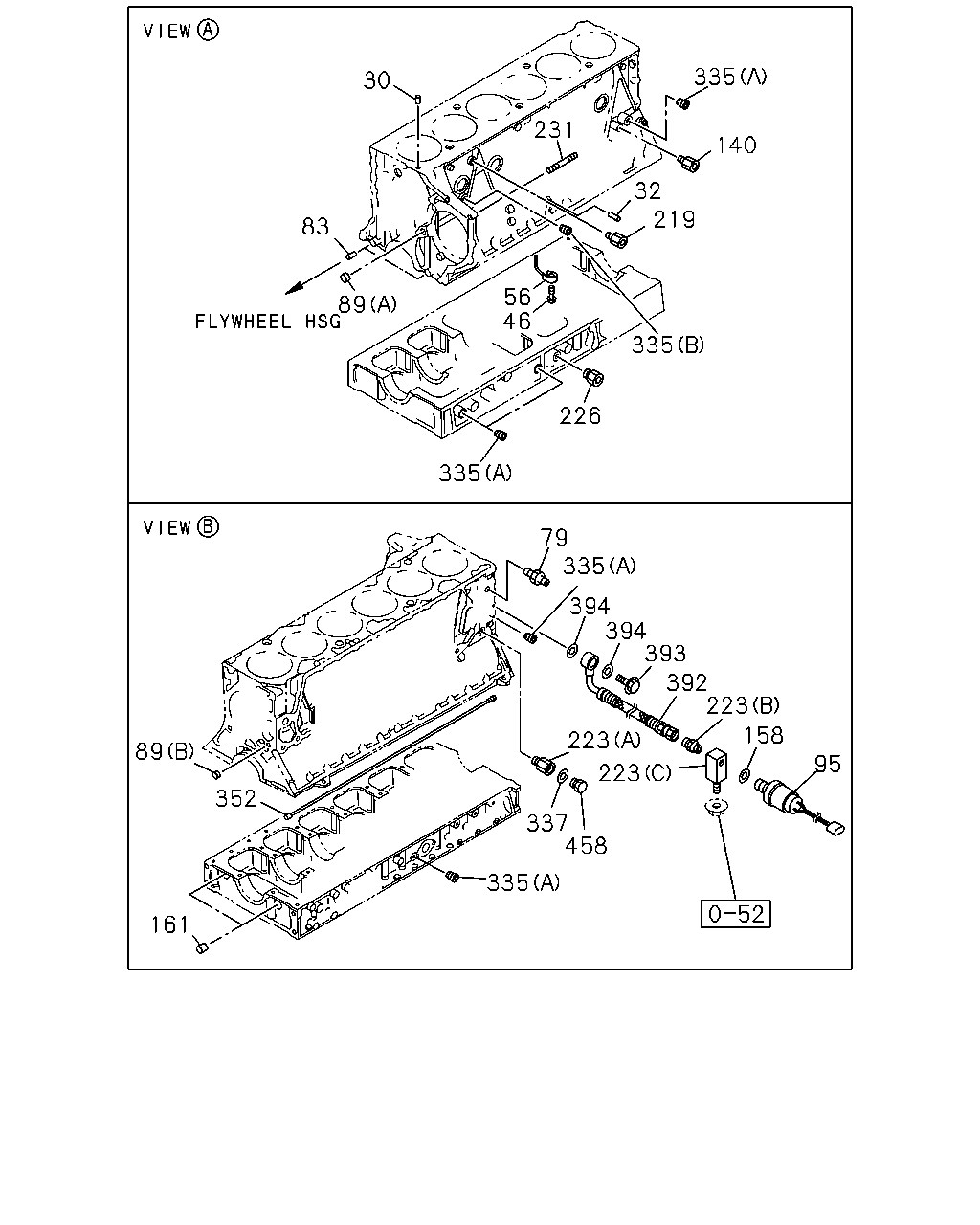

335 30 231 140 32 219 83 56 46 89 335 226 335 79 335 394 394 393 392 223 158 223 89 95 223 352 337 458 335 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0103-	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0103-0807		●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	02	1	0808-		●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0103-	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0103-		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	0103-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0103-		●
56	JET; OIL,PISTON COOLING	1-13342-127-1	06	1	0103-	●
56	JET; OIL,PISTON COOLING	1-13342-125-5	06	1	0103-		●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	0103-	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0103-	●
83	PIN; FLYWHEEL HSG OD=14 L=28	9-08161-428-0	02	1	0103-		●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0103-0301	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0103-0909	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0103-	●	●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	0103-	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0103-	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	0103-	●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	0103-	●
223	CONNECTOR; OIL PRESSURE (B) M16 & PT1/4 STRAIGHT	1-09660-129-0	01	1	0103-	●
223	CONNECTOR; OIL PRESSURE (A)	1-09660-526-0	01	1	0103-	●
223	CONNECTOR; OIL PRESSURE (C)	1-09664-236-0	01	1	0103-	●
226	CONNECTOR; INJ PUMP,RETURN	1-09660-408-0	01	1	0103-	●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	02	1	0103-	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0103-	●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	03	1	0103-	●
335	PLUG; C/BL,SIDE (E) M22X12	1-09604-035-0	01	1	0103-		●
335	PLUG; C/BL,SIDE (F) M10X7	1-09604-094-0	01	1	0103-		●
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	0103-0805		●
335	PLUG; C/BL,SIDE (C) M12X9	8-98047-054-0	01	1	0806-		●
335	PLUG; C/BL,SIDE (D) M14X9	9-99202-314-0	01	1	0103-0805		●
335	PLUG; C/BL,SIDE (D) M14X9	8-98042-944-0	01	1	0806-		●
337	GASKET; PLUG ID=14.2 OD=25	1-09630-141-0	01	1	0103-	●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	0103-	●
392	HOSE; FLEX,OIL PRESS UNIT	1-09364-720-0	01	1	0103-	●
393	BOLT; EYE,FLEX HOSE M14X27 FLANGE	1-09675-086-0	01	1	0103-	●
394	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0103-1312	●
394	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
458	PLUG; CONNECTOR M14X9	9-99202-314-0	01	1	0103-0805	●
458	PLUG; CONNECTOR M14X9	8-98042-944-0	01	1	0806-	●

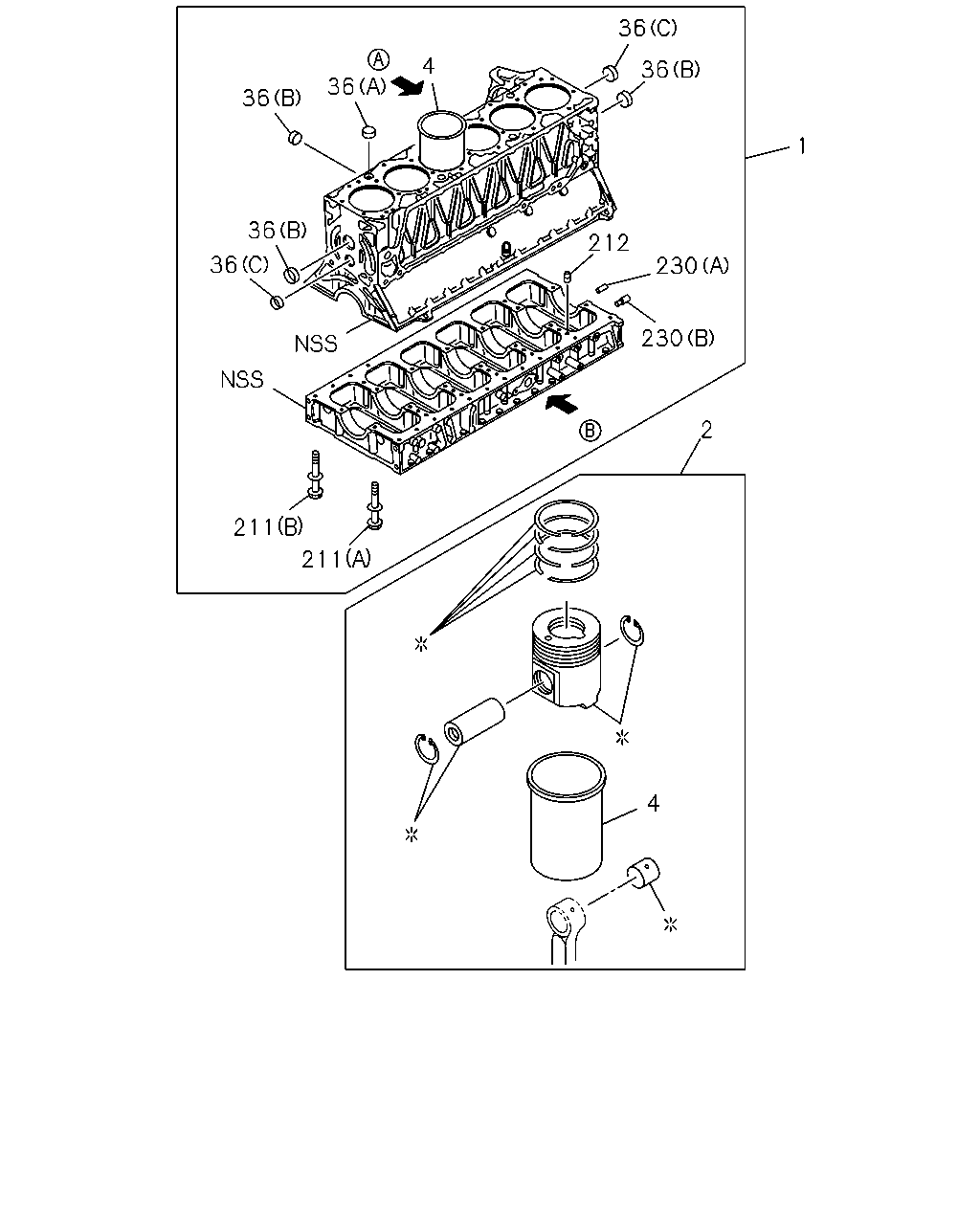

36 4 36 36 36 1 36 212 36 230 230 2 211 211 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98319-410-0	01	1	1507-	●
1	BLOCK ASM; CYL	1-11210-620-5	01	1	0103-	●
1	BLOCK ASM; CYL	1-11210-664-6	01	1	0103-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-3	06	1	0103-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-3	06	1	0103-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-837-5	06	1	0103-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-838-5	06	1	0103-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0103-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	0103-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	0103-		●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0103-	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0103-	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0103-	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0103-		●
36	CUP; SEALING,WATER JACKET (F) OD=25	1-09600-016-0	01	1	0103-		●
36	CUP; SEALING,WATER JACKET (G) OD=40	1-09600-065-1	02	1	0103-		●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	0103-		●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0103-	●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0103-1107	●
211	BOLT; CRANKCASE (B) M10X95 FLANGE	8-98141-538-0	24	1	1108-	●
211	BOLT; CRANKCASE (D) M12X114	1-09070-087-3	28	1	0103-		●
211	BOLT; CRANKCASE (C) M18X150	1-09070-151-0	14	1	0103-		●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	0103-	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	0103-		●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	1507-		●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	1507-		●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0103-1506	●	●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	1507-	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0103-1506	●	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	1507-	●
