0-42 — FUEL PUMP AND PIPE (#1039) — 54 parça

108 112 107 119 110 110 115 115 124 150 150 212 217 123 96 96 95 216 111 111 93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	BRACKET; FUEL PIPE	8-94394-158-0	01	1	9202-	●
93	BOLT; PIPE BRKT M8X12 FLANGE	0-28080-812-0	02	1	9202-	●
95	PIPE; VINYL L=650 SERVICED BY L=10000	9-09914-909-0	01	1	9202-9211	●
95	PIPE; VINYL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> L=650 SERVICED BY L=10000	9-09914-909-0	01	1	9212-	●
96	CLIP; VINYL PIPE (A) L=100	5-09707-036-0	01	1	9202-9211	●
96	CLIP; VINYL PIPE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A) L=100	5-09707-036-0	01	1	9212-	●
96	CLIP; VINYL PIPE (B) ID=8	8-94107-762-0	01	1	9202-9211	●
96	CLIP; VINYL PIPE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B) ID=8	8-94107-762-0	01	1	9212-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15414-916-0	01	1	9202-		●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9202-	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9202-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9202-	●	●	●
111	CLIP; FUEL PIPE (A) L=48	5-09709-103-0	05	1	9202-	●
111	CLIP; FUEL PIPE (B) L=45	5-09709-104-0	02	1	9202-	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9202-		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9202-	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9202-		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9202-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-183-0	01	1	9202-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94397-066-0	01	1	9202-9505	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9506-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-161-1	01	1	9202-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94393-021-0	01	1	9202-	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9202-	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9202-	●
212	VALVE; OVERFLOW	1-13260-001-1	01	1	9202-		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9202-	●
216	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28210-630-0	05	1	9202-9204	●
216	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28280-630-0	05	1	9205-9305	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	05	1	9306-	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9202-	●

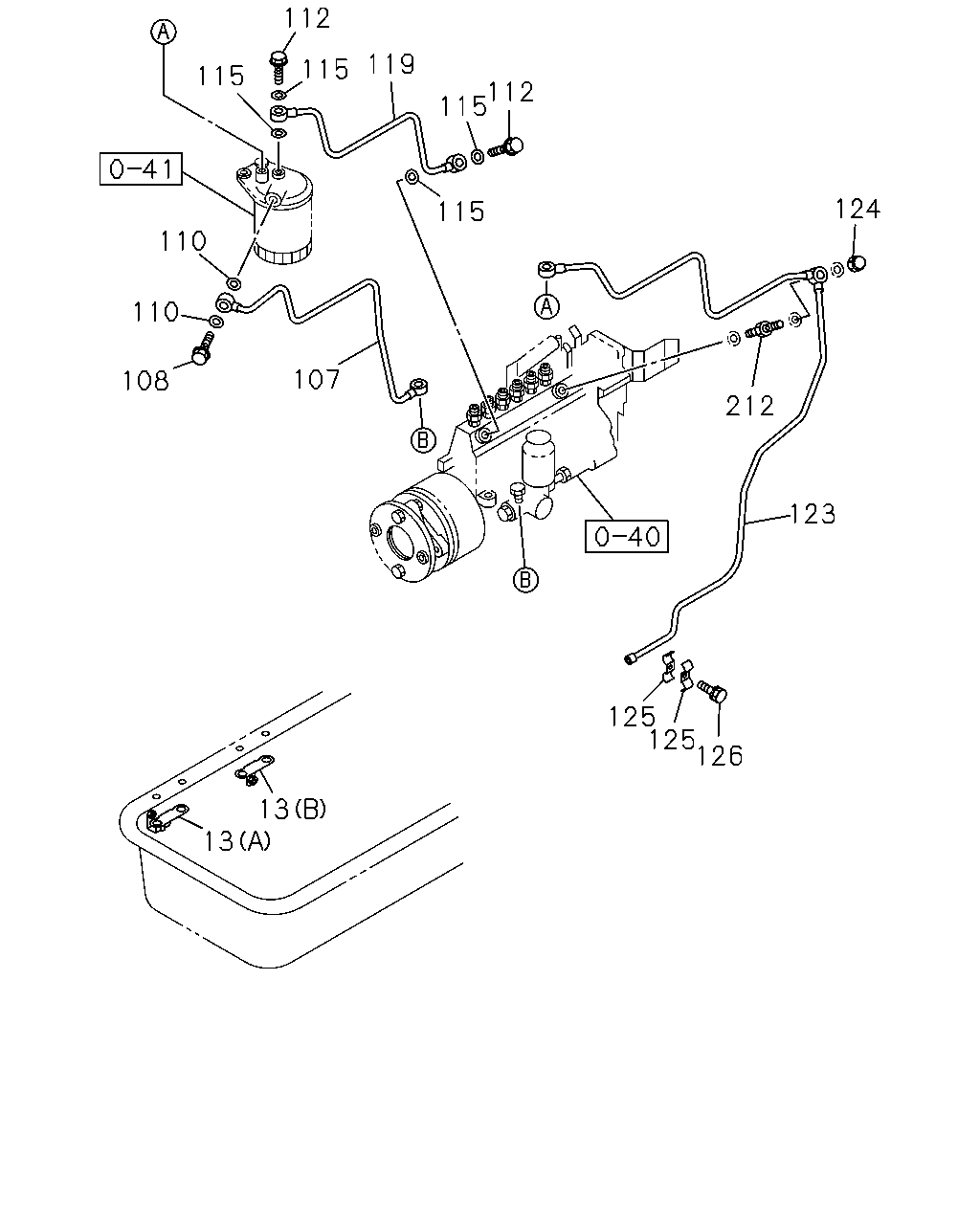

112 119 115 115 112 115 124 115 110 110 107 108 212 123 125 125 126 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	STAY; FUEL PIPE CLIP (B)	1-15419-088-0	01	1	9202-		●	●
13	STAY; FUEL PIPE CLIP (A)	1-15419-164-0	01	1	9202-		●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15414-916-0	01	1	9202-		●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9202-	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9202-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9202-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9202-		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9202-	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9202-		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9202-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-183-0	01	1	9202-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94397-066-0	01	1	9202-9505	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9506-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-161-1	01	1	9202-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94393-021-0	01	1	9202-	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9202-	●	●	●
125	CLIP; FUEL PIPE WO/NUT ID=10 & 10	1-09700-163-0	07	1	9202-9411		●	●
125	CLIP; FUEL PIPE ID=10 & 10 L=25	9-09716-114-0	07	1	9412-		●	●
125	CLIP; FUEL PIPE W/NUT ID=10 & 10	1-09700-164-0	03	1	9202-9411		●	●
125	CLIP; FUEL PIPE ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9412-		●	●
126	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	05	1	9202-		●	●
212	VALVE; OVERFLOW	1-13260-001-1	01	1	9202-		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9202-	●
