◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10852 - LV123/150-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#10389) — 180 parça

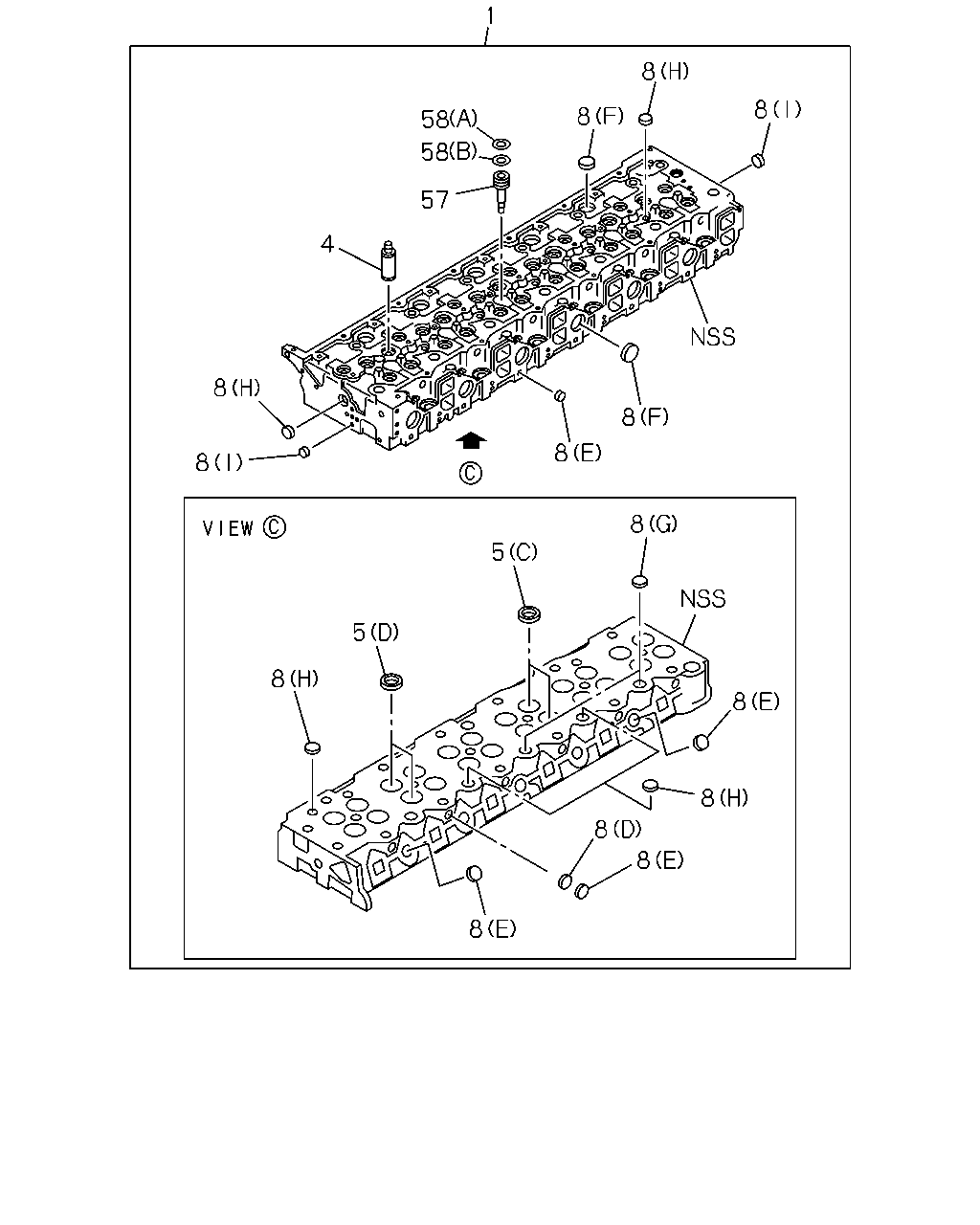

çizim 137511
1 8 8 8 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8 58 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 1-11110-856-2 01 1 0103- ●
1 HEAD ASM; CYL 1-11110-902-6 01 1 0103- ●
4 GUIDE; VLV 1-11721-008-0 12 1 0103- ●
4 GUIDE; VLV 1-11721-012-1 24 1 0103- ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-051-0 06 1 0103- ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-122-0 06 1 0103- ●
5 SEAT; VLV INSERT
(D) EXHAUST 		1-11711-076-0 12 1 0103- ●
5 SEAT; VLV INSERT
(C) INLET 		1-11715-111-0 12 1 0103- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 0103-0406 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 12 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-2 06 1 0503- ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 0103- ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 0103-0105 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0106-0406 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 18 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 09 1 0503- ●
8 CUP; SEALING,WATER JACKET
(C) OD=30 		8-94241-638-0 05 1 0106- ●
8 CUP; SEALING,WATER JACKET
(G) OD=32 		1-09600-012-2 03 1 0103- ●
8 CUP; SEALING,WATER JACKET
(H) OD=25 		1-09600-016-0 09 1 0103- ●
8 CUP; SEALING,WATER JACKET
(I) OD=12.3 		5-09600-013-0 02 1 0103- ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 0103- ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 0103- ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 0103- ●
57 SLEEVE; NOZZLE HOLDER 1-11129-058-0 06 1 0103-0303 ●
57 SLEEVE; NOZZLE HOLDER 1-11129-067-0 06 1 0304- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK 		8-97233-126-0 06 1 0103- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED 		8-97233-127-0 06 1 0103- ●

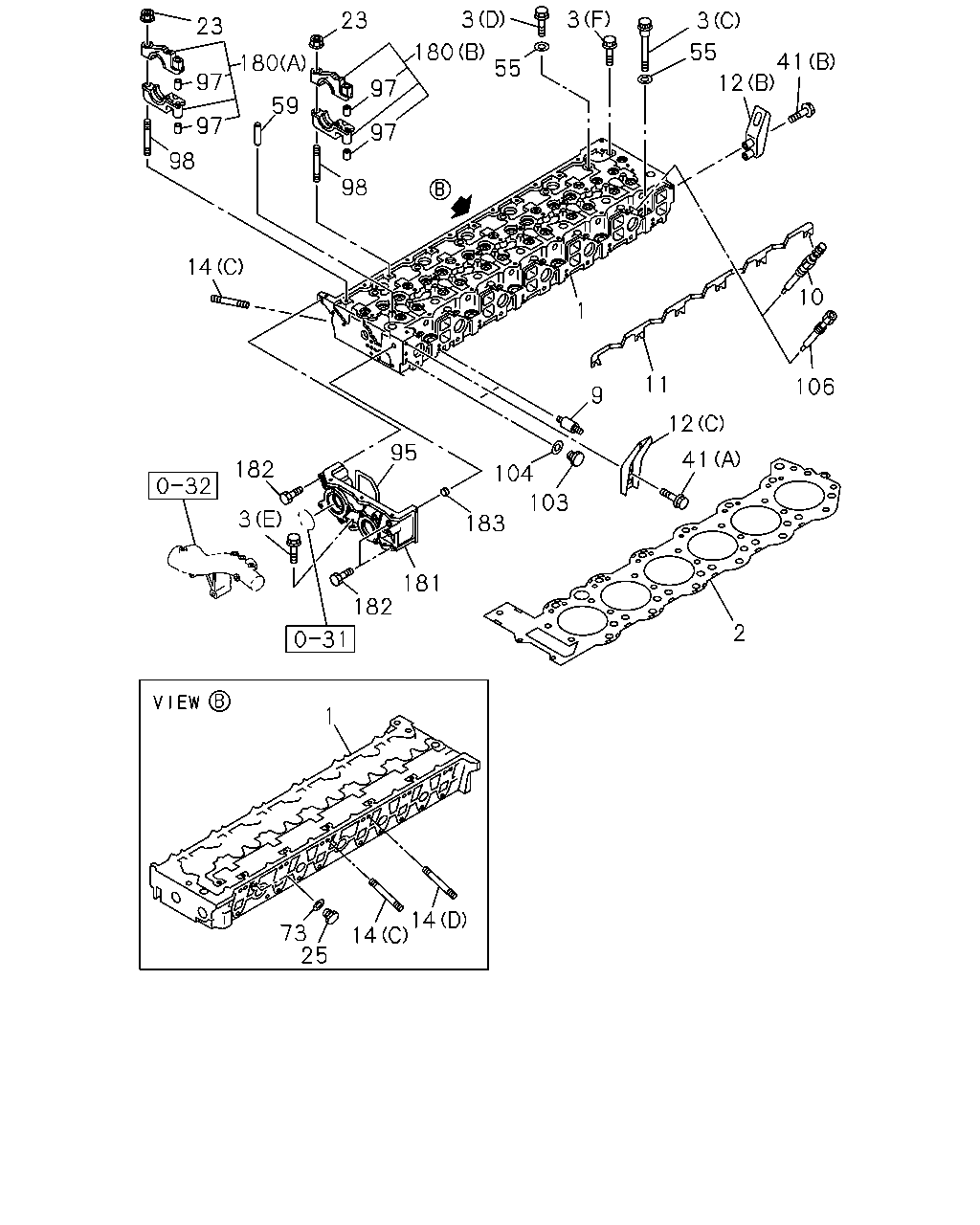

çizim 137611
2 12 11 9 104 103 183 181 182 73 25 14 14 3 182 95 41 106 10 12 55 3 41 3 3 55 180 23 23 97 97 98 14 98 97 97 59 180 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 1-11110-856-2 01 1 0103- ●
1 HEAD ASM; CYL 1-11110-902-6 01 1 0103- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 0103- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-2 01 1 0103- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 0103- ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 0103- ●
3 BOLT; CYL HD TO BLOCK
(E) M10X35 FLANGE 		0-28181-035-0 02 1 0103-0512 ●
3 BOLT; CYL HD TO BLOCK
(E) M10X35 FLANGE 		0-28151-035-0 02 1 0601- ●
3 BOLT; CYL HD TO BLOCK
(F) M12X120 FLANGE 		0-28186-212-0 01 1 0103-0512 ●
3 BOLT; CYL HD TO BLOCK
(F) M12X120 FLANGE 		0-28156-212-0 01 1 0601- ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 0103-1308 ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		8-98245-540-0 06 1 1309- ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 0103-1308 ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 FLANGE 		8-98245-541-0 20 1 1309- ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 0103- ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 0103- ●
10 PLUG; GLOW
INTAKE HEATER<SL2> 		1-82513-043-2 06 1 0103- ● ●
11 CONNECTOR; GLOW PLUG
INTAKE HEATER<SL2> 		1-19732-011-1 01 1 0103- ●
11 CONNECTOR; GLOW PLUG
INTAKE HEATER<SL2> 		1-19732-030-2 01 1 0103- ●
12 HANGER; ENG,RR
(A) 		1-11777-099-0 01 1 0103- ●
12 HANGER; ENG,RR
(B) 		1-11777-149-2 02 1 0103-0201 ●
12 HANGER; ENG,RR
(B) 		1-11777-239-1 01 1 0202- ●
12 HANGER; ENG,RR
(C) 		1-11777-216-2 01 1 0103- ●
12 HANGER; ENG,RR
(B) 		1-11777-263-0 01 1 0202- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 0103- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 0103- ●
14 STUD; EXH MANIF
(C) M10X95 L=110 		1-09302-063-0 15 1 0103- ●
14 STUD; EXH MANIF
(D) M10X130 L=145 		1-09302-107-0 03 1 0103- ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 0103-0809 ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 0103- ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 0103-0805 ●
25 PLUG; CYL HD
M14X9 		8-98042-944-0 01 1 0806- ●
41 BOLT; ENG HANGER
(C) M10X20 W/LK WASHER 		0-50051-020-0 05 1 0103-0512 ●
41 BOLT; ENG HANGER
(C) M10X20 W/LK WASHER 		0-50551-020-0 05 1 0601- ●
41 BOLT; ENG HANGER
(A) M12X25 FLANGE 		0-28191-225-0 02 1 0103-0512 ●
41 BOLT; ENG HANGER
(A) M12X25 FLANGE 		0-28161-225-0 02 1 0601- ●
41 BOLT; ENG HANGER
(B) M12X50 FLANGE 		0-28191-250-0 04 1 0103-0201 ●
41 BOLT; ENG HANGER
(B) M12X120 FLANGE 		0-28186-212-0 01 1 0202-0512 ●
41 BOLT; ENG HANGER
(B) M12X120 FLANGE 		0-28156-212-0 01 1 0601- ●
41 BOLT; ENG HANGER
(B) M12X30 FLANGE 		0-28191-230-0 02 1 0202-0512 ●
41 BOLT; ENG HANGER
(B) M12X30 FLANGE 		0-28161-230-0 02 1 0601- ●
41 BOLT; ENG HANGER
(B) M14X120 FLANGE 		0-28986-412-0 01 1 0202-0512 ●
41 BOLT; ENG HANGER
(B) M14X120 FLANGE 		0-28956-412-0 01 1 0601- ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 0103- ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 0103-0407 ●
59 GUIDE; BRIDGE 8-97378-021-1 12 1 0408- ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0103-1312 ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 0103- ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 0103- ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 0103-0907 ●
97 DOWEL; CAM BRKT SET
OD=16 		8-98143-037-0 28 1 0908- ●
98 STUD; CAM BRKT
M8X114 L=132 		1-09300-028-1 06 1 0103- ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 0103- ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 0103- ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0103- ●
106 PLUG; GLOW PLUG HOLE
EXC. INTAKE HEATER<SL2> 		1-11119-018-0 06 1 0103- ● ●
180 BRACKET SET; CAM,CYL HD
(A) 		1-12516-148-1 01 1 0103-0504 ●
180 BRACKET SET; CAM,CYL HD
(A) 		8-97608-785-3 01 1 0505- ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 0103-0504 ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		8-97608-791-3 06 1 0505- ●
181 CASE; HEAD GEAR 1-11310-058-1 01 1 0103-0107 ●
181 CASE; HEAD GEAR 1-11310-055-1 01 1 0108- ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 0103- ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 0103- ●

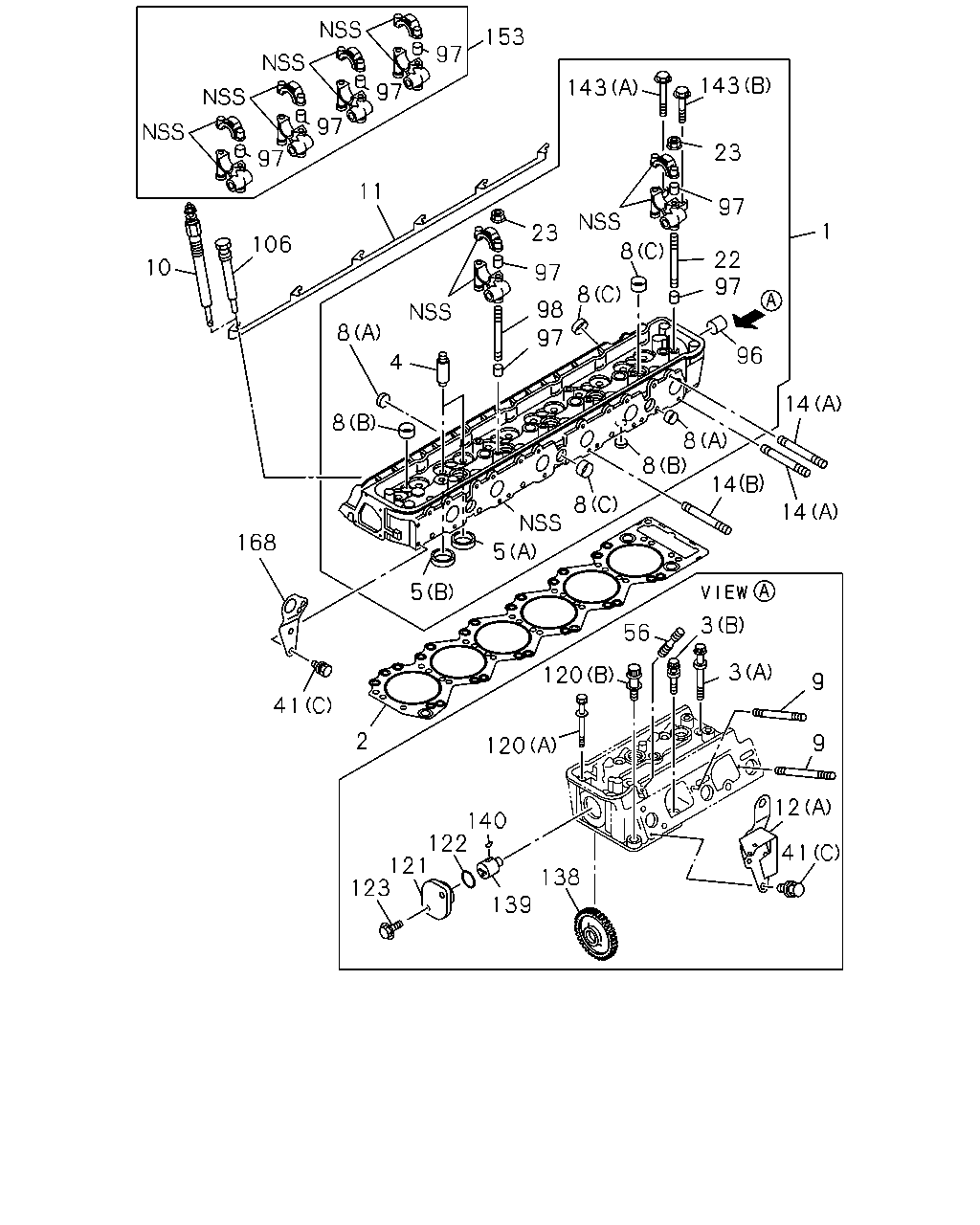

çizim 137614
153 97 143 143 97 97 23 97 11 97 1 23 106 8 22 97 10 97 8 98 8 97 96 4 14 8 8 8 14 8 14 168 5 5 3 56 3 120 9 41 2 9 120 12 140 122 121 123 41 138 139
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 1-11110-856-2 01 1 0103- ●
1 HEAD ASM; CYL 1-11110-902-6 01 1 0103- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 0103- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-2 01 1 0103- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 0103- ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 0103- ●
3 BOLT; CYL HD TO BLOCK
(E) M10X35 FLANGE 		0-28181-035-0 02 1 0103-0512 ●
3 BOLT; CYL HD TO BLOCK
(E) M10X35 FLANGE 		0-28151-035-0 02 1 0601- ●
3 BOLT; CYL HD TO BLOCK
(F) M12X120 FLANGE 		0-28186-212-0 01 1 0103-0512 ●
3 BOLT; CYL HD TO BLOCK
(F) M12X120 FLANGE 		0-28156-212-0 01 1 0601- ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 0103-1308 ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		8-98245-540-0 06 1 1309- ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 0103-1308 ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 FLANGE 		8-98245-541-0 20 1 1309- ●
4 GUIDE; VLV 1-11721-008-0 12 1 0103- ●
4 GUIDE; VLV 1-11721-012-1 24 1 0103- ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-051-0 06 1 0103- ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-122-0 06 1 0103- ●
5 SEAT; VLV INSERT
(D) EXHAUST 		1-11711-076-0 12 1 0103- ●
5 SEAT; VLV INSERT
(C) INLET 		1-11715-111-0 12 1 0103- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 0103-0406 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 12 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-2 06 1 0503- ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 0103- ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 0103-0105 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0106-0406 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 18 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 09 1 0503- ●
8 CUP; SEALING,WATER JACKET
(C) OD=30 		8-94241-638-0 05 1 0106- ●
8 CUP; SEALING,WATER JACKET
(G) OD=32 		1-09600-012-2 03 1 0103- ●
8 CUP; SEALING,WATER JACKET
(H) OD=25 		1-09600-016-0 09 1 0103- ●
8 CUP; SEALING,WATER JACKET
(I) OD=12.3 		5-09600-013-0 02 1 0103- ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 0103- ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 0103- ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 0103- ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 0103- ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 0103- ●
10 PLUG; GLOW
INTAKE HEATER<SL2> 		1-82513-043-2 06 1 0103- ● ●
11 CONNECTOR; GLOW PLUG
INTAKE HEATER<SL2> 		1-19732-011-1 01 1 0103- ●
11 CONNECTOR; GLOW PLUG
INTAKE HEATER<SL2> 		1-19732-030-2 01 1 0103- ●
12 HANGER; ENG,RR
(A) 		1-11777-099-0 01 1 0103- ●
12 HANGER; ENG,RR
(B) 		1-11777-149-2 02 1 0103-0201 ●
12 HANGER; ENG,RR
(B) 		1-11777-239-1 01 1 0202- ●
12 HANGER; ENG,RR
(C) 		1-11777-216-2 01 1 0103- ●
12 HANGER; ENG,RR
(B) 		1-11777-263-0 01 1 0202- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 0103- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 0103- ●
14 STUD; EXH MANIF
(C) M10X95 L=110 		1-09302-063-0 15 1 0103- ●
14 STUD; EXH MANIF
(D) M10X130 L=145 		1-09302-107-0 03 1 0103- ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 0103- ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 0103-0809 ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 0103- ●
41 BOLT; ENG HANGER
(C) M10X20 W/LK WASHER 		0-50051-020-0 05 1 0103-0512 ●
41 BOLT; ENG HANGER
(C) M10X20 W/LK WASHER 		0-50551-020-0 05 1 0601- ●
41 BOLT; ENG HANGER
(A) M12X25 FLANGE 		0-28191-225-0 02 1 0103-0512 ●
41 BOLT; ENG HANGER
(A) M12X25 FLANGE 		0-28161-225-0 02 1 0601- ●
41 BOLT; ENG HANGER
(B) M12X50 FLANGE 		0-28191-250-0 04 1 0103-0201 ●
41 BOLT; ENG HANGER
(B) M12X120 FLANGE 		0-28186-212-0 01 1 0202-0512 ●
41 BOLT; ENG HANGER
(B) M12X120 FLANGE 		0-28156-212-0 01 1 0601- ●
41 BOLT; ENG HANGER
(B) M12X30 FLANGE 		0-28191-230-0 02 1 0202-0512 ●
41 BOLT; ENG HANGER
(B) M12X30 FLANGE 		0-28161-230-0 02 1 0601- ●
41 BOLT; ENG HANGER
(B) M14X120 FLANGE 		0-28986-412-0 01 1 0202-0512 ●
41 BOLT; ENG HANGER
(B) M14X120 FLANGE 		0-28956-412-0 01 1 0601- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 0103- ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 0103- ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 0103- ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 0103-0907 ●
97 DOWEL; CAM BRKT SET
OD=16 		8-98143-037-0 28 1 0908- ●
98 STUD; CAM BRKT
M8X114 L=132 		1-09300-028-1 06 1 0103- ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 0103- ●
106 PLUG; GLOW PLUG HOLE
EXC. INTAKE HEATER<SL2> 		1-11119-018-0 06 1 0103- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 0103- ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 0103- ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 0103- ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 0103- ●
123 BOLT; COVER
M8X16 FLANGE 		0-28080-816-0 02 1 0103-0512 ●
123 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 0103- ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0103- ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 0103- ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28080-800-0 01 1 0103-0512 ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28050-800-0 01 1 0601- ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28090-860-0 01 1 0103-0512 ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28060-860-0 01 1 0601- ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 AR 1 0103- ●
168 HANGER; ENG,FRT 1-11777-207-0 01 1 0103- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
