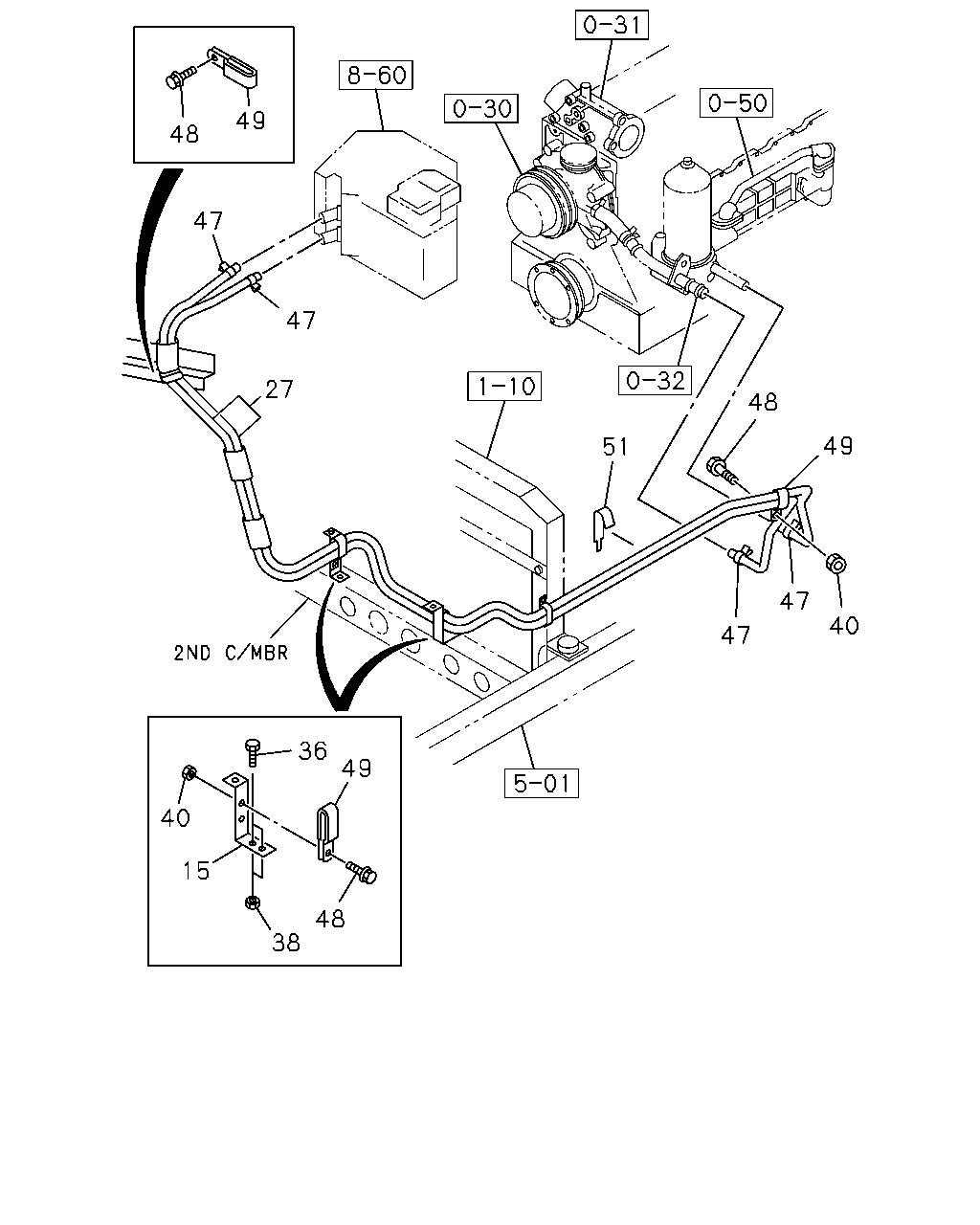

8-45 — HEATER PIPING (#10379) — 18 parça

49 48 47 47 27 48 49 51 47 40 47 36 49 40 15 48 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BRACKET; WATER HOSE HEATER & DEFROSTER(C41)	1-83571-927-1	02	1	0006-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41)	1-83565-655-2	01	1	0006-	●	●
36	BOLT; BRKT HEATER & DEFROSTER(C41) M8X20 FLANGE	0-28680-820-0	04	1	0006-0512	●	●
36	BOLT; BRKT HEATER & DEFROSTER(C41) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
38	NUT; BRKT HEATER & DEFROSTER(C41) M8 FLANGE	0-91150-108-0	04	1	0006-0602	●	●
38	NUT; BRKT HEATER & DEFROSTER(C41) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41) M8 FLANGE	0-91150-108-0	03	1	0006-0602	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	0006-0611	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41) ID=22	8-97359-141-0	04	1	0612-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M8X20 FLANGE	0-28680-820-0	02	1	0006-0512	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M8X20 FLANGE	0-28680-820-0	03	1	0006-0512	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41) ID=24X2 L=25	1-09700-710-0	02	1	0006-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41) ID=24X2 L=25	1-09700-710-0	03	1	0006-	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41) L=170	1-83574-139-0	01	1	0006-1205	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41) L=170	8-98166-021-0	01	1	1206-	●	●
