8-28 — CHASSIS ELECTRICAL (#10377) — 54 parça

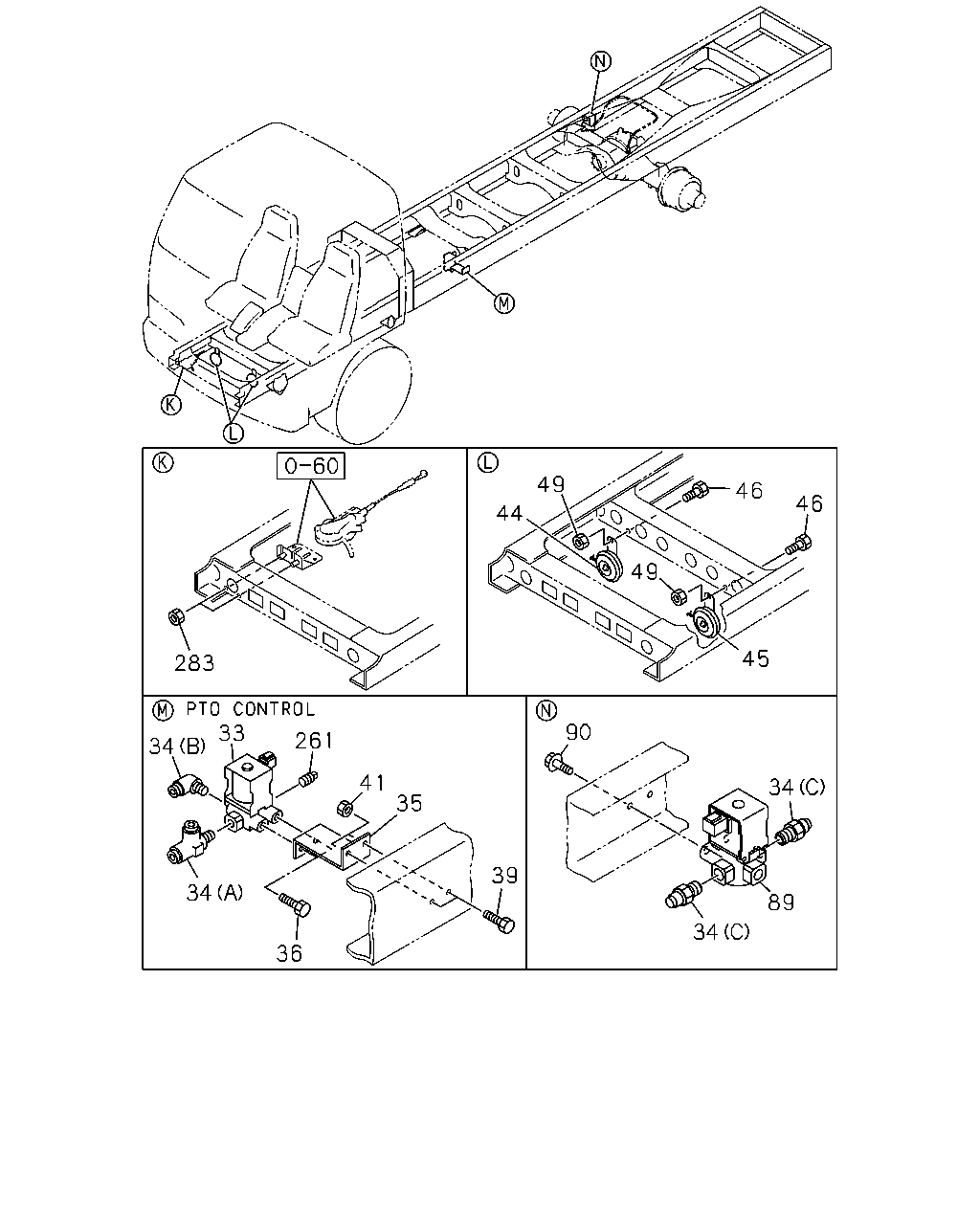

60 49 46 46 44 49 45 283 33 90 261 34 41 34 35 39 34 89 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-5	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0006-0406	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0407-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0006-	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-1	01	1	0006-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0006-0512	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28680-835-0	02	1	0006-0512	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	0006-0602	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	0006-0210	●	●
44	HORN; HIGH NOTE	1-83410-065-1	01	1	0211-	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	0006-0210	●	●
45	HORN; LOW NOTE	1-83410-064-1	01	1	0211-	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0006-0512	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0006-0602	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0006-	●	●
89	VALVE; MAG,DIFF LOCK	1-82563-602-6	01	1	0006-	●
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	0006-0512	●
90	BOLT; MAG VLV M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0006-	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0006-0602	●	●
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

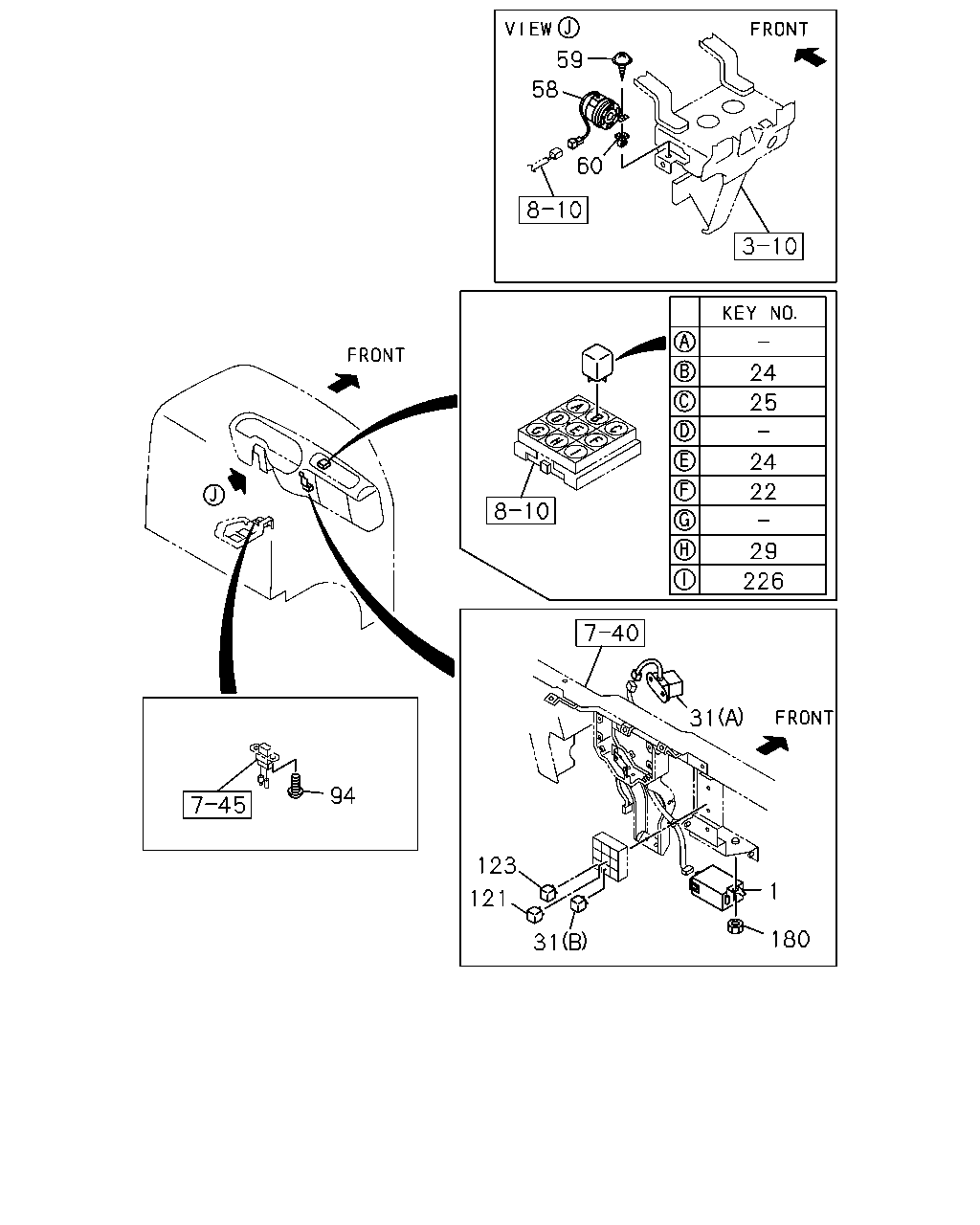

59 58 60 24 25 24 22 29 226 31 94 123 1 121 180 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-060-1	01	1	0006-	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0006-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0006-0111	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0006-0111	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0006-0111	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	0006-	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	0006-0111	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0006-0612	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	0701-	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0006-0604	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0006-	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0006-0604	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0006-0111	●	●
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	0006-0111	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0006-0602	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0006-0111	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
