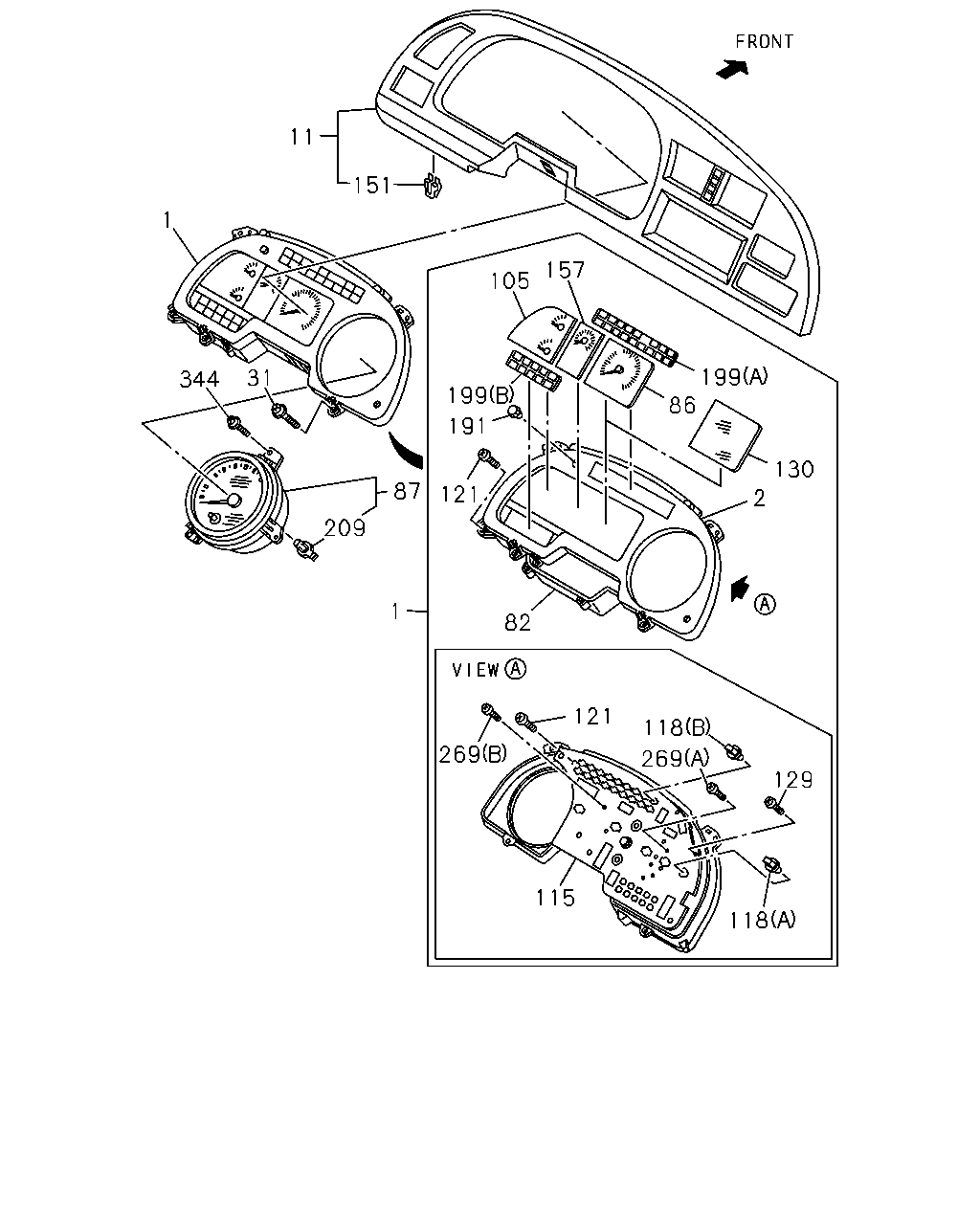

8-21 — METER ASM (#10374) — 41 parça

11 151 1 157 105 31 199 344 199 86 191 130 87 121 2 209 1 82 121 118 269 269 129 115 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6>	1-83114-979-0	01	1	0006-	●	●
1	METER COMPL; CLUSTER TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-83114-978-0	01	1	0006-	●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP LAMP<YD6>	1-83114-973-0	01	1	0006-	●	●
2	PANEL; CLUSTER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6>	1-83119-499-0	01	1	0006-	●	●
2	PANEL; CLUSTER EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-83119-499-0	01	1	0006-	●	●
11	CLUSTER ASM; METER	1-72418-022-7	01	1	0006-	●	●
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	0006-0604	●	●
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74160-620-0	03	1	0605-	●	●
82	CASE ASM; CLUSTER METER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6>	1-83119-432-0	01	1	0006-	●	●
82	CASE ASM; CLUSTER METER EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-83119-432-0	01	1	0006-	●	●
86	TACHOMETER; CLUSTER METER TACHOMETER<UD7>	1-83120-835-0	01	1	0006-	●	●
87	SPEEDOMETER	1-83120-490-1	01	1	0006-	●	●
105	GAUGE; THERMO & FUEL,CLUSTER METER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6>	1-83180-274-0	01	1	0006-	●	●
105	GAUGE; THERMO & FUEL,CLUSTER METER EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-83180-274-0	01	1	0006-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6>	1-83189-308-0	01	1	0006-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-83189-320-0	01	1	0006-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP LAMP<YD6>	1-83189-307-0	01	1	0006-	●	●
118	BULB; CLUSTER METER EXC. INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	13	1	0006-	●	●
118	BULB; CLUSTER METER TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	0006-	●	●
118	BULB; CLUSTER METER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	14	1	0006-	●	●
118	BULB; CLUSTER METER EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP LAMP<YD6> (A) 24V 3W GREEN SOCKET	1-82194-061-0	03	1	0006-	●	●
121	SCREW; PANEL FIX,CLUSTER METER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> M4 TAPPING	1-83119-442-0	08	1	0006-	●	●
121	SCREW; PANEL FIX,CLUSTER METER EXC. INDICATOR TAIL & STOP LAMP<YD6> M4 TAPPING	1-83119-442-0	08	1	0006-	●	●
129	SCREW; PRINTED CIRCUIT,CLUSTER METER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> M3 TAPPING	1-83119-052-0	10	1	0006-	●	●
129	SCREW; PRINTED CIRCUIT,CLUSTER METER EXC. INDICATOR TAIL & STOP LAMP<YD6> M3 TAPPING	1-83119-052-0	10	1	0006-	●	●
130	COVER; METER HOLE,CLUSTER METER EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP LAMP<YD6>	1-83119-523-0	01	1	0006-	●	●
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	0006-	●	●
157	METER; AIR PRESSURE,CLUSTER METER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6>	1-83150-187-0	01	1	0006-	●	●
157	METER; AIR PRESSURE,CLUSTER METER EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-83150-187-0	01	1	0006-	●	●
191	KNOB; BULB CHECK TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6>	1-83119-500-0	01	1	0006-	●	●
191	KNOB; BULB CHECK EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-83119-500-0	01	1	0006-	●	●
199	LENS; WARNING LAMP TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> (B)	1-83119-435-0	01	1	0006-	●	●
199	LENS; WARNING LAMP EXC. INDICATOR TAIL & STOP LAMP<YD6> (B)	1-83119-435-0	01	1	0006-	●	●
199	LENS; WARNING LAMP TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> (A)	1-83119-526-0	01	1	0006-	●	●
199	LENS; WARNING LAMP EXC. INDICATOR TAIL & STOP LAMP<YD6> (A)	1-83119-526-0	01	1	0006-	●	●
209	BULB; SPEEDOMETER 24V 3W GREEN SOCKET	1-82194-061-0	02	1	0006-	●	●
269	SCREW; METER CLUSTER TACHOMETER<UD7> (B) M3 TAPPING	1-83119-439-0	03	1	0006-	●	●
269	SCREW; METER CLUSTER TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> (A) M3 TAPPING	1-83119-441-0	06	1	0006-	●	●
269	SCREW; METER CLUSTER EXC. INDICATOR TAIL & STOP LAMP<YD6> (A) M3 TAPPING	1-83119-441-0	06	1	0006-	●	●
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	0006-0604	●	●
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74160-620-0	03	1	0605-	●	●
