◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#10372) — 272 parça

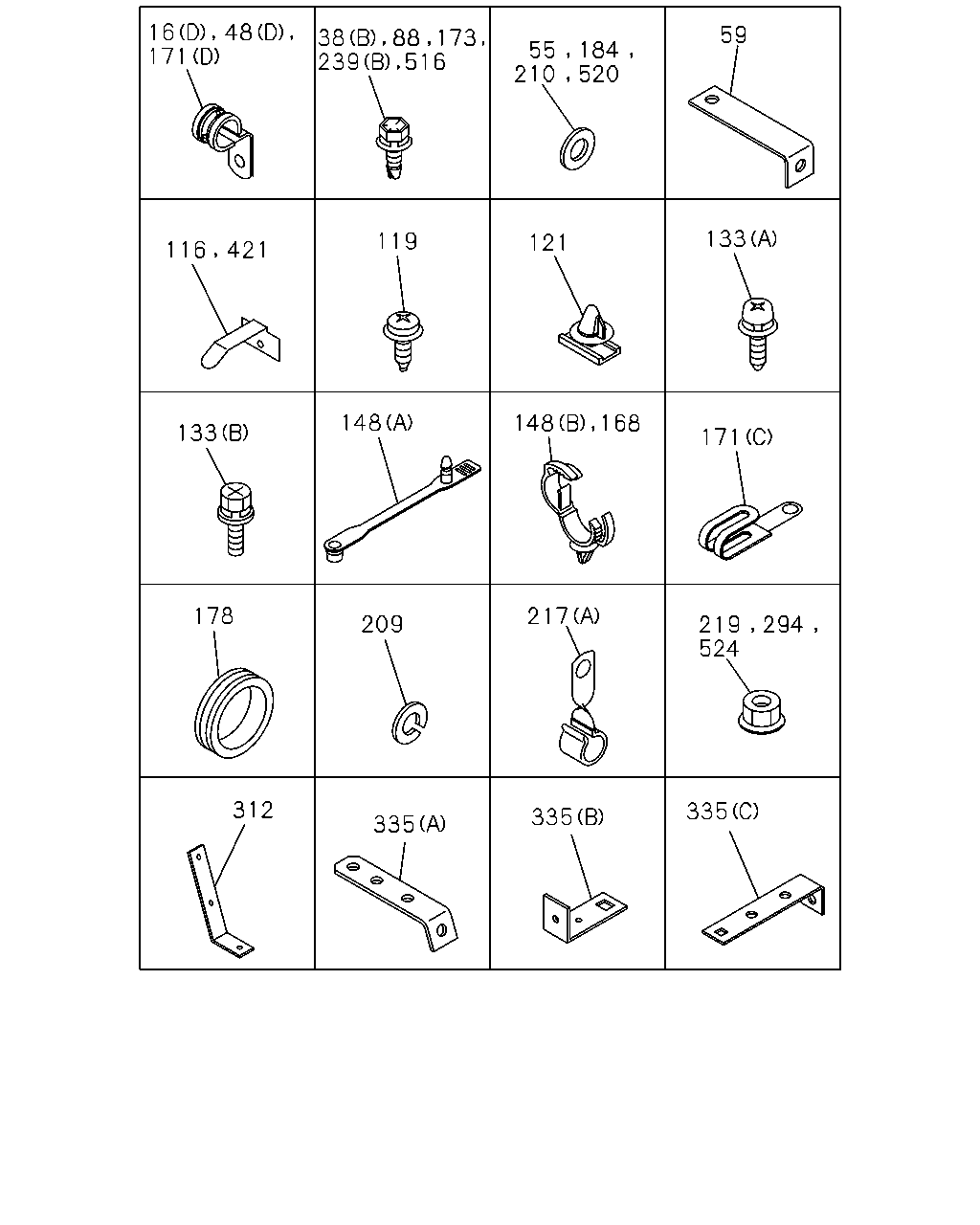

çizim 81473
171 59 55 210 184 520 133 119 121 148 148 168 133 171 178 217 209 219 524 294 312 335 335 335 16 48 38 88 173 239 516 116 421
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0006- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0006- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0006- ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0006- ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0006- ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0006- ● ●
16 CLIP; HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 0006- ● ●
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 0006- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0006- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0006- ● ●
16 CLIP; HARNESS
(E) L=140 		5-09707-031-1 01 1 0006- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 0006-0101 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 0102- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 0006-0101 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0102- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 0102- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 0102- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 05 1 0605- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0006-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0006-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0006-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 06 1 0006-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0604 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0605- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0006-1201 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0006-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0006-0104 ● ●
48 CLIP; FRAME HARNESS
(B) L=300 		1-09707-001-1 01 1 0105-0209 ● ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0202- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 21 1 0006- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=20 L=50 		9-09917-430-0 21 1 0006- ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=61 		1-09700-484-0 07 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 03 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 07 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 03 1 0006- ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=60 		9-09525-896-0 01 1 0006-0606 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=75 		1-09700-608-2 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0006- ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0006-0606 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=50 		9-09917-430-0 13 1 0006- ●
55 WASHER; PL,CLIP
ID=8.4 OD=18 		9-09160-608-0 01 1 0006-0605 ●
55 WASHER; PL,CLIP
ID=8.4 OD=18 		0-91610-608-0 01 1 0606- ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0006- ● ●
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0006-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008- ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0006-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 02 1 0006-0009 ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0010-1409 ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1410- ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0006-0009 ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112 ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409 ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0006- ● ●
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> OD=7 H=1.2 		8-94364-750-0 02 1 0006- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0006-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0006- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0006- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0006- ● ●
171 CLIP; STARTER HARNESS
(C) L=36 		8-94224-891-1 01 1 1410- ●
171 CLIP; STARTER HARNESS
(B) ID=11 L=16 		9-09525-025-0 01 1 0402-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 0402- ●
171 CLIP; STARTER HARNESS
(G) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ● ●
171 CLIP; STARTER HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0006- ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0006- ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=40 		9-09525-876-0 01 1 0006-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0006- ● ●
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 0006-0209 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0006-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0006- ● ●
178 GROMMET; HARNESS
ID=19 OD=23 T=24 		1-09332-103-0 03 1 0006- ● ●
178 GROMMET; HARNESS
LOW ROOF<6XQ> ID=32 OD=48 T=5 		9-09575-232-0 01 1 0006- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0006- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0006-0603 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0006- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0006-0208 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0006- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1410- ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0006-0602 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0006-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0006-0602 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0006-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0006- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0006-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1008- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0006-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0006-1201 ● ●
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
294 NUT
M10 FLANGE 		0-91150-210-0 01 1 0006-0602 ●
294 NUT
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
294 NUT
M6 FLANGE 		0-91150-106-0 01 1 0006-0602 ● ●
294 NUT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0006-0602 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
312 BRACKET; CLIP HARNESS 1-82699-109-0 01 1 0006- ● ●
335 BRACKET; CONNECTOR
(B) L=60 		1-82699-875-0 01 1 0006-0206 ●
335 BRACKET; CONNECTOR
(C) L=120 		1-82699-963-0 01 1 0207- ●
335 BRACKET; CONNECTOR
(A) 		1-82698-167-0 01 1 0006- ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0006-0101 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0406 ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0006- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0006- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0006-0602 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
çizim 103232
171 133 171 503 503 334 235 513 530 171 305
BalonParca AdiParca NoAdetTipApplied Date A B
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0006-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
171 CLIP; STARTER HARNESS
(C) L=36 		8-94224-891-1 01 1 1410- ●
171 CLIP; STARTER HARNESS
(B) ID=11 L=16 		9-09525-025-0 01 1 0402-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 0402- ●
171 CLIP; STARTER HARNESS
(G) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ● ●
171 CLIP; STARTER HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0006- ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0006- ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=40 		9-09525-876-0 01 1 0006-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0006- ● ●
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 0006-0209 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0006-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=12 L=35 		5-09700-206-0 01 1 0006- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0006-0104 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 02 1 0105- ●
305 CLIP; ENG HARNESS
L=300 		1-09707-001-1 01 1 0006- ● ●
334 BRACKET 1-82699-425-0 01 1 0006- ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0212- ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0006-0105 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0106-0109 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0106-0109 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0110- ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0110- ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 0006-0101 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0407- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102- ● ●

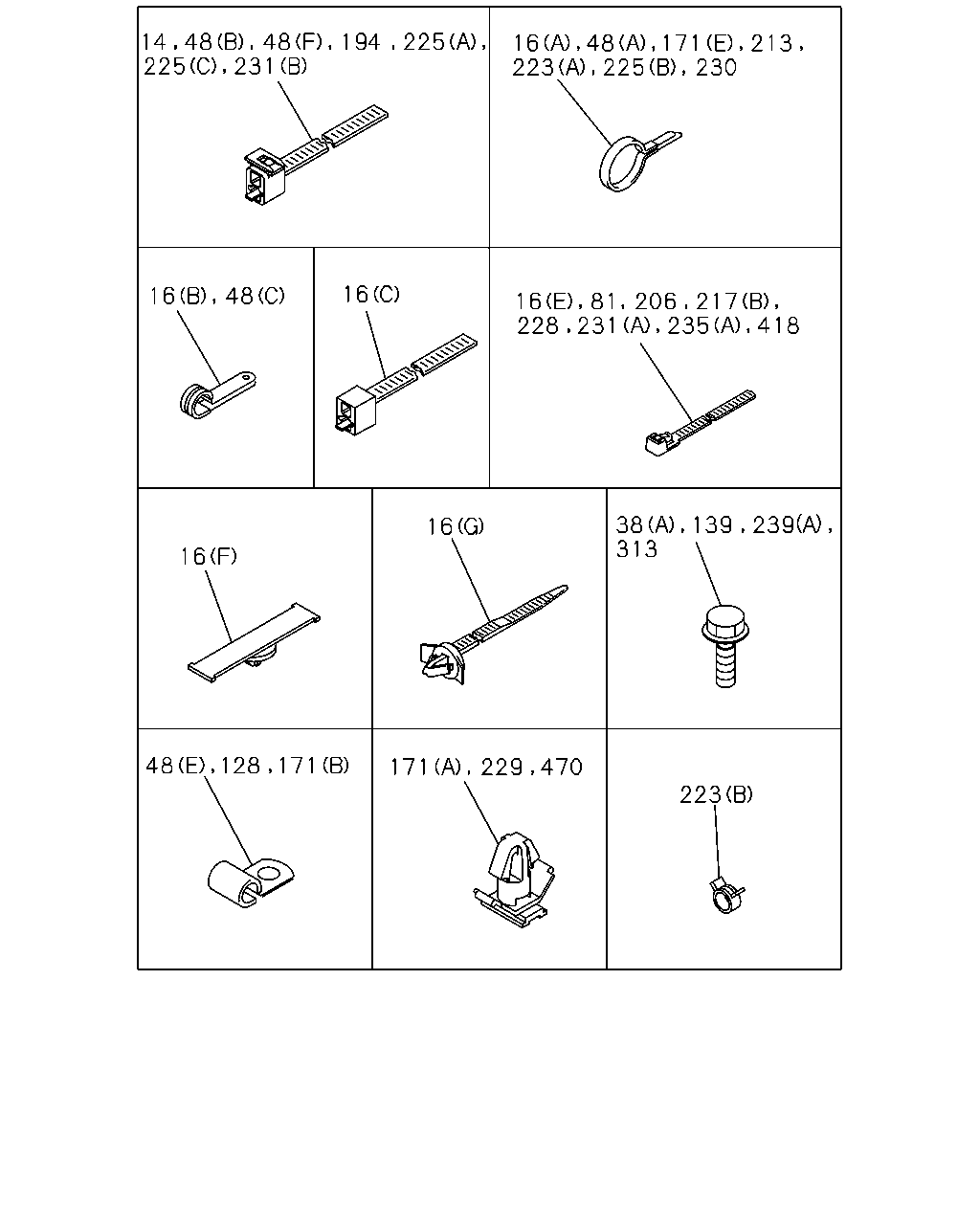

çizim 103234
194 225 16 38 313 16 16 48 171 223 14 48 48 225 231 16 48 171 213 223 225 230 16 48 16 81 206 217 418 235 231 228 139 239 470 229 171 128
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 01 1 0006- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0006- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0006- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0006- ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0006- ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0006- ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0006- ● ●
16 CLIP; HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 0006- ● ●
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 0006- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0006- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0006- ● ●
16 CLIP; HARNESS
(E) L=140 		5-09707-031-1 01 1 0006- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 0006-0101 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 0102- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 0006-0101 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0102- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 0102- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 0102- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 05 1 0605- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0006-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0006-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0006-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 06 1 0006-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0604 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0605- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0006-1201 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0006-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0006-0104 ● ●
48 CLIP; FRAME HARNESS
(B) L=300 		1-09707-001-1 01 1 0105-0209 ● ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0202- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 21 1 0006- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=20 L=50 		9-09917-430-0 21 1 0006- ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=61 		1-09700-484-0 07 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 03 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 07 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 03 1 0006- ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=60 		9-09525-896-0 01 1 0006-0606 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=75 		1-09700-608-2 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0006- ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0006- ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0006-0606 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 0006- ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=50 		9-09917-430-0 13 1 0006- ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0006- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20 		9-09525-535-0 01 1 0006-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=19 L=32 		9-09525-862-0 01 1 0006-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0006-0512 ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0006-0512 ● ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
171 CLIP; STARTER HARNESS
(C) L=36 		8-94224-891-1 01 1 1410- ●
171 CLIP; STARTER HARNESS
(B) ID=11 L=16 		9-09525-025-0 01 1 0402-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 0402- ●
171 CLIP; STARTER HARNESS
(G) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ● ●
171 CLIP; STARTER HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0006- ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0006- ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=40 		9-09525-876-0 01 1 0006-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0006- ● ●
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 0006-0209 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0006-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0006- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0006- ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0006- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0006-0208 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0006- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0006- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=17.5 		1-09709-181-0 01 1 0006- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0006-0305 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0306- ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0006-0112 ● ●
225 CLIP; AIR TANK HARNESS
EXC. AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0201- ● ●
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 0110- ● ●
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) L=600 		1-09707-107-1 01 1 0201- ● ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0006- ● ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0006- ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0006- ● ●
231 CLIP; BAND,OIL PRESS
(A) L=250 		5-09707-030-1 01 1 0006-0104 ● ●
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 0105- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=12 L=35 		5-09700-206-0 01 1 0006- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0006-0104 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 02 1 0105- ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0006- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0006-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1008- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0006-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0006-1201 ● ●
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
313 BOLT; BRKT
M6X20 FLANGE 		0-28680-620-0 01 1 0006-0512 ● ●
313 BOLT; BRKT
M6X20 FLANGE 		0-28650-620-0 01 1 0601- ● ●
418 CLIP; LAMP HARNESS
RADIO CLARION<SK2> L=140 		5-09707-031-1 01 1 0703- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
