◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#10368) — 60 parça

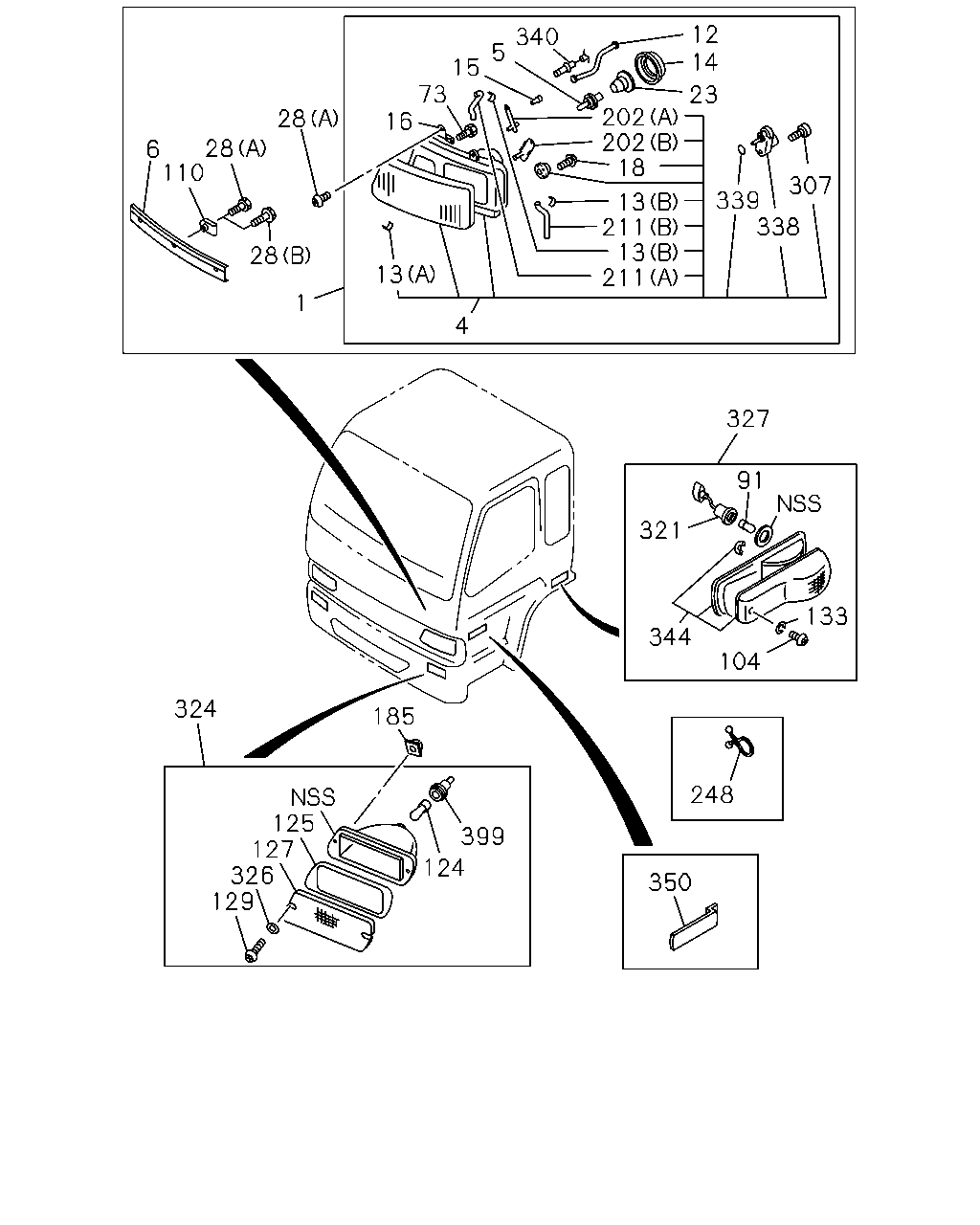

çizim 103355
6 28 28 28 16 73 15 5 340 13 1 4 211 13 211 13 18 202 202 12 14 23 307 339 338 327 321 344 324 185 104 91 133 248 350 399 124 129 125 127 326 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-4 01 1 0006-0210 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-440-0 01 1 0211- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-4 01 1 0006-0210 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-439-0 01 1 0211- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-198-1 01 1 0006-0210 ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-205-0 01 1 0211- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-197-1 01 1 0006-0210 ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-204-0 01 1 0211- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W 		1-82194-063-0 02 1 0006- ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-006-5 01 1 0006- ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-005-5 01 1 0006- ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-145-0 02 1 0006- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0006- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0006- ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0006- ● ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 0006- ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0006- ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0006- ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0006- ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0006- ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0006-0102 ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0103-0708 ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0006- ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0006- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0006- ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 0006-0102 ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-213-1 04 1 0103- ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0006- ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0006- ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0006- ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0006- ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0006- ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0006-0206 ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0006- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0006- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0006- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0006-0105 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0006- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0006-0105 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0006- ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 0006- ● ●
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 02 1 0211- ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0006- ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0006- ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0006- ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0006- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0006- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0006- ● ●
338 LEVELING; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-138-0 02 1 0211- ● ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-158-0 02 1 0211- ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0006- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0006- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0006- ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 0006-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 0006-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-034-0 02 1 0006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
