7-60 — SEAT BELT (#10366) — 31 parça

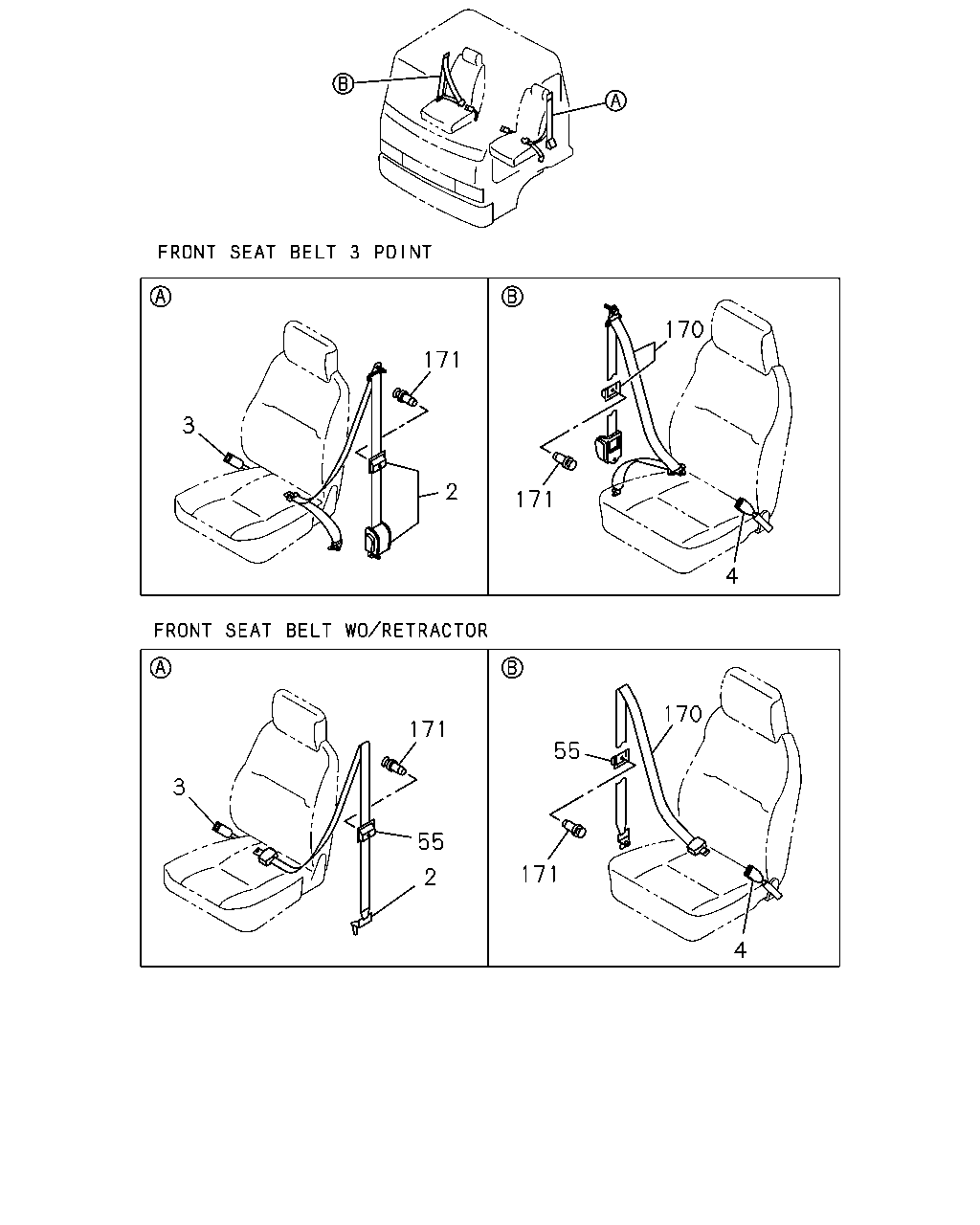

çizim 79292
170 171 3 2 171 4 170 171 55 3 55 171 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY> 		1-75618-909-5 01 1 0006-0806 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY> 		8-98120-810-0 01 1 0807- ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0006- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-914-0 01 1 0006- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-914-0 01 1 0006- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> SAUDI ARABIA EQUIPMENT(WH1) 		1-75617-545-0 01 1 0006- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY> 		1-75618-911-1 01 1 0006- ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY> 		1-75617-556-0 02 1 0006- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY> 		1-75618-912-5 01 1 0006-0806 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY> 		8-98120-818-0 01 1 0807- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0006- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0006- ● ●

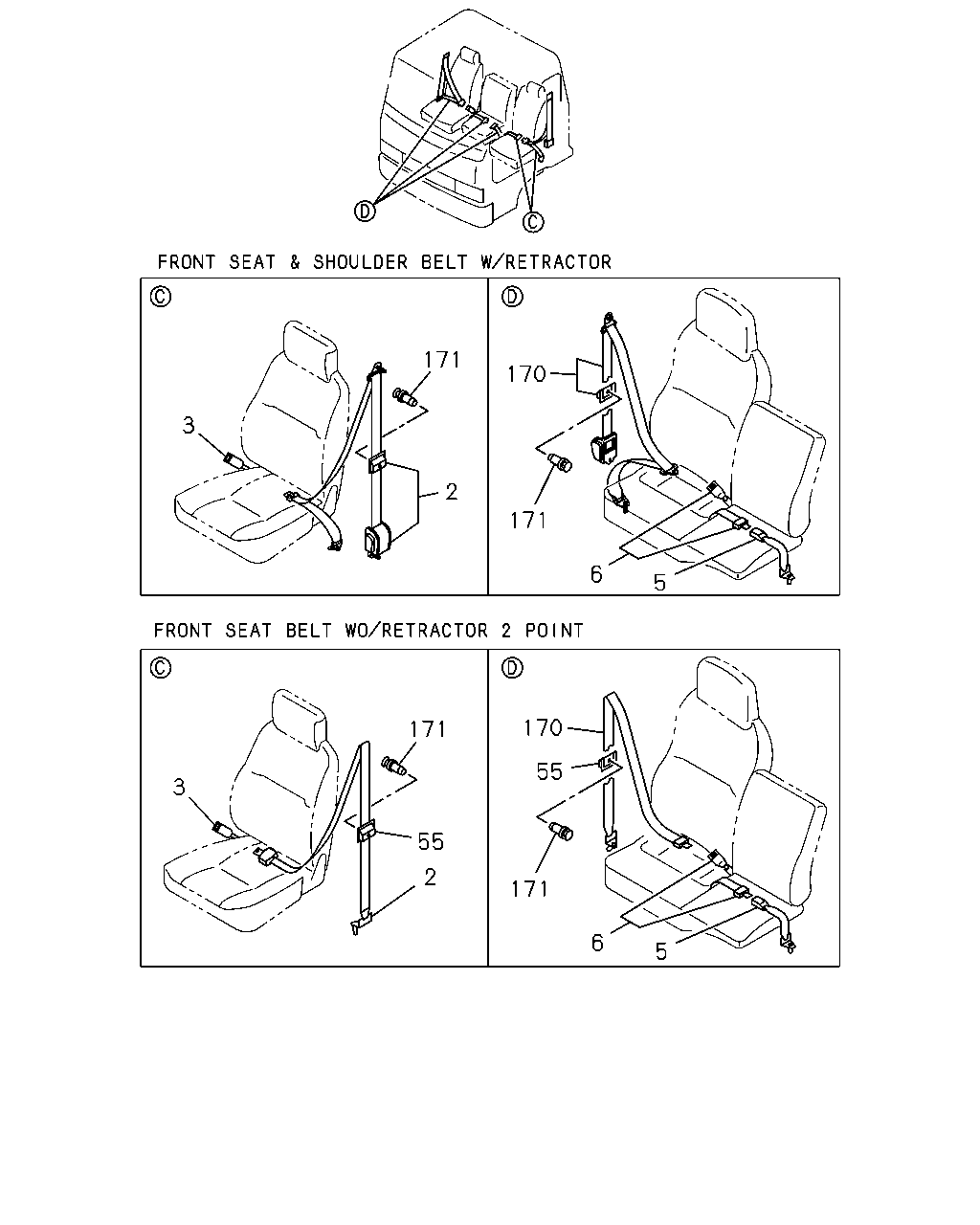

çizim 80039
171 170 3 2 171 6 5 170 171 55 3 55 2 171 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY> 		1-75618-909-5 01 1 0006-0806 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY> 		8-98120-810-0 01 1 0807- ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0006- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-914-0 01 1 0006- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-914-0 01 1 0006- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> SAUDI ARABIA EQUIPMENT(WH1) 		1-75617-545-0 01 1 0006- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR 2 POINT<W25> 		1-75617-553-1 01 1 0006- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR 2 POINT<W25> 		1-75618-915-4 01 1 0006- ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY> 		1-75617-556-0 02 1 0006- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY> 		1-75618-912-5 01 1 0006-0806 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY> 		8-98120-818-0 01 1 0807- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0006- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0006- ● ●

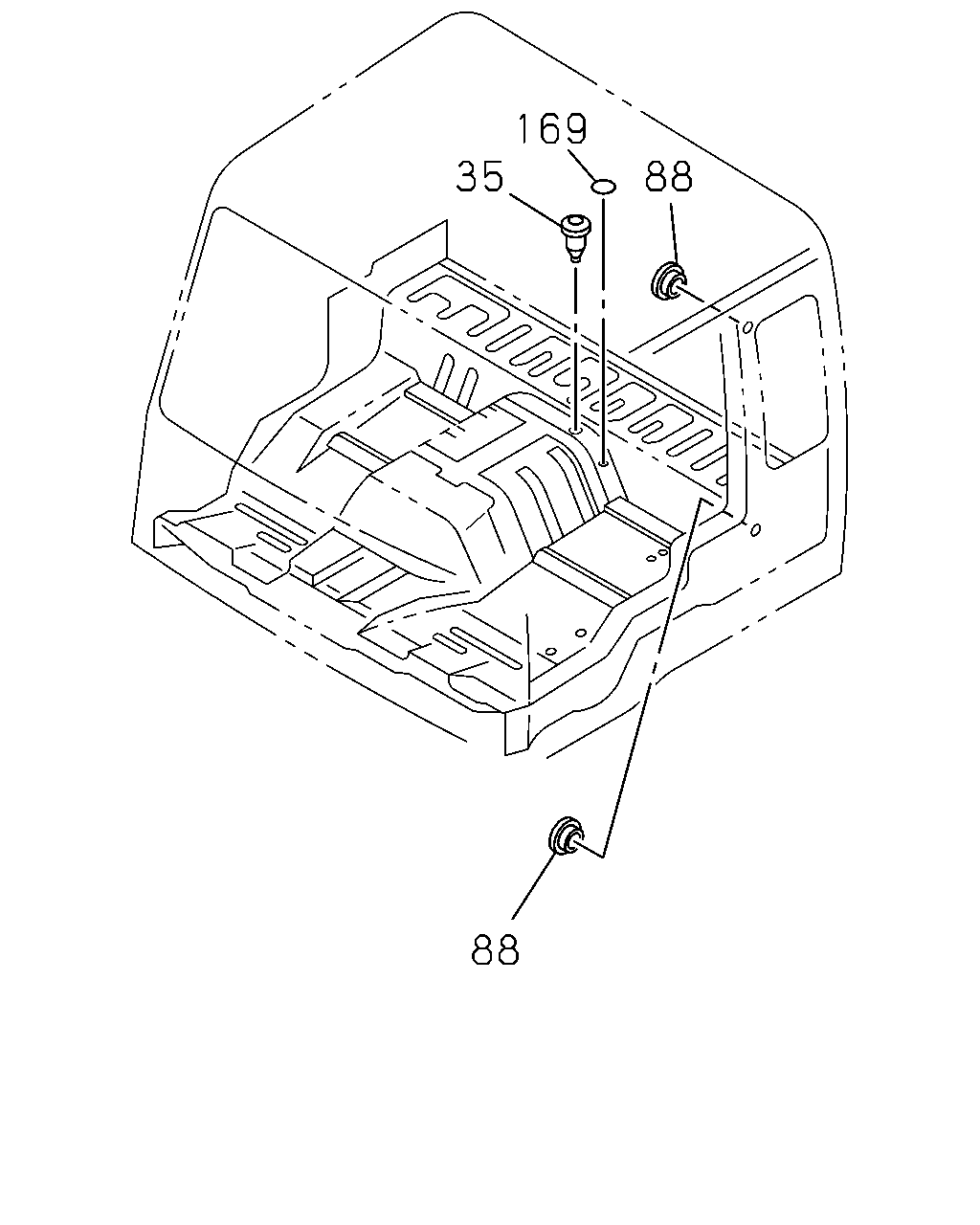

çizim 103236
169 35 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POI NT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 03 1 0006-1005 ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POI NT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 02 1 1006- ● ●
35 GROMMET; SEAT BELT ANCHOR
FRT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY> OD=22 		9-61168-535-0 01 1 0006-1005 ● ●
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY> OD=31.6 		8-94198-177-0 02 1 0006- ● ●
169 SEAL
FRT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY> OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POI NT<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=25 BLACK 		1-76798-019-0 03 1 1006- ● ●
