Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#10365) — 311 parça

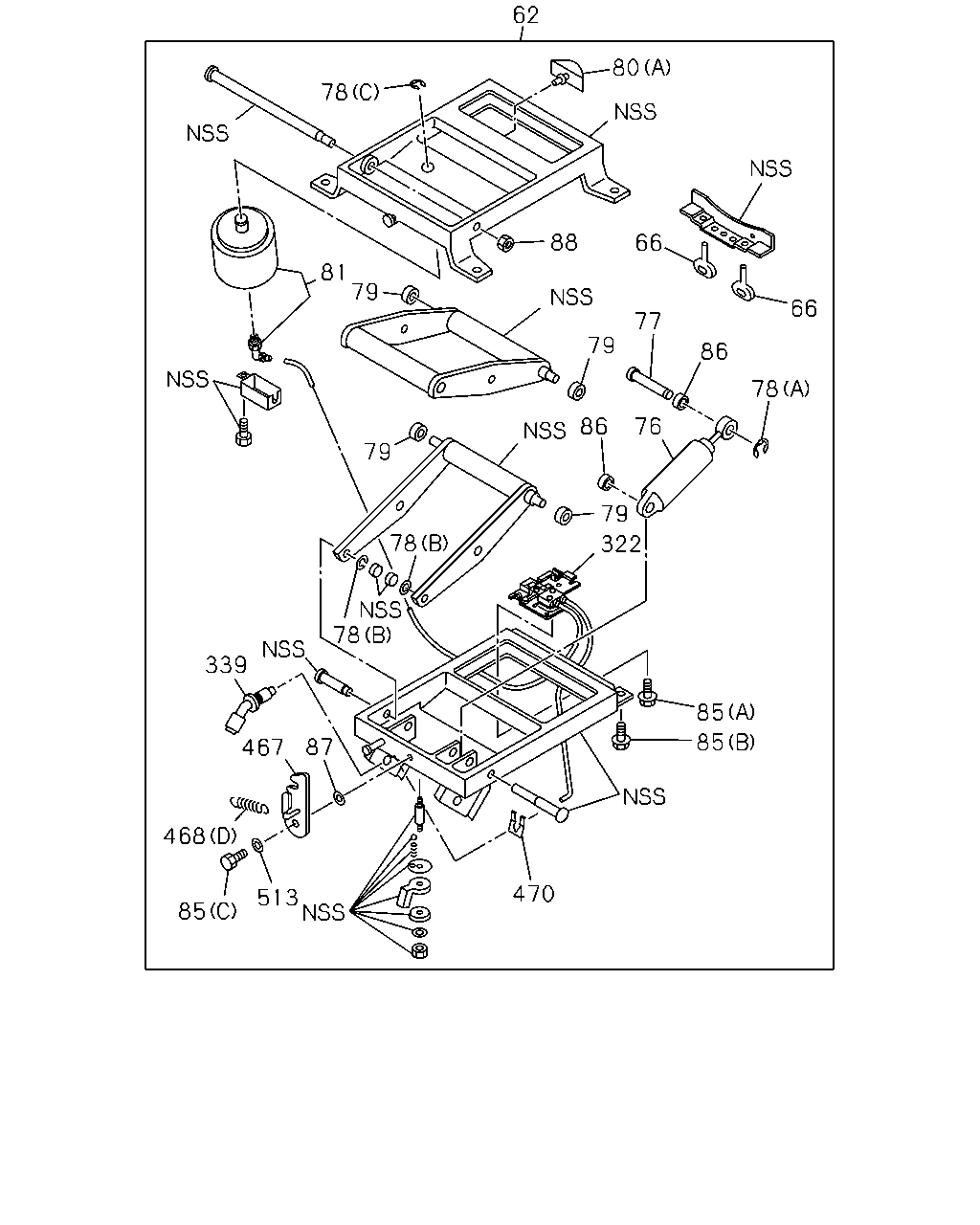

62 78 81 79 79 78 78 339 87 467 468 85 513 470 85 85 322 79 86 76 78 86 66 77 79 88 66 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0006-1403	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0006-	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	0006-	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0006-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0006-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	0006-0406	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=15	9-09185-415-0	01	1	0006-	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0006-1403	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-	●	●
80	RUBBER; STOPPER CENTER SEAT<SA1> (B)	1-72538-187-0	02	1	1007-	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0006-	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	0006-1312	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	0006-0102	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0103-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0006-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0006-1312	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0006-	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	0006-0710	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0711-	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0006-	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	0006-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75538-131-3	01	1	0006-	●	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0006-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0006-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-206-0	01	1	0006-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-207-0	01	1	0006-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C)	1-75518-208-0	02	1	0006-	●	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0006-	●	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0006-	●	●

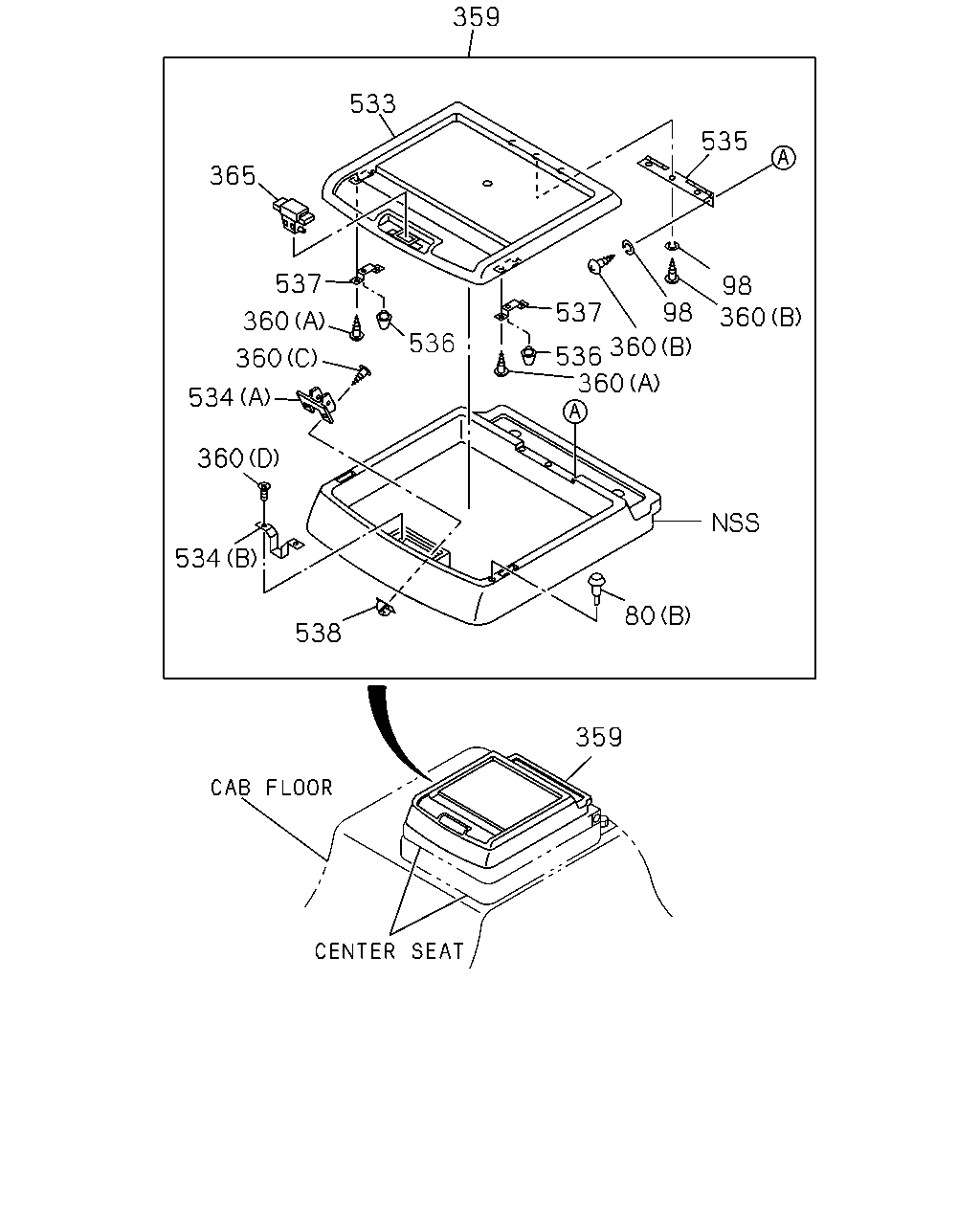

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	RUBBER; STOPPER CENTER SEAT<SA1> (B)	1-72538-187-0	02	1	1007-	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0006-	●	●
98	WASHER; HINGE VINYL SEAT<A83> CENTER SEAT<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0006-0310	●	●
98	WASHER; HINGE CENTER SEAT<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-	●	●
359	BOX; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-72538-275-0	01	1	0006-0211	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	1-72538-275-4	01	1	0212-1006	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	8-98145-114-0	01	1	1007-	●	●
359	BOX; PARCEL VINYL SEAT<A83> CENTER SEAT<SA1>	1-72538-157-2	01	1	0006-0211	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0006-0310	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	02	1	0006-0211	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	01	1	0212-0310	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0006-0612	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	0006-0612	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	1105-	●	●
360	SCREW; PARCEL VINYL SEAT<A83> CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0006-0310	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●
365	LOCK ASM; SEAT CENTER SEAT<SA1>	1-72538-180-0	01	1	0006-	●	●
533	LID; PARCEL BOX CENTER SEAT<SA1>	1-72538-194-2	01	1	0006-0310	●	●
533	LID; PARCEL BOX CENTER SEAT<SA1>	1-72538-277-1	01	1	0311-1006	●	●
533	LID; PARCEL BOX CENTER SEAT<SA1>	8-98145-118-0	01	1	1007-	●	●
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> (A)	1-72538-181-0	01	1	0006-1006	●	●
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> (B)	1-72538-190-0	01	1	1007-	●	●
535	HINGE; PARCEL BOX CENTER SEAT<SA1>	1-72447-391-1	01	1	0006-	●	●
536	RUBBER; CUSHION CENTER SEAT<SA1>	5-09983-002-1	02	1	0006-1006	●	●
537	BRACKET; RUBBER CENTER SEAT<SA1>	1-72548-057-1	02	1	0006-1006	●	●
538	GROMMET; SCREW CENTER SEAT<SA1>	1-09983-165-0	02	1	0006-1006	●	●

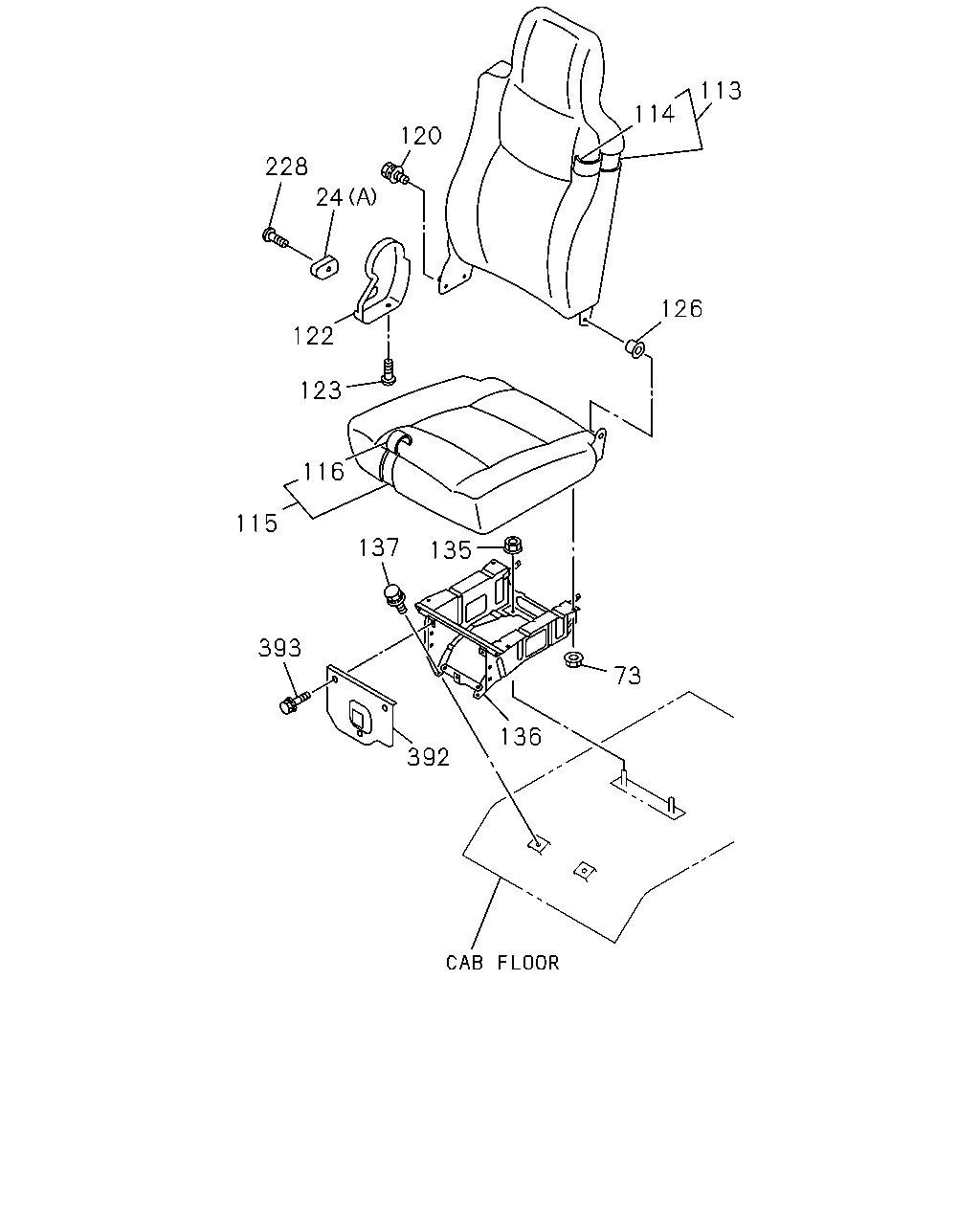

113 114 120 228 24 126 122 123 116 115 137 135 393 73 136 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0006-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0006-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0006-0501	●	●
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-	●	●
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8 FLANGE	1-75538-207-0	04	1	0006-	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-723-0	01	1	0006-0105	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75208-062-3	01	1	0106-	●	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-728-0	01	1	0006-0105	●	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0106-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-602-1	01	1	0006-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0006-	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-698-1	01	1	0006-	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0006-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-686-1	01	1	0006-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0006-	●	●
120	BOLT; RECLINING ADJ VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8X20	8-97255-906-0	02	1	0006-	●	●
122	COVER; ADJ,RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> DARK GRAY	8-97867-020-0	01	1	0006-	●	●
123	SCREW; COVER,RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0006-	●	●
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	8-97854-087-0	01	1	0006-	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0006-0703	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
136	STAND; PASSENGER SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	1-75558-582-1	01	1	0006-0008	●	●
136	STAND; PASSENGER SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	1-75558-550-4	01	1	0009-0105	●	●
136	STAND; PASSENGER SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	1-75558-587-0	01	1	0106-0212	●	●
136	STAND; PASSENGER SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	1-75558-550-7	01	1	0301-1305	●	●
136	STAND; PASSENGER SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	8-98242-292-0	01	1	1306-	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0006-0703	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0006-0710	●	●
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●
392	COVER; STAND,PASSENGER SEAT	1-75558-535-3	01	1	0006-	●	●
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0006-0703	●	●
393	BOLT; COVER,SEAT STAND M6X16	0-52000-616-0	03	1	0704-	●	●

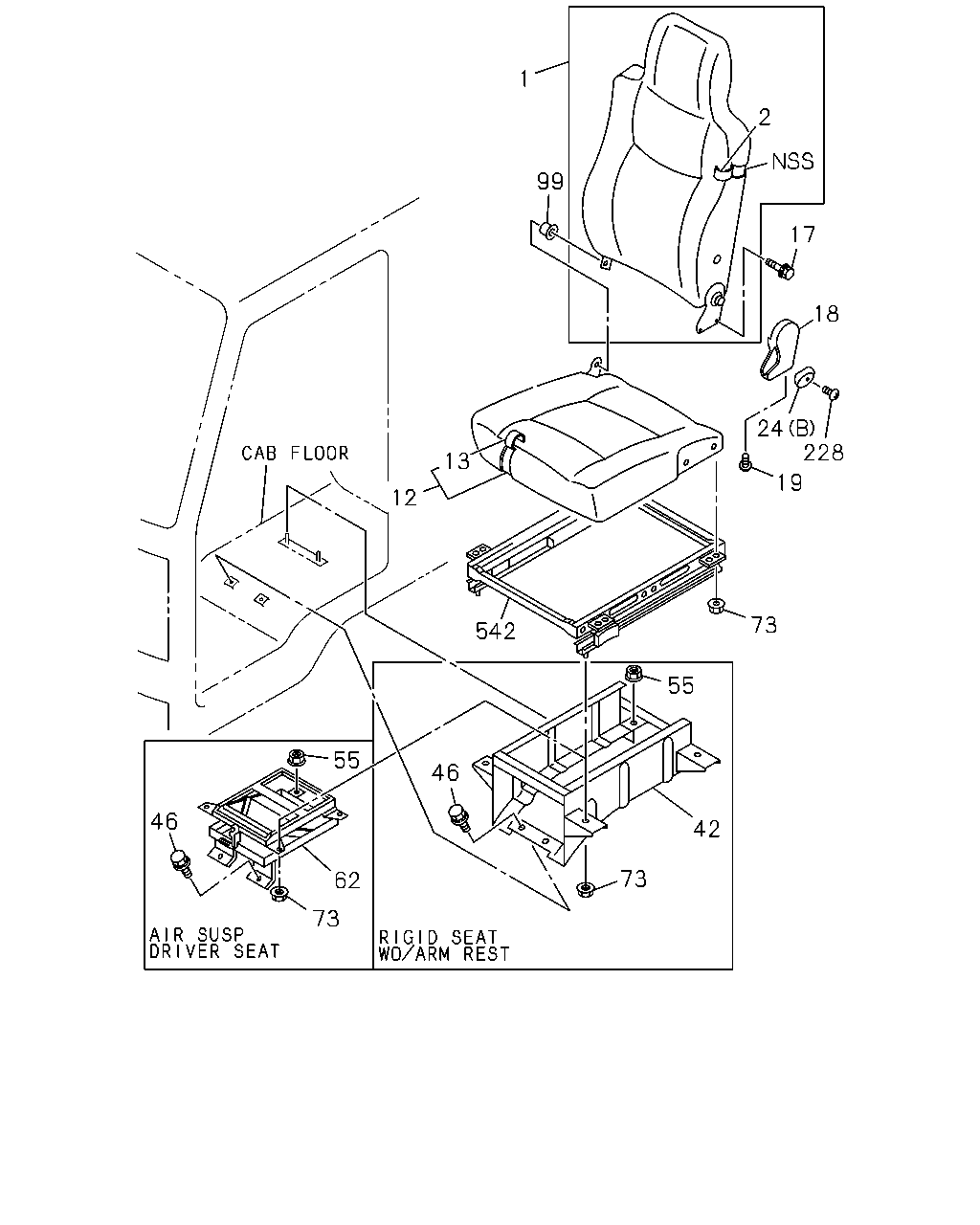

1 99 13 12 542 46 73 42 55 73 19 228 24 18 17 2 55 62 73 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75026-734-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75208-073-2	01	1	0106-0901	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98135-614-0	01	1	0902-	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75026-731-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75208-070-2	01	1	0106-0901	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	8-98135-613-0	01	1	0902-	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75026-733-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75208-072-3	01	1	0106-	●	●
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75026-732-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75208-071-2	01	1	0106-0901	●	●
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	8-98135-617-0	01	1	0902-	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75026-735-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75208-074-3	01	1	0106-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75116-708-1	01	1	0006-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75116-705-1	01	1	0006-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75116-707-1	01	1	0006-	●	●
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-706-1	01	1	0006-	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75116-592-1	01	1	0006-	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F>	1-75026-697-3	01	1	0006-	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75026-700-1	01	1	0006-	●	●
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75026-699-3	01	1	0006-	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75026-701-1	01	1	0006-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F>	1-75116-685-1	01	1	0006-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75116-688-1	01	1	0006-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-687-1	01	1	0006-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75116-689-1	01	1	0006-	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0006-	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0006-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0006-	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0006-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0006-	●	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0006-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0006-0703	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0006-0703	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0006-1403	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0006-0501	●	●
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-	●	●
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8 FLANGE	1-75538-207-0	04	1	0006-	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0006-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0006-0710	●	●
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●

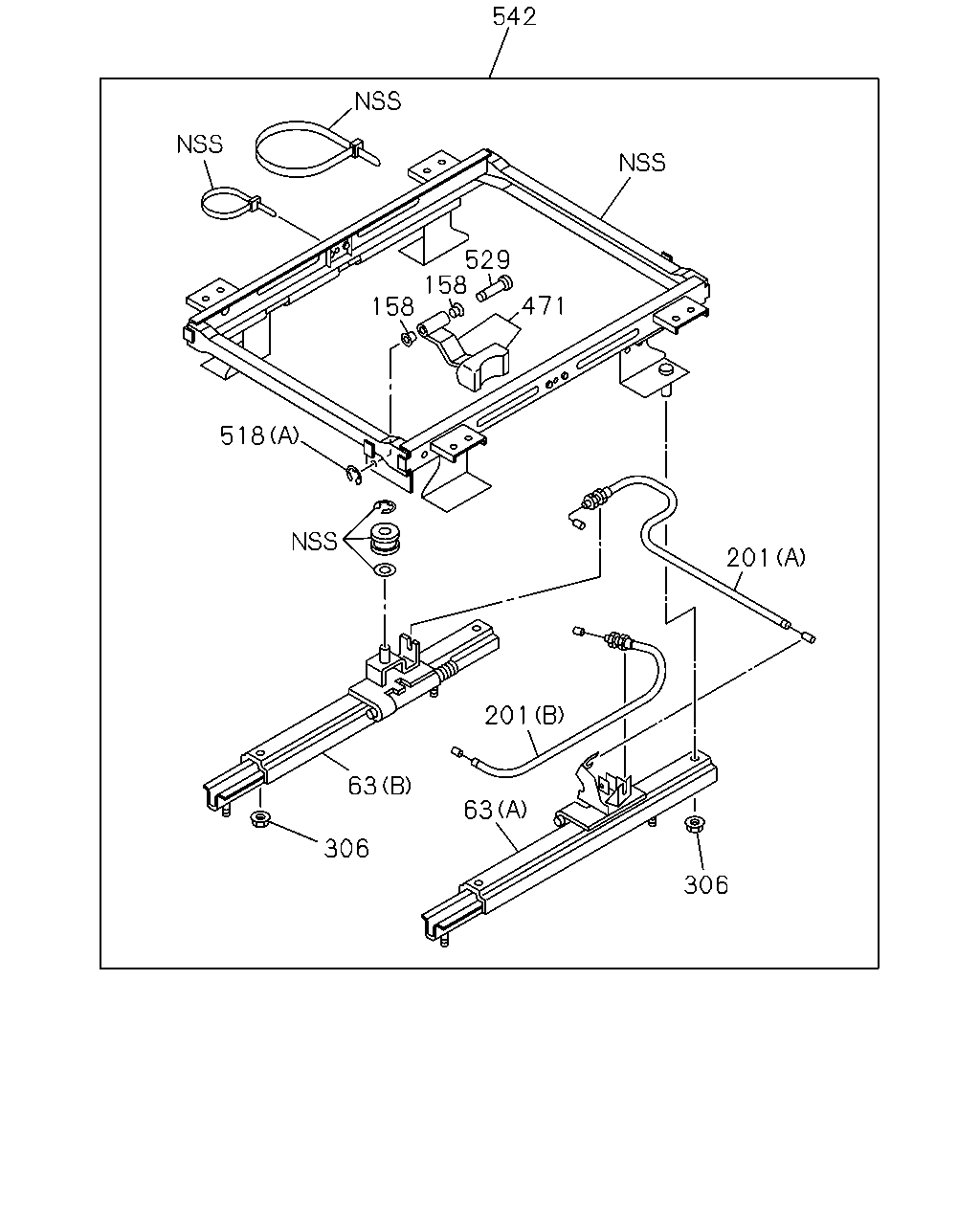

542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-283-3	01	1	0006-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-3	01	1	0006-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	8-98291-656-0	01	1	1503-	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-656-0	01	1	1503-	●	●

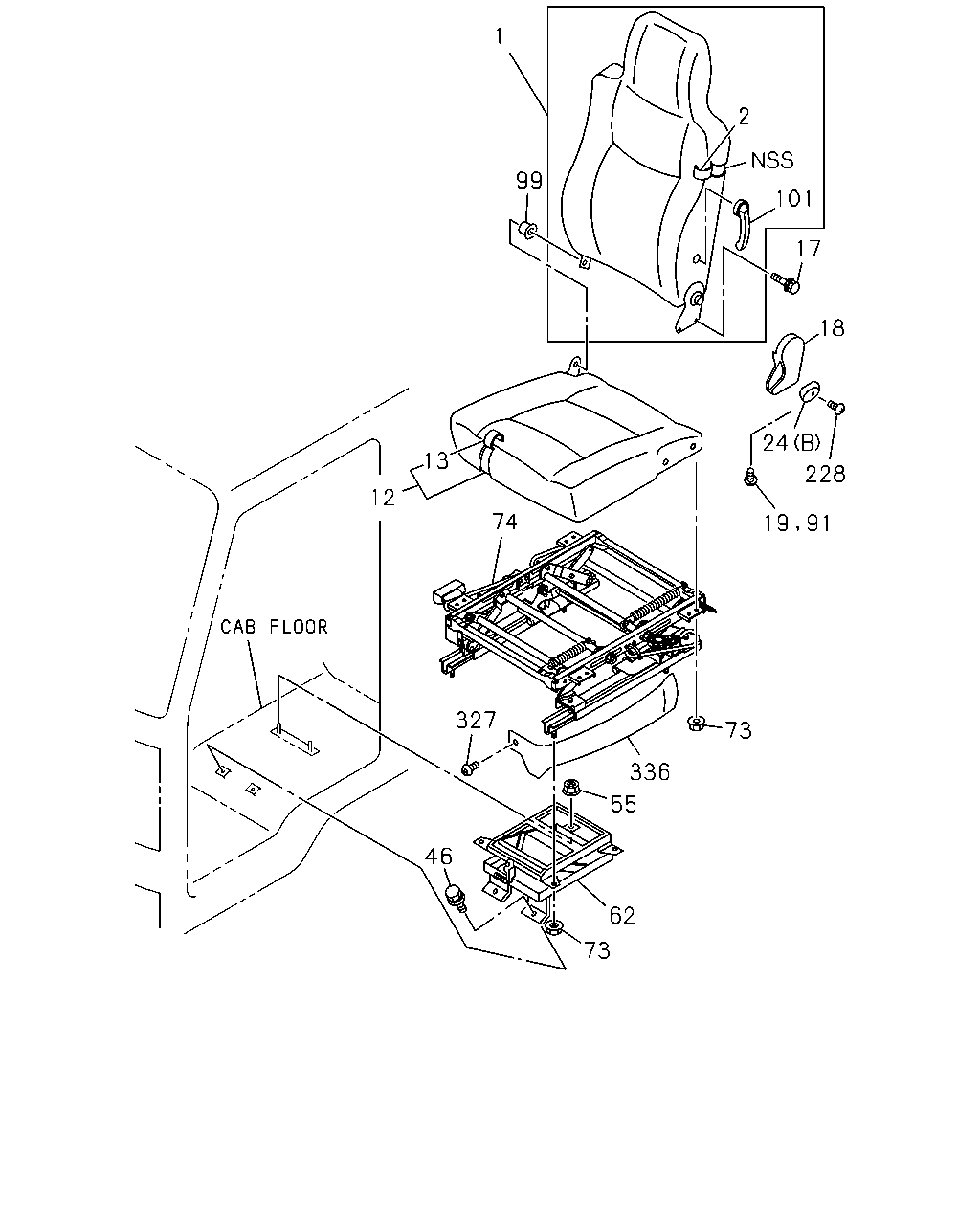

2 101 17 18 24 91 19 73 336 55 62 73 46 327 74 12 13 99 1 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75026-734-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75208-073-2	01	1	0106-0901	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98135-614-0	01	1	0902-	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75026-731-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75208-070-2	01	1	0106-0901	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	8-98135-613-0	01	1	0902-	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75026-733-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75208-072-3	01	1	0106-	●	●
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75026-732-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75208-071-2	01	1	0106-0901	●	●
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	8-98135-617-0	01	1	0902-	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75026-735-0	01	1	0006-0105	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75208-074-3	01	1	0106-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75116-708-1	01	1	0006-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75116-705-1	01	1	0006-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75116-707-1	01	1	0006-	●	●
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-706-1	01	1	0006-	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75116-592-1	01	1	0006-	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F>	1-75026-697-3	01	1	0006-	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75026-700-1	01	1	0006-	●	●
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75026-699-3	01	1	0006-	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75026-701-1	01	1	0006-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F>	1-75116-685-1	01	1	0006-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75116-688-1	01	1	0006-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-687-1	01	1	0006-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ>	1-75116-689-1	01	1	0006-	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0006-	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0006-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0006-	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0006-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0006-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0006-0703	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0006-0703	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0006-1403	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0006-0501	●	●
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-	●	●
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8 FLANGE	1-75538-207-0	04	1	0006-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-318-1	01	1	0006-0102	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-331-3	01	1	0103-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98291-646-0	01	1	1503-	●	●
91	SCREW; SEAT ADJ COVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0006-	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0006-	●	●
101	LEVER ASM; LUMBAR AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	5-75190-138-0	01	1	0006-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0006-0710	●	●
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	0006-0105	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-09987-273-0	01	1	0106-0201	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-09987-273-0	01	1	0106-0201	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-09987-273-0	01	1	0202-	●	●
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-313-0	01	1	0006-	●	●

542 529 158 471 158 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0006-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-324-0	01	1	0006-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (A)	1-75518-295-1	01	1	0006-	●	●
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-295-1	01	1	0006-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0006-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0006-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0006-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	06	1	0006-0501	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	14	1	0502-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	04	1	0006-0501	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0006-0501	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	12	1	0502-	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0006-0710	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0006-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) M8	1-75518-264-0	04	1	0006-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	0006-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) M8 FLANGE	8-94152-886-0	04	1	0006-	●	●
529	PIN; LINK	1-75518-262-0	01	1	0006-	●	●
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-283-3	01	1	0006-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-3	01	1	0006-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	8-98291-656-0	01	1	1503-	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-656-0	01	1	1503-	●	●

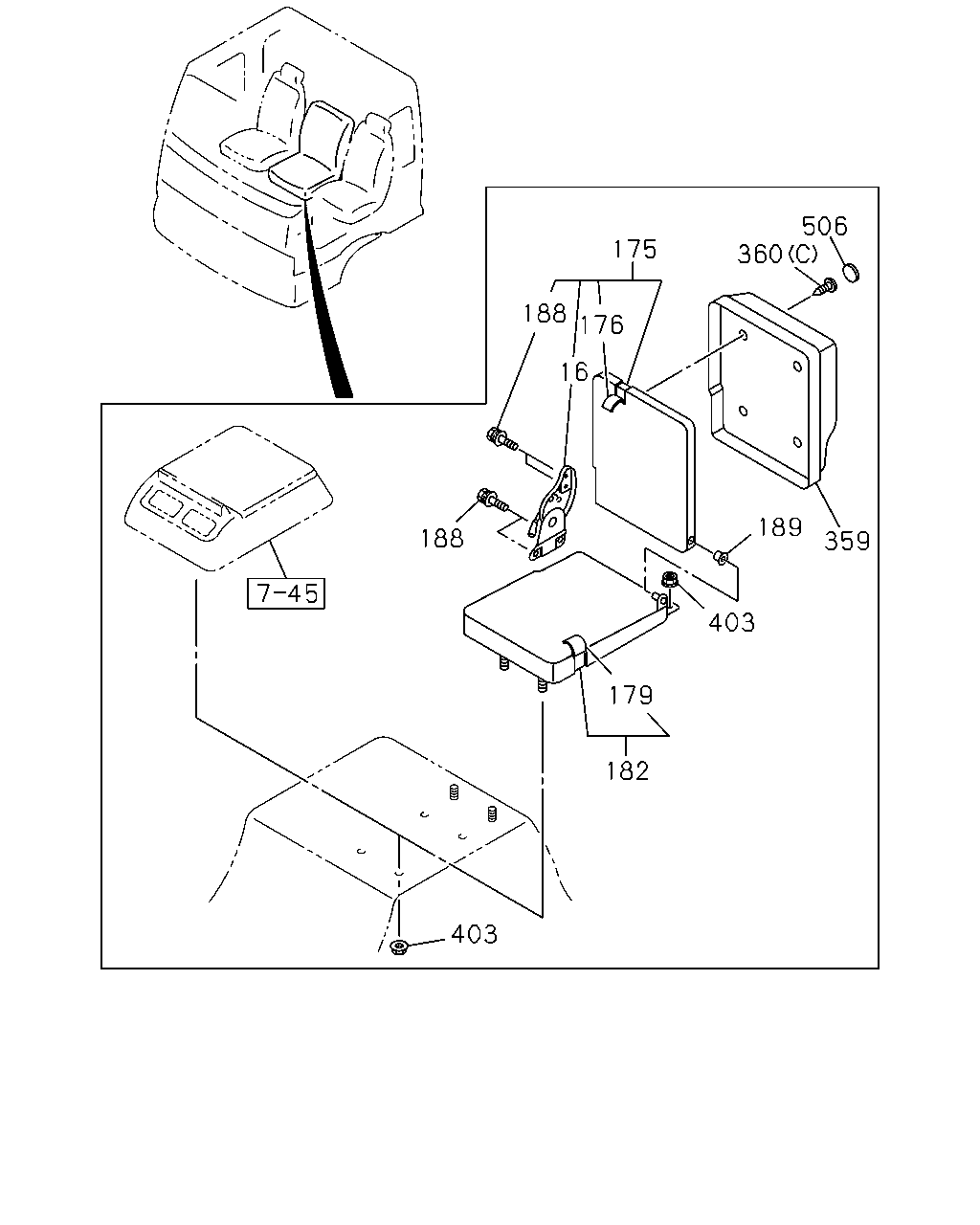

506 360 175 188 176 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75418-062-0	01	1	0006-0211	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1>	1-75418-062-1	01	1	0212-	●	●
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> CENTER SEAT<SA1>	1-75418-061-0	01	1	0006-0211	●	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-854-3	01	1	0006-	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT<SA1>	1-75026-856-3	01	1	0006-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-650-1	01	1	0006-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT<SA1>	1-75116-710-1	01	1	0006-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-693-1	01	1	0006-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT<SA1>	1-75116-692-1	01	1	0006-	●	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-842-4	01	1	0006-	●	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT<SA1>	1-75026-841-4	01	1	0006-	●	●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X16 FLANGE	1-75198-053-0	04	1	0006-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT<SA1>	8-97854-900-0	01	1	0006-	●	●
359	BOX; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-72538-275-0	01	1	0006-0211	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	1-72538-275-4	01	1	0212-1006	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	8-98145-114-0	01	1	1007-	●	●
359	BOX; PARCEL VINYL SEAT<A83> CENTER SEAT<SA1>	1-72538-157-2	01	1	0006-0211	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0006-0310	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	02	1	0006-0211	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	01	1	0212-0310	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0006-0612	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	0006-0612	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	1105-	●	●
360	SCREW; PARCEL VINYL SEAT<A83> CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0006-0310	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE	8-94279-518-0	04	1	0006-0312	●	●
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE	1-75538-207-0	04	1	0401-0703	●	●
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE	0-91180-108-0	04	1	0704-	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-09983-180-0	04	1	0006-0211	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1>	1-09983-180-3	04	1	0212-1006	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1>	1-09983-180-3	02	1	1007-	●	●
506	CAP; PARCEL BOX VINYL SEAT<A83> CENTER SEAT<SA1>	1-09983-164-0	04	1	0006-0211	●	●

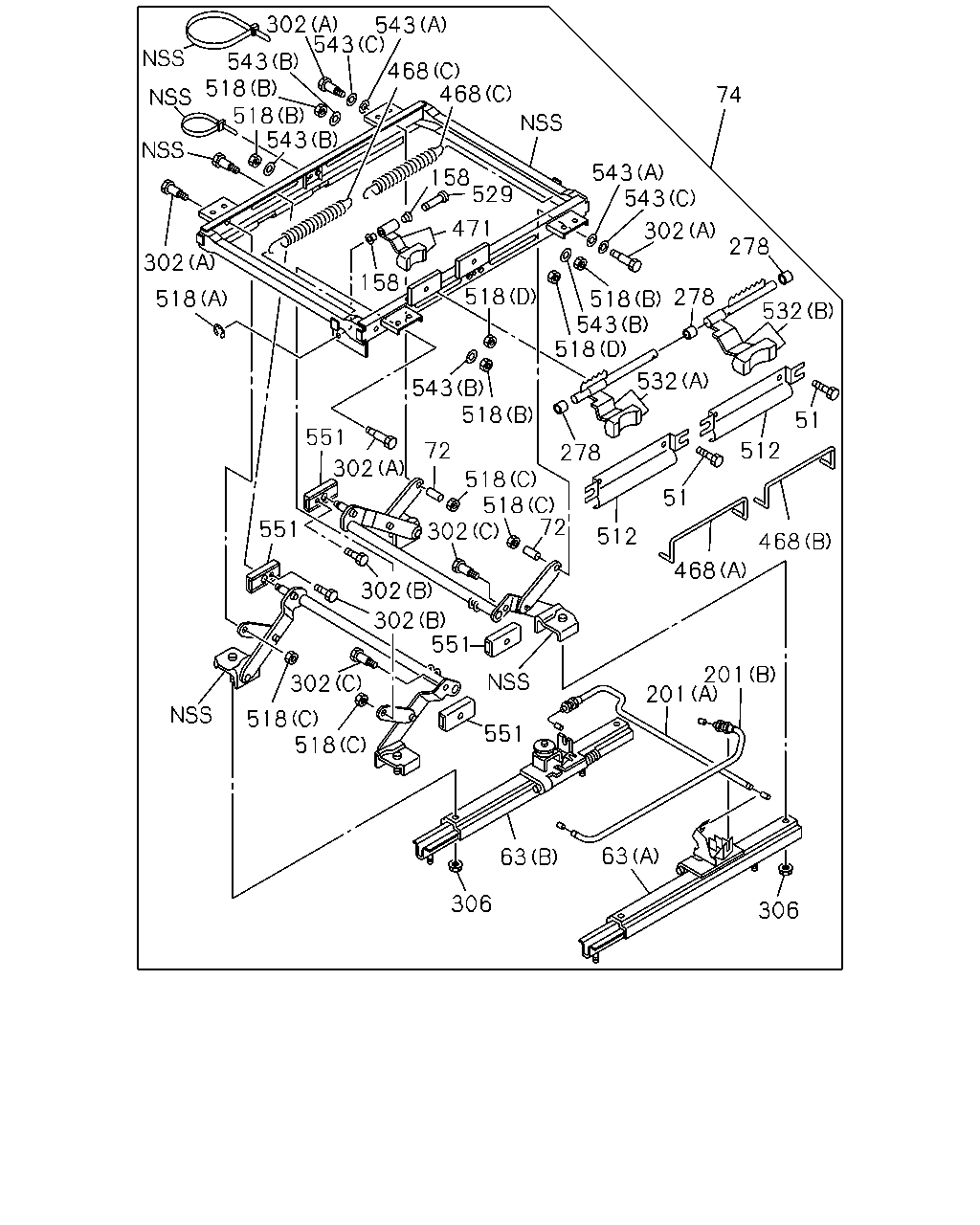

302 543 543 468 468 543 518 518 543 74 158 529 543 543 471 302 278 302 158 518 278 518 518 543 518 532 543 518 532 51 278 551 72 512 302 518 518 72 302 51 551 512 468 468 302 302 551 201 201 302 518 518 551 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M6X12 W/LK WASHER	9-03910-612-0	04	1	0006-0102	●	●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-325-1	04	1	0103-	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0006-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-324-0	01	1	0006-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (A)	1-75518-295-1	01	1	0006-	●	●
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-295-1	01	1	0006-	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-269-0	02	1	0006-0102	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-334-1	02	1	0103-1502	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98291-668-0	02	1	1503-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-318-1	01	1	0006-0102	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-331-3	01	1	0103-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98291-646-0	01	1	1503-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0006-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0006-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0006-	●	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-244-0	03	1	0006-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C)	1-75518-266-2	02	1	0006-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-270-1	04	1	0006-1502	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	8-98291-667-0	04	1	1503-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-271-1	02	1	0006-0102	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-336-1	02	1	0103-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	06	1	0006-0501	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	14	1	0502-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	04	1	0006-0501	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0006-0501	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	12	1	0502-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0006-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-206-0	01	1	0006-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-207-0	01	1	0006-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C)	1-75518-208-0	02	1	0006-	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0006-0710	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-	●	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-245-1	02	1	0006-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0006-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) M8	1-75518-264-0	04	1	0006-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	0006-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) M8 FLANGE	8-94152-886-0	04	1	0006-	●	●
529	PIN; LINK	1-75518-262-0	01	1	0006-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-221-0	01	1	0006-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-222-1	01	1	0006-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) ID=6.4	9-09160-506-0	04	1	0006-0102	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) ID=8.4	9-09160-508-0	04	1	0103-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) ID=10.5	9-09164-510-0	02	1	0006-0102	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C)	1-75518-335-0	02	1	0103-1502	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) ID=13 OD=19	8-98291-669-0	02	1	1503-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-337-0	02	1	0103-0406	●	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-265-0	04	1	0006-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
