◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#10364) — 48 parça

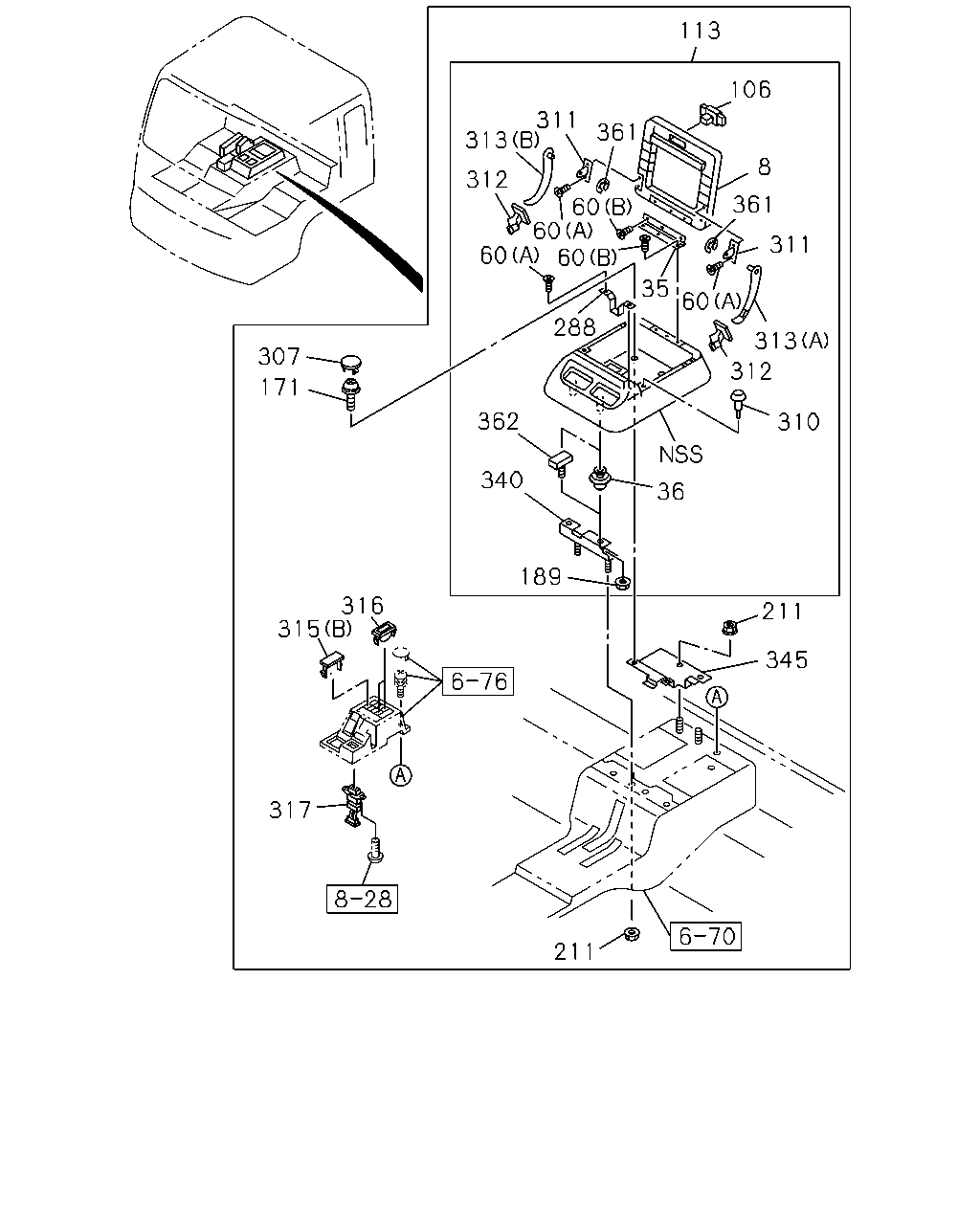

çizim 81260
113 106 311 313 361 8 312 60 60 60 361 311 60 35 60 288 313 307 312 171 362 310 340 36 189 316 315 211 345 317 211
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-260-1 01 1 0006-0703 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-321-0 01 1 0704- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-182-1 01 1 0006- ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 0006-0209 ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0610-0703 ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0210-0603 ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0604- ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> (B) M5X14 		8-94279-325-0 04 1 0210- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 0006- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-287-0 01 1 0006-0209 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-299-2 01 1 0210-0609 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-317-1 01 1 0610- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0006- ● ●
189 NUT; CONSOLE BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> M8 FLANGE 		8-94279-518-0 02 1 0210- ● ●
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> M8 FLANGE 		8-94279-518-0 04 1 0006-0401 ● ●
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> M8 FLANGE 		1-75538-207-0 04 1 0402- ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 0006- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-76337-461-0 02 1 0006- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 0006- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 0006- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 0006- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> (A) 		1-72538-184-3 01 1 0006- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> (B) 		1-72538-185-3 01 1 0006- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0006- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0006-0010 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0006-0010 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0011- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0006- ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 06 1 0006-0010 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 05 1 0011- ●
316 BOX; COIN 8-94482-280-2 02 1 0006- ● ●
317 CONSENT 1-82523-020-2 01 1 0006- ● ●
340 BRACKET; CONSOLE BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-232-1 01 1 0006- ● ●
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-233-0 01 1 0006- ● ●
361 RING; SNAP
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> ID=5 		9-09185-405-0 02 1 0210- ● ●
362 STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-308-0 02 1 0210- ● ●

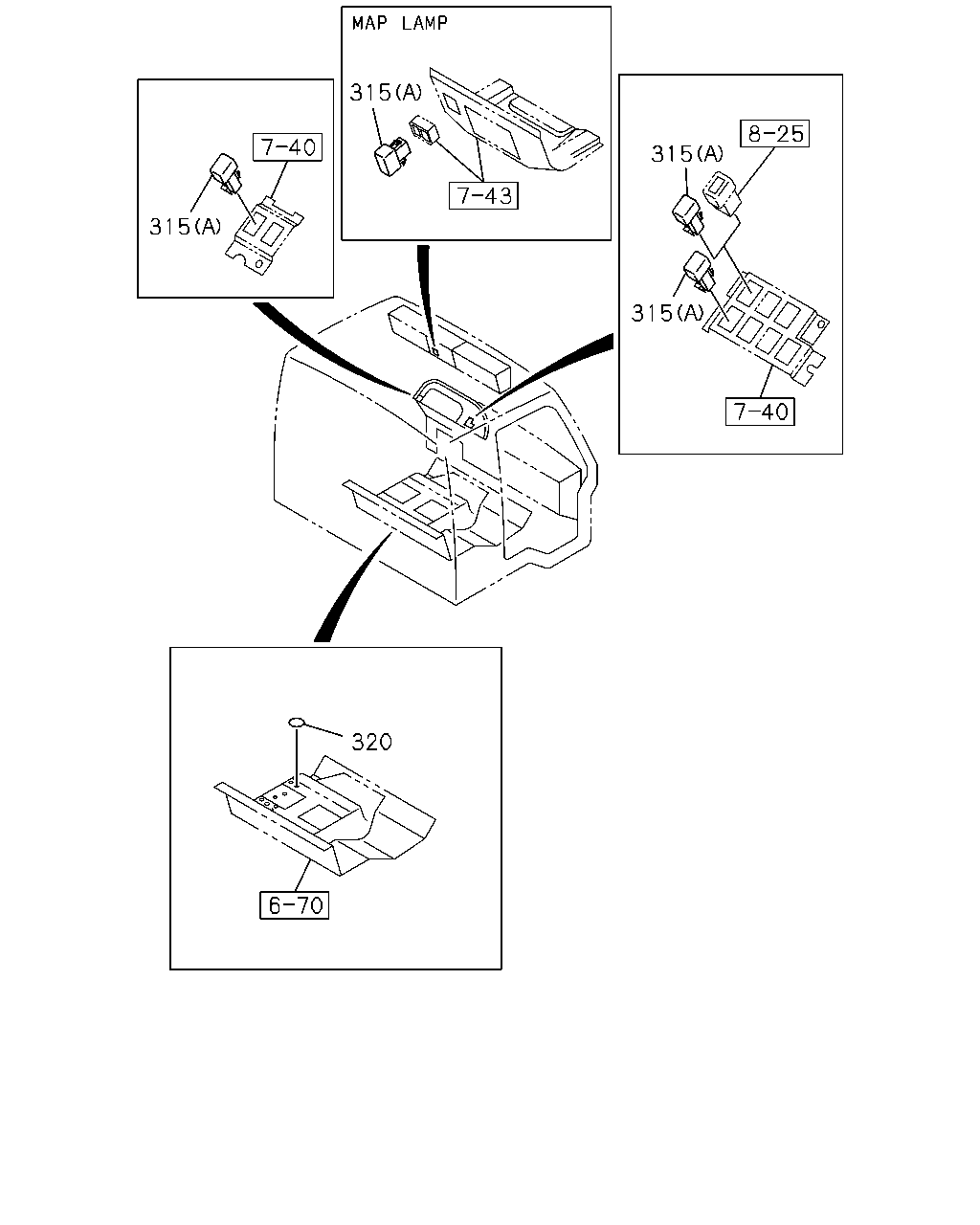

çizim 103178
315 315 315 315 320
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0006- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0006-0010 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0006-0010 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0011- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0006- ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 06 1 0006-0010 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 05 1 0011- ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 03 1 0006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
