Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#10360) — 341 parça

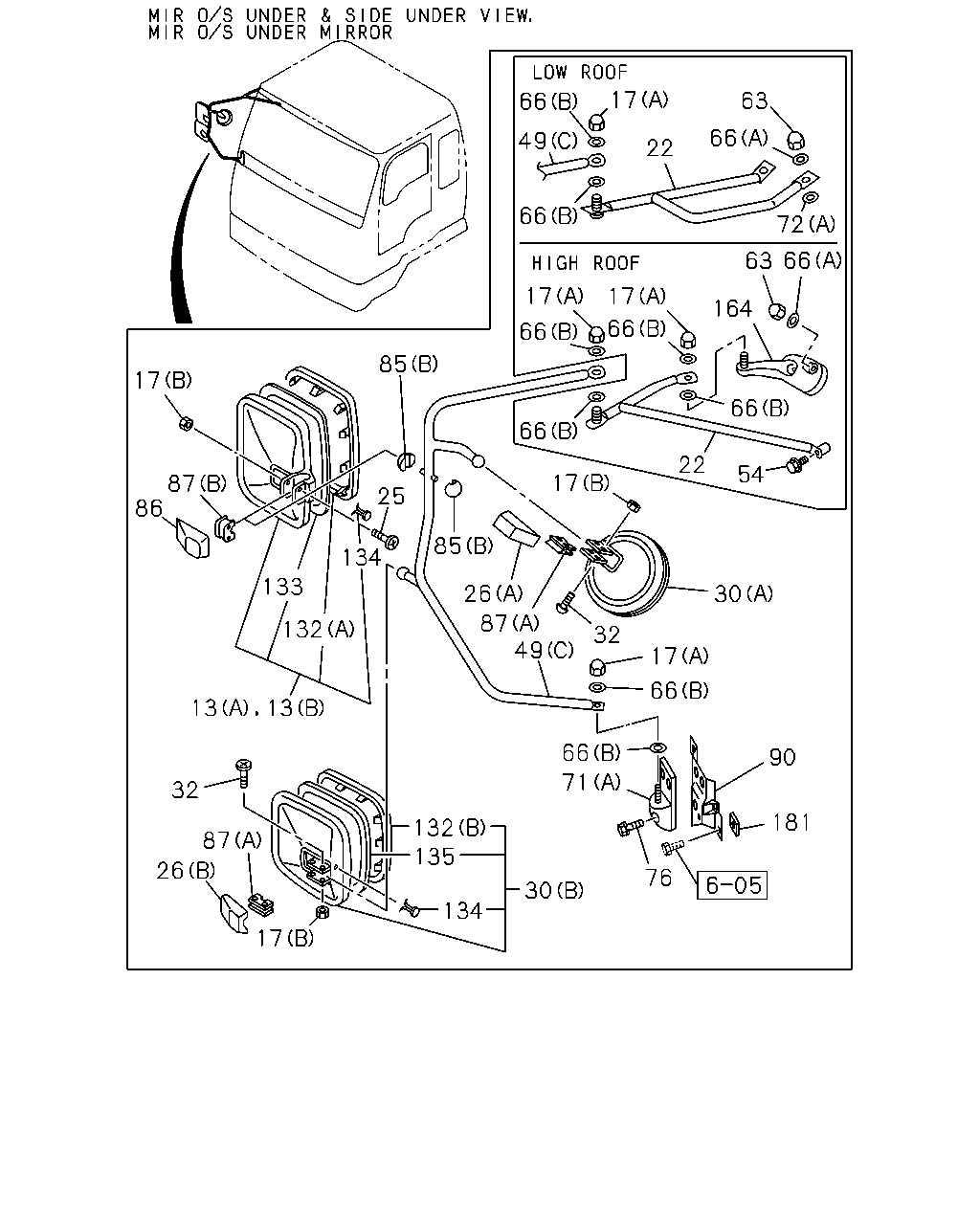

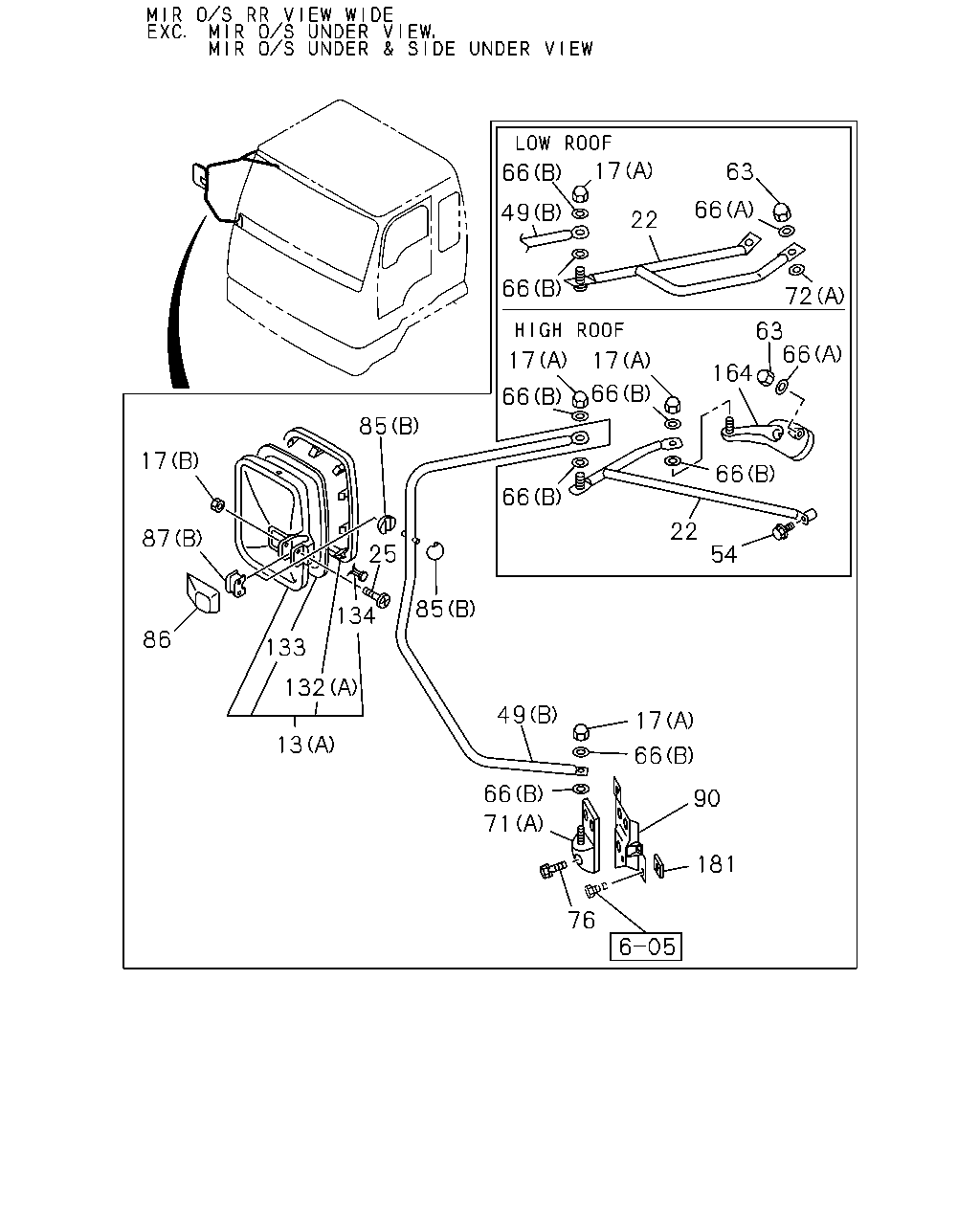

13 133 132 134 25 17 17 66 66 72 71 151 69 87 86 85 17 181 85 66 66 49 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0006-	●	●
17	NUT; CAP,MIRROR STAY (A) M10	1-09984-183-0	04	1	0006-0208	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0209-	●	●
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M10	1-09984-183-0	01	1	0006-0208	●	●
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M10 CAP NUT	1-09984-134-0	01	1	0209-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0006-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF>	1-09981-541-0	02	1	0405-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-490-3	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-491-3	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-492-4	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-762-2	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-855-2	01	1	0006-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0006-	●	●
66	WASHER; PL HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0006-	●	●
66	WASHER; PL MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0006-	●	●
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0006-0809	●	●
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 CAP NUT	8-98059-914-0	04	1	0810-	●	●
69	NUT; CAP MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0006-0809	●	●
69	NUT; CAP MIR O/S RR VIEW WIDE<WU4> M8 CAP NUT	8-98059-914-0	02	1	0810-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) UPPER	1-71798-484-1	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) LOWER	1-71798-486-2	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-580-3	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) UPPER	1-71798-487-3	02	1	0006-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) LOWER	1-71798-488-1	02	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-487-3	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-488-1	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> LOW ROOF<6XQ> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> BLACK	1-71737-760-1	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0006-	●	●
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0006-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0006-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0006-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-927-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0006-	●	●
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0006-	●	●
151	WASHER; PL,MIRROR MIR O/S RR VIEW WIDE<WU4> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0006-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0006-	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	04	1	0006-0512	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	04	1	0606-	●	●
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	0-28690-835-0	02	1	0006-0512	●	●
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	0-28660-835-0	02	1	0601-0605	●	●
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	8-98046-876-0	02	1	0606-	●	●

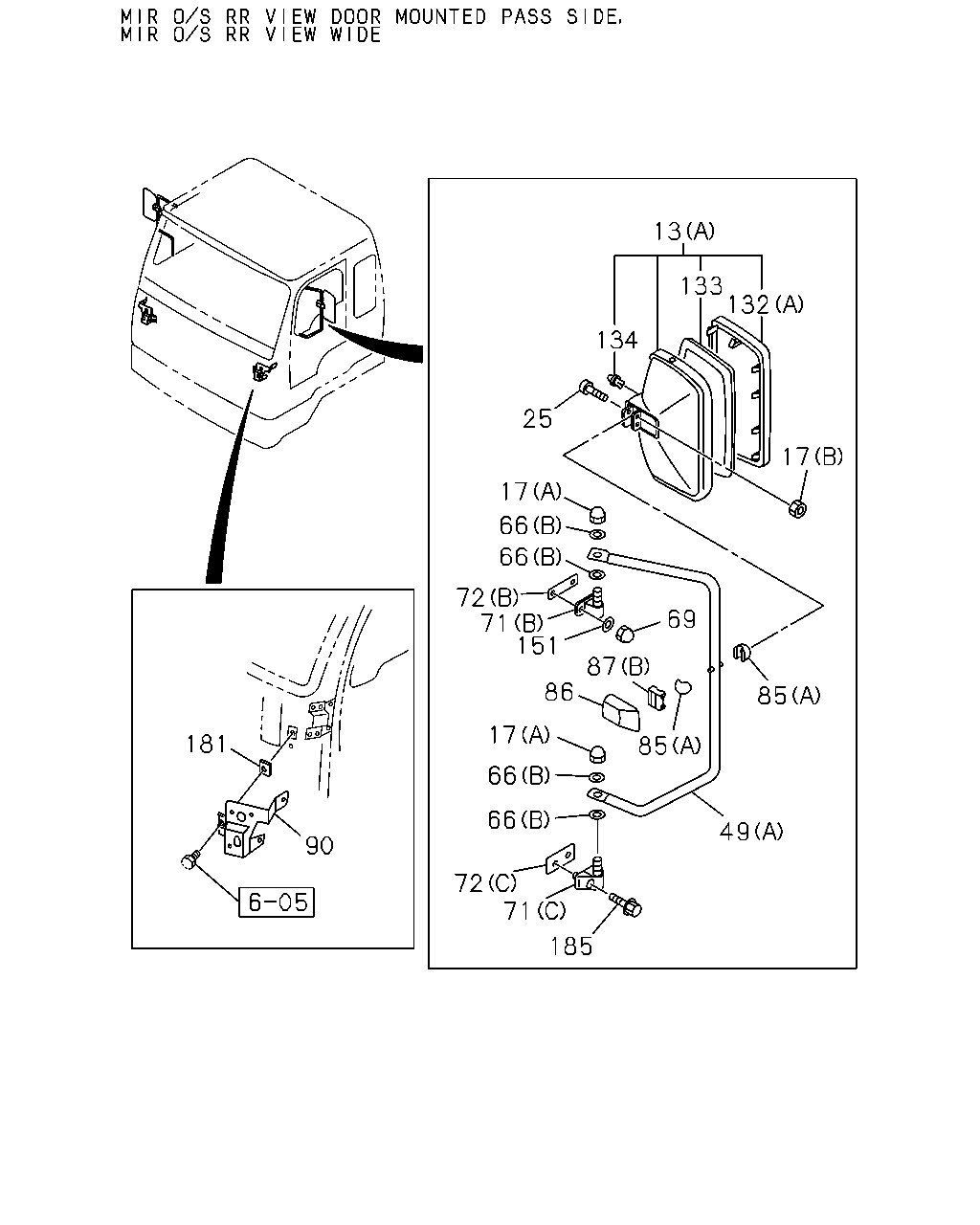

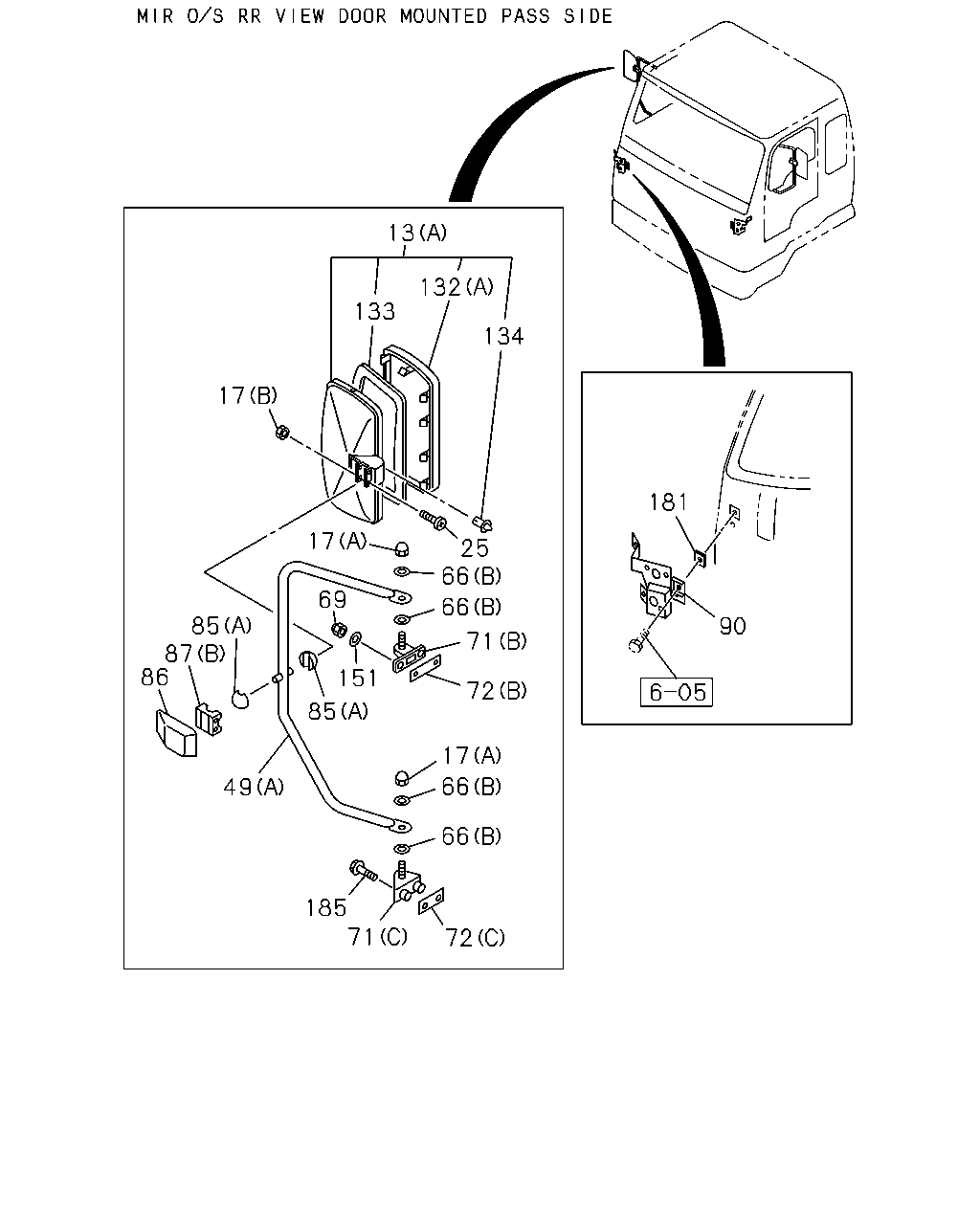

13 132 133 134 17 181 17 25 66 69 66 85 87 86 90 71 151 72 85 17 66 49 66 185 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0006-	●	●
17	NUT; CAP,MIRROR STAY (A) M10	1-09984-183-0	04	1	0006-0208	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0209-	●	●
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M10	1-09984-183-0	01	1	0006-0208	●	●
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M10 CAP NUT	1-09984-134-0	01	1	0209-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0006-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF>	1-09981-541-0	02	1	0405-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-490-3	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-491-3	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-492-4	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-762-2	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-855-2	01	1	0006-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0006-	●	●
66	WASHER; PL HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0006-	●	●
66	WASHER; PL MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0006-	●	●
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0006-0809	●	●
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 CAP NUT	8-98059-914-0	04	1	0810-	●	●
69	NUT; CAP MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0006-0809	●	●
69	NUT; CAP MIR O/S RR VIEW WIDE<WU4> M8 CAP NUT	8-98059-914-0	02	1	0810-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) UPPER	1-71798-484-1	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) LOWER	1-71798-486-2	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-580-3	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) UPPER	1-71798-487-3	02	1	0006-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) LOWER	1-71798-488-1	02	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-487-3	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-488-1	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> LOW ROOF<6XQ> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> BLACK	1-71737-760-1	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0006-	●	●
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0006-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0006-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0006-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-927-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0006-	●	●
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0006-	●	●
151	WASHER; PL,MIRROR MIR O/S RR VIEW WIDE<WU4> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0006-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0006-	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	04	1	0006-0512	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	04	1	0606-	●	●
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	0-28690-835-0	02	1	0006-0512	●	●
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	0-28660-835-0	02	1	0601-0605	●	●
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	8-98046-876-0	02	1	0606-	●	●

2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	MIRROR; ROOM	1-73117-033-1	01	1	0006-	●	●
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0006-	●	●

17 63 66 66 49 22 72 66 66 63 17 17 164 66 66 85 17 66 66 22 54 17 87 86 25 85 134 133 26 30 87 49 132 32 17 66 13 13 66 90 71 32 181 132 87 135 26 76 30 134 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0006-	●	●
17	NUT; CAP,MIRROR STAY (A) M10	1-09984-183-0	04	1	0006-0208	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0209-	●	●
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M10	1-09984-183-0	01	1	0006-0208	●	●
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M10 CAP NUT	1-09984-134-0	01	1	0209-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0006-	●	●
22	STAY; OUTSIDE MIRROR HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4>	1-71798-582-4	01	1	0006-	●	●
22	STAY; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> LOW ROOF<6XQ>	1-71798-627-1	01	1	0006-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF>	1-09981-541-0	02	1	0405-	●	●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0006-	●	●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0006-	●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0006-	●	●
30	MIRROR; UNDER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71798-591-1	01	1	0006-	●	●
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0006-	●	●
32	SCREW; UNDER MIRROR MIR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-490-3	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-491-3	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-492-4	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-762-2	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-855-2	01	1	0006-	●	●
54	BOLT; STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> M6X40 LK&PL WASHER	8-94279-215-0	02	1	0006-	●	●
63	NUT; STAY MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0006-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0006-	●	●
66	WASHER; PL HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0006-	●	●
66	WASHER; PL MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) UPPER	1-71798-484-1	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) LOWER	1-71798-486-2	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-580-3	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) UPPER	1-71798-487-3	02	1	0006-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) LOWER	1-71798-488-1	02	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-487-3	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-488-1	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> LOW ROOF<6XQ> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	0006-	●	●
76	BOLT; STAY BRKT MIR O/S RR VIEW WIDE<WU4> M8X30 W/LK WASHER	8-94279-183-1	03	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> BLACK	1-71737-760-1	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0006-	●	●
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0006-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0006-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0006-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-927-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0006-	●	●
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-929-0	01	1	0006-	●	●
164	STAY; ROOF HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4>	1-71798-300-5	01	1	0006-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0006-	●	●

17 63 66 66 49 22 66 72 63 66 17 17 164 66 66 85 17 66 66 22 87 25 54 134 85 86 133 132 49 17 13 66 66 90 71 181 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0006-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0006-	●	●
17	NUT; CAP,MIRROR STAY (A) M10	1-09984-183-0	04	1	0006-0208	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0209-	●	●
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M10	1-09984-183-0	01	1	0006-0208	●	●
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M10 CAP NUT	1-09984-134-0	01	1	0209-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0006-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0006-	●	●
22	STAY; OUTSIDE MIRROR HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4>	1-71798-582-4	01	1	0006-	●	●
22	STAY; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> LOW ROOF<6XQ>	1-71798-627-1	01	1	0006-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> M5X50	1-09981-444-0	02	1	0006-0404	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF>	1-09981-541-0	02	1	0405-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-490-3	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-491-3	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-492-4	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-762-2	01	1	0006-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-855-2	01	1	0006-	●	●
54	BOLT; STAY HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> M6X40 LK&PL WASHER	8-94279-215-0	02	1	0006-	●	●
63	NUT; STAY MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0006-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0006-	●	●
66	WASHER; PL HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0006-	●	●
66	WASHER; PL MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) UPPER	1-71798-484-1	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) LOWER	1-71798-486-2	02	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0006-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-580-3	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) UPPER	1-71798-487-3	02	1	0006-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) LOWER	1-71798-488-1	02	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-487-3	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-488-1	01	1	0006-	●	●
72	SHEET MIR O/S RR VIEW WIDE<WU4> LOW ROOF<6XQ> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	0006-	●	●
76	BOLT; STAY BRKT MIR O/S RR VIEW WIDE<WU4> M8X30 W/LK WASHER	8-94279-183-1	03	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0006-	●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0006-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> BLACK	1-71737-760-1	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-704-0	01	1	0006-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0006-	●	●
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0006-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0006-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0006-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0006-	●	●
132	RING; MIRROR MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-71737-927-0	01	1	0006-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-927-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0006-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW WIDE<WU4> EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0006-	●	●
164	STAY; ROOF HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4>	1-71798-300-5	01	1	0006-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0006-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
