Isuzu WW
▶
TRUCKS
▶
FVR
▶
10630 - FVR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶
0-39 — AIR COMPRESSOR; BRAKE
(#1036) — 94 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
◀

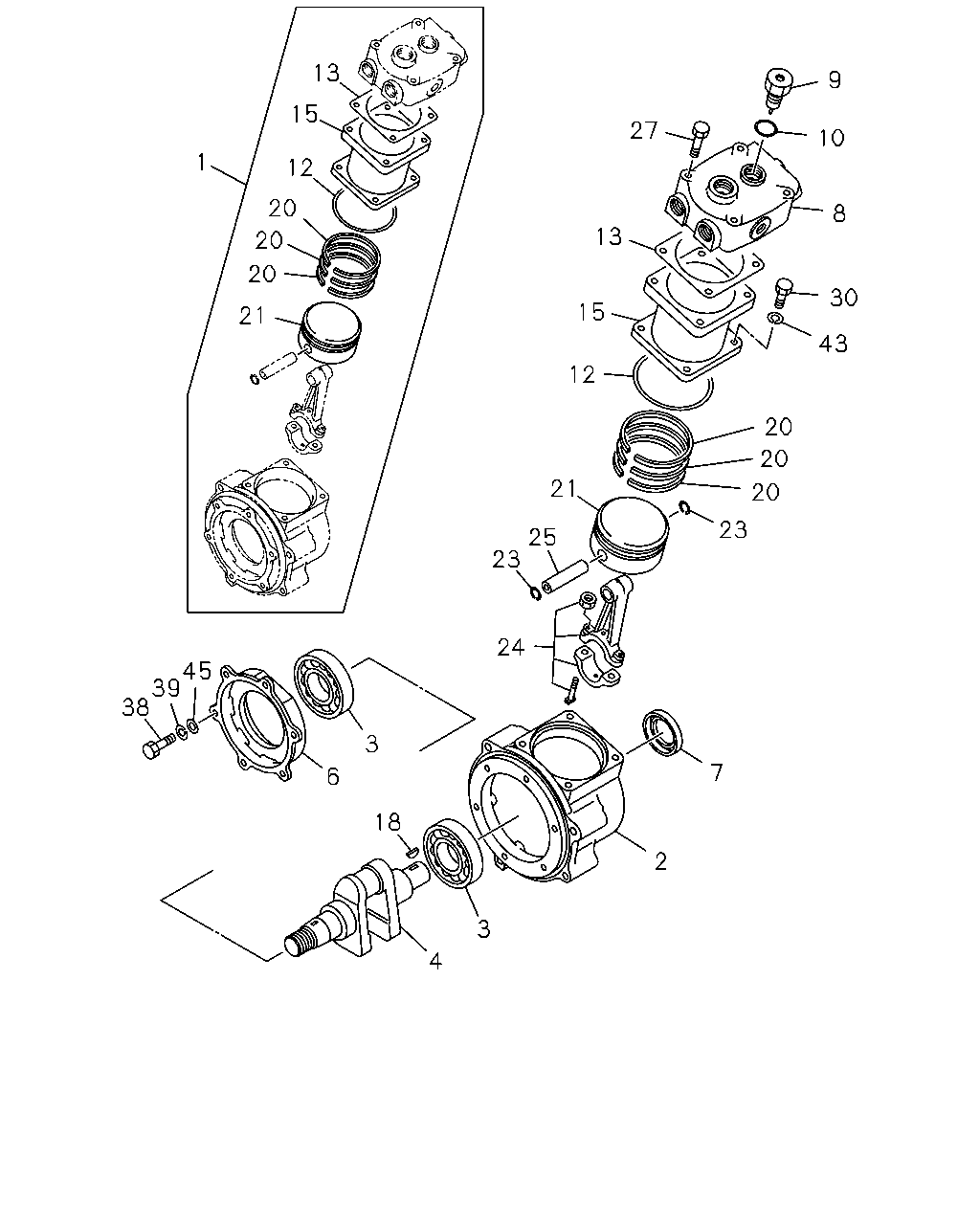

[039A] 6HE1 ENG (47 parça)

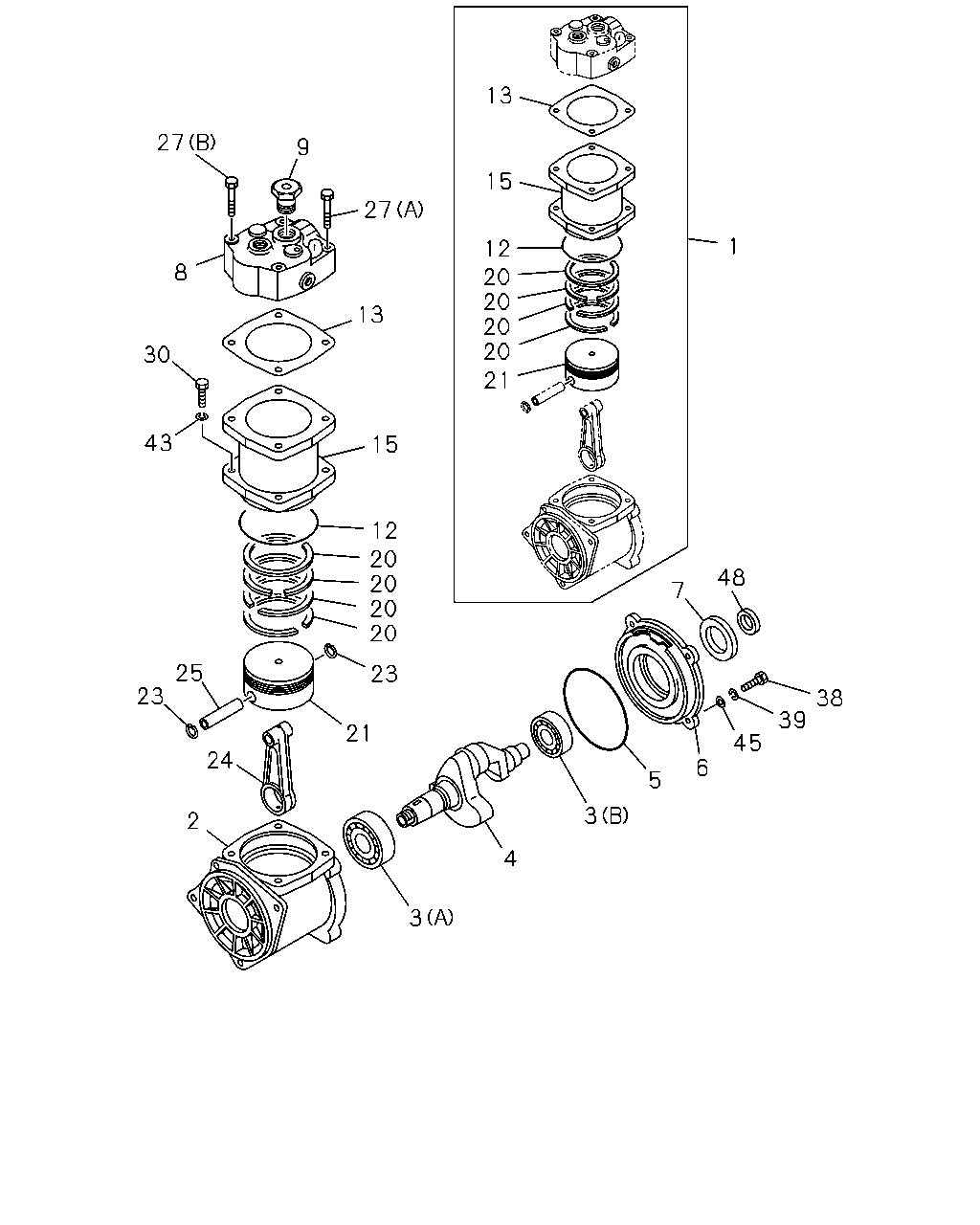

[039A] 6SA1 ENG (47 parça)
▶
13
27
9
15
27
1
12
20
20
20
20
8
13
30
21
43
15
12
20
20
20
20
48
7
25
23
23
38
39
21
45
24
6
5
3
2
4
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
LINER KIT; CYL,AIR CMPR
1-19163-038-0
01
1
9202-
●
●
1
LINER KIT; CYL,AIR CMPR
1-19163-044-0
01
1
9202-9502
●
1
LINER KIT; CYL,AIR CMPR
1-19163-053-0
01
1
9503-
●
2
CRANKCASE; AIR CMPR
1-19151-231-0
01
1
9202-9507
●
●
2
CRANKCASE; AIR CMPR
1-19151-277-0
01
1
9508-
●
●
2
CRANKCASE; AIR CMPR
1-19151-266-1
01
1
9202-
●
3
BEARING; AIR CMPR
1-09800-232-0
02
1
9202-
●
●
3
BEARING; AIR CMPR
(B)
9-00006-206-0
01
1
9202-
●
3
BEARING; AIR CMPR
(A)
9-00090-152-0
01
1
9202-
●
4
CRANKSHAFT; AIR CMPR
1-19171-055-0
01
1
9202-
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-048-1
01
1
9202-
●
5
GASKET; AIR CMPR
1-09623-361-0
01
1
9202-
●
6
COVER ASM; BRG,AIR CMPR
1-19156-043-0
01
1
9202-
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-058-1
01
1
9202-
●
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-187-0
01
1
9202-
●
●
7
SEAL; OIL,BRG COVER,AIR CMPR
1-19158-026-0
01
1
9202-
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-016-0
01
1
9202-
●
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-052-1
01
1
9202-
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-002-0
01
1
9202-9204
●
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-021-1
01
1
9205-
●
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-017-1
01
1
9202-
●
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9202-
●
●
●
13
GASKET; AIR CMPR
1-19139-001-0
01
1
9202-
●
●
13
GASKET; AIR CMPR
T=0.8
1-19139-004-0
01
1
9202-
●
15
CYLINDER; AIR CMPR
1-19151-251-0
01
1
9202-
●
●
15
CYLINDER; AIR CMPR
1-19151-219-0
01
1
9202-
●
20
RING KIT; PISTON,AIR CMPR
1-19163-034-0
01
1
9202-9502
●
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-034-0
01
1
9503-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-051-0
01
1
9503-
●
21
PISTON; AIR CMPR
1-19161-016-0
01
1
9202-
●
●
●
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
9202-
●
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-007-0
01
1
9202-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-010-0
01
1
9202-
●
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
9202-
●
●
●
27
BOLT; HD
M10X60
9-01066-060-0
04
1
9202-
●
●
27
BOLT; HD
(A) M10X45
9-01066-045-0
02
1
9202-
●
27
BOLT; HD
(B) M10X60
9-01066-060-0
02
1
9202-
●
30
BOLT; CYL TO CRANKCASE
M10X25
9-02051-025-0
04
1
9202-
●
●
●
38
BOLT; COVER FIX
M6X16
9-02050-616-0
06
1
9202-
●
●
38
BOLT; COVER FIX
9-81385-023-0
04
1
9202-
●
39
WASHER; LK,COVER FIX
ID=10.2
9-09150-510-0
06
1
9202-9507
●
●
39
WASHER; LK,COVER FIX
ID=6.1
9-09150-506-0
06
1
9508-
●
●
39
WASHER; LK,COVER FIX
ID=8.2
9-09150-608-0
04
1
9202-
●
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
04
1
9202-
●
●
●
45
WASHER; PL,COVER FIX,AIR CMPR
1-19159-005-0
06
1
9202-
●
●
45
WASHER; PL,COVER FIX,AIR CMPR
ID=8.4
9-09160-508-0
04
1
9202-
●
48
SLEEVE; CR/SHF
1-19179-014-0
01
1
9202-
●
13
9
15
27
10
1
12
20
8
13
20
20
30
15
21
43
12
20
20
21
20
23
25
23
24
45
39
38
3
7
6
18
2
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
LINER KIT; CYL,AIR CMPR
1-19163-038-0
01
1
9202-
●
●
1
LINER KIT; CYL,AIR CMPR
1-19163-044-0
01
1
9202-9502
●
1
LINER KIT; CYL,AIR CMPR
1-19163-053-0
01
1
9503-
●
2
CRANKCASE; AIR CMPR
1-19151-231-0
01
1
9202-9507
●
●
2
CRANKCASE; AIR CMPR
1-19151-277-0
01
1
9508-
●
●
2
CRANKCASE; AIR CMPR
1-19151-266-1
01
1
9202-
●
3
BEARING; AIR CMPR
1-09800-232-0
02
1
9202-
●
●
3
BEARING; AIR CMPR
(B)
9-00006-206-0
01
1
9202-
●
3
BEARING; AIR CMPR
(A)
9-00090-152-0
01
1
9202-
●
4
CRANKSHAFT; AIR CMPR
1-19171-055-0
01
1
9202-
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-048-1
01
1
9202-
●
6
COVER ASM; BRG,AIR CMPR
1-19156-043-0
01
1
9202-
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-058-1
01
1
9202-
●
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-187-0
01
1
9202-
●
●
7
SEAL; OIL,BRG COVER,AIR CMPR
1-19158-026-0
01
1
9202-
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-016-0
01
1
9202-
●
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-052-1
01
1
9202-
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-002-0
01
1
9202-9204
●
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-021-1
01
1
9205-
●
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-017-1
01
1
9202-
●
10
SHIM; AIR CMPR
9-19139-021-0
01
1
9202-
●
●
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9202-
●
●
●
13
GASKET; AIR CMPR
1-19139-001-0
01
1
9202-
●
●
13
GASKET; AIR CMPR
T=0.8
1-19139-004-0
01
1
9202-
●
15
CYLINDER; AIR CMPR
1-19151-251-0
01
1
9202-
●
●
15
CYLINDER; AIR CMPR
1-19151-219-0
01
1
9202-
●
18
KEY; AIR CMPR
9-08055-516-0
01
1
9202-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-034-0
01
1
9202-9502
●
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-034-0
01
1
9503-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-051-0
01
1
9503-
●
21
PISTON; AIR CMPR
1-19161-016-0
01
1
9202-
●
●
●
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
9202-
●
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-007-0
01
1
9202-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-010-0
01
1
9202-
●
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
9202-
●
●
●
27
BOLT; HD
M10X60
9-01066-060-0
04
1
9202-
●
●
27
BOLT; HD
(A) M10X45
9-01066-045-0
02
1
9202-
●
27
BOLT; HD
(B) M10X60
9-01066-060-0
02
1
9202-
●
30
BOLT; CYL TO CRANKCASE
M10X25
9-02051-025-0
04
1
9202-
●
●
●
38
BOLT; COVER FIX
M6X16
9-02050-616-0
06
1
9202-
●
●
38
BOLT; COVER FIX
9-81385-023-0
04
1
9202-
●
39
WASHER; LK,COVER FIX
ID=10.2
9-09150-510-0
06
1
9202-9507
●
●
39
WASHER; LK,COVER FIX
ID=6.1
9-09150-506-0
06
1
9508-
●
●
39
WASHER; LK,COVER FIX
ID=8.2
9-09150-608-0
04
1
9202-
●
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
04
1
9202-
●
●
●
45
WASHER; PL,COVER FIX,AIR CMPR
1-19159-005-0
06
1
9202-
●
●
45
WASHER; PL,COVER FIX,AIR CMPR
ID=8.4
9-09160-508-0
04
1
9202-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
