◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#10353) — 22 parça

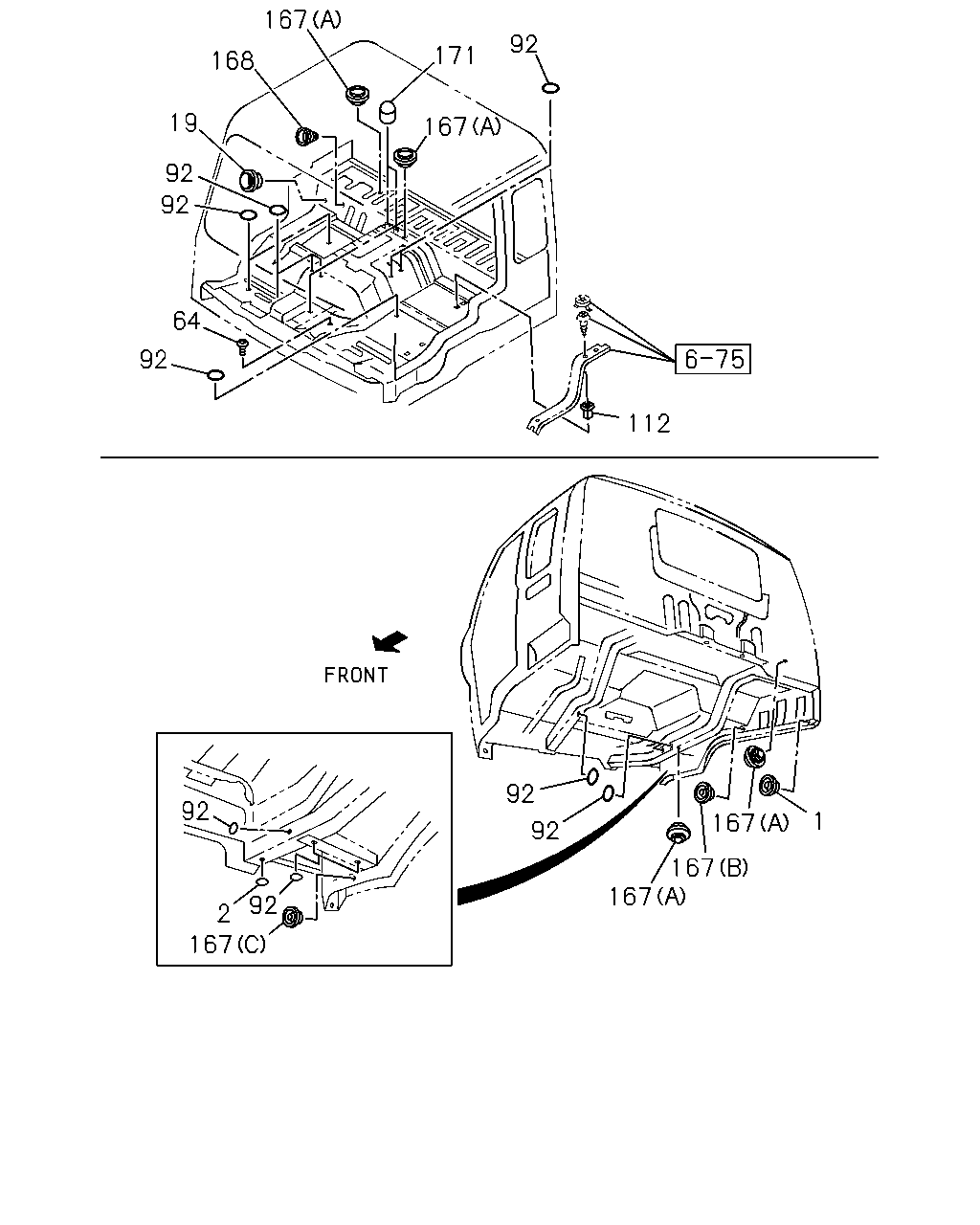

çizim 79136
167 92 171 168 19 167 92 92 64 92 112 92 92 1 167 92 167 167 92 2 167
BalonParca AdiParca NoAdetTipApplied Date A B
1 GROMMET
OD=40 		1-09600-083-0 02 1 0006- ● ●
2 GROMMET
OD=25 BLACK 		1-76798-019-0 02 1 0006- ● ●
19 GROMMET; FLOOR FRT
OD=28 		8-94279-720-0 02 1 0006- ● ●
64 PLUG; ENG HOOD
D7.8X20 		8-94353-238-0 01 1 0006- ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 0006- ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 05 1 0006-0105 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 06 1 0106-0604 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 04 1 0605- ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 23 1 0006- ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0006-0105 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0006-0203 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0204- ● ●
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 0006-0604 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0605- ● ●
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 0605- ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0006- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 03 1 0006- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 0006- ● ●
167 GROMMET; LOCATION HOLE
(C) OD=35 		8-94122-971-0 04 1 0006- ● ●
167 GROMMET; LOCATION HOLE
(B) OD=15.0 		8-94279-040-0 02 1 0006- ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 0006- ● ●
171 CAP; STUD
CENTER SEAT DELETE<SP9> EXC. HIGH ROOF<S2F> 		1-71736-200-0 02 1 0006- ● ●
