◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#10352) — 10 parça

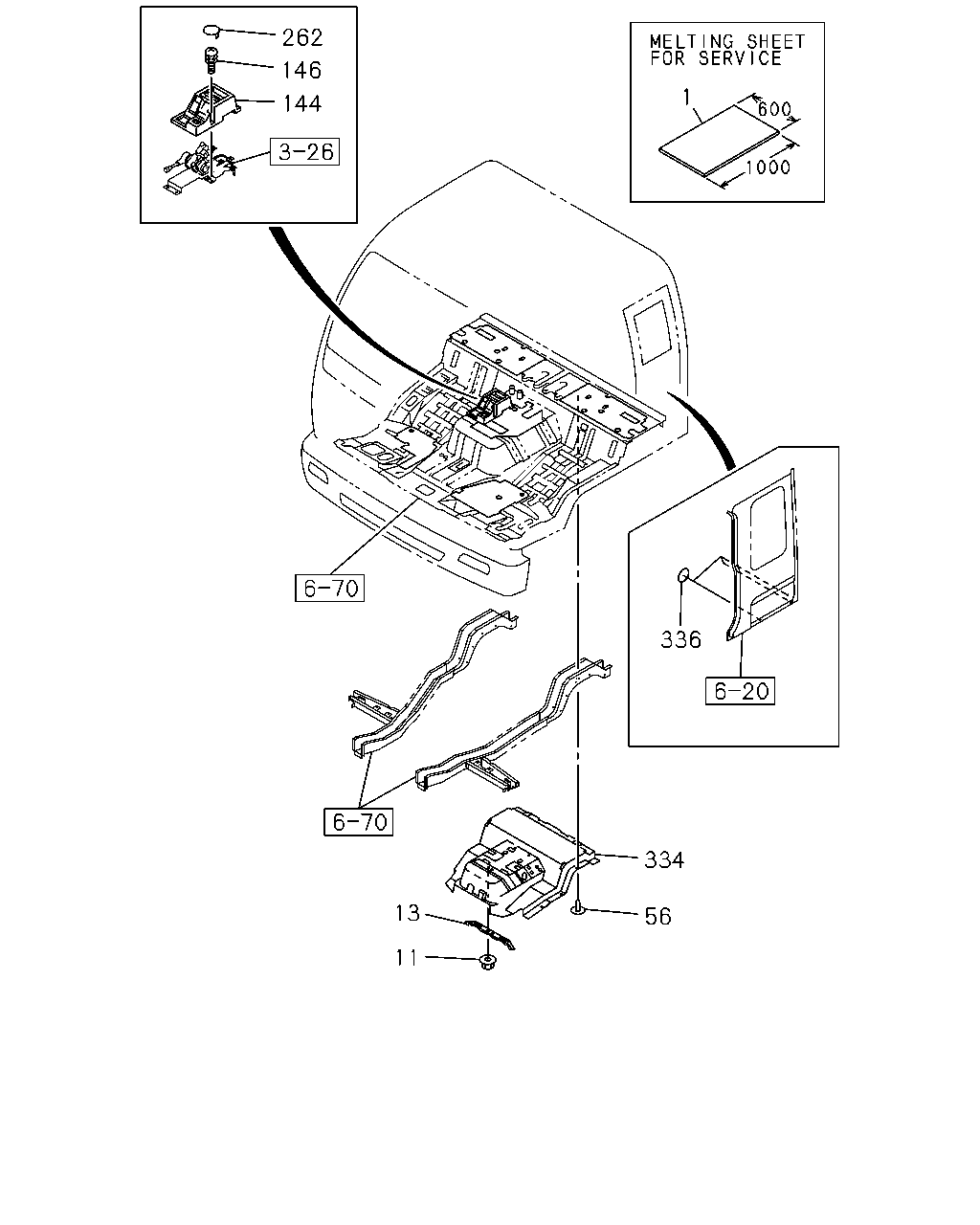

çizim 79972
262 146 1 144 336 334 13 56 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0006- ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE 		8-94279-518-0 02 1 0006-0401 ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE 		1-75538-207-0 02 1 0402- ● ●
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 0006- ● ●
56 CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4 		8-97808-623-0 17 1 0006- ● ●
144 COVER; HAND BRK VLV 1-73908-307-2 01 1 0006- ● ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0006- ● ●
262 COVER; CHECK HOLE 1-76337-461-0 04 1 0006- ● ●
334 INSULATOR; ENG HOOD 1-71996-038-4 01 1 0006- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 04 1 0006- ● ●
