◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#10350) — 22 parça

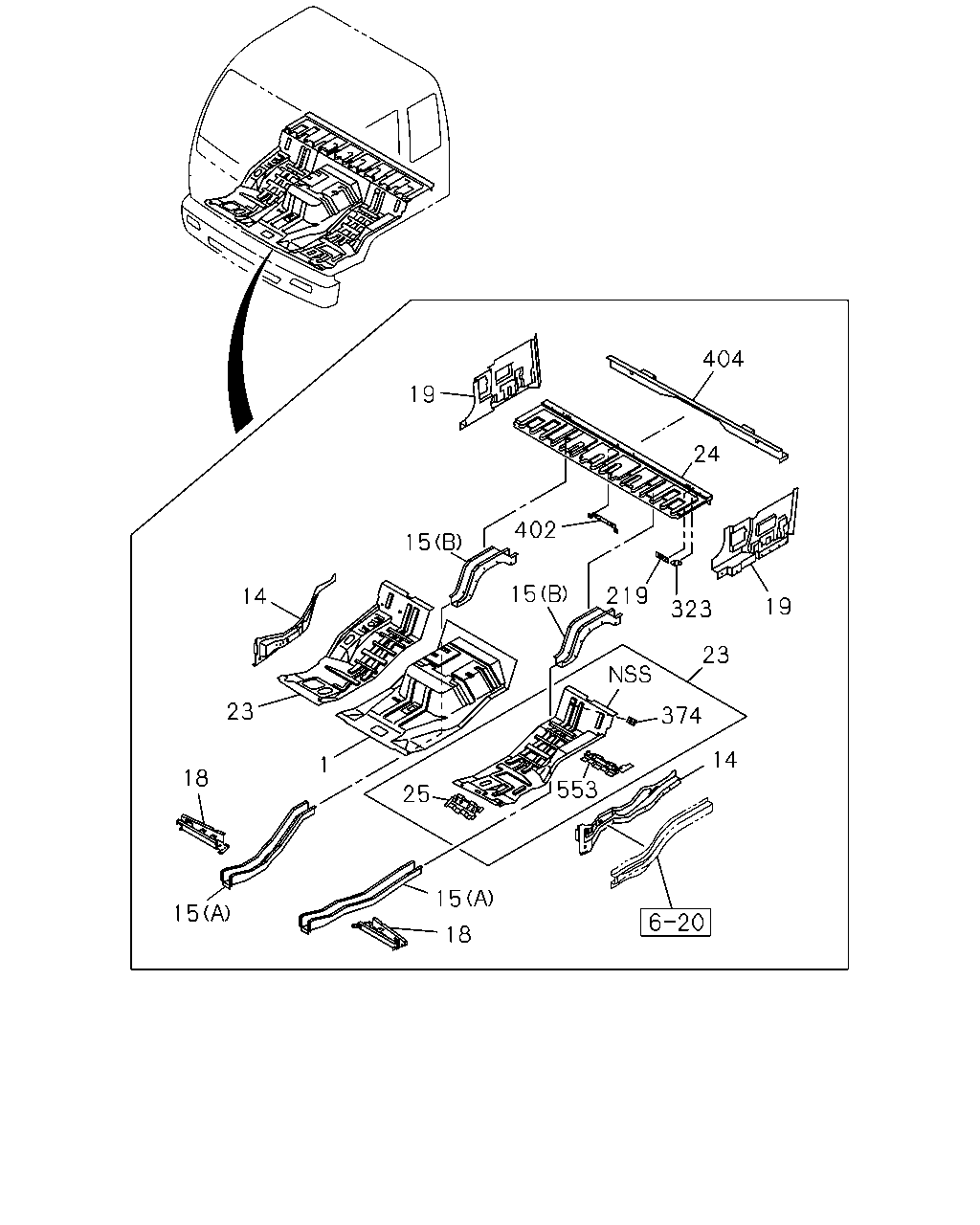

çizim 79778
19 404 24 19 14 374 23 323 219 15 402 15 14 23 18 1 25 15 18 553 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 1-62183-532-0 01 1 0006- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0006- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0006- ● ●
15 FRAME; UNDER
(A) 		1-62483-083-3 01 1 0006- ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0006- ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 0006-0103 ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0006- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 0006- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-096-5 01 1 0006- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0006- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0006- ● ●
23 PANEL; FLOOR,SIDE 1-62183-274-6 01 1 0006- ● ●
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 0006- ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 0006- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 0006- ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0006- ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0006- ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 0006- ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0006- ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0006- ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-797-0 01 1 0006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
