6-47 — MUD GUARD AND INSULATOR (#10347) — 51 parça

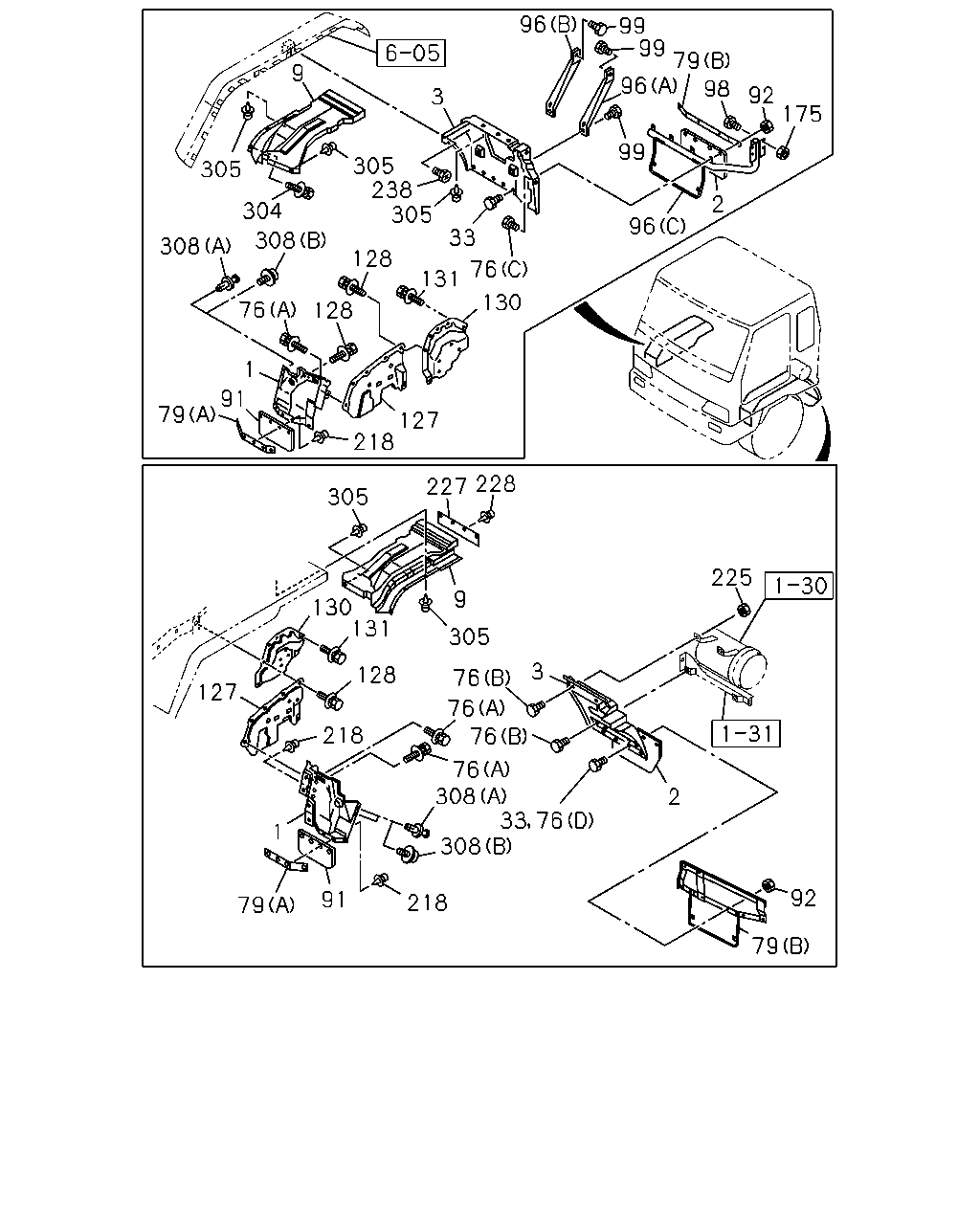

çizim 103172
96 99 99 79 98 9 96 92 3 175 99 305 238 305 305 2 304 96 33 308 308 128 76 131 130 76 128 1 91 79 127 218 227 228 305 225 130 131 305 3 128 76 127 76 76 218 76 308 308 2 92 91 218 79 79 9 33 76 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79938-812-8 01 1 0006- ● ●
1 GUARD; MUD,FRT 1-79938-810-8 01 1 0006- ● ●
2 COVER; MUD,TIRE RR 1-79938-972-2 01 1 0006- ● ●
2 COVER; MUD,TIRE RR 1-79931-371-0 01 1 0006- ● ●
3 GUARD; MUD,RR 1-79938-999-0 01 1 0006- ● ●
3 GUARD; MUD,RR 1-79938-971-1 01 1 0006- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79936-007-2 01 1 0006- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-955-3 01 1 0006- ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 06 1 0006- ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 07 1 0006- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 0006-0805 ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 0806- ● ●
76 BOLT; MUD GUARD
(D) M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0006- ● ●
76 BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0006- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0006- ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-044-0 02 1 0006- ● ●
79 RETAINER; MUD COVER
(B) 		1-79931-304-0 01 1 0006- ● ●
79 RETAINER; MUD COVER
(B) 		1-79931-269-0 01 1 0006- ● ●
91 COVER; MUD,FRT 1-79931-214-1 02 1 0006- ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 04 1 0006-0602 ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 05 1 0006-0602 ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 05 1 0603- ● ●
96 STAY; MUD GUARD
(C) 		1-53497-661-0 01 1 0006- ● ●
96 STAY; MUD GUARD
(A) 		1-79938-737-0 01 1 0006- ● ●
96 STAY; MUD GUARD
(B) 		1-79938-738-1 01 1 0006- ● ●
98 BOLT; STAY TO BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0006-0512 ● ●
98 BOLT; STAY TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
99 BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0006- ● ●
127 APRON; FRT 1-53193-222-1 01 1 0006- ● ●
127 APRON; FRT 1-53192-302-2 01 1 0006- ● ●
128 BOLT; APRON,FRT
M8X25 W/LK&PL WASHER 		8-94331-747-1 10 1 0006- ● ●
130 PANEL; SHUTTER NOISE 1-53192-307-4 01 1 0006-0605 ● ●
130 PANEL; SHUTTER NOISE 1-53194-098-0 01 1 0606- ● ●
130 PANEL; SHUTTER NOISE 1-53192-306-1 01 1 0006-0605 ● ●
130 PANEL; SHUTTER NOISE 1-53192-954-2 01 1 0606- ● ●
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0006- ● ●
175 NUT; STAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0006-0602 ● ●
175 NUT; STAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
218 FASTENER; RUBBER 1-09470-001-0 08 1 0006- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 02 1 0006-0602 ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
227 SEAL; MUD GUARD 1-79938-953-1 01 1 0006- ● ●
228 FASTENER; MUD GUARD SEAL
D8X13.5 		1-09987-248-1 04 1 0006- ● ●
238 SCREW; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0006- ● ●
304 BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0006- ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 05 1 0006-0404 ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 06 1 0405- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 02 1 0006-0404 ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 02 1 0006-0404 ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 04 1 0405- ● ●
