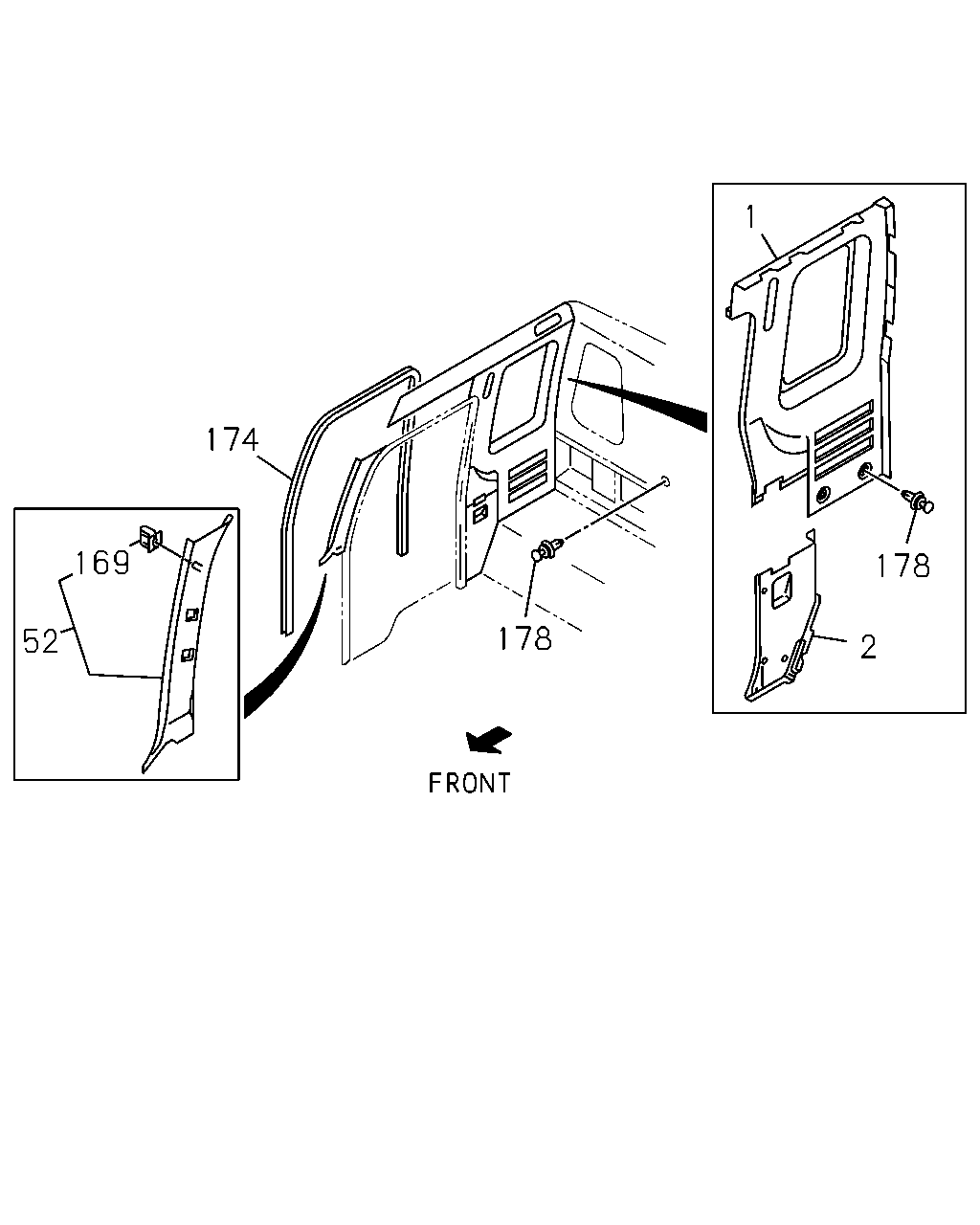

6-43 — SIDE TRIM (#10346) — 25 parça

1 174 169 178 178 52 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRIM; ROOM,QUARTER WINDOW UPR LOW ROOF<6XQ>	1-73348-965-1	01	1	0006-0212	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR PROVISIONAL PACKAGE<NLY>	1-73348-965-3	01	1	0301-	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-965-3	01	1	0301-	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR LOW ROOF<6XQ>	1-73348-964-1	01	1	0006-0212	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR PROVISIONAL PACKAGE<NLY>	1-73348-964-3	01	1	0301-	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-964-3	01	1	0301-	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR EXC. LOW ROOF<6XQ>	1-73348-961-3	01	1	0006-0212	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ>	1-73348-961-6	01	1	0301-	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR EXC. LOW ROOF<6XQ>	1-73348-960-3	01	1	0006-0212	●	●
1	TRIM; ROOM,QUARTER WINDOW UPR EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ>	1-73348-960-6	01	1	0301-	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR LOW ROOF<6XQ>	1-73348-978-1	01	1	0006-0212	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR PROVISIONAL PACKAGE<NLY>	1-73348-978-2	01	1	0301-	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-978-2	01	1	0301-	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR LOW ROOF<6XQ>	1-73348-977-1	01	1	0006-0212	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR PROVISIONAL PACKAGE<NLY>	1-73348-977-2	01	1	0301-	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-977-2	01	1	0301-	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR EXC. LOW ROOF<6XQ>	1-73348-927-2	01	1	0006-0212	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ>	1-73348-927-3	01	1	0301-	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR EXC. LOW ROOF<6XQ>	1-73348-926-2	01	1	0006-0212	●	●
2	TRIM; ROOM,QUARTER WINDOW LWR EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ>	1-73348-926-3	01	1	0301-	●	●
52	COVER; TRIM,FRT PILLAR	1-73347-833-0	01	1	0006-	●	●
52	COVER; TRIM,FRT PILLAR	1-73348-939-0	01	1	0006-	●	●
169	CLIP; TRIM COVER,FRT PILLAR	8-94313-458-0	02	1	0006-	●	●
174	FINISHER; BODY SIDE	1-76718-175-4	02	1	0006-	●	●
178	CLIP; TRIM COVER OD=6.2 LIGHT GRAY	1-09983-178-0	09	1	0006-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
