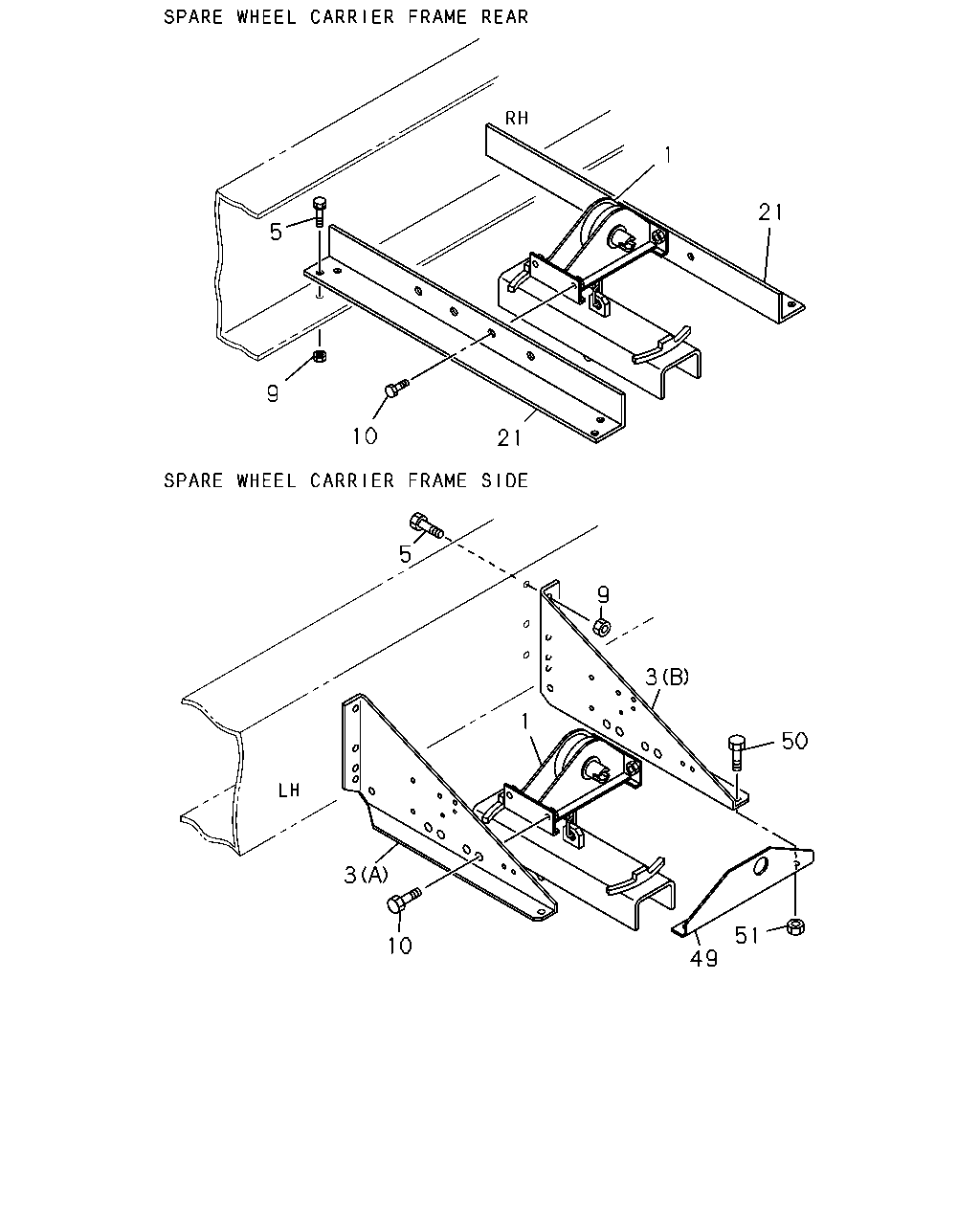

5-30 — SPARE TIRE CARRIER AND COVER (#10334) — 25 parça

1 21 5 9 10 21 5 9 3 1 50 3 51 10 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-53630-210-4	01	1	0006-	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-391-0	01	1	0006-	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-392-0	01	1	0006-	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE	0-28081-030-0	08	1	0006-0512	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE	0-28051-030-0	08	1	0601-	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	06	1	0006-0512	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0006-0602	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0006-0512	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	0601-	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0006-0012	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0101-0512	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0601-	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0101-0512	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28051-225-0	04	1	0601-	●	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-395-1	02	1	0006-	●	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-376-0	01	1	0006-0104	●	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-466-1	01	1	0105-	●	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	02	1	0006-0104	●	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28680-830-0	04	1	0105-0512	●	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	02	1	0006-0104	●	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	9-09110-508-0	04	1	0105-0512	●	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	0-91110-508-0	04	1	0601-	●	●
