5-10 — CAB MOUNTING; FRAME SIDE (#10331) — 66 parça

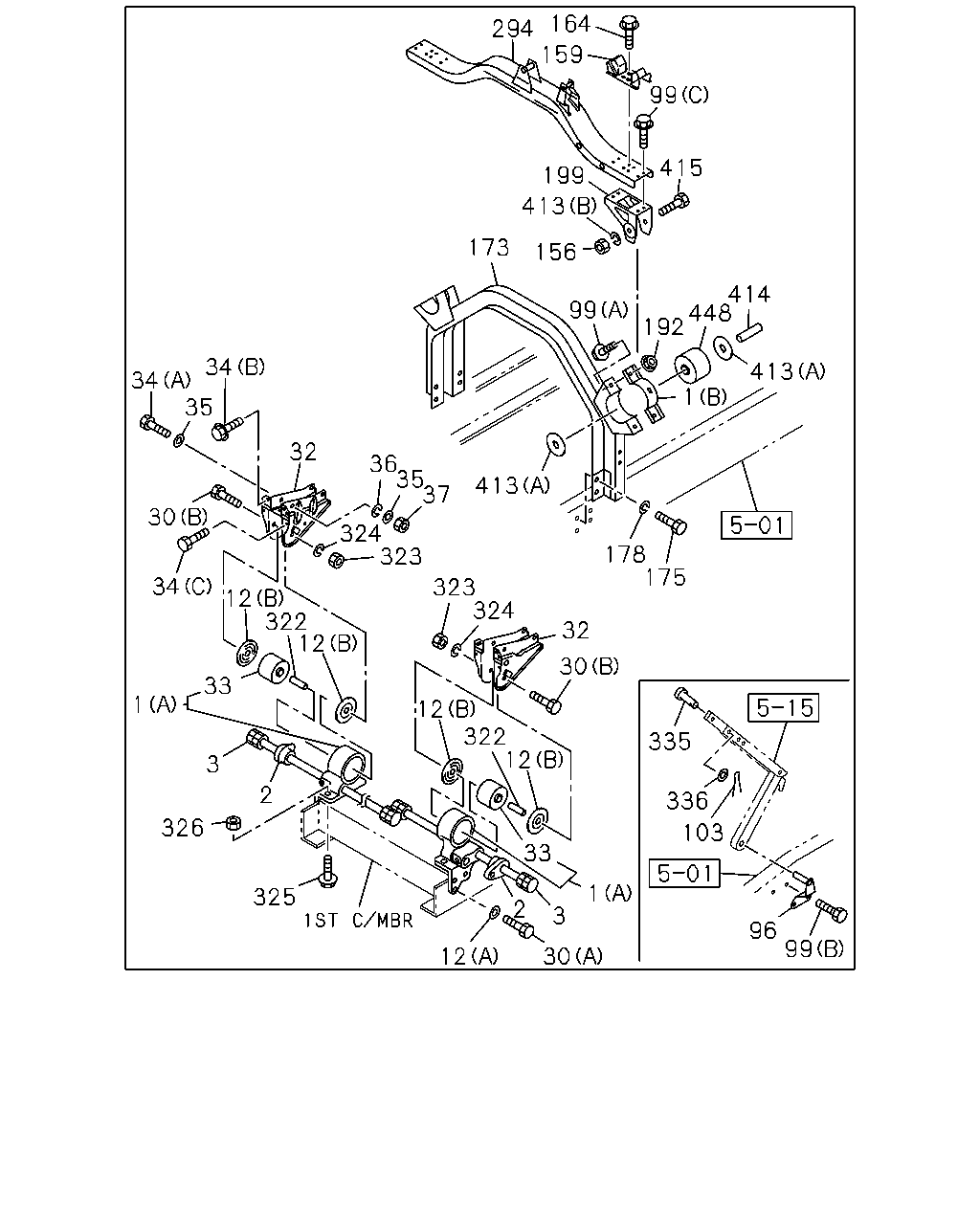

çizim 103114
164 294 159 99 415 199 413 173 156 414 448 192 99 34 413 34 35 1 32 36 35 37 413 30 324 323 178 175 34 323 324 12 322 2 32 30 33 1 12 322 12 335 3 2 336 326 103 33 1 325 2 3 96 99 12 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0006- ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-291-0 01 1 0006- ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-290-0 01 1 0006- ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 0006- ● ●
3 TORSION BAR 1-09585-130-0 01 1 0006- ● ●
3 TORSION BAR 1-09585-129-0 01 1 0006- ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0006-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0006-1201 ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0006- ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 0006-0201 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0202- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0006- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 0006- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-681-0 02 1 0006- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0006- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0006-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0006- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0006- ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0006- ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0006- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0006- ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0006-0512 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0006-0512 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0006-0512 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0006- ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 0006-0512 ● ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 0006- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 0006-0512 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
173 MEMBER; CAB MTG RR 1-53454-705-3 01 1 0006- ● ●
175 BOLT; MEMBER TO FRAME
M12X40 		9-92061-240-0 08 1 0006-0512 ● ●
175 BOLT; MEMBER TO FRAME
M12X40 		0-20951-240-0 08 1 0601- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0006-0603 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-212-0 04 1 0006-0602 ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 0006-0207 ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0208-1403 ● ●
199 BRACKET; CAB RR MTG 8-98269-637-0 02 1 1404- ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 0006- ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0006- ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0006-0512 ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0006-0603 ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0006-0512 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ●
326 NUT; GUIDE NUT
M12 		9-99110-512-0 02 1 0006-0109 ● ●
326 NUT; GUIDE NUT
M12 SELF LOCK 		8-97028-390-1 02 1 0110- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0006- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0006- ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 0006-0306 ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307- ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 0006-0603 ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 0006- ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 0006- ● ●
448 BUSHING; CAB MTG 1-53458-635-0 02 1 0006- ● ●
