5-01 — FRAME AND OTHER PARTS (#10330) — 65 parça
çizim 78405
23 25 25 26 26 25 24 25 23 46 25 25 26 39
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0006- ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0006-0512 ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0006- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0006- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0006- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0006-1201 ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0006-0512 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0006-0512 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0006- ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0006- ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0006- ● ●

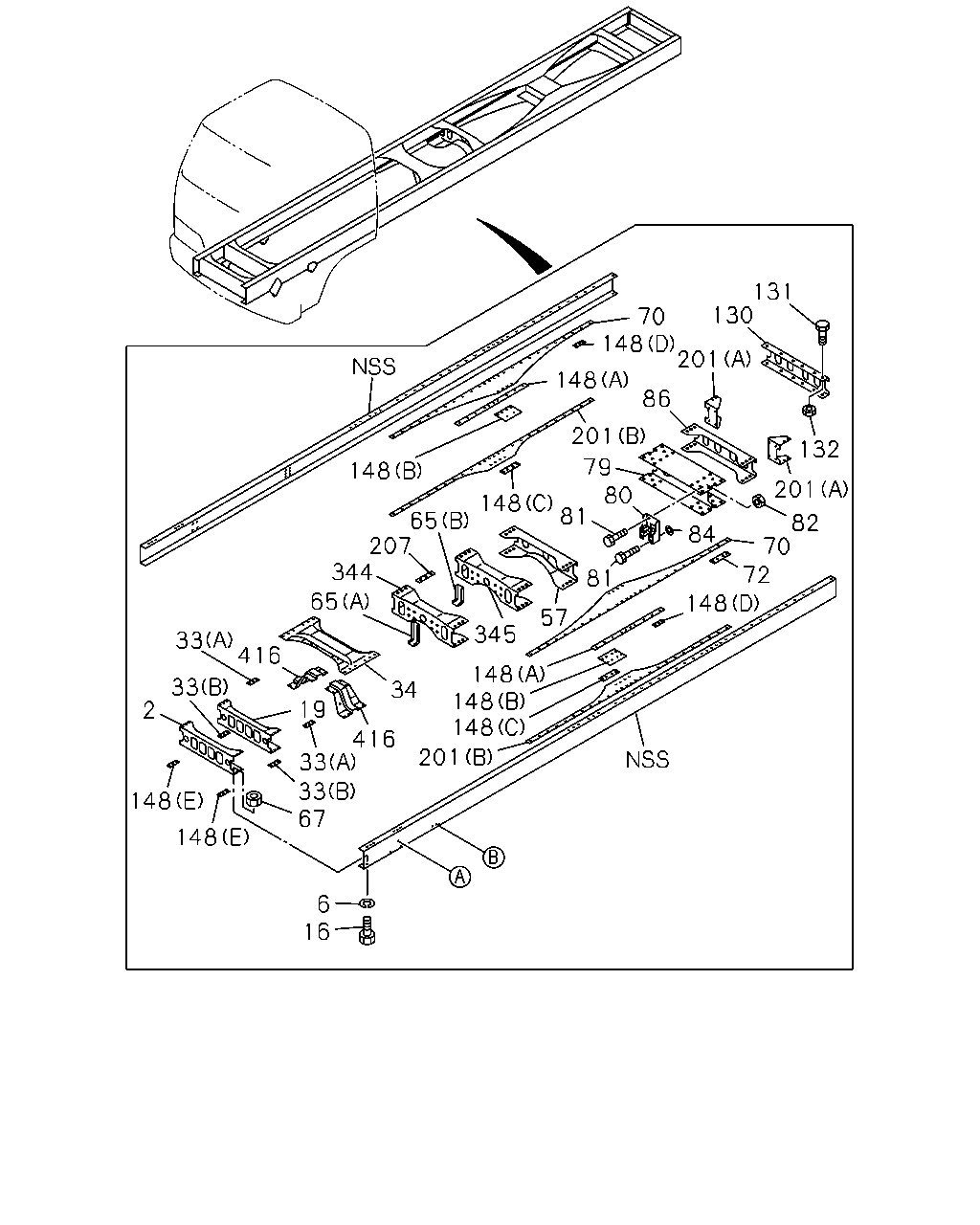

çizim 103113
131 130 70 148 201 148 201 65 207 344 86 132 79 80 148 82 84 70 81 72 148 57 148 148 148 201 148 81 65 416 33 33 34 19 2 416 201 33 33 67 148 148 6 16 345
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0006-0009 ● ●
2 MEMBER; CROSS,1ST 1-53181-939-2 01 1 0010- ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0006-0603 ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0006-0512 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601- ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0006-0410 ● ●
19 MEMBER; CROSS,2ND 8-97606-306-0 01 1 0411- ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0006- ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0006- ● ●
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0006- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0006- ● ●
65 BRACKET; CENTER BRG
FVM(FVM***) (A) L=270 		1-53271-271-1 02 1 0006- ●
65 BRACKET; CENTER BRG
FVZ(FVZ***) (B) L=285 		1-53271-261-2 02 1 0006- ●
65 BRACKET; CENTER BRG
FVZ(FVZ***) (A) L=270 		1-53271-291-1 02 1 0006- ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0006-0512 ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601- ● ●
70 GUSSET; TRUNNION,UPR 1-53161-317-2 02 1 0006- ● ●
72 SPACER; TRUNNION
FVZ(FVZ***) 		1-53168-338-0 04 1 0006- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-403-1 01 1 0006- ● ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 0006- ● ●
81 BOLT; BRKT
M14X50 		9-91066-450-0 02 1 0006-0512 ● ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 0601- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 02 1 0006-0512 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 0601- ● ●
84 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0006-1201 ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1202- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0006- ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0006- ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0006-0512 ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0006-0602 ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ●
148 SPACER; C/MBR
(D) 		1-53168-337-0 02 1 0006- ●
148 SPACER; C/MBR
(C) 		1-53168-338-0 04 1 0006- ●
148 SPACER; C/MBR
FVM(FVM***) (C) 		1-53168-338-0 04 1 0006- ●
148 SPACER; C/MBR
(A) UPPER 		1-53168-339-0 02 1 0006- ● ●
148 SPACER; C/MBR
(B) UPPER 		1-53168-340-0 02 1 0006- ● ●
148 SPACER; C/MBR
(E) 		1-53168-341-0 02 1 0006- ● ●
148 SPACER; C/MBR
(B) LOWER 		1-53168-352-0 02 1 0006- ● ●
148 SPACER; C/MBR
FVM(FVM***) (D) 		1-53168-337-0 04 1 0006- ●
201 GUSSET; C/MBR
(B) 		1-53161-783-0 02 1 0006- ●
201 GUSSET; C/MBR
(A) 		1-53167-303-0 02 1 0006- ● ●
201 GUSSET; C/MBR
FVM(FVM***) (B) 		1-53161-638-0 02 1 0006- ●
201 GUSSET; C/MBR
FVZ(FVZ***) (B) 		1-53161-682-0 02 1 0006- ●
207 SPACER; 4TH C/MBR
FVM(FVM***) 		1-53168-162-2 02 1 0006- ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0006- ●
345 MEMBER; CROSS,5TH
FVZ(FVZ***) 		1-53181-580-2 01 1 0006- ●
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 0006- ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 0006- ● ●
