4-55 — FRONT LEAF SPRING (#10326) — 15 parça

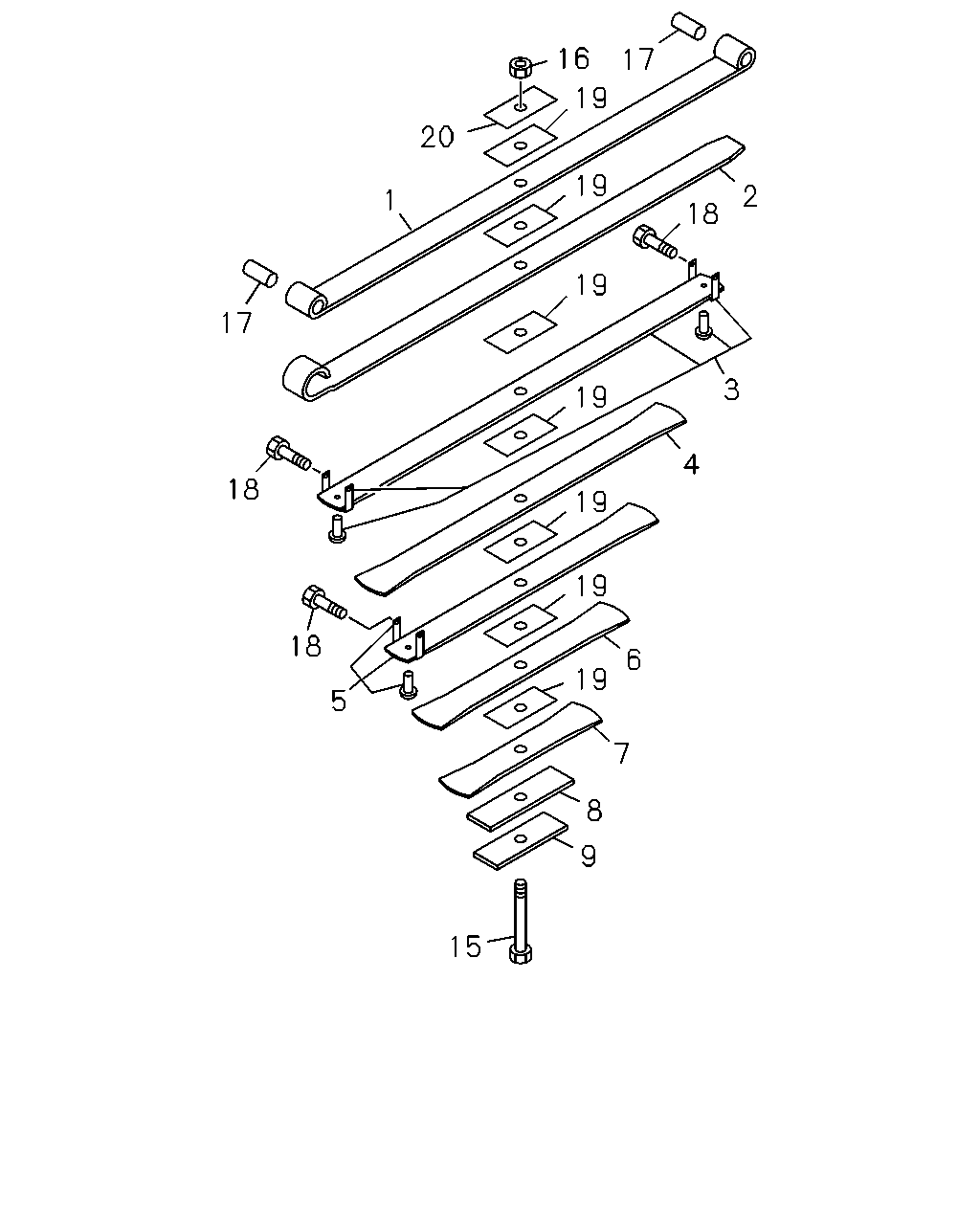

çizim 79309
16 17 19 20 19 2 1 18 19 17 3 19 4 18 19 19 18 6 19 5 7 8 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-349-0 		1-51131-349-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-349-0 		1-51132-349-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: A = 1-51130-349-0 		1-51133-349-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-349-0 		1-51134-349-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51130-349-0 		1-51135-349-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
W/CLIP ASM PART: A = 1-51130-349-0 		1-51136-349-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51130-349-0 		1-51137-349-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51130-349-0 		1-51138-349-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: A = 1-51130-349-0 		1-51139-349-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: A = 1-51130-349-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-349-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-349-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-349-0 		1-09000-328-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-349-0 		1-51177-071-0 07 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: A = 1-51130-349-0 		1-51177-107-0 01 1 -
