Isuzu WW
▶
TRUCKS
▶
FVM
▶
10834 - FVM/FVZ-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

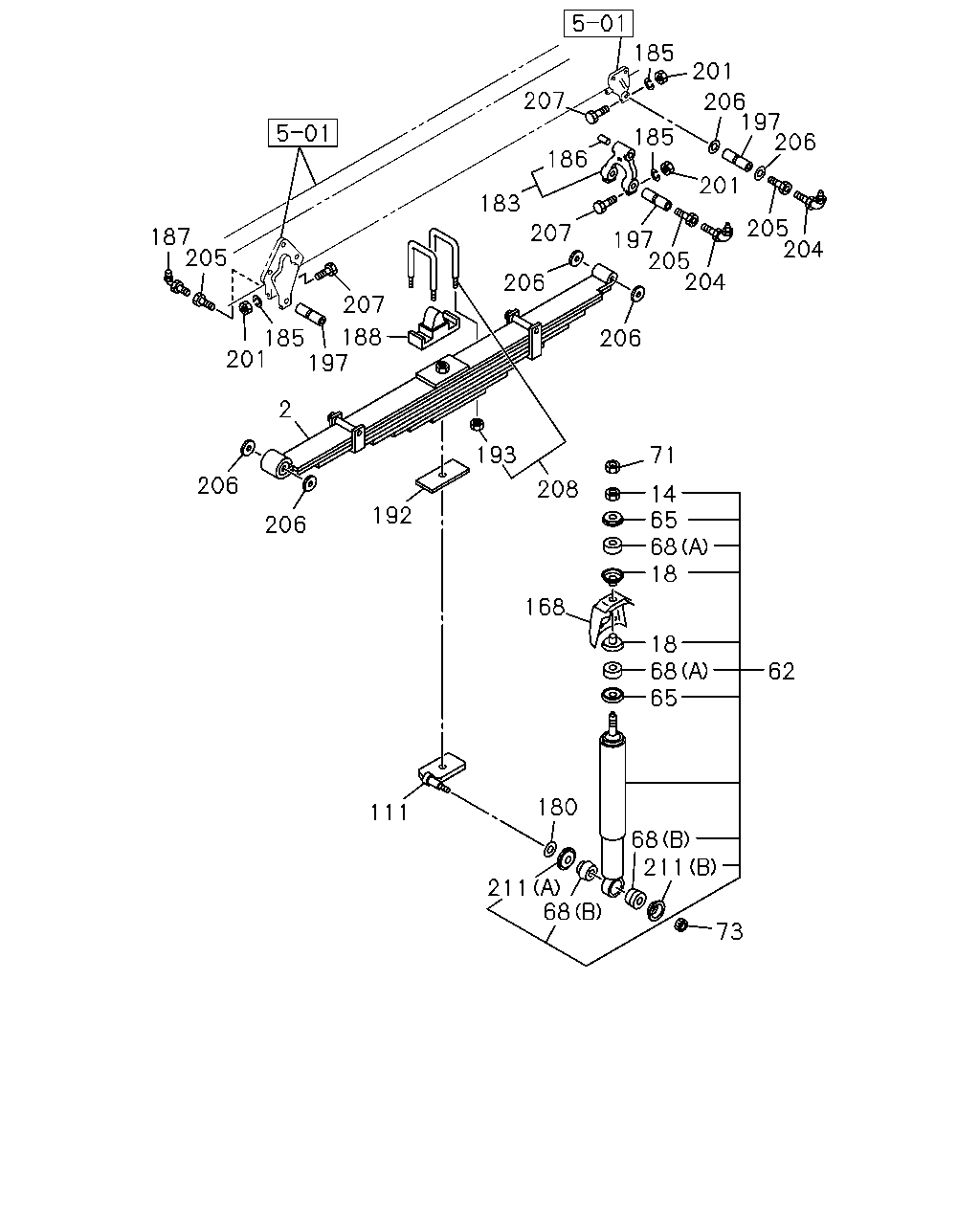

4-50 — FRONT SUSPENSION
(#10325) — 47 parça
Tümü
A - FVM6MF
B - FVZ6MF
185
201
207
206
197
206
185
186
201
183
205
204
207
187
205
197
205
204
206
207
185
188
201
197
206
2
193
71
206
208
14
65
68
18
192
206
168
18
68
65
62
180
111
68
211
211
68
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 9-LEAF
1-51130-349-0
02
1
0006-
●
●
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0006-
●
●
18
WASHER; CENTERING,S/ABS
ID=20.8
9-51631-041-0
04
1
0006-
●
●
62
ABSORBER ASM; SHOCK,FRT
1-51630-579-0
02
1
0006-
●
●
62
ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
1-87610-155-0
02
1
0006-
●
●
65
WASHER; S/ABS
ID=16.5
9-51631-040-0
04
1
0006-
●
●
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0006-
●
●
68
BUSHING; S/ABS
(A)
9-51631-039-0
04
1
0006-
●
●
71
NUT; LK,S/ABS,UPR
M14
9-99111-414-0
02
1
0006-0512
●
●
71
NUT; LK,S/ABS,UPR
M14
0-91111-514-0
02
1
0601-
●
●
73
NUT; BRKT,SHOCK
M20
9-99110-420-0
02
1
0006-0311
●
●
73
NUT; BRKT,SHOCK
M20
9-99110-520-0
02
1
0312-0512
●
●
73
NUT; BRKT,SHOCK
M20
0-91110-520-0
02
1
0601-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-723-1
01
1
0006-1004
●
●
111
SUPPORTER; S/ABS,FRT SUSP
8-98153-484-0
01
1
1005-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-722-1
01
1
0006-1004
●
●
111
SUPPORTER; S/ABS,FRT SUSP
8-98153-483-0
01
1
1005-
●
●
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0006-
●
●
180
WASHER; PL,PIN
ID=21
9-09160-520-0
02
1
0006-0605
●
●
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
0606-
●
●
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
0006-
●
●
185
WASHER; LK,PIN
ID=12.2
9-09150-612-0
12
1
0006-0603
●
●
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0604-
●
●
186
BUSHING; SHACKLE
OD=38
1-51351-009-0
02
1
0006-0902
●
●
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
0903-
●
●
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
9-09031-210-0
02
1
0006-0512
●
●
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
0601-
●
●
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-088-1
02
1
0006-
●
●
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
01
1
0006-
●
●
193
NUT; U BOLT
M22
9-09112-822-0
08
1
0006-0512
●
●
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0601-1206
●
●
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
●
●
197
PIN; FRT SPR,FRT
1-51161-031-0
06
1
0006-
●
●
201
NUT; PIN LK
M12
9-99110-512-0
12
1
0006-0512
●
●
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0601-
●
●
204
NIPPLE; GREASE,RR
PT1/8 ELBOW
9-09031-210-0
02
1
0006-0512
●
●
204
NIPPLE; GREASE,RR
PT1/8 ELBOW
0-90301-610-0
02
1
0601-
●
●
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
9-09031-010-0
02
1
0006-0512
●
●
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
02
1
0601-
●
●
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0006-
●
●
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0006-
●
●
207
BOLT; SPR TO SHACKLE
M12X80
0-10806-280-0
12
1
0006-0512
●
●
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0601-
●
●
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-1
04
1
0006-1206
●
●
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1207-
●
●
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0006-
●
●
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0006-
●
●
