◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#10323) — 76 parça

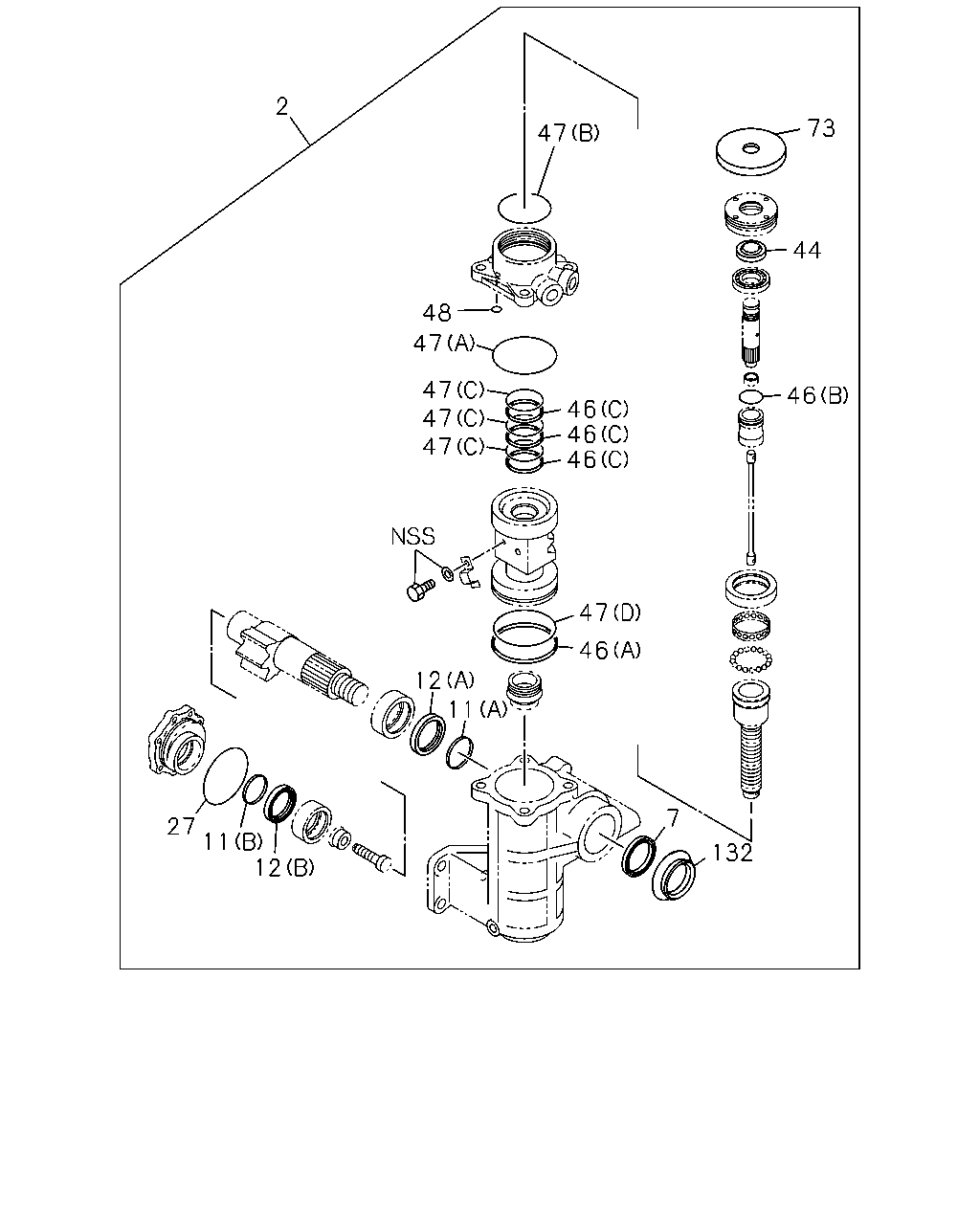

çizim 78372
2 73 47 44 48 47 47 47 47 46 46 46 46 47 46 12 11 7 27 11 12 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-843-5 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-843-5 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-843-5 		8-98159-116-0 01 1 1002-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44269-035-0 01 1 0301-
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-262-0 01 1 0301-
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-843-5 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-227-0 01 1 -

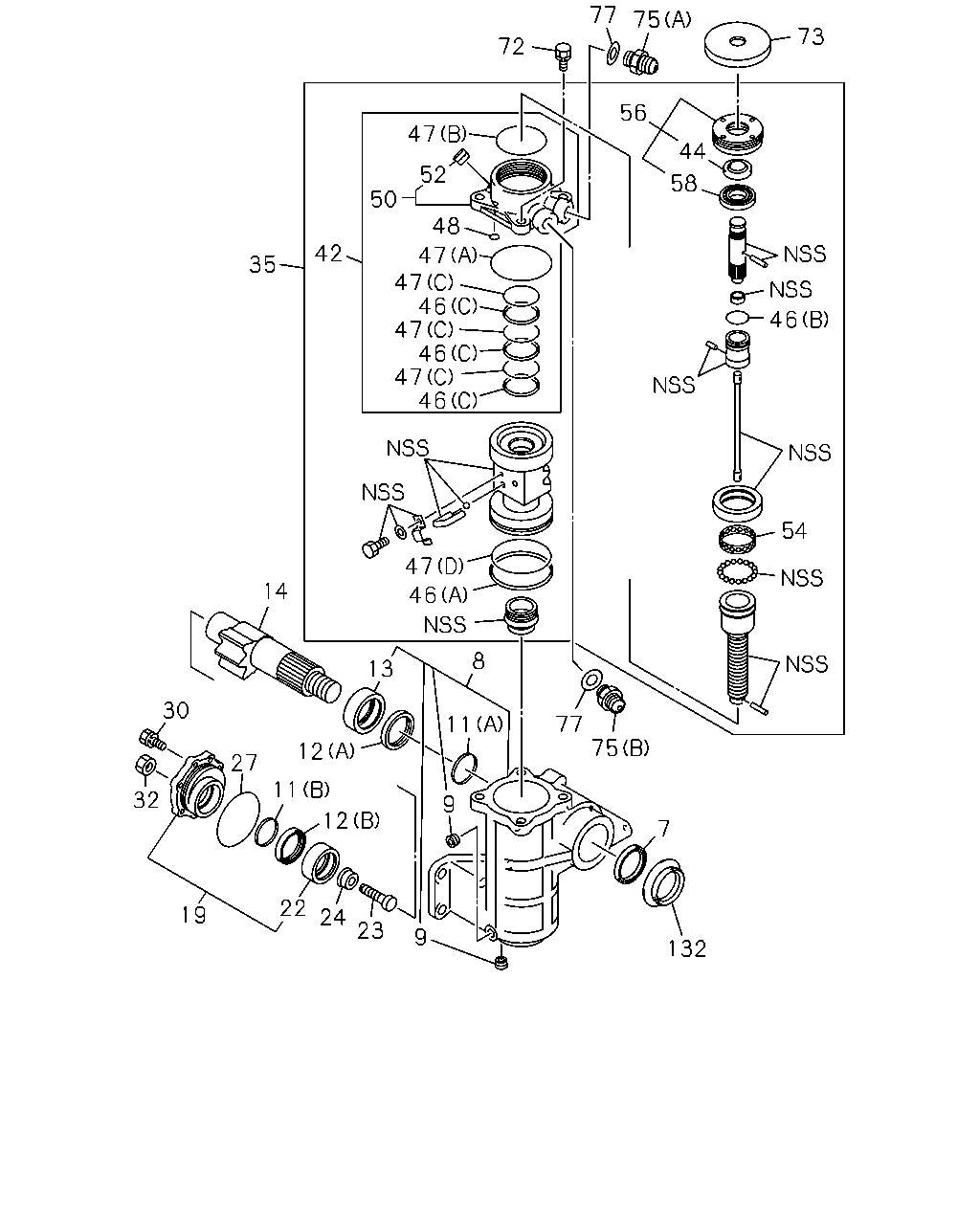

çizim 103066
77 75 73 72 56 47 44 52 58 50 48 42 47 47 46 47 46 47 46 35 46 54 47 14 46 8 13 30 77 75 11 12 27 11 32 9 12 7 22 19 24 23 9 132
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-843-5 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44240-112-0 01 1 -1001
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-843-5 		8-98159-756-0 01 1 1002-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44249-038-0 01 1 -1001
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44260-008-0 01 1 -0212
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44260-019-0 01 1 0301-1001
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-843-5 		8-98159-763-0 01 1 1002-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-105-0 01 1 -1001
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44269-035-0 01 1 0301-
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44279-012-0 08 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44150-070-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44560-082-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-262-0 01 1 0301-
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44560-083-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-843-5 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(B), M20X1.5 ASM PART: A = 1-44000-843-5 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M22X1.5 ASM PART: A = 1-44000-843-5 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-843-5 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-843-5 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
