4-36 — POWER STEERING CONTROL; ENGINE SIDE (#10322) — 15 parça

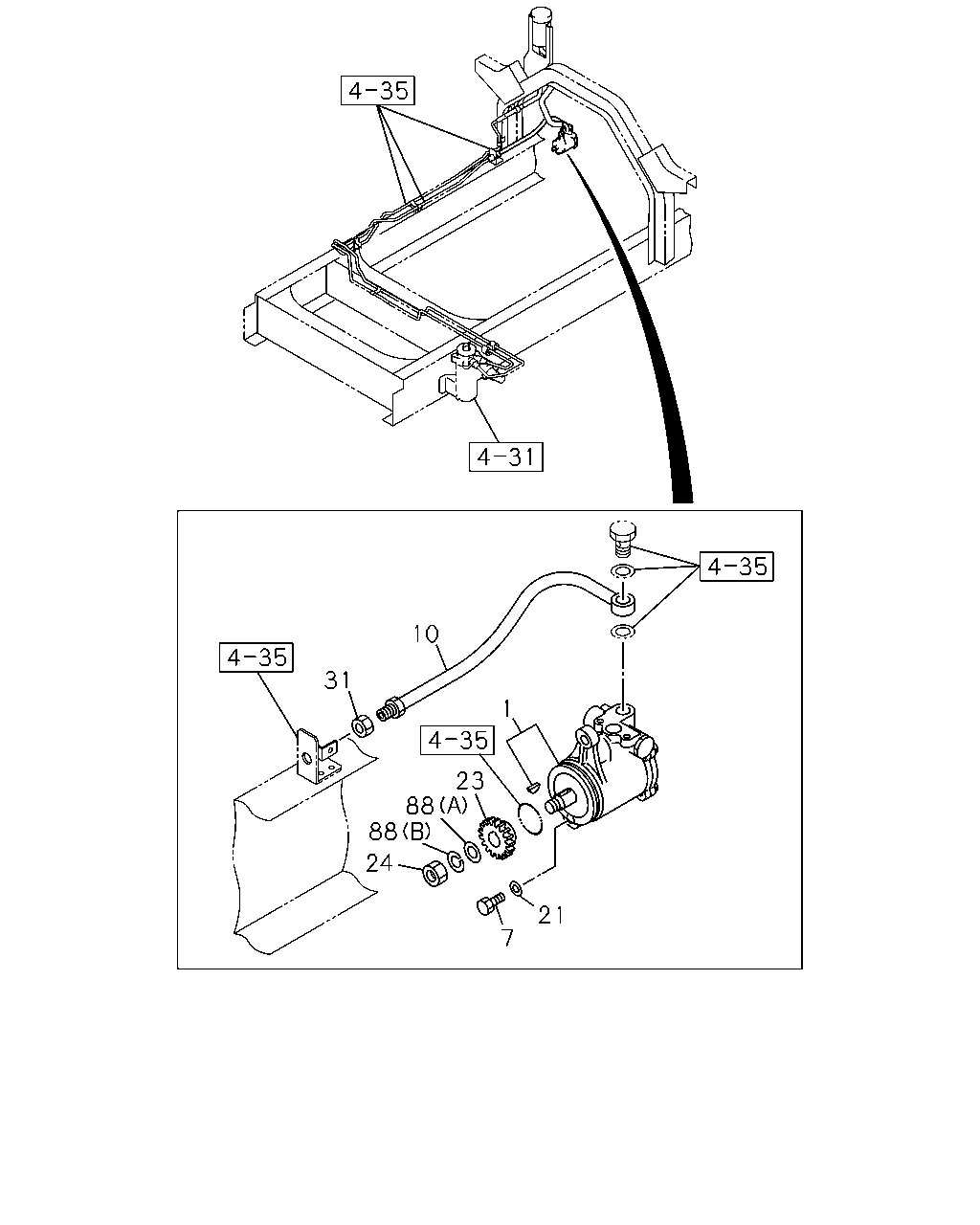

çizim 103061
10 31 1 23 88 88 24 21 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-2 01 1 0006- ● ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0006- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09539-520-0 01 1 0006-0606 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 0-89539-520-0 01 1 0607- ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0006-0605 ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0006- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0210- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0006-0209 ● ●
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 0006-0512 ● ●
31 NUT; FLEX HOSE
M20 		0-91111-520-0 01 1 0601- ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0006-0209 ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0210- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0006-0209 ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0210- ● ●
