4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#10321) — 67 parça

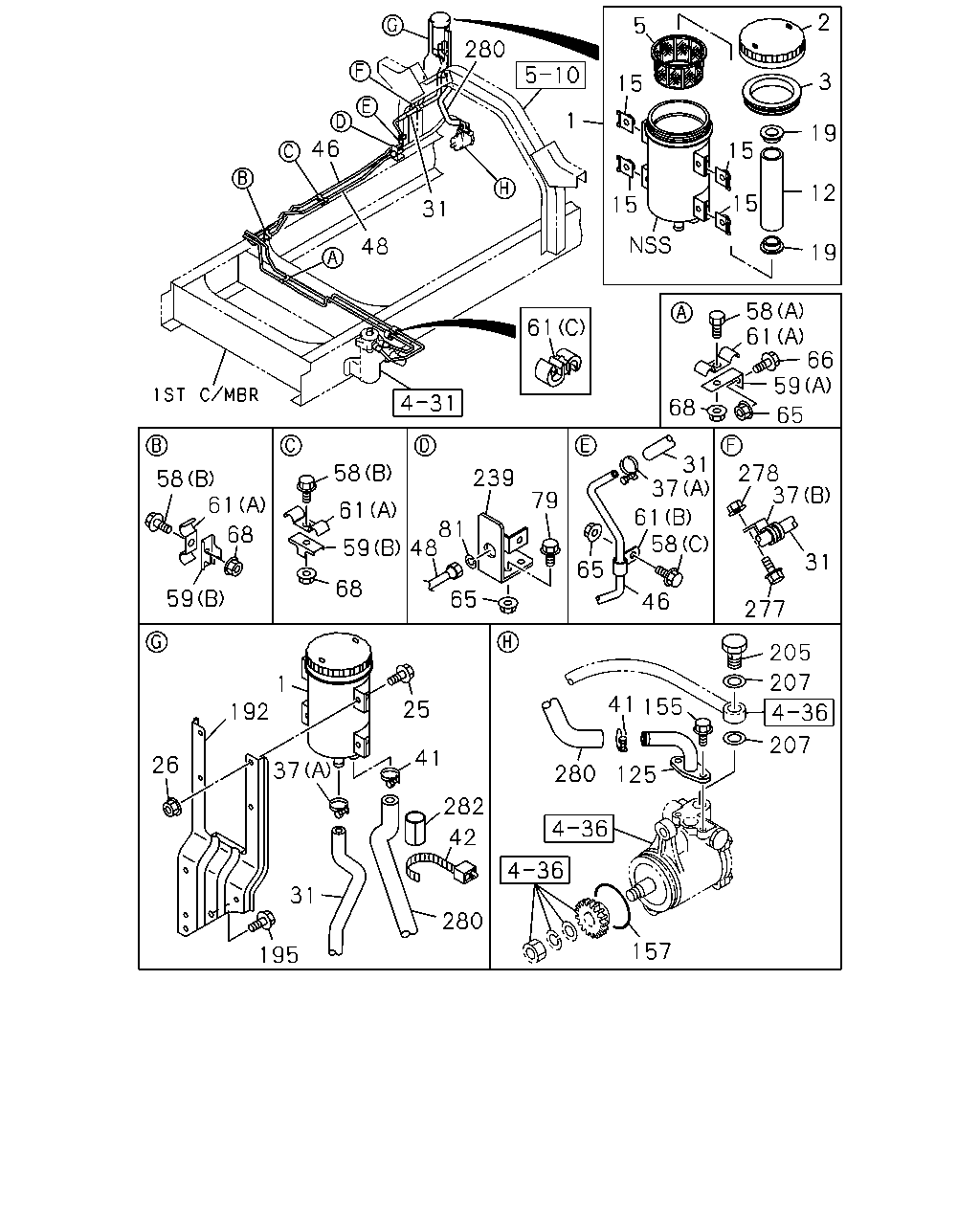

çizim 103068
2 5 280 3 15 1 19 46 15 12 15 15 31 48 19 58 61 66 59 61 68 65 31 37 58 278 37 239 58 61 79 61 61 58 81 68 31 65 68 59 65 46 277 205 207 1 192 41 155 25 207 41 26 37 280 125 282 42 31 280 157 195 59
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-152-6 01 1 0006-0508 ● ●
1 TANK ASM; OIL,P/S 1-21210-237-2 01 1 0509-1006 ● ●
1 TANK ASM; OIL,P/S 8-98166-927-0 01 1 1007- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0006-1006 ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0006- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0006- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 0006- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 04 1 0006-0508 ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 04 1 0509- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0006- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0006-0512 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0006-0602 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
31 HOSE; P/S OIL TANK,INL 1-21115-465-2 01 1 0006- ● ●
37 CLIP; HOSE,P/S
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 0006-0108 ● ●
37 CLIP; HOSE,P/S
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109- ● ●
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 0006- ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0006- ● ●
42 CLIP; HOSE,P/S
L=250 		1-09707-126-0 01 1 0006- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-565-0 01 1 0006- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21116-221-0 01 1 0006- ● ●
58 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0006-0512 ● ●
58 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0006-0512 ● ●
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0601- ● ●
58 BOLT; CLIP
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0006-0512 ● ●
58 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
59 BRACKET; CLIP,OIL PIPE
(A) L=60 		1-47465-745-0 01 1 0006- ● ●
59 BRACKET; CLIP,OIL PIPE
(B) 		1-47475-427-1 02 1 0006- ● ●
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 03 1 0006- ● ●
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 0006- ● ●
61 CLIP; OIL PIPE
(B) ID=16 L=40 		9-09525-576-0 01 1 0006-0606 ● ●
61 CLIP; OIL PIPE
(B) ID=16 L=40 		0-95235-576-0 01 1 0607- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0006-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0006-0512 ● ●
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0006-0602 ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
79 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 0006-0512 ● ●
79 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 02 1 0601- ● ●
81 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 01 1 0006-0603 ● ●
81 WASHER; LK,FLEX HOSE
ID=20.2 		0-91510-520-0 01 1 0604- ● ●
125 CONNECTOR; P/S PUMP 1-21122-019-2 01 1 0006- ● ●
155 BOLT; CONNECTOR
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0006-0906 ● ●
155 BOLT; CONNECTOR
M8X18 W/LK&PL WASHER 		0-50640-818-0 02 1 0907- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77 		1-09623-143-0 01 1 0702- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77 		1-09623-143-0 01 1 0006- ● ●
192 BRACKET; P/S OIL TANK 1-21219-093-2 01 1 0006- ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 03 1 0006-0406 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 03 1 0407-0512 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 03 1 0601- ● ●
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-205-0 01 1 0006- ● ●
207 GASKET; FLEX HOSE,P/S PUMP
ID=18.2 OD=26.0 		9-09571-418-0 02 1 0006- ● ●
239 BRACKET; FLEX HOSE 1-47477-639-0 01 1 0006- ● ●
277 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0006-0512 ● ●
277 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
278 NUT; HOSE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
278 NUT; HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-048-1 01 1 0006- ● ●
282 SLEEVE; RUBBER,PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0006- ● ●
