Isuzu WW
▶
TRUCKS
▶
FVM
▶
10834 - FVM/FVZ-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶
4-33 — STEERING LINKAGE
(#10320) — 30 parça
Tümü
A - FVM6MF
B - FVZ6MF
◀

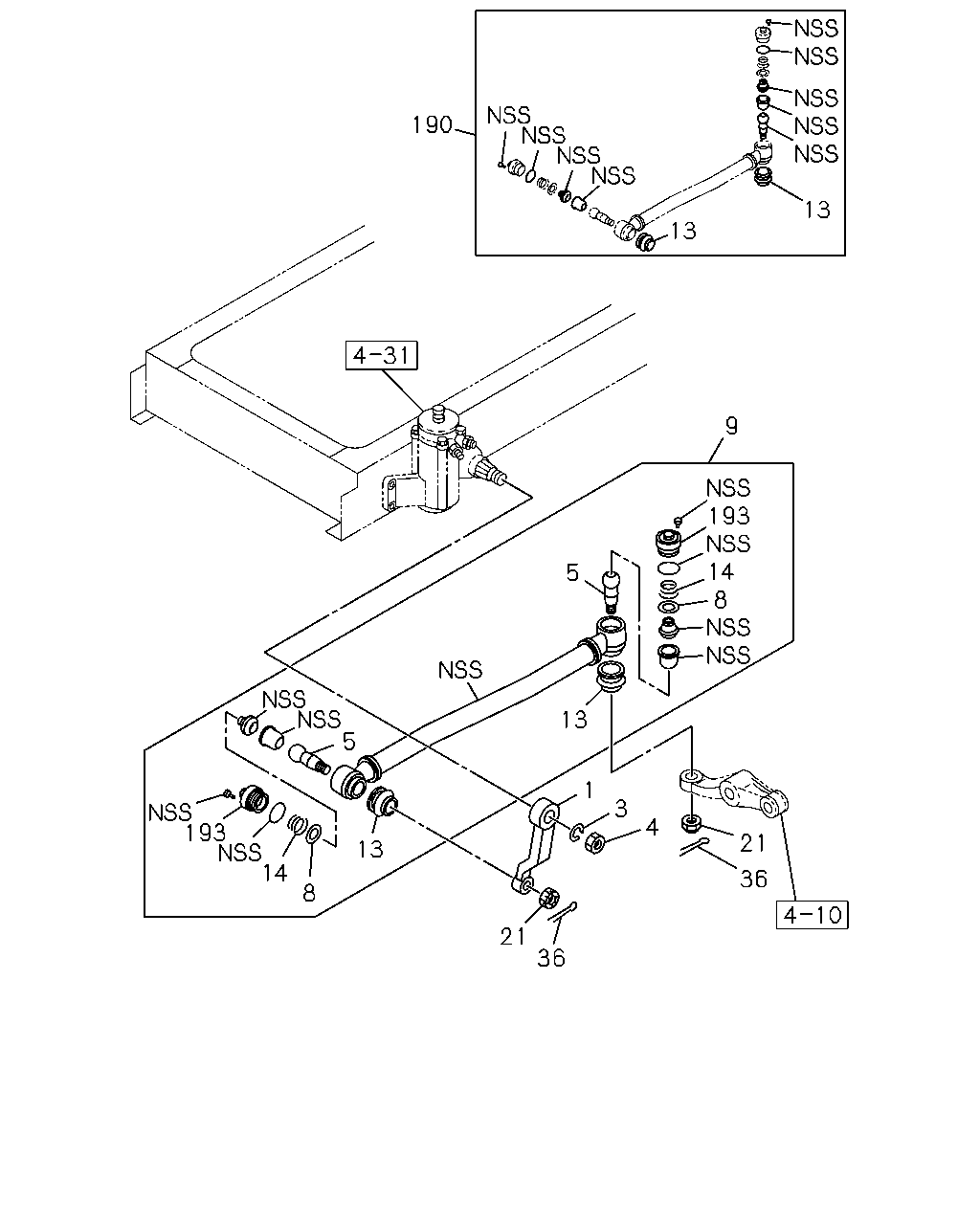

[433A] -'11/1 (17 parça)

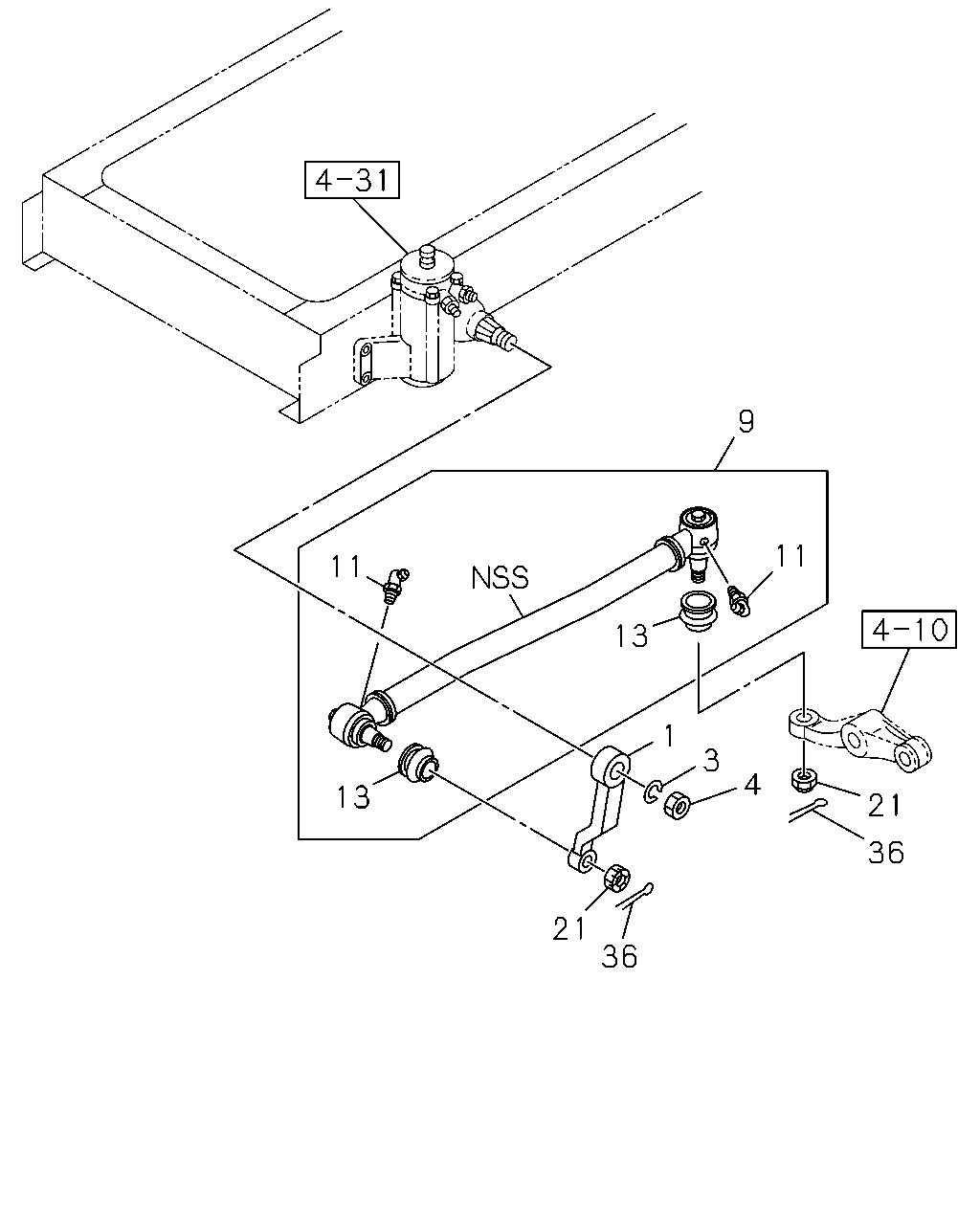

[433A] '11/2- (13 parça)
▶
190
13
13
9
193
14
8
5
5
13
1
3
193
14
4
21
13
36
8
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
1-44341-398-1
01
1
0006-
●
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0006-
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0006-0805
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
●
●
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0006-1103
●
●
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0006-1103
●
●
9
LINK; DRAG
1-44380-085-2
01
1
0006-1103
●
●
9
LINK; DRAG
8-98181-402-0
01
1
1104-
●
●
13
BOOT; DRAG LINK
1-43159-078-0
02
1
0006-1103
●
●
13
BOOT; DRAG LINK
1-43159-131-0
02
1
1104-
●
●
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0006-1103
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0006-0805
●
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0006-0606
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
●
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0006-1103
●
●
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0006-1103
●
●
9
11
11
13
1
3
4
13
21
36
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
1-44341-398-1
01
1
0006-
●
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0006-
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0006-0805
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
●
●
9
LINK; DRAG
1-44380-085-2
01
1
0006-1103
●
●
9
LINK; DRAG
8-98181-402-0
01
1
1104-
●
●
11
NIPPLE; GREASE,DRAG LINK
8-98160-122-0
02
1
1104-
●
●
13
BOOT; DRAG LINK
1-43159-078-0
02
1
0006-1103
●
●
13
BOOT; DRAG LINK
1-43159-131-0
02
1
1104-
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0006-0805
●
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0006-0606
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
●
