Isuzu WW
▶
TRUCKS
▶
FVR
▶
10630 - FVR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

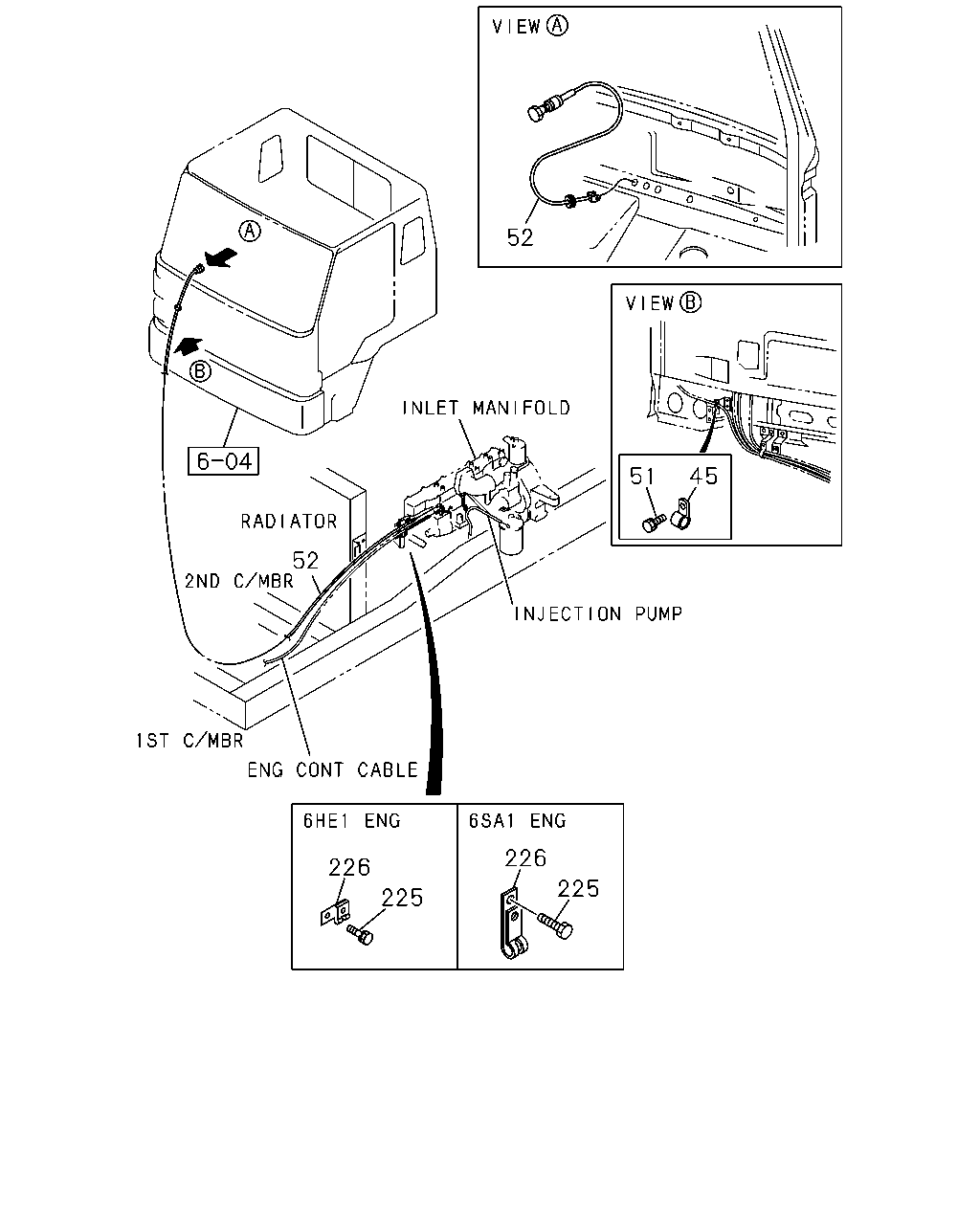

0-35 — ENGINE CONTROL VALVE AND LEVER
(#1032) — 13 parça
Tümü
A - 6HE1 STD ENG
B - 6SA1 STD ENG
C - 6SA1TC ENG
52
51
45
52
226
226
225
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
45
CLIP; FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF(KB6) ID=7 L=20
9-09524-632-0
01
1
9205-9205
●
45
CLIP; FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF(KB6) ID=7 L=16
9-09524-622-0
01
1
9206-
●
51
BOLT; CLIP,FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF(KB6) M6X20 W/LK&PL WASHER
1-09980-493-0
01
1
9205-
●
52
CABLE; FUEL CUT
EXC. AUTO ENG SHUTOFF(KB6) L=2127
1-23210-865-0
01
1
9202-9211
●
52
CABLE; FUEL CUT
EXC. AUTO ENG SHUTOFF(KB6) L=2315
1-23210-998-3
01
1
9202-
●
225
BOLT; CLIP FIX
M6X12
0-28010-612-0
02
1
9202-9204
●
●
225
BOLT; CLIP FIX
M6X12 FLANGE
0-28080-612-0
02
1
9205-9207
●
●
225
BOLT; CLIP FIX
M6X20 FLANGE
0-28080-620-0
02
1
9208-
●
●
225
BOLT; CLIP FIX
M8X18
0-28010-818-0
02
1
9202-9204
●
225
BOLT; CLIP FIX
M8X18 FLANGE
0-28080-818-0
02
1
9205-9207
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28080-820-0
02
1
9208-
●
226
CLIP; CABLE END
L=30
1-09700-326-0
01
1
9202-
●
●
226
CLIP; CABLE END
1-09700-787-1
01
1
9202-
●
