Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#10316) — 294 parça

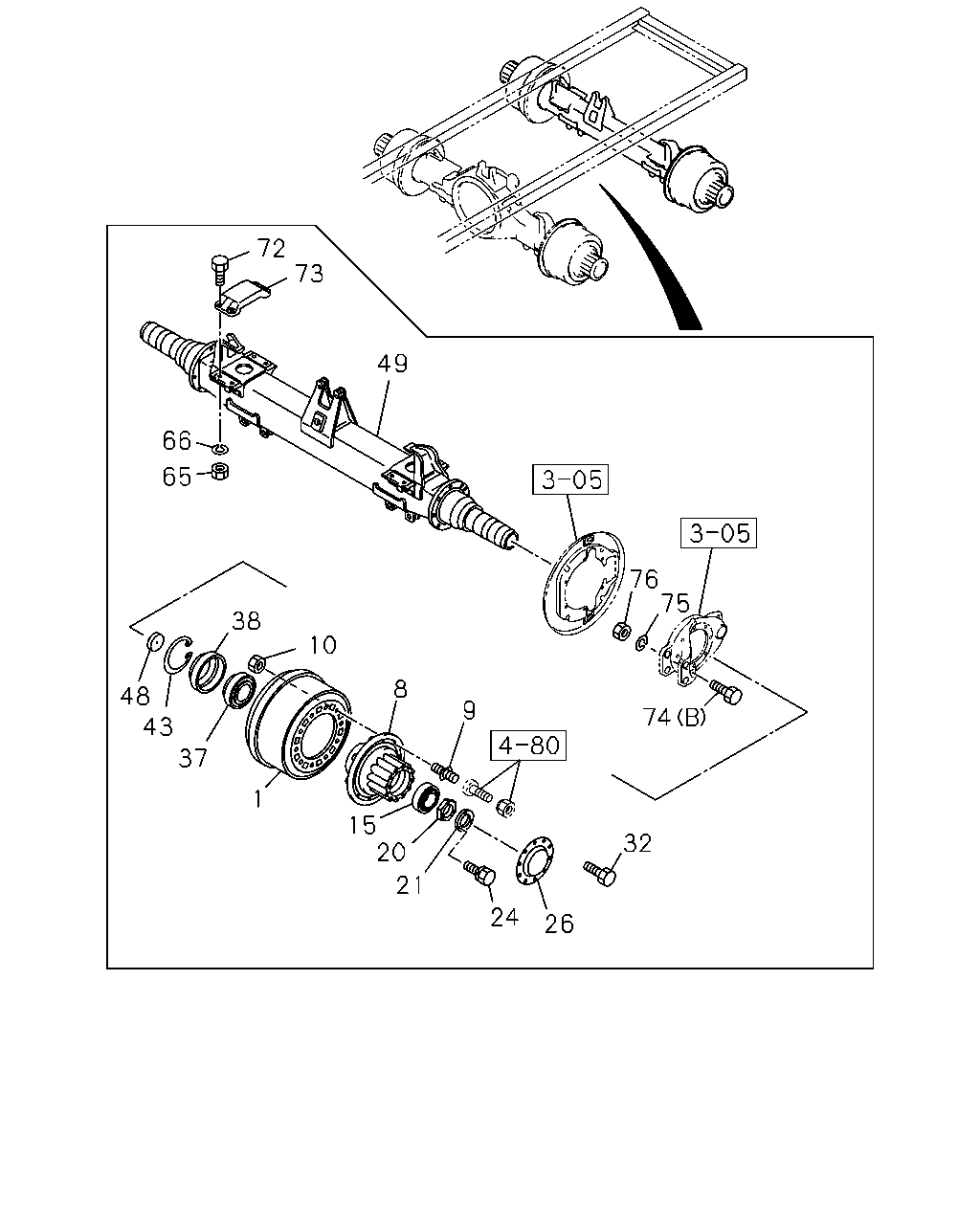

72 73 49 66 65 76 75 38 10 8 48 43 9 74 37 1 15 20 32 21 24 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-220-4	02	1	0006-	●	●
1	DRUM; BRK,RR	1-42315-220-4	02	1	0006-	●	●
8	HUB; RR AXLE	1-42311-085-0	02	1	0006-	●	●
8	HUB; RR AXLE	1-42311-085-0	02	1	0006-	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0006-0210	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0006-0210	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-	●	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0006-	●	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	0302-		●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0006-0301	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0006-0301	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0302-	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0302-	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0006-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0006-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0006-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0006-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
26	CAP; HUB,RR AXLE	1-42313-011-1	02	1	0006-	●
32	BOLT; HUB CAP M14X35 FLANGE	0-28681-435-0	20	1	0006-0512	●
32	BOLT; HUB CAP M14X35 FLANGE	0-28651-435-0	20	1	0601-	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0006-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0006-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0006-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0006-	●	●
48	COVER; END	1-42119-035-1	02	1	0006-	●
49	CASE; RR AXLE FORWARD	1-42160-178-0	01	1	0006-0106	●
49	CASE; RR AXLE FORWARD	1-42190-146-0	01	1	0107-0311	●
49	CASE; RR AXLE FORWARD	1-42190-472-0	01	1	0312-	●
49	CASE; RR AXLE REARWARD	1-42160-312-0	01	1	0006-	●
49	CASE; RR AXLE FORWARD	1-42160-934-2	01	1	0006-		●
49	CASE; RR AXLE REARWARD	1-42160-976-2	01	1	0006-		●
65	NUT M14	9-99110-514-0	08	1	0006-0512	●	●
65	NUT M14	9-99110-514-0	08	1	0006-0512	●	●
65	NUT M14	0-91110-514-0	08	1	0601-	●	●
65	NUT M14	0-91110-514-0	08	1	0601-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0006-0603	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0006-0603	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0604-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0604-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0006-0805	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0006-0805	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0006-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0006-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	0006-1209	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1210-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1210-	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	14	1	0006-1209	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	14	1	0006-1209		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0006-0603	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0006-0603	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0006-0512	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0006-0512	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●	●

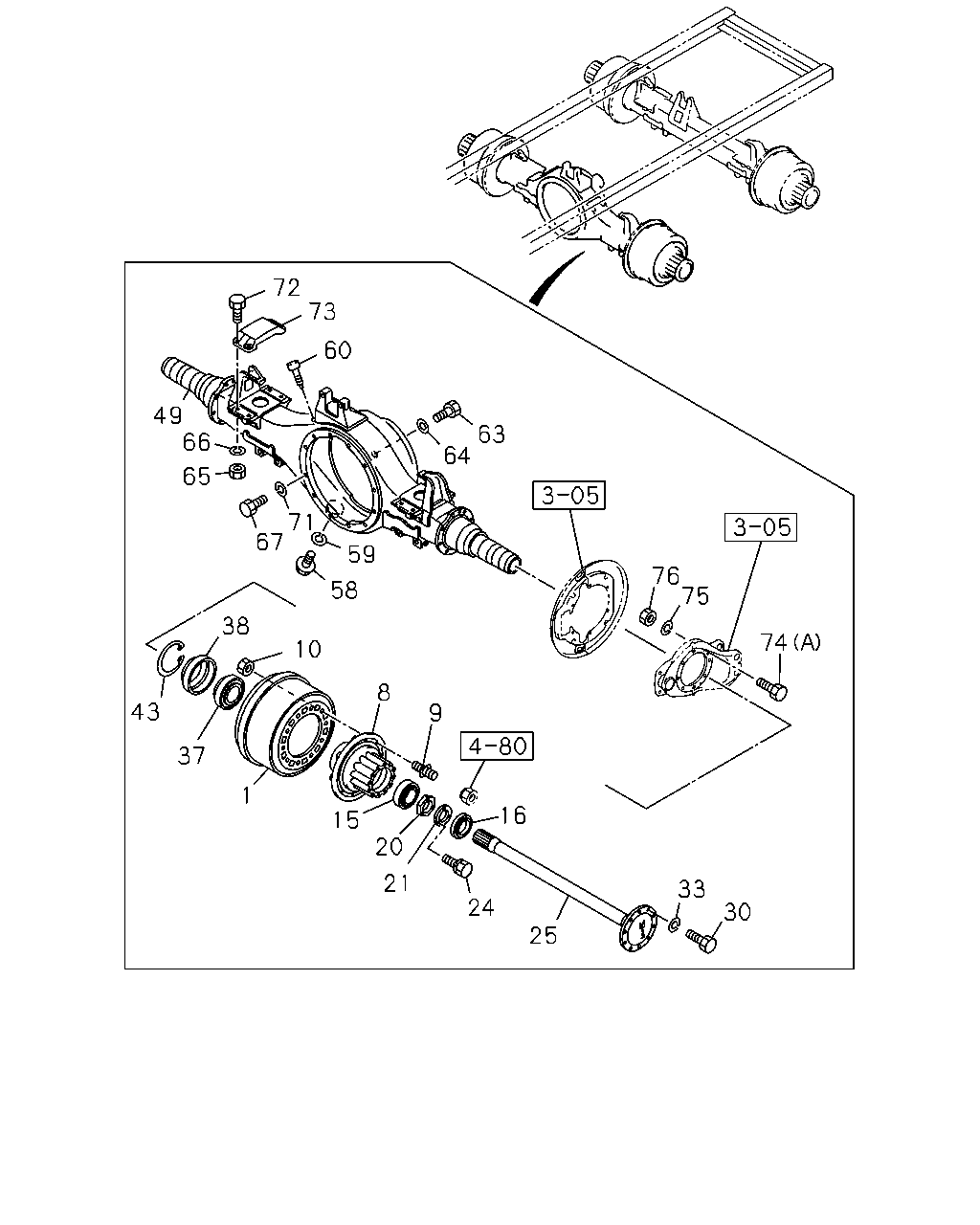

72 73 60 49 66 63 64 65 71 67 59 76 75 58 38 74 10 8 43 9 37 1 16 15 20 21 33 24 30 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-220-4	02	1	0006-	●	●
1	DRUM; BRK,RR	1-42315-220-4	02	1	0006-	●	●
8	HUB; RR AXLE	1-42311-085-0	02	1	0006-	●	●
8	HUB; RR AXLE	1-42311-085-0	02	1	0006-	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0006-0210	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0006-0210	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-	●	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0006-	●	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	0006-0102	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	0006-0102		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0006-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0006-		●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	0302-		●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0006-0301	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0006-0301	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0302-	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0302-	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0006-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0006-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0006-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0006-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
25	SHAFT; AXLE,RR L=976	1-42171-356-0	01	1	0006-0910	●
25	SHAFT; AXLE,RR L=990	8-98146-166-0	01	1	0911-	●
25	SHAFT; AXLE,RR L=1106	1-42171-357-0	01	1	0006-0910	●
25	SHAFT; AXLE,RR L=1110	8-98146-167-0	01	1	0911-	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=976	1-42171-356-0	02	1	0006-0910		●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990	8-98146-166-0	02	1	0911-		●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1106	1-42171-357-0	02	1	0006-0910		●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1110	8-98146-167-0	02	1	0911-		●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0006-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0006-		●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0006-0603	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0006-0603		●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0006-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0006-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0006-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0006-	●	●
49	CASE; RR AXLE FORWARD	1-42160-178-0	01	1	0006-0106	●
49	CASE; RR AXLE FORWARD	1-42190-146-0	01	1	0107-0311	●
49	CASE; RR AXLE FORWARD	1-42190-472-0	01	1	0312-	●
49	CASE; RR AXLE REARWARD	1-42160-312-0	01	1	0006-	●
49	CASE; RR AXLE FORWARD	1-42160-934-2	01	1	0006-		●
49	CASE; RR AXLE REARWARD	1-42160-976-2	01	1	0006-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0006-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0006-		●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0006-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0006-		●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0006-	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	0006-		●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0006-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0006-		●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0006-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0006-		●
65	NUT M14	9-99110-514-0	08	1	0006-0512	●	●
65	NUT M14	9-99110-514-0	08	1	0006-0512	●	●
65	NUT M14	0-91110-514-0	08	1	0601-	●	●
65	NUT M14	0-91110-514-0	08	1	0601-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0006-0603	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0006-0603	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0604-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0604-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0006-0512	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0601-	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0006-0512	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0006-0512		●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0601-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	15	1	0006-0512		●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	15	1	0601-		●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0006-0603	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0006-0603		●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0006-0805	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0006-0805	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0006-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0006-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	0006-1209	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1210-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1210-	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	14	1	0006-1209	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	14	1	0006-1209		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0006-0603	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0006-0603	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0006-0512	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0006-0512	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●	●

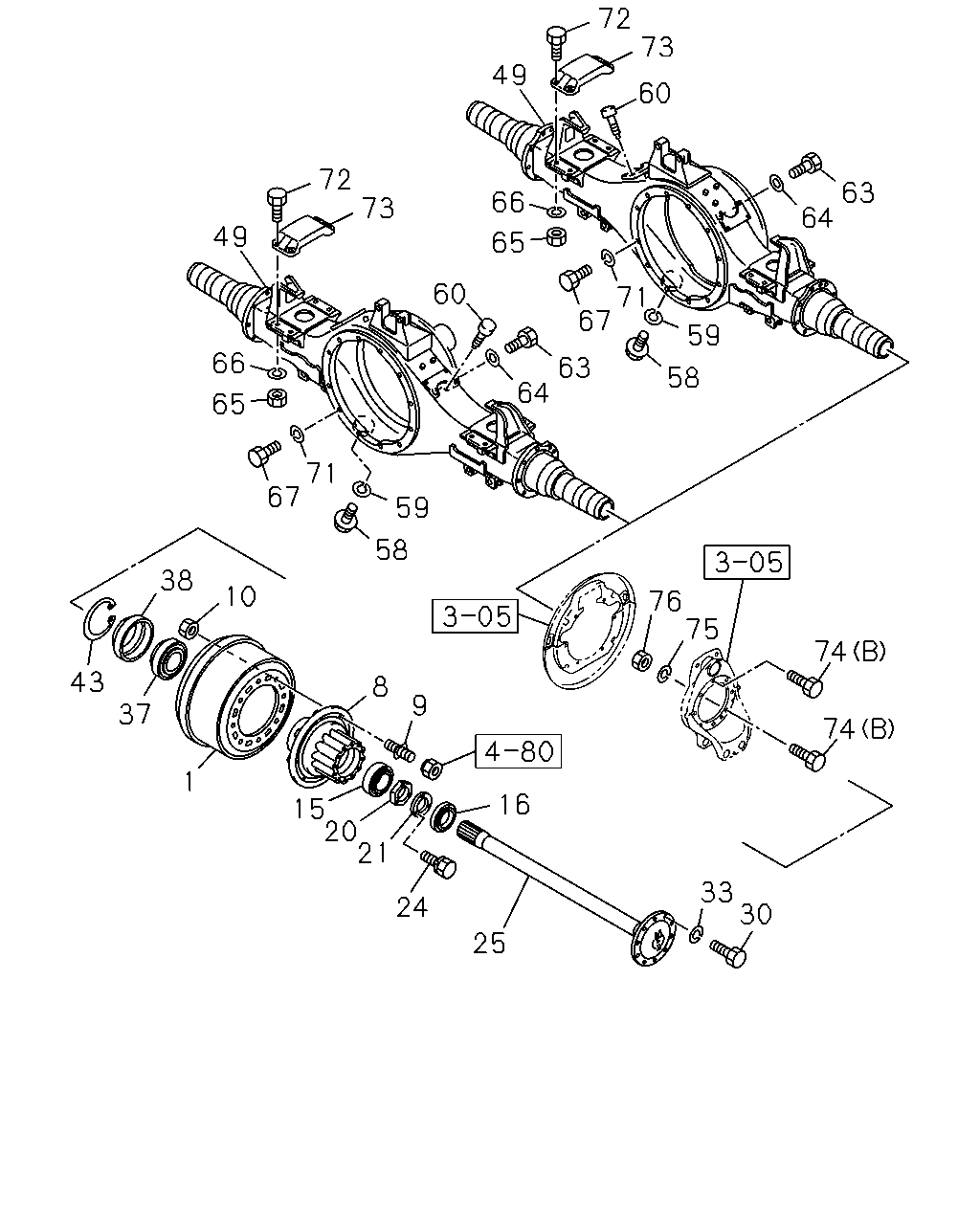

72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 59 58 38 10 76 75 74 43 8 9 37 74 1 16 15 20 21 33 30 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-220-4	02	1	0006-	●	●
1	DRUM; BRK,RR	1-42315-220-4	02	1	0006-	●	●
8	HUB; RR AXLE	1-42311-085-0	02	1	0006-	●	●
8	HUB; RR AXLE	1-42311-085-0	02	1	0006-	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0006-0210	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0006-0210	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-	●	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-	●	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0006-	●	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0006-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	0006-0102	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	0006-0102		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0006-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0006-		●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	0302-		●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0006-0301	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0006-0301	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0302-	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0302-	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0006-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0006-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0006-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0006-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
25	SHAFT; AXLE,RR L=976	1-42171-356-0	01	1	0006-0910	●
25	SHAFT; AXLE,RR L=990	8-98146-166-0	01	1	0911-	●
25	SHAFT; AXLE,RR L=1106	1-42171-357-0	01	1	0006-0910	●
25	SHAFT; AXLE,RR L=1110	8-98146-167-0	01	1	0911-	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=976	1-42171-356-0	02	1	0006-0910		●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990	8-98146-166-0	02	1	0911-		●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1106	1-42171-357-0	02	1	0006-0910		●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1110	8-98146-167-0	02	1	0911-		●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0006-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0006-		●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0006-0603	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0006-0603		●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0006-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0006-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0006-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0006-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0006-	●	●
49	CASE; RR AXLE FORWARD	1-42160-178-0	01	1	0006-0106	●
49	CASE; RR AXLE FORWARD	1-42190-146-0	01	1	0107-0311	●
49	CASE; RR AXLE FORWARD	1-42190-472-0	01	1	0312-	●
49	CASE; RR AXLE REARWARD	1-42160-312-0	01	1	0006-	●
49	CASE; RR AXLE FORWARD	1-42160-934-2	01	1	0006-		●
49	CASE; RR AXLE REARWARD	1-42160-976-2	01	1	0006-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0006-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0006-		●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0006-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0006-		●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0006-	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	0006-		●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0006-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0006-		●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0006-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0006-		●
65	NUT M14	9-99110-514-0	08	1	0006-0512	●	●
65	NUT M14	9-99110-514-0	08	1	0006-0512	●	●
65	NUT M14	0-91110-514-0	08	1	0601-	●	●
65	NUT M14	0-91110-514-0	08	1	0601-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0006-0603	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0006-0603	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0604-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0604-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0006-0512	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0601-	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0006-0512	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0006-0512		●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0601-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	15	1	0006-0512		●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	15	1	0601-		●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0006-0603	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0006-0603		●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0006-0805	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0006-0805	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0006-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0006-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	0006-1209	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1210-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1210-	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	14	1	0006-1209	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	14	1	0006-1209		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0006-0603	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0006-0603	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0006-0512	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0006-0512	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
