4-11 — FRONT HUB AND DRUM OR ROTOR (#10315) — 76 parça

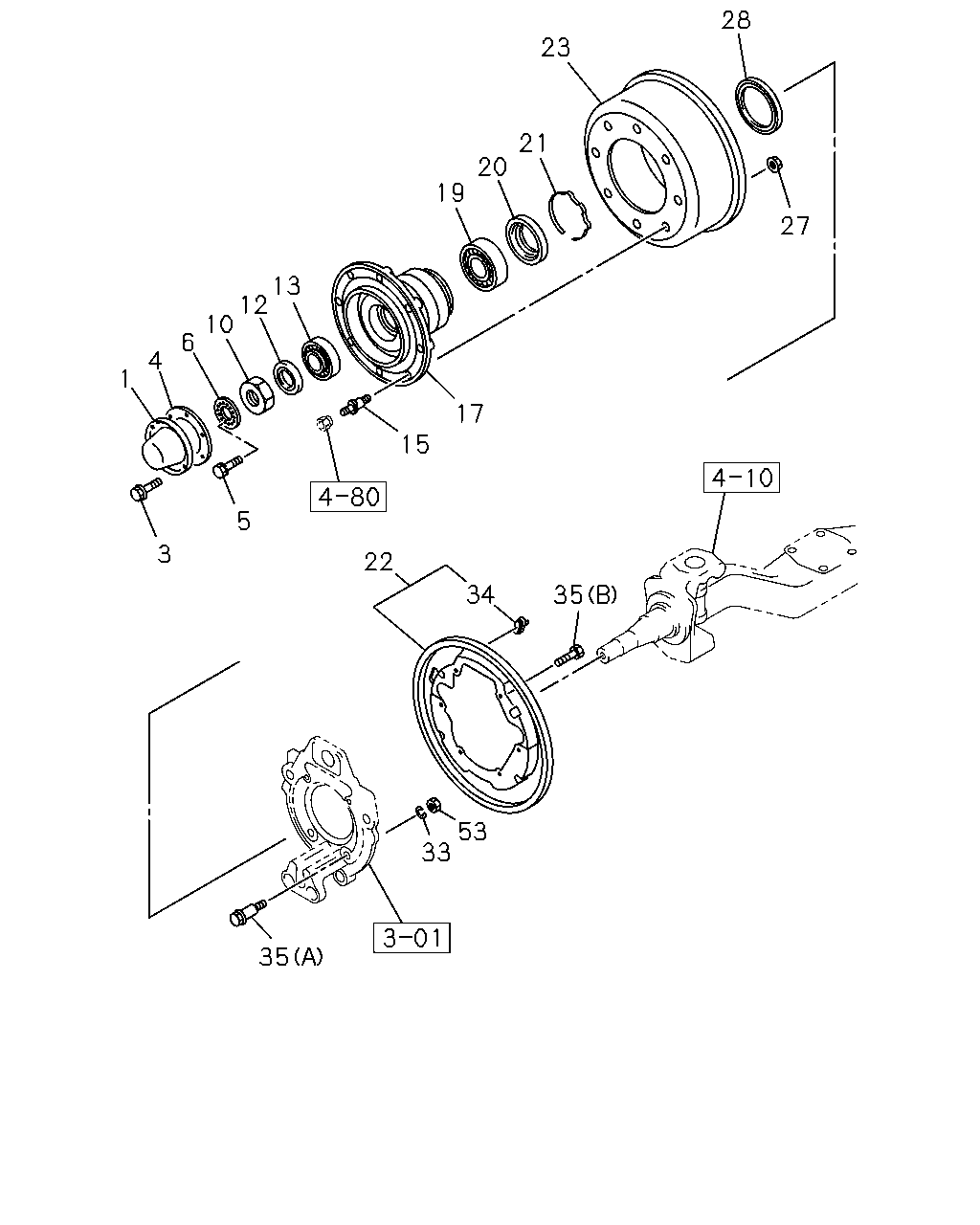

çizim 79374
28 23 21 20 19 27 13 12 10 6 4 1 17 15 5 3 22 34 35 53 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0006-0009 ● ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0010-0011 ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0012- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0006-0009 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0010-0011 ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0012-0512 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 0601- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 0006-0009 ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 0010-0011 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 0012- ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0006-0009 ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0010-0011 ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0012-0512 ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 04 1 0601-0707 ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98084-271-0 04 1 0708-1201 ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1202- ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0006-0009 ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0010-0011 ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0012-0707 ● ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 0708- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 0006-0009 ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 0010-0011 ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 0012- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0006-0009 ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0010-0011 ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0012-0911 ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 0912- ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 0006-0009 ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 0010-0011 ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 0012- ● ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0006-0009 ● ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0010-0011 ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0012-0210 ● ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0211- ● ●
17 HUB; FRT AXLE 1-42312-100-0 02 1 0006-0009 ● ●
17 HUB; FRT AXLE 1-42312-100-0 02 1 0010-0011 ●
17 HUB; FRT AXLE 1-42312-100-1 02 1 0012- ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 0006-0009 ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 0010-0011 ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 0012- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0006-0009 ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0010-0011 ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0012- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0006-0009 ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0010-0011 ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0012- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 0006-0009 ● ●
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 0010-0011 ●
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 0012- ● ●
23 DRUM; BRK,FRT 1-42315-337-0 02 1 0006-0009 ● ●
23 DRUM; BRK,FRT 1-42315-337-0 02 1 0010-0011 ●
23 DRUM; BRK,FRT 1-42315-337-0 02 1 0012- ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 0006-0009 ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 0010-0011 ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 0012- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0006-0009 ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0010-0011 ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0012- ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 0006-0009 ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 0010-0011 ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 0012-0603 ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		0-91510-816-0 04 1 0604- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0006-0009 ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0010-0011 ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0012- ● ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0006-0009 ● ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0010-0011 ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0012-0906 ● ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907- ● ●
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-2 04 1 0006-0009 ● ●
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-2 04 1 0010-0011 ●
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-2 04 1 0012- ● ●
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 0006-0009 ● ●
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 0010-0011 ●
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 0012-0512 ● ●
53 NUT; DRUM COVER
M16 		0-91110-516-0 04 1 0601- ● ●
