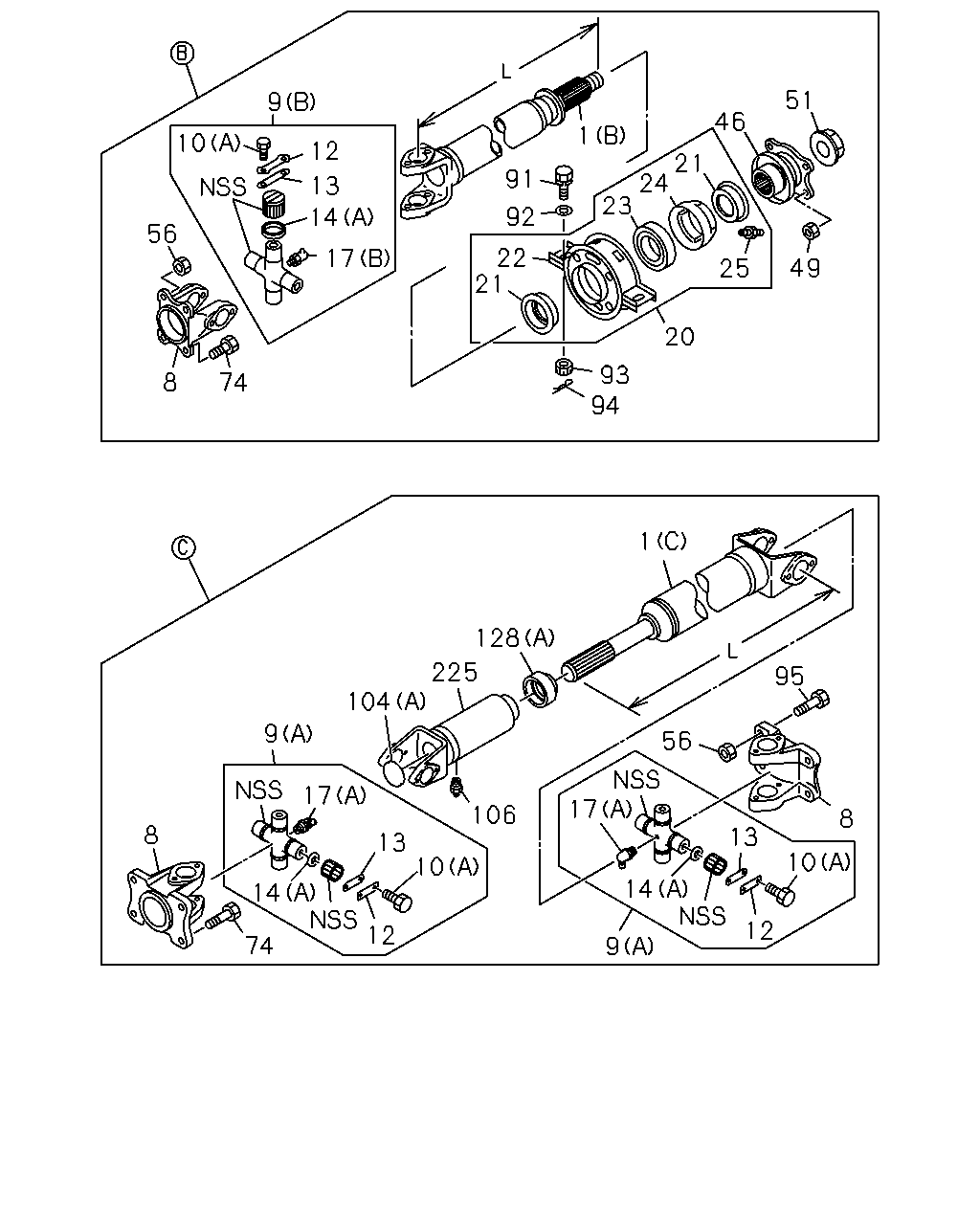

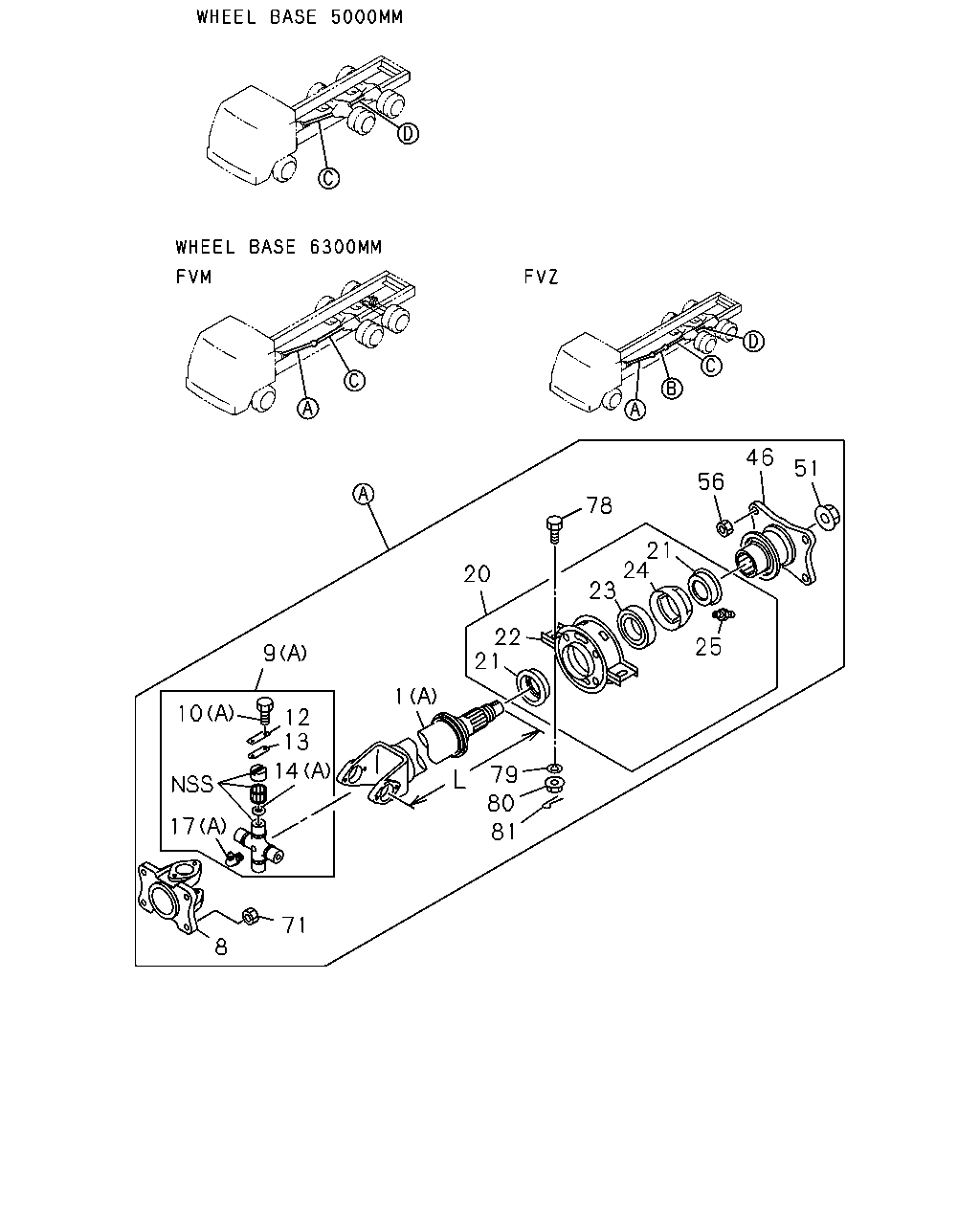

4-01 — PROPELLER SHAFT (#10313) — 183 parça

96 57 17 106 11 10 15 15 104 4 128 58 17 169 170 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	SHAFT; PROP L=348	1-37171-127-2	01	1	0006-	●
4	SHAFT; PROP FVZ(FVZ***) L=348	1-37171-127-2	01	1	0006-		●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	0006-0805	●
10	BOLT; UJT FVZ(FVZ***) (B) M12X45	9-91066-245-0	04	1	0006-0805		●
10	BOLT; UJT (B) M12X45	8-98036-382-0	04	1	0806-	●
10	BOLT; UJT FVZ(FVZ***) (B) M12X45	8-98036-382-0	04	1	0806-		●
10	BOLT; UJT (A) M10X20	9-02061-020-0	AR	1	0006-0512	●	●
10	BOLT; UJT (A) M10X20	0-20951-020-0	16	1	0601-	●	●
10	BOLT; UJT (A) M10X20	0-20951-020-0	08	1	0601-		●
10	BOLT; UJT FVZ(FVZ***) (A) M10X20	0-20951-020-0	08	1	0601-		●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0006-0603	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT FVZ(FVZ***) ID=12.2	9-09150-612-0	04	1	0006-0603		●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	0604-	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT FVZ(FVZ***) ID=12.2	0-91510-612-0	04	1	0604-		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0006-	●
14	COVER; DUST,SPIDER FVZ(FVZ***) (B)	1-37319-004-0	08	1	0006-		●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	AR	1	0006-	●	●
15	UNIVERSAL CENTER	1-37300-100-1	02	1	0006-	●
15	UNIVERSAL CENTER FVZ(FVZ***)	1-37300-100-1	02	1	0006-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0006-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	9-09031-210-0	01	1	0006-0512		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●
17	NIPPLE; GREASE,PROP SHAFT FVZ(FVZ***) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	0006-0603	●
57	WASHER; LK,YOKE FVZ(FVZ***) ID=12.2	9-09150-612-0	08	1	0006-0603		●
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	08	1	0604-	●
57	WASHER; LK,YOKE FVZ(FVZ***) ID=12.2	0-91510-612-0	08	1	0604-		●
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	0006-	●
58	FLANGE; SPLINED FVZ(FVZ***) L=265	1-37245-317-0	01	1	0006-		●
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	0006-0805	●
96	BOLT; PROP SHAFT FVZ(FVZ***) M12X45	9-91066-245-0	08	1	0006-0805		●
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	0806-	●
96	BOLT; PROP SHAFT FVZ(FVZ***) M12X45	8-98036-382-0	08	1	0806-		●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	0006-	●
104	PLUG; SLEEVE YOKE FVZ(FVZ***) (B)	1-09600-049-0	01	1	0006-		●
104	PLUG; SLEEVE YOKE (A)	1-09600-067-0	01	1	0006-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0006-0512	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0006-0512	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FVZ(FVZ***) PT1/8 STRAIGHT	9-09031-010-0	01	1	0006-0512		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	0006-0312	●
128	SEAL; SLEEVE FVZ(FVZ***) (B)	1-37247-006-0	01	1	0006-0312		●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	0401-	●
128	SEAL; SLEEVE FVZ(FVZ***) (B)	8-97603-618-0	01	1	0401-		●
128	SEAL; SLEEVE (A)	1-37247-019-0	01	1	0006-	●	●
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	0006-0805	●
169	BOLT; YOKE,SLEEVE FVZ(FVZ***) M12X45	9-91066-245-0	04	1	0006-0805		●
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	0806-	●
169	BOLT; YOKE,SLEEVE FVZ(FVZ***) M12X45	8-98036-382-0	04	1	0806-		●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	0006-0603	●
170	WASHER; LK,YOKE,SLEEVE FVZ(FVZ***) ID=12.2	9-09150-612-0	04	1	0006-0603		●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	0-91510-612-0	04	1	0604-	●
170	WASHER; LK,YOKE,SLEEVE FVZ(FVZ***) ID=12.2	0-91510-612-0	04	1	0604-		●

46 51 56 78 21 24 23 20 22 21 25 9 1 10 12 13 14 79 80 81 17 71 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (C) L=1034	1-37123-918-0	01	1	0006-	●
1	SHAFT; PROP FVM(FVM***) (C) L=1217	1-37124-115-0	01	1	0006-		●
1	SHAFT; PROP FVM(FVM***) (A) L=1323	1-37152-348-0	01	1	0006-		●
1	SHAFT; PROP FVZ(FVZ***) (C) L=847	1-37124-082-0	01	1	0006-		●
1	SHAFT; PROP FVZ(FVZ***) (B) L=743	1-37152-350-0	01	1	0006-		●
1	SHAFT; PROP FVZ(FVZ***) (A) L=603	1-37152-524-0	01	1	0006-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-066-1	02	1	0006-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-066-1	01	1	0006-		●
8	YOKE; FLANGE,PROP SHAFT FVZ(FVZ***)	1-37211-066-1	01	1	0006-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-091-1	AR	1	0006-	●	●
9	JOURNAL ASM; PROP SHAFT FVZ(FVZ***) (A)	1-37300-091-1	AR	1	0006-		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-092-1	AR	1	0006-		●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	0006-0805	●
10	BOLT; UJT FVZ(FVZ***) (B) M12X45	9-91066-245-0	04	1	0006-0805		●
10	BOLT; UJT (B) M12X45	8-98036-382-0	04	1	0806-	●
10	BOLT; UJT FVZ(FVZ***) (B) M12X45	8-98036-382-0	04	1	0806-		●
10	BOLT; UJT (A) M10X20	9-02061-020-0	AR	1	0006-0512	●	●
10	BOLT; UJT (A) M10X20	0-20951-020-0	16	1	0601-	●	●
10	BOLT; UJT (A) M10X20	0-20951-020-0	08	1	0601-		●
10	BOLT; UJT FVZ(FVZ***) (A) M10X20	0-20951-020-0	08	1	0601-		●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-008-0	AR	1	0006-	●	●
13	COVER; FRT UJT,PROP SHAFT	1-37355-020-0	AR	1	0006-	●	●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0006-	●
14	COVER; DUST,SPIDER FVZ(FVZ***) (B)	1-37319-004-0	08	1	0006-		●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	AR	1	0006-	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0006-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	9-09031-210-0	01	1	0006-0512		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●
17	NIPPLE; GREASE,PROP SHAFT FVZ(FVZ***) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-094-3	01	1	0006-		●
20	BEARING ASM; CTR,PROP SHAFT FVZ(FVZ***)	1-37510-094-3	01	1	0006-		●
21	SEAL; OIL,CENTER BRG D=120	1-09625-127-0	02	1	0006-		●
21	SEAL; OIL,CENTER BRG FVZ(FVZ***) D=120	1-09625-127-0	02	1	0006-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-048-2	01	1	0006-		●
22	RUBBER; CUSHION,CENTER BRG,1ST FVZ(FVZ***)	1-37516-048-2	01	1	0006-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-256-0	01	1	0006-		●
23	BEARING; CENTER,PROP SHAFT FVZ(FVZ***)	9-00090-256-0	01	1	0006-		●
24	RETAINER; CENTER BRG,1ST	1-37529-041-0	01	1	0006-		●
24	RETAINER; CENTER BRG,1ST FVZ(FVZ***)	1-37529-041-0	01	1	0006-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0006-		●
25	NIPPLE; GREASE,CENTER BRG FVZ(FVZ***) MT6 STRAIGHT	1-09380-006-0	01	1	0006-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-271-1	01	1	0006-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST FVZ(FVZ***)	1-37245-271-1	01	1	0006-		●
51	NUT; FLANGE,SPLINED M39 FLANGE	1-09440-046-0	01	1	0006-		●
51	NUT; FLANGE,SPLINED FVZ(FVZ***) M39 FLANGE	1-09440-046-0	01	1	0006-		●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0006-	●	●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0006-		●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0006-	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0006-		●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0006-		●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	0006-0605		●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0606-1204		●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-		●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	0006-0606		●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0607-		●

51 9 46 1 10 12 21 24 23 91 13 14 92 56 22 21 17 49 25 20 93 94 8 74 1 128 225 95 104 9 56 17 17 106 8 8 13 13 10 10 14 14 12 12 74 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (C) L=1034	1-37123-918-0	01	1	0006-	●
1	SHAFT; PROP FVM(FVM***) (C) L=1217	1-37124-115-0	01	1	0006-		●
1	SHAFT; PROP FVM(FVM***) (A) L=1323	1-37152-348-0	01	1	0006-		●
1	SHAFT; PROP FVZ(FVZ***) (C) L=847	1-37124-082-0	01	1	0006-		●
1	SHAFT; PROP FVZ(FVZ***) (B) L=743	1-37152-350-0	01	1	0006-		●
1	SHAFT; PROP FVZ(FVZ***) (A) L=603	1-37152-524-0	01	1	0006-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-066-1	02	1	0006-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-066-1	01	1	0006-		●
8	YOKE; FLANGE,PROP SHAFT FVZ(FVZ***)	1-37211-066-1	01	1	0006-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-091-1	AR	1	0006-	●	●
9	JOURNAL ASM; PROP SHAFT FVZ(FVZ***) (A)	1-37300-091-1	AR	1	0006-		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-092-1	AR	1	0006-		●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	0006-0805	●
10	BOLT; UJT FVZ(FVZ***) (B) M12X45	9-91066-245-0	04	1	0006-0805		●
10	BOLT; UJT (B) M12X45	8-98036-382-0	04	1	0806-	●
10	BOLT; UJT FVZ(FVZ***) (B) M12X45	8-98036-382-0	04	1	0806-		●
10	BOLT; UJT (A) M10X20	9-02061-020-0	AR	1	0006-0512	●	●
10	BOLT; UJT (A) M10X20	0-20951-020-0	16	1	0601-	●	●
10	BOLT; UJT (A) M10X20	0-20951-020-0	08	1	0601-		●
10	BOLT; UJT FVZ(FVZ***) (A) M10X20	0-20951-020-0	08	1	0601-		●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-008-0	AR	1	0006-	●	●
13	COVER; FRT UJT,PROP SHAFT	1-37355-020-0	AR	1	0006-	●	●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0006-	●
14	COVER; DUST,SPIDER FVZ(FVZ***) (B)	1-37319-004-0	08	1	0006-		●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	AR	1	0006-	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0006-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	9-09031-210-0	01	1	0006-0512		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●
17	NIPPLE; GREASE,PROP SHAFT FVZ(FVZ***) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-094-3	01	1	0006-		●
20	BEARING ASM; CTR,PROP SHAFT FVZ(FVZ***)	1-37510-094-3	01	1	0006-		●
21	SEAL; OIL,CENTER BRG D=120	1-09625-127-0	02	1	0006-		●
21	SEAL; OIL,CENTER BRG FVZ(FVZ***) D=120	1-09625-127-0	02	1	0006-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-048-2	01	1	0006-		●
22	RUBBER; CUSHION,CENTER BRG,1ST FVZ(FVZ***)	1-37516-048-2	01	1	0006-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-256-0	01	1	0006-		●
23	BEARING; CENTER,PROP SHAFT FVZ(FVZ***)	9-00090-256-0	01	1	0006-		●
24	RETAINER; CENTER BRG,1ST	1-37529-041-0	01	1	0006-		●
24	RETAINER; CENTER BRG,1ST FVZ(FVZ***)	1-37529-041-0	01	1	0006-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0006-		●
25	NIPPLE; GREASE,CENTER BRG FVZ(FVZ***) MT6 STRAIGHT	1-09380-006-0	01	1	0006-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-271-1	01	1	0006-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST FVZ(FVZ***)	1-37245-271-1	01	1	0006-		●
49	NUT; YOKE FVZ(FVZ***) M16 FLANGE	1-09449-065-0	04	1	0006-		●
51	NUT; FLANGE,SPLINED M39 FLANGE	1-09440-046-0	01	1	0006-		●
51	NUT; FLANGE,SPLINED FVZ(FVZ***) M39 FLANGE	1-09440-046-0	01	1	0006-		●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0006-	●	●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0006-		●
74	BOLT; YOKE,TRANS M16X48	1-09000-383-0	04	1	0006-	●	●
74	BOLT; YOKE,TRANS FVZ(FVZ***) M16X48	1-09000-383-0	04	1	0006-		●
74	BOLT; YOKE,TRANS FVZ(FVZ***) M16X48	1-09000-383-0	04	1	0006-		●
91	BOLT; HOLDER SET,CTR BRG FVZ(FVZ***) M16X45	1-09042-030-0	02	1	0006-		●
92	WASHER; LK,HOLDER SET,CTR BRG FVZ(FVZ***) ID=17	1-09503-241-1	02	1	0006-		●
93	NUT; HOLDER SET,CTR BRG FVZ(FVZ***) M16 SLOTTED	9-99116-516-0	02	1	0006-0605		●
93	NUT; HOLDER SET,CTR BRG FVZ(FVZ***) M16 SLOTTED	0-91116-516-0	02	1	0606-1204		●
93	NUT; HOLDER SET,CTR BRG FVZ(FVZ***) M16 SLOTTED	8-98049-689-0	02	1	1205-		●
94	PIN; SPLIT,HOLDER SET CTR BRG FVZ(FVZ***) OD=3.7 L=25	9-08114-025-0	02	1	0006-0606		●
94	PIN; SPLIT,HOLDER SET CTR BRG FVZ(FVZ***) OD=3.7 L=25	0-81124-025-0	02	1	0607-		●
95	BOLT; YOKE,FINAL M16X48	1-09000-383-0	04	1	0006-	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	0006-	●
104	PLUG; SLEEVE YOKE FVZ(FVZ***) (B)	1-09600-049-0	01	1	0006-		●
104	PLUG; SLEEVE YOKE (A)	1-09600-067-0	01	1	0006-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0006-0512	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0006-0512	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FVZ(FVZ***) PT1/8 STRAIGHT	9-09031-010-0	01	1	0006-0512		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	0006-0312	●
128	SEAL; SLEEVE FVZ(FVZ***) (B)	1-37247-006-0	01	1	0006-0312		●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	0401-	●
128	SEAL; SLEEVE FVZ(FVZ***) (B)	8-97603-618-0	01	1	0401-		●
128	SEAL; SLEEVE (A)	1-37247-019-0	01	1	0006-	●	●
225	YOKE; SLEEVE,PROP SHAFT L=332	1-37241-103-1	01	1	0006-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
