3-78 — FIXING PARTS; AIR PIPING (#10312) — 185 parça

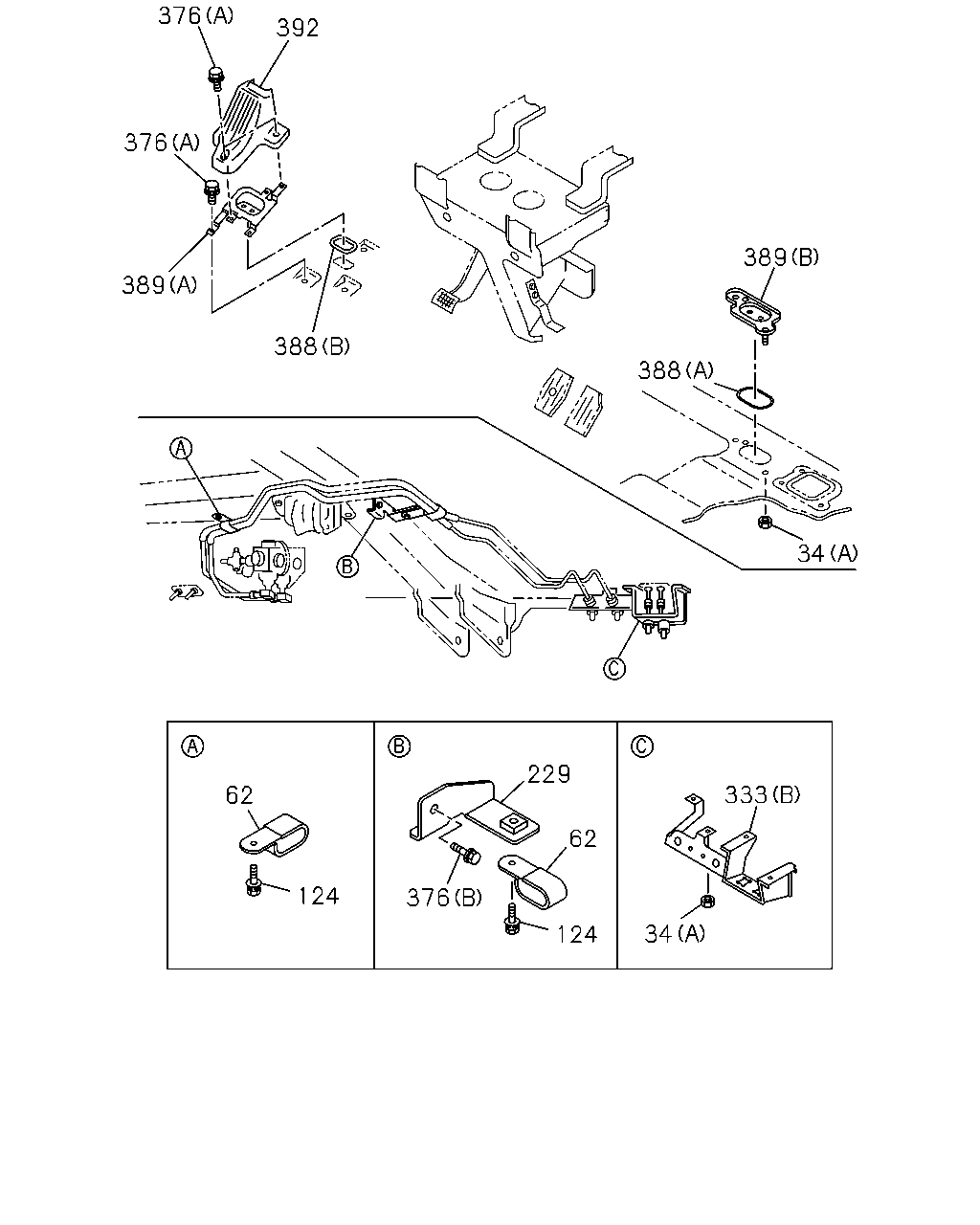

çizim 78808
376 392 376 389 389 388 388 34 229 333 62 62 124 376 34 124
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
34 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0006-0605 ● ●
34 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0606- ● ●
34 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0006-0605 ● ●
62 CLIP; AIR PIPE
ID=13X2 L=20 		9-09535-236-0 02 1 0006-0606 ● ●
62 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0607- ● ●
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0006-0904 ● ●
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
229 BRACKET; PIPE CLIP 1-79738-858-0 01 1 0006- ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-47475-427-1 01 1 0006-0109 ● ●
333 BRACKET; BRK AIR PIPE
EXC. AIR DRYER<PS7> (A) 		1-47475-427-1 01 1 0110- ● ●
333 BRACKET; BRK AIR PIPE
(B) 		1-79738-804-4 01 1 0006- ● ●
376 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0104-0512 ●
376 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0211 ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512 ● ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512 ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
376 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0006- ● ●
376 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0006- ● ●
376 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0006-0904 ● ●
376 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
388 SEAL
(A) L=280 		1-79738-793-1 01 1 0006- ● ●
388 SEAL
(B) L=215 		1-79738-794-1 01 1 0006- ● ●
389 BRACKET; UNION
(A) 		1-79738-790-1 01 1 0006- ● ●
389 BRACKET; UNION
(B) 		1-79738-839-0 01 1 0006- ● ●
392 COVER; BRKT 1-73996-264-1 01 1 0006- ● ●
çizim 79872
376 286 331 322 322 34 376 34 109 25 11 22 22 319
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512 ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0008-0512 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
22 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0212- ● ●
22 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 0008- ● ●
25 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0104-0512 ●
25 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
34 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0006-0605 ● ●
34 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0606- ● ●
34 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0006-0605 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0006-0602 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 01 1 0201- ● ●
286 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 01 1 0105-0208 ●
286 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0209- ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 10 1 0006-0008 ● ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 11 1 0009-0009 ● ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 12 1 0010-0112 ● ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 0201- ● ●
319 BRACKET; CLIP
L=60 H=30 		1-47477-716-1 01 1 0212- ● ●
322 BRACKET; CLIP
(B) 		1-42129-411-0 02 1 0104- ●
322 BRACKET; CLIP
(A) L=95 		1-82699-085-0 01 1 0105- ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 01 1 0605- ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 0202- ●
331 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 02 1 0104- ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 06 1 0006-0012 ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 07 1 0101-0112 ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 0201-0201 ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 07 1 0202- ● ●
376 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0104-0512 ●
376 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0211 ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512 ● ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512 ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
376 BOLT; BRKT
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
376 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0006- ● ●
376 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0006- ● ●
376 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0006-0904 ● ●
376 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●

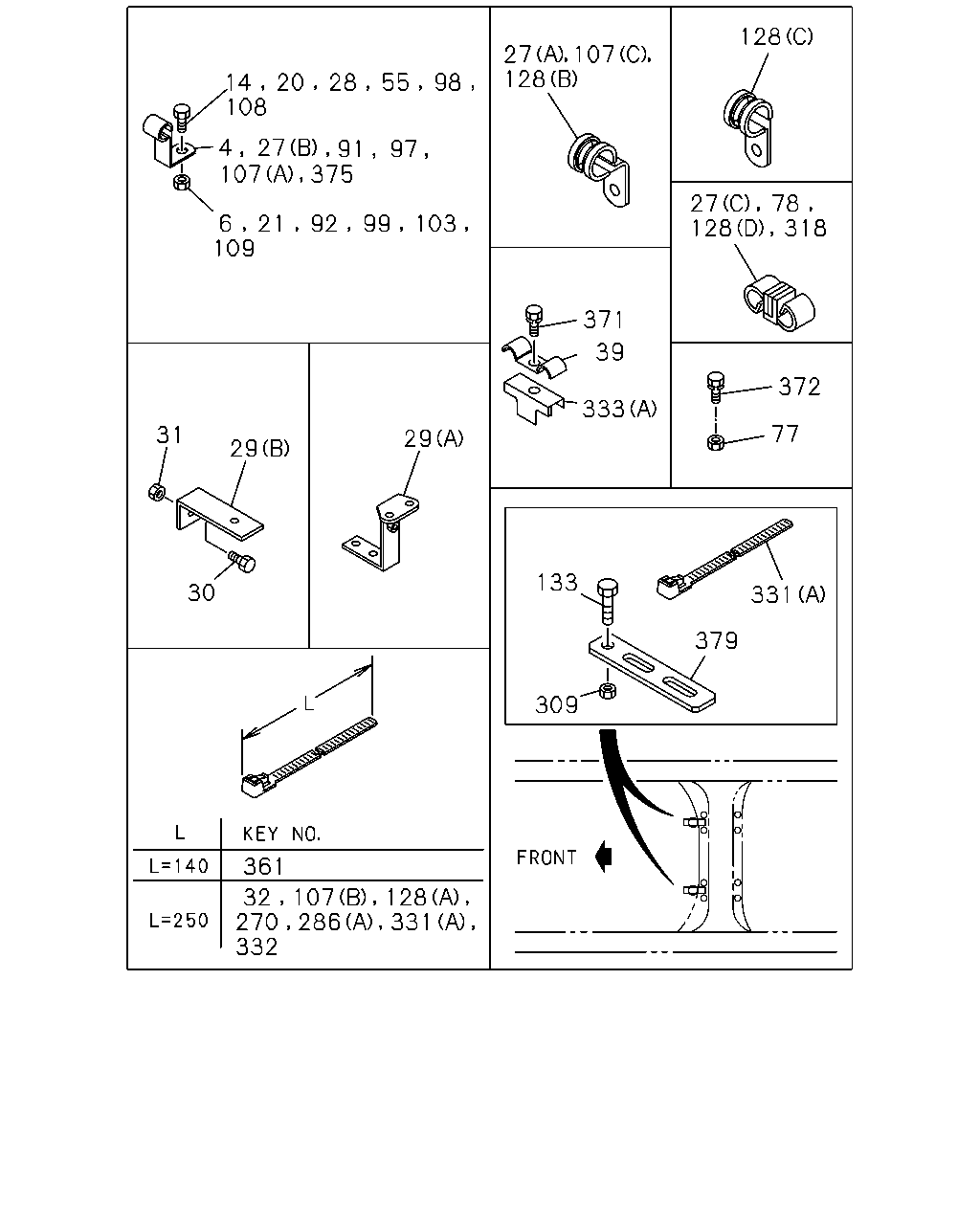

çizim 103021
128 128 108 28 55 98 97 109 92 99 103 371 39 372 333 77 31 29 29 133 30 331 379 309 361 128 332 14 20 4 27 91 107 375 6 21 27 107 27 78 128 318 107 32 270 286 331
BalonParca AdiParca NoAdetTipApplied Date A B
4 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 01 1 0006-0707 ● ●
4 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 01 1 0708- ● ●
6 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
14 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0006-0512 ● ●
14 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0006-0512 ● ●
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0006-0602 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 03 1 0006- ●
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0006-0207 ● ●
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0006-0207 ●
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0208- ● ●
27 CLIP; FLEX HOSE
(C) ID=12 & 12 		1-09709-280-1 01 1 0007-0112 ● ●
27 CLIP; FLEX HOSE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0006-0207 ●
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0208-1102 ●
27 CLIP; FLEX HOSE
(B) ID=25 H=60 L=35 		1-09701-103-0 01 1 0006-1102 ●
28 BOLT; CLIP,FLEX HOSE
M8X25 FLANGE 		0-28680-825-0 04 1 0006-0209 ● ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 04 1 0210-0512 ● ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
29 BRACKET; CLIP,AIR PIPE
(A) 		1-82699-639-1 03 1 0006- ●
29 BRACKET; CLIP,AIR PIPE
(B) L=105 B=25 		1-47476-161-0 01 1 0006- ● ●
30 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0006-0512 ● ●
30 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
31 NUT; CLIP BRKT
M10 FLANGE 		5-09440-006-0 03 1 0006- ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
32 CLIP; BAND,RUBBER SLEEVE
L=250 		1-09707-126-0 01 1 0006- ●
39 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0006-0109 ● ●
39 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0110- ● ●
55 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0006-0512 ● ●
55 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0010-0602 ● ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
78 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 02 1 0006-0109 ● ●
78 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 0110- ● ●
78 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 04 1 0110- ● ●
91 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 02 1 0006-0707 ● ●
91 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 02 1 0708- ● ●
92 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
97 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 01 1 0006-0707 ● ●
97 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 01 1 0708- ● ●
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0006-0512 ● ●
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
99 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
99 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
103 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602 ● ●
103 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
107 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0006- ● ●
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0006- ● ●
107 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 14 1 0006- ● ●
108 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0006-0512 ● ●
108 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0006-0512 ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0006-0602 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
128 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 21 1 0006-0012 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=250 		1-09707-126-0 21 1 0006-0012 ●
128 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 22 1 0101- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=250 		1-09707-126-0 22 1 0101- ●
128 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 02 1 0006- ● ●
128 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 02 1 0006- ●
128 CLIP; NYLON TUBE
(D) ID=12 & 12 		1-09709-280-1 02 1 0101-0205 ● ●
128 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 02 1 0006- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0006-0512 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
270 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=250 		1-09707-126-0 02 1 0012- ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 01 1 0201- ● ●
286 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 01 1 0105-0208 ●
286 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0209- ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 10 1 0006-0008 ● ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 11 1 0009-0009 ● ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 12 1 0010-0112 ● ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 0201- ● ●
309 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0605- ● ●
309 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0006-0211 ● ●
309 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 03 1 0212-0602 ● ●
309 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 03 1 0603-0604 ● ●
309 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0605- ● ●
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 6.35 		1-09709-273-1 01 1 0110- ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 01 1 0605- ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 0202- ●
331 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 02 1 0104- ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 06 1 0006-0012 ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 07 1 0101-0112 ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 0201-0201 ● ●
331 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 07 1 0202- ● ●
332 CLIP; BAND
L=250 		1-09707-126-0 04 1 0006- ● ●
332 CLIP; BAND
L=250 		1-09707-126-0 04 1 0006- ●
332 CLIP; BAND
L=250 		1-09707-126-0 05 1 0006- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-47475-427-1 01 1 0006-0109 ● ●
333 BRACKET; BRK AIR PIPE
EXC. AIR DRYER<PS7> (A) 		1-47475-427-1 01 1 0110- ● ●
333 BRACKET; BRK AIR PIPE
(B) 		1-79738-804-4 01 1 0006- ● ●
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=140 		5-09707-031-1 01 1 0006- ● ●
371 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0006-0109 ● ●
371 BOLT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8X50 FLANGE 		0-28080-850-0 01 1 0110-0512 ● ●
371 BOLT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0010-0512 ● ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
375 CLIP; AIR PIPE
ID=14 H=50 L=20 		1-09700-843-0 01 1 0006-0401 ● ●
375 CLIP; AIR PIPE
ID=9 H=60 		1-09700-956-0 01 1 0402- ● ●
379 BRACKET; NYLON TUBE 1-47477-514-3 02 1 0006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
