3-77 — BRAKE PIPING; AIR,REAR (#10311) — 106 parça

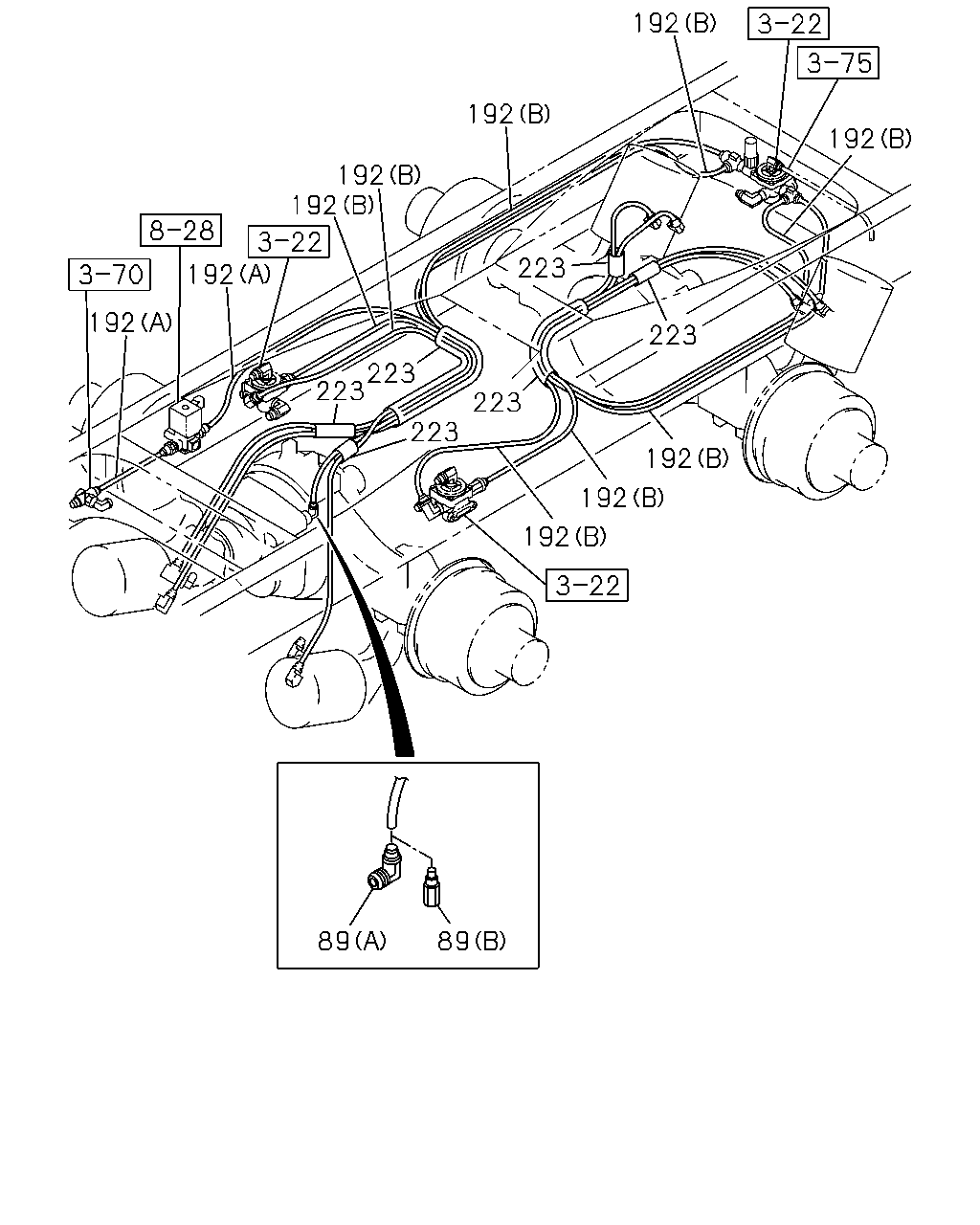

192 192 192 192 192 192 223 192 223 223 223 223 223 192 192 192 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0006-0111	●
89	CONNECTOR; NYLON TUBE (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0112-	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	02	1	0006-0007		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	02	1	0006-0007	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	03	1	0008-0011		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	03	1	0008-0011	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	02	1	0012-		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	02	1	0012-	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0006-0007		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0006-0007	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0012-		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0012-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	08	1	0006-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0006-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0006-0212	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0006-	●
192	TUBE; NYLON WHEEL BASE 5000MM(50W) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0006-	●
192	TUBE; NYLON WHEEL BASE 5000MM(50W) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0006-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0201-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	08	1	0006-0103		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0104-0104		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0006-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0006-0112	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0201-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	0006-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	04	1	0006-0011	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	02	1	0012-0103	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	02	1	0104-	●	●

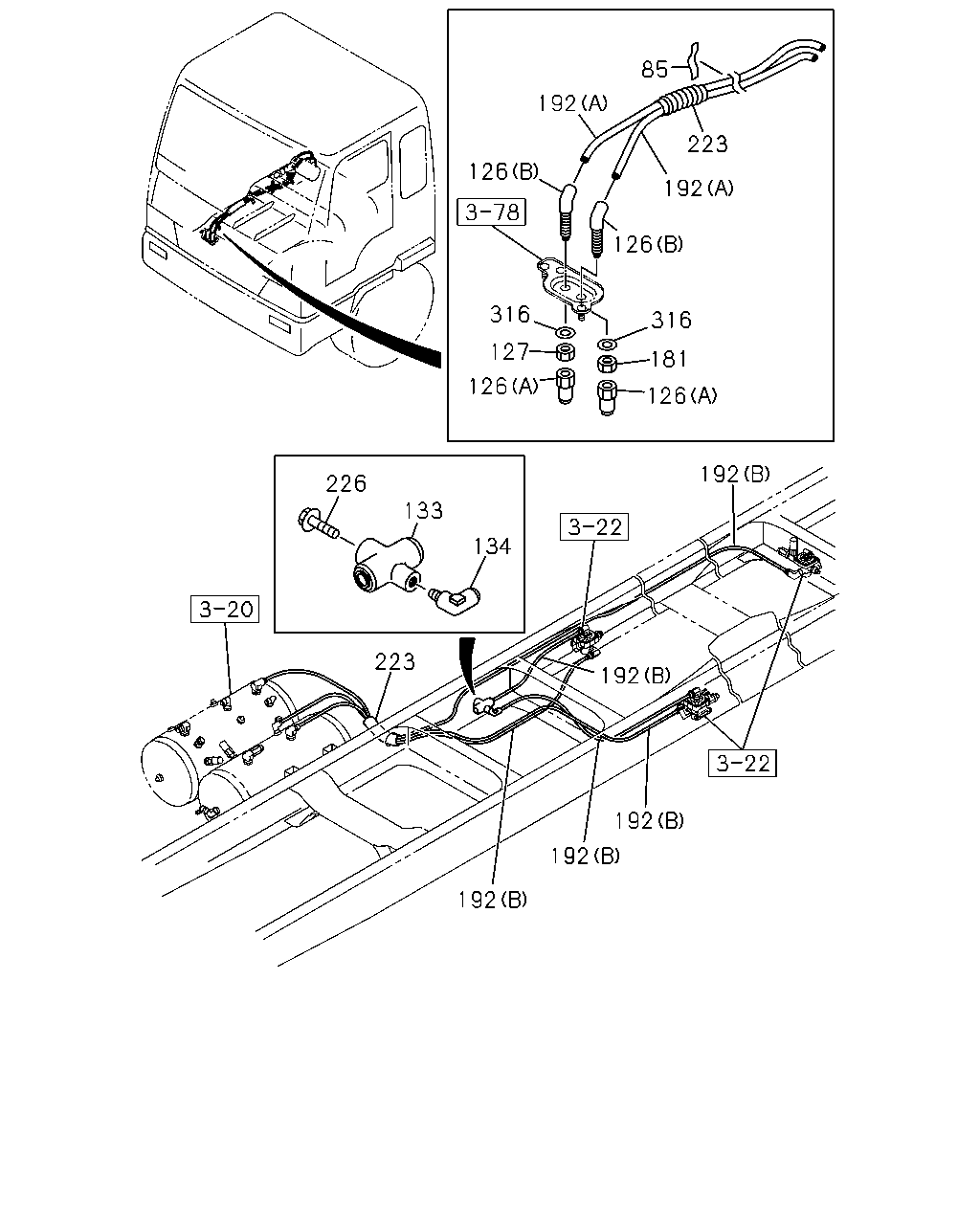

85 192 223 126 192 316 316 127 181 126 126 192 226 133 134 223 192 192 192 192 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	0006-	●	●
126	UNION; NYLON TUBE (B) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0006-0706	●	●
126	UNION; NYLON TUBE (B) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0006-0007	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706	●	●
127	NUT; UNION M20	9-99111-420-0	01	1	0006-0512	●	●
127	NUT; UNION M20	0-91111-520-0	01	1	0601-	●	●
133	UNION; NIPPLE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0006-	●	●
134	CONNECTOR DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0006-	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	0006-0512	●	●
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	02	1	0006-0007		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	02	1	0006-0007	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	03	1	0008-0011		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	03	1	0008-0011	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	02	1	0012-		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	02	1	0012-	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0006-0007		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0006-0007	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0012-		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0012-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-		●
192	TUBE; NYLON WHEEL BASE 6300MM(63W) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	08	1	0006-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0006-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0006-0212	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0006-	●
192	TUBE; NYLON WHEEL BASE 5000MM(50W) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0006-	●
192	TUBE; NYLON WHEEL BASE 5000MM(50W) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0006-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0201-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	08	1	0006-0103		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0104-0104		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0006-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0006-0112	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0201-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	0006-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	04	1	0006-0011	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	02	1	0012-0103	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	02	1	0104-	●	●
226	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0006-0512	●	●
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
316	WASHER; PL ID=21	9-09160-520-0	02	1	0006-0605	●	●
316	WASHER; PL ID=21	0-91610-520-0	02	1	0606-	●	●

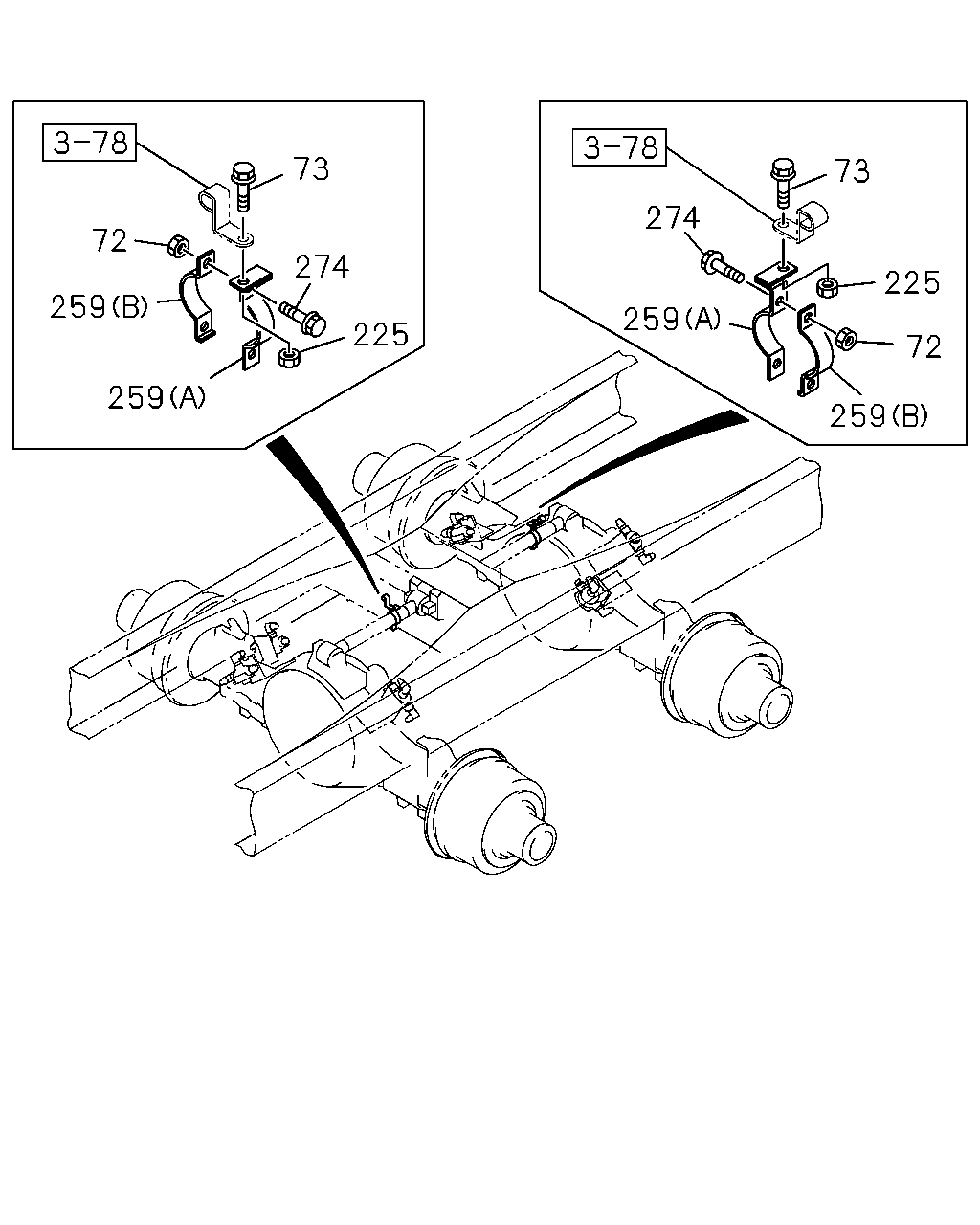

73 73 274 72 274 225 259 259 225 72 259 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0006-0602	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0008-0211	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0212-0602	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0006-0512	●	●
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0006-0512	●	●
73	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
73	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0006-0602	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0006-0602	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
259	BRACKET; ROD,NYLON TUBE (A)	1-47476-428-0	02	1	0006-0102	●	●
259	BRACKET; ROD,NYLON TUBE (A)	1-47479-226-0	02	1	0103-	●	●
259	BRACKET; ROD,NYLON TUBE (B)	1-47476-429-0	02	1	0006-	●	●
274	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0006-0512	●	●
274	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●

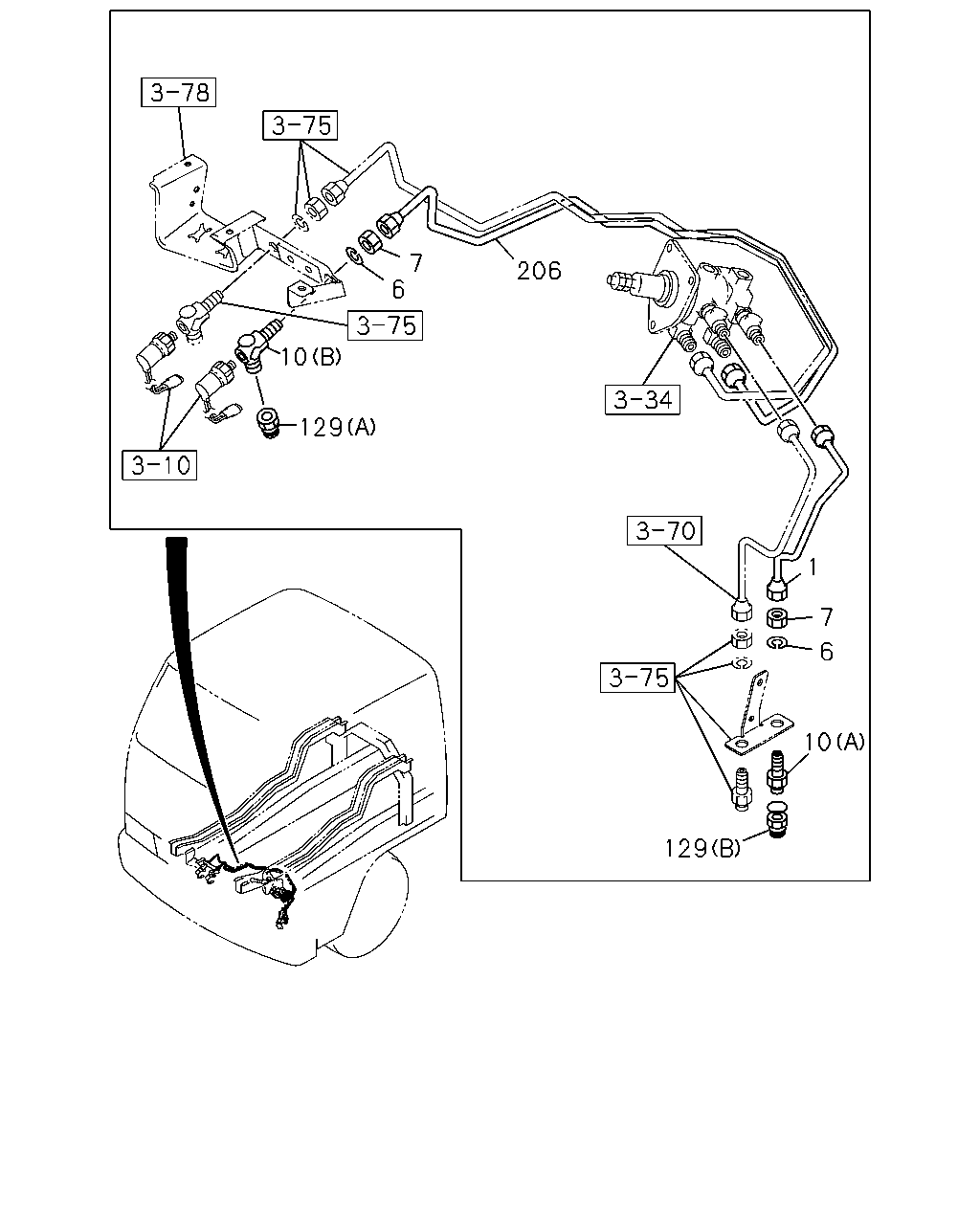

7 6 206 10 129 1 7 6 10 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=423	1-49113-428-2	01	1	0006-	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0006-0603	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0006-0512	●	●
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	0006-	●	●
10	CONNECTOR; FLEX HOSE (B) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	0006-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0006-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0006-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1267	1-49121-665-0	01	1	0006-	●	●
