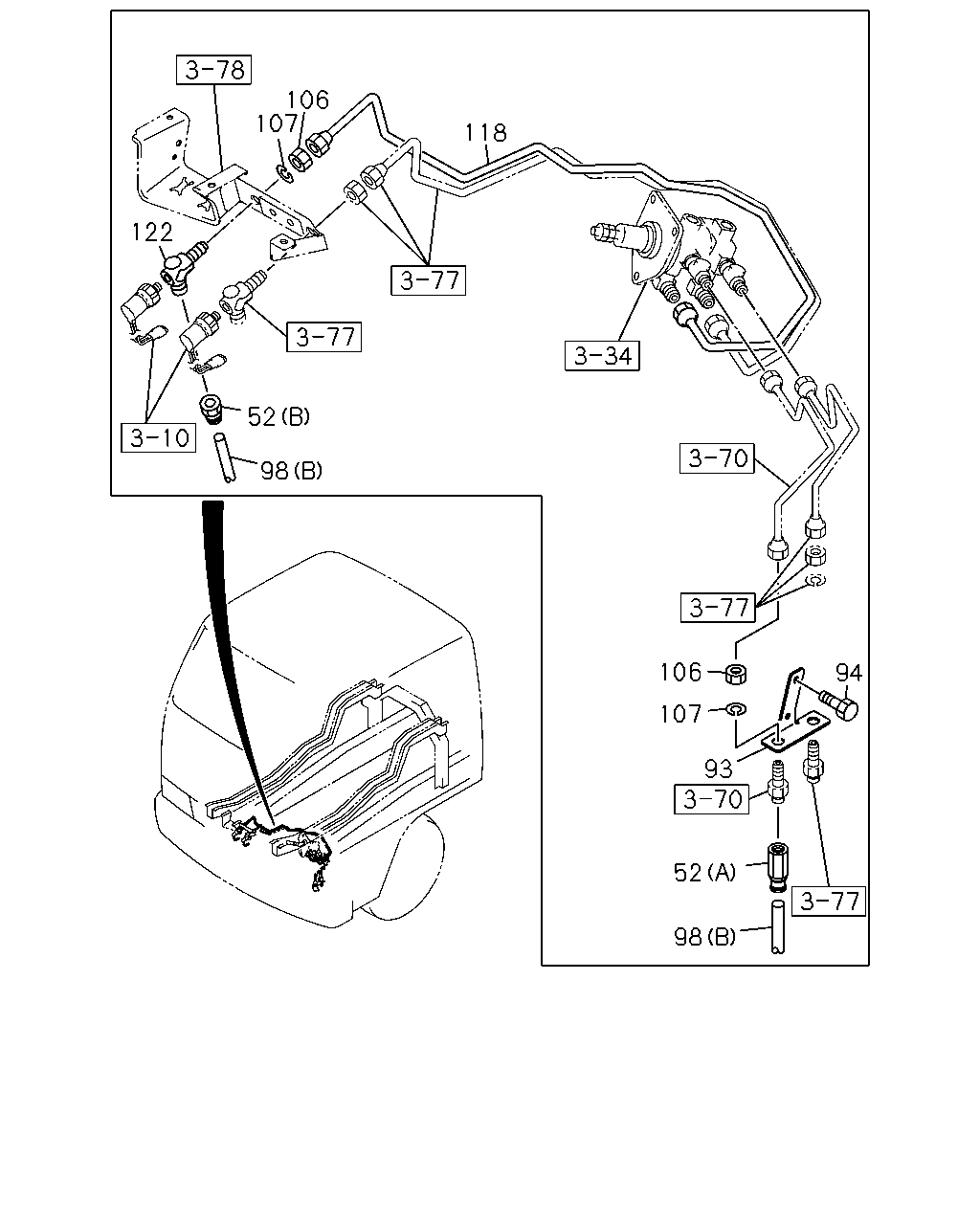

3-75 — BRAKE PIPING; AIR,FRONT (#10310) — 78 parça

106 107 118 122 52 98 106 94 107 93 52 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0006-0007	●	●
52	CONNECTOR; NYLON TUBE (A),(B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
52	CONNECTOR; NYLON TUBE (A),(B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0006-0007	●	●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	0006-	●	●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0006-0904	●	●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=8	1-09369-578-0	01	1	0006-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	03	1	0006-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	0006-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0106-	●	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0006-	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0006-0512	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0006-0512	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0006-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0006-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=989	1-49121-666-0	01	1	0006-	●	●
122	CONNECTOR; FLEX HOSE M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	0006-	●	●

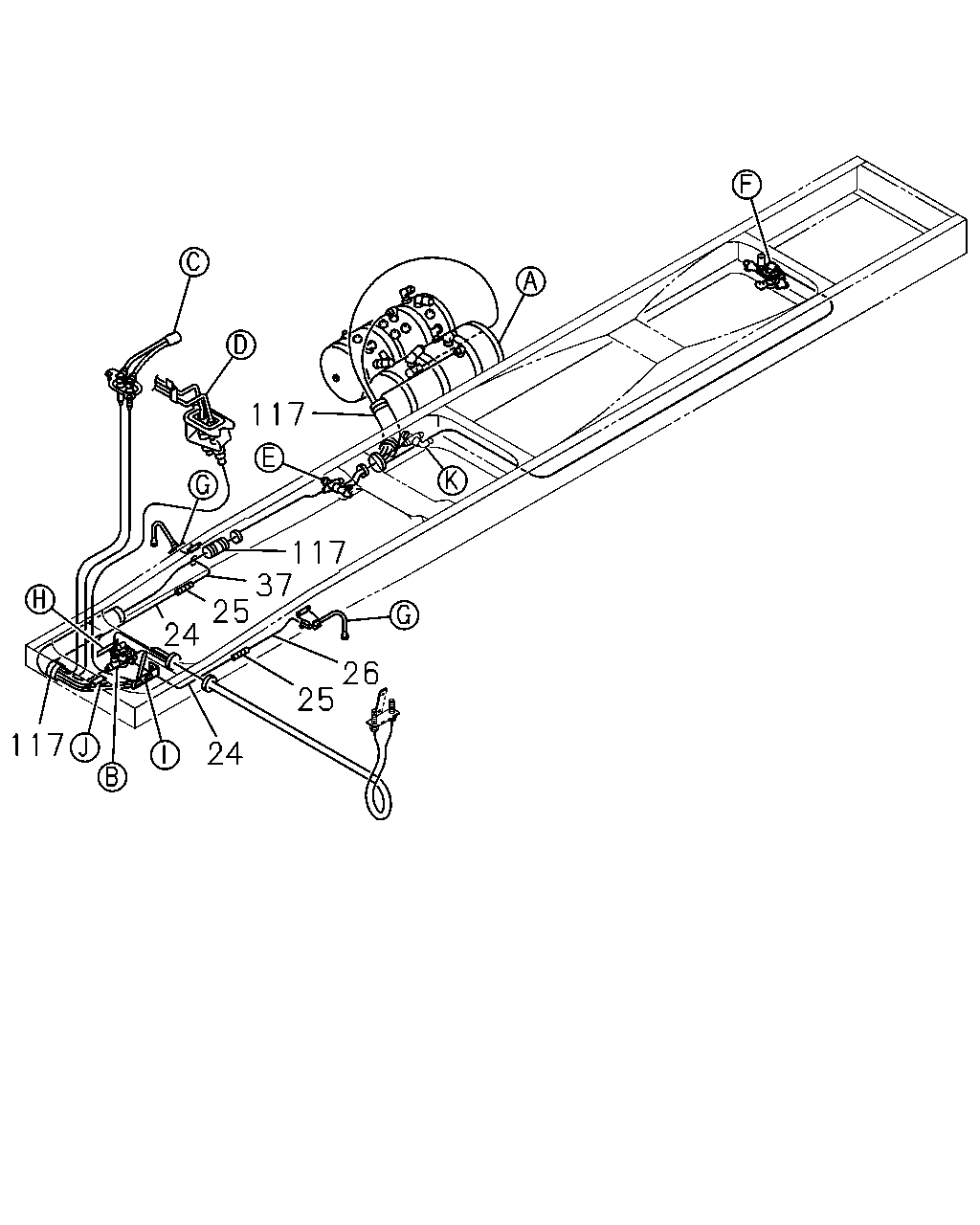

117 117 37 25 24 26 25 117 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-326-0	01	1	0006-	●	●
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-324-0	01	1	0006-0301	●	●
24	PIPE; AIR,RELAY VLV TO UNION	1-49124-019-0	01	1	0302-	●	●
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	0006-0607	●	●
25	UNION; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-	●	●
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	0006-	●	●
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	0006-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0201-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0006-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0006-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0006-	●	●

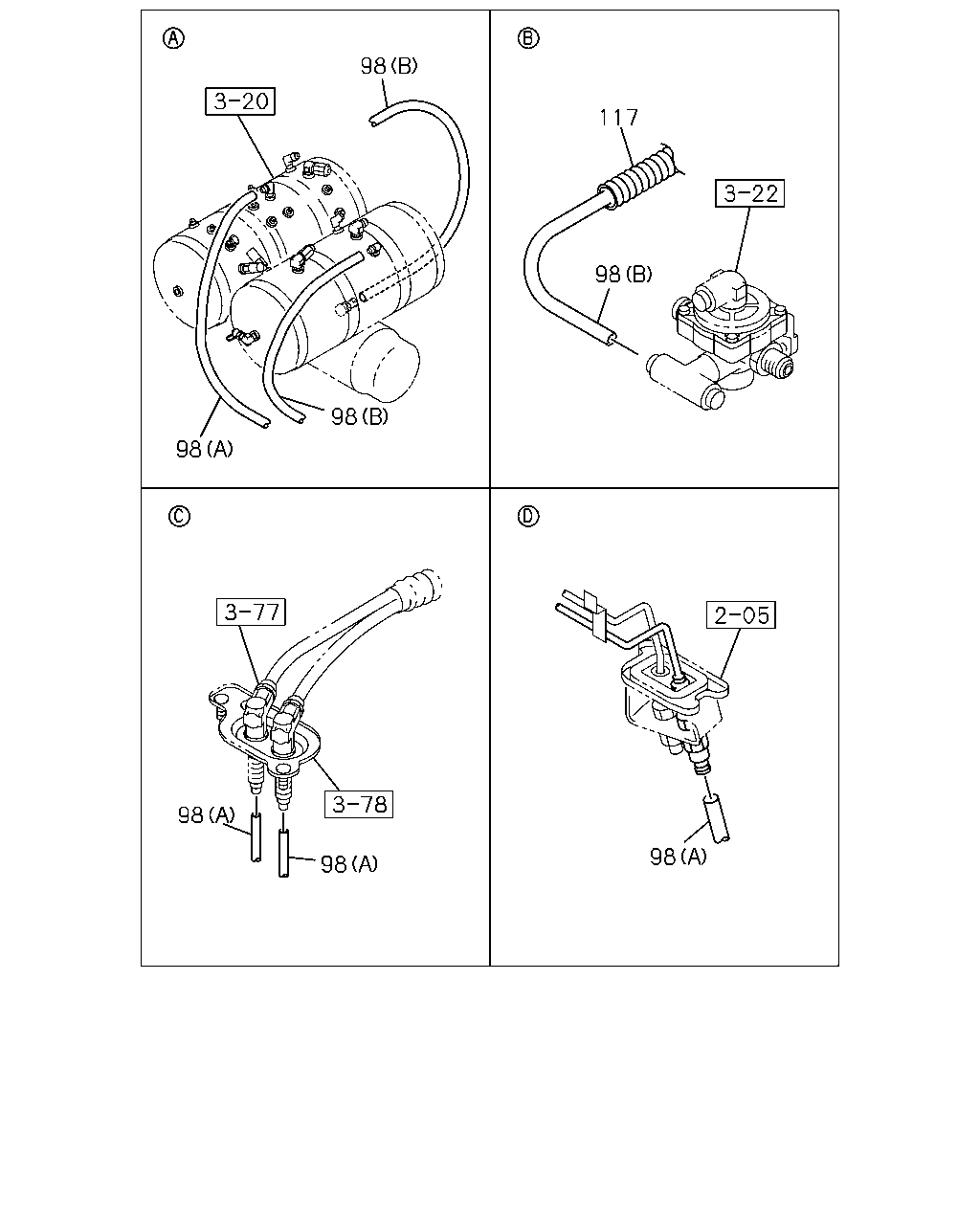

98 98 65 66 32 55 35 56 107 106 41 56 55 55 48 56 98 48 55 48 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT L=630	0-07475-630-1	02	1	0006-0605	●	●
32	HOSE; FLEX,FRT L=630	0-57475-630-1	02	1	0606-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0006-	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0006-	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	04	1	0006-0211	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	05	1	0212-0602	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
55	BRACKET; TUBE UNION (D) L=60 H=30	1-47477-716-1	01	1	0212-	●	●
55	BRACKET; TUBE UNION (A)	1-47477-256-1	01	1	0006-	●	●
55	BRACKET; TUBE UNION (B)	1-47477-514-3	01	1	0006-	●	●
55	BRACKET; TUBE UNION (C) L=225	1-47477-646-3	01	1	0006-	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	02	1	0006-0512	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	02	1	0006-0211	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	03	1	0212-0512	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0006-	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0006-	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0006-0512	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=8	1-09369-578-0	01	1	0006-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	03	1	0006-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	0006-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0106-	●	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0006-	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0006-0512	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0006-0512	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0006-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0006-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●

98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=8	1-09369-578-0	01	1	0006-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	03	1	0006-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	0006-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0106-	●	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0006-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0201-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0006-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0006-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0006-	●	●
