Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#10307) — 317 parça

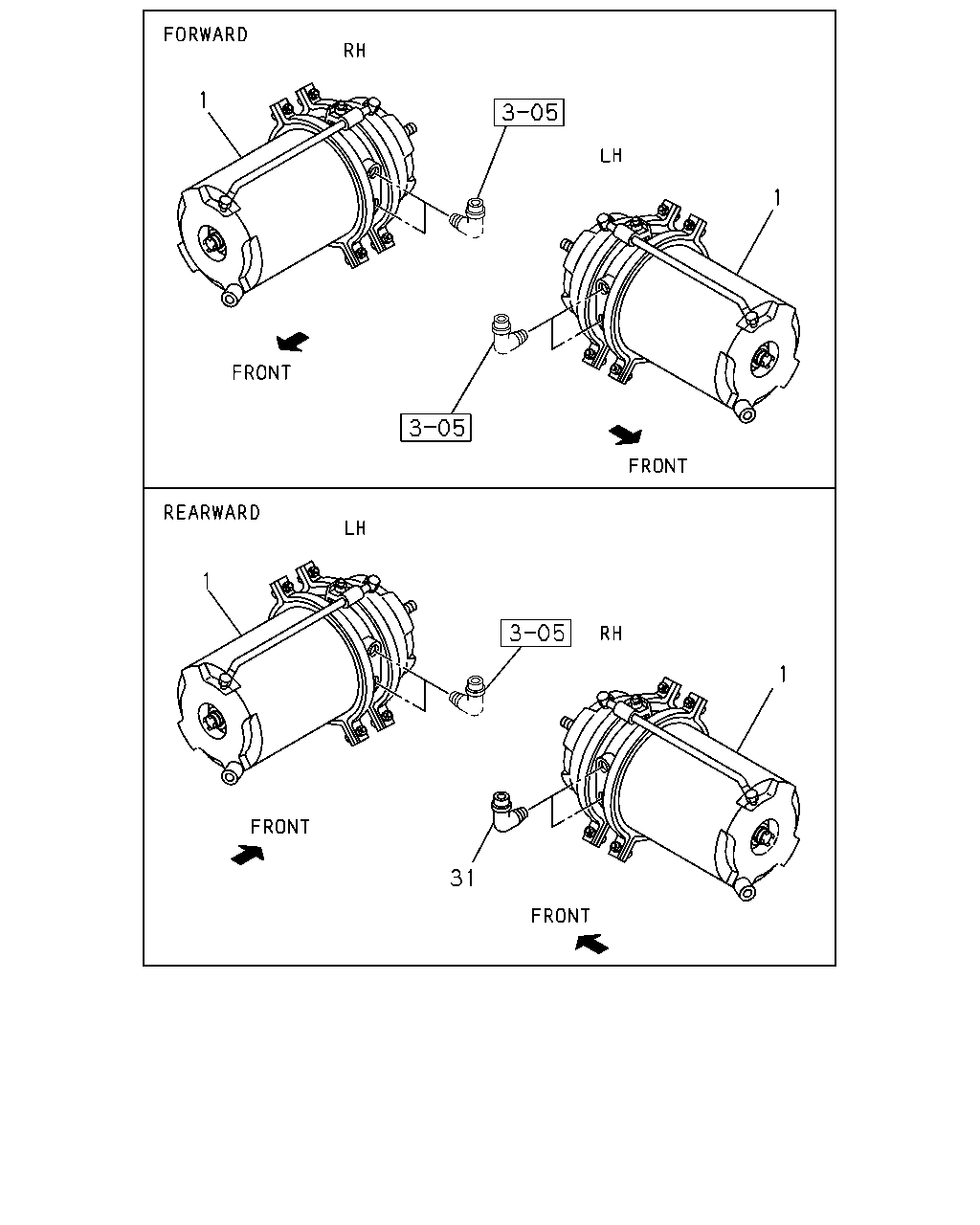

1 1 1 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FVM;FWD RH,RWD LH FVZ;FWD RH	1-48250-176-2	01	1	0006-	●	●
1	CHAMBER ASM; SPRING FVM;FWD RH,RWD LH FVZ;FWD RH	1-48250-176-2	01	1	0006-	●
1	CHAMBER ASM; SPRING FVM;FWD LH,RWD RH FVZ;FWD LH	1-48250-177-2	01	1	0006-	●	●
1	CHAMBER ASM; SPRING FVM;FWD LH,RWD RH FVZ;FWD LH	1-48250-177-2	01	1	0006-	●
1	CHAMBER ASM; SPRING RWD RH	1-48250-248-2	01	1	0006-		●
1	CHAMBER ASM; SPRING RWD LH	1-48250-249-2	01	1	0006-		●
31	CONNECTOR DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0006-		●

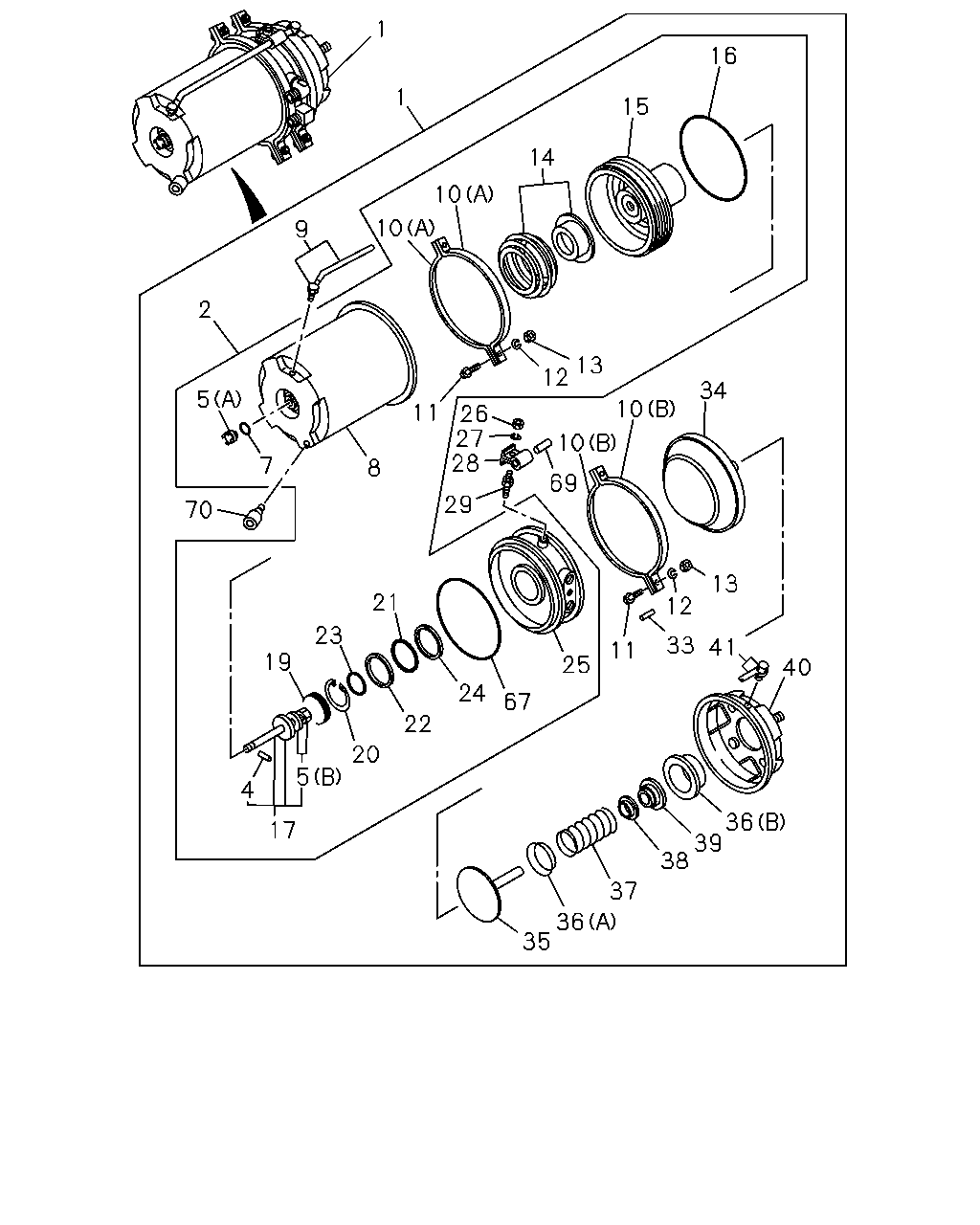

1 16 1 15 14 10 10 9 2 13 12 34 5 10 11 26 27 28 10 7 8 69 29 70 13 12 21 23 33 41 11 19 25 40 24 67 22 20 5 4 36 39 38 17 37 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FVM;FWD RH,RWD LH FVZ;FWD RH	1-48250-176-2	01	1	0006-	●	●
1	CHAMBER ASM; SPRING FVM;FWD RH,RWD LH FVZ;FWD RH	1-48250-176-2	01	1	0006-	●
1	CHAMBER ASM; SPRING FVM;FWD LH,RWD RH FVZ;FWD LH	1-48250-177-2	01	1	0006-	●	●
1	CHAMBER ASM; SPRING FVM;FWD LH,RWD RH FVZ;FWD LH	1-48250-177-2	01	1	0006-	●
1	CHAMBER ASM; SPRING RWD RH	1-48250-248-2	01	1	0006-		●
1	CHAMBER ASM; SPRING RWD LH	1-48250-249-2	01	1	0006-		●
2	CHAMBER; EMERGENCY FVM;FWD RH,RWD LH FVZ;FWD RH	1-48252-020-0	01	1	0006-	●	●
2	CHAMBER; EMERGENCY FVM;FWD RH,RWD LH FVZ;FWD RH	1-48252-020-0	01	1	0006-	●
2	CHAMBER; EMERGENCY FVM;FWD LH,RWD RH FVZ;FWD LH	1-48252-021-0	01	1	0006-	●	●
2	CHAMBER; EMERGENCY FVM;FWD LH,RWD RH FVZ;FWD LH	1-48252-021-0	01	1	0006-	●
2	CHAMBER; EMERGENCY REARWARD	1-48252-039-0	01	1	0006-0402		●
2	CHAMBER; EMERGENCY REARWARD	1-48252-033-0	01	1	0403-		●
2	CHAMBER; EMERGENCY REARWARD	1-48252-040-0	01	1	0006-0402		●
2	CHAMBER; EMERGENCY	1-48252-031-0	01	1	0403-		●
2	CHAMBER; EMERGENCY REARWARD	1-48252-031-0	01	1	0403-		●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	0006-	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	0006-	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	08	1	0006-		●
5	NUT; SHELL (A)	1-48259-054-0	02	1	0006-	●
5	NUT; SHELL (A)	1-48259-054-0	02	1	0006-	●
5	NUT; SHELL (B)	1-48259-074-0	02	1	0006-	●
5	NUT; SHELL (B)	1-48259-074-0	02	1	0006-	●
5	NUT; SHELL (A)	1-48259-054-0	04	1	0006-		●
5	NUT; SHELL (B)	1-48259-074-0	04	1	0006-		●
7	GASKET RWD LH	1-09623-095-0	01	1	0403-		●
7	GASKET	1-48259-055-0	02	1	0006-	●
7	GASKET	1-48259-055-0	02	1	0006-	●
7	GASKET	1-48259-055-0	04	1	0006-0402		●
7	GASKET FWD,RWD RH	1-48259-055-0	03	1	0403-		●
8	SHELL; CYL,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-069-0	01	1	0006-	●	●
8	SHELL; CYL,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-069-0	01	1	0006-	●
8	SHELL; CYL,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-070-0	01	1	0006-	●	●
8	SHELL; CYL,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-070-0	01	1	0006-	●
8	SHELL; CYL,SPR CHAMBER RWD	1-48251-043-0	02	1	0006-		●
9	PIPE ASM; SHELL	1-48259-076-0	02	1	0006-	●
9	PIPE ASM; SHELL	1-48259-076-0	02	1	0006-	●
9	PIPE ASM; SHELL	1-48259-076-0	04	1	0006-		●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	04	1	0006-	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	04	1	0006-	●
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	04	1	0006-	●
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	04	1	0006-	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	08	1	0006-		●
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	08	1	0006-		●
11	BOLT; CLAMP RING	1-48259-035-0	08	1	0006-	●
11	BOLT; CLAMP RING	1-48259-035-0	08	1	0006-	●
11	BOLT; CLAMP RING	1-48259-035-0	16	1	0006-		●
12	WASHER; LK,CLAMP RING FVZ;FWD	1-48259-046-0	08	1	0006-	●	●
12	WASHER; LK,CLAMP RING FVZ;FWD	1-48259-046-0	08	1	0006-	●
12	WASHER; LK,CLAMP RING RWD ID=10.2	9-09150-510-0	08	1	0006-		●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	0006-0402	●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	0006-0402	●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	0403-	●	●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	0403-	●
13	NUT; CLAMP RING M10	9-09110-510-0	12	1	0006-0402		●
13	NUT; CLAMP RING M10	9-09110-510-0	04	1	0403-		●
14	SPRING & SEAT SET	1-48259-037-1	02	1	0006-	●
14	SPRING & SEAT SET	1-48259-037-1	02	1	0006-	●
14	SPRING & SEAT SET (B)	1-48259-037-1	04	1	0006-		●
14	SPRING & SEAT SET (A)	8-83315-080-0	04	1	0006-		●
15	PISTON	1-48262-005-0	02	1	0006-	●
15	PISTON	1-48262-005-0	02	1	0006-	●
15	PISTON	1-48262-005-0	04	1	0006-		●
16	GASKET	1-48259-048-0	02	1	0006-	●
16	GASKET	1-48259-048-0	02	1	0006-	●
16	GASKET	1-48259-048-0	04	1	0006-		●
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	0006-	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	0006-	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	04	1	0006-		●
19	COVER; PISTON	1-48269-011-0	02	1	0006-	●
19	COVER; PISTON	1-48269-011-0	02	1	0006-	●
19	COVER; PISTON	1-48269-011-0	04	1	0006-		●
20	RING; RET	1-48259-060-0	02	1	0006-	●
20	RING; RET	1-48259-060-0	02	1	0006-	●
20	RING; RET	1-48259-060-0	04	1	0006-		●
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	0006-	●
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	0006-	●
21	GASKET; SPR CHAMBER	1-48259-049-0	04	1	0006-		●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	0006-	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	0006-	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	04	1	0006-		●
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	0006-	●
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	0006-	●
23	GASKET; SPR CHAMBER	1-48259-047-0	04	1	0006-		●
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	0006-	●
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	0006-	●
24	BEARING; SPR CHAMBER	1-48259-020-0	04	1	0006-		●
25	PLATE; PRESSURE,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-087-0	01	1	0006-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-087-0	01	1	0006-	●
25	PLATE; PRESSURE,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-088-0	01	1	0006-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-088-0	01	1	0006-	●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-138-0	01	1	0006-0402		●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-116-0	01	1	0403-		●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-140-0	01	1	0006-0402		●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-122-0	01	1	0403-		●
26	NUT; PRESSURE PLATE	1-48259-058-0	04	1	0006-0402	●
26	NUT; PRESSURE PLATE	1-48259-058-0	04	1	0006-0402	●
26	NUT; PRESSURE PLATE FVZ;FWD	1-48259-058-0	04	1	0403-	●	●
26	NUT; PRESSURE PLATE FVZ;FWD	1-48259-058-0	04	1	0403-	●
26	NUT; PRESSURE PLATE	1-48259-058-0	08	1	0006-0402		●
26	NUT; PRESSURE PLATE RWD M8	9-09111-508-0	04	1	0403-		●
27	WASHER; PRESSURE PLATE FVZ;FWD	1-48259-057-0	02	1	0006-	●	●
27	WASHER; PRESSURE PLATE FVZ;FWD	1-48259-057-0	02	1	0006-	●
27	WASHER; PRESSURE PLATE RWD ID=8.2	9-09150-508-0	02	1	0006-		●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	02	1	0006-	●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	02	1	0006-	●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	04	1	0006-		●
29	STUD; PRESSURE PLATE	1-48259-050-0	02	1	0006-	●
29	STUD; PRESSURE PLATE	1-48259-050-0	02	1	0006-	●
29	STUD; PRESSURE PLATE	1-48259-050-0	04	1	0006-		●
33	RETAINER; DIAPH FVZ;FWD	1-48259-044-0	04	1	0006-	●	●
33	RETAINER; DIAPH FVZ;FWD	1-48259-044-0	04	1	0006-	●
33	RETAINER; DIAPH RWD	1-48250-044-0	02	1	0006-		●
34	DIAPHRAGM FVZ;FWD	1-48252-011-0	02	1	0006-	●	●
34	DIAPHRAGM FVZ;FWD	1-48252-011-0	02	1	0006-	●
34	DIAPHRAGM RWD	1-48258-011-0	02	1	0006-		●
35	PLATE; ROD END,SPR CHAMBER FVZ;FWD	1-48253-011-0	02	1	0006-	●	●
35	PLATE; ROD END,SPR CHAMBER FVZ;FWD	1-48253-011-0	02	1	0006-	●
35	PLATE; ROD END,SPR CHAMBER RWD RH	1-48253-029-0	01	1	0006-0402		●
35	PLATE; ROD END,SPR CHAMBER RWD	1-48253-029-0	02	1	0403-		●
35	PLATE; ROD END,SPR CHAMBER RWD LH	1-48253-035-0	01	1	0006-0402		●
36	RETAINER; SPR CHAMBER (B)	1-48259-033-0	02	1	0006-	●
36	RETAINER; SPR CHAMBER (B)	1-48259-033-0	02	1	0006-	●
36	RETAINER; SPR CHAMBER (A)	1-48259-043-0	02	1	0006-	●
36	RETAINER; SPR CHAMBER (A)	1-48259-043-0	02	1	0006-	●
36	RETAINER; SPR CHAMBER (A)	1-48259-033-0	04	1	0006-		●
36	RETAINER; SPR CHAMBER (B)	1-48259-043-0	04	1	0006-		●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	02	1	0006-	●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	02	1	0006-	●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	04	1	0006-		●
38	COVER; ROD & PLATE	1-48259-066-0	02	1	0006-	●
38	COVER; ROD & PLATE	1-48259-066-0	02	1	0006-	●
38	COVER; ROD & PLATE	1-48259-066-0	04	1	0006-		●
39	COVER; ROD & PLATE	1-48259-065-0	02	1	0006-	●
39	COVER; ROD & PLATE	1-48259-065-0	02	1	0006-	●
39	COVER; ROD & PLATE	1-48259-065-0	04	1	0006-		●
40	COVER ASM; LWR,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-081-1	01	1	0006-	●	●
40	COVER ASM; LWR,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-081-1	01	1	0006-	●
40	COVER ASM; LWR,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-082-1	01	1	0006-	●	●
40	COVER ASM; LWR,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-082-1	01	1	0006-	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-137-0	01	1	0006-0402		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-115-0	01	1	0403-		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-139-0	01	1	0006-0402		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-119-0	01	1	0403-		●
41	PIPE ASM; LWR COVER	1-48259-080-0	02	1	0006-	●
41	PIPE ASM; LWR COVER	1-48259-080-0	02	1	0006-	●
41	PIPE ASM; LWR COVER	1-48259-080-0	04	1	0006-		●
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	0006-	●
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	0006-	●
67	GASKET; SPR CHAMBER	1-48259-053-0	04	1	0006-		●
69	HOSE; PRESSURE PLATE	1-48259-051-0	02	1	0006-	●
69	HOSE; PRESSURE PLATE	1-48259-051-0	02	1	0006-	●
69	HOSE; PRESSURE PLATE	1-48259-051-0	04	1	0006-		●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	02	1	0006-	●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	02	1	0006-	●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	03	1	0006-		●

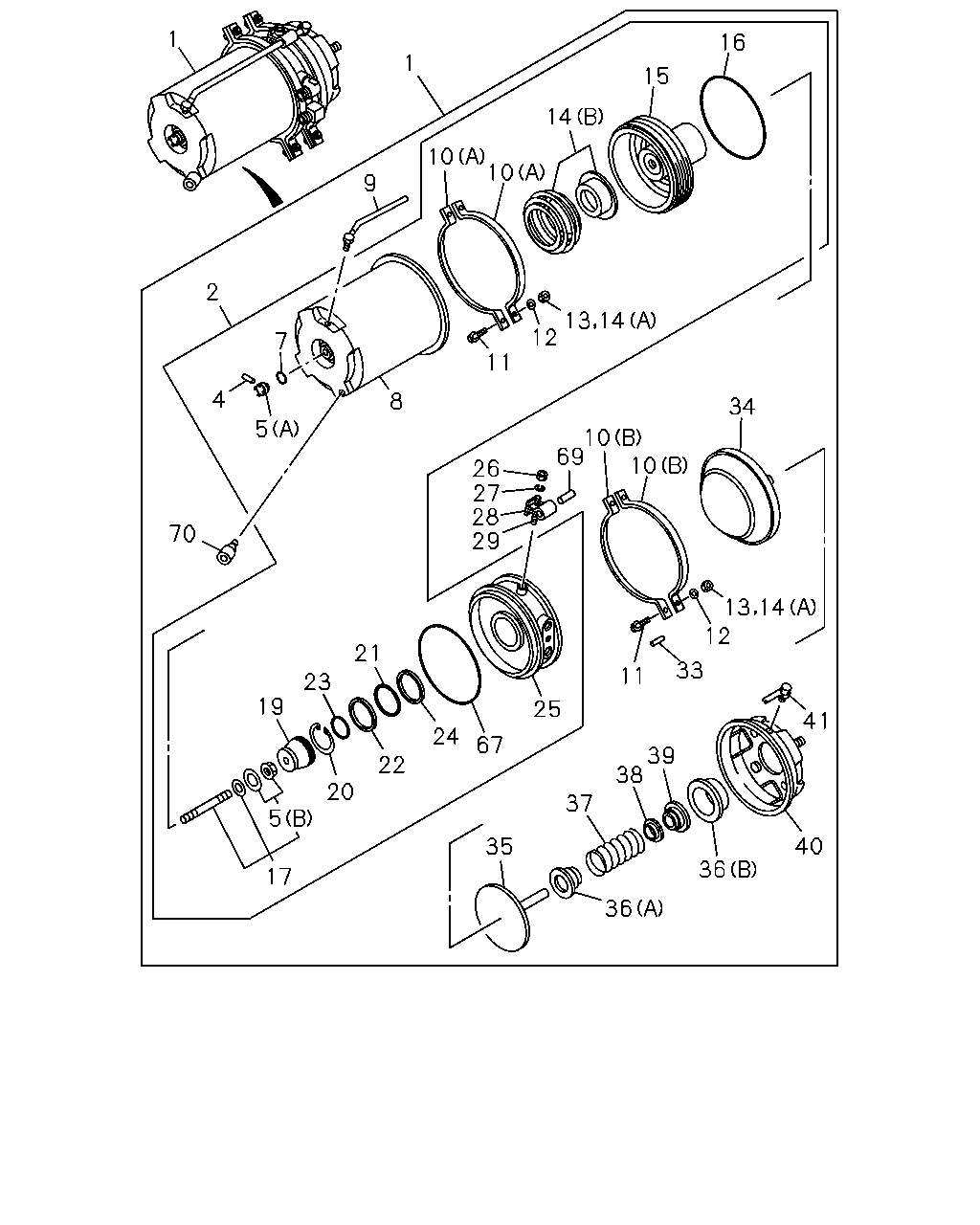

1 16 1 15 14 10 10 9 2 13 12 14 7 11 4 8 34 5 10 69 10 26 27 28 29 70 13 14 12 21 33 11 23 19 25 41 24 67 39 38 22 20 37 5 40 35 36 17 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FVM;FWD RH,RWD LH FVZ;FWD RH	1-48250-176-2	01	1	0006-	●	●
1	CHAMBER ASM; SPRING FVM;FWD RH,RWD LH FVZ;FWD RH	1-48250-176-2	01	1	0006-	●
1	CHAMBER ASM; SPRING FVM;FWD LH,RWD RH FVZ;FWD LH	1-48250-177-2	01	1	0006-	●	●
1	CHAMBER ASM; SPRING FVM;FWD LH,RWD RH FVZ;FWD LH	1-48250-177-2	01	1	0006-	●
1	CHAMBER ASM; SPRING RWD RH	1-48250-248-2	01	1	0006-		●
1	CHAMBER ASM; SPRING RWD LH	1-48250-249-2	01	1	0006-		●
2	CHAMBER; EMERGENCY FVM;FWD RH,RWD LH FVZ;FWD RH	1-48252-020-0	01	1	0006-	●	●
2	CHAMBER; EMERGENCY FVM;FWD RH,RWD LH FVZ;FWD RH	1-48252-020-0	01	1	0006-	●
2	CHAMBER; EMERGENCY FVM;FWD LH,RWD RH FVZ;FWD LH	1-48252-021-0	01	1	0006-	●	●
2	CHAMBER; EMERGENCY FVM;FWD LH,RWD RH FVZ;FWD LH	1-48252-021-0	01	1	0006-	●
2	CHAMBER; EMERGENCY REARWARD	1-48252-039-0	01	1	0006-0402		●
2	CHAMBER; EMERGENCY REARWARD	1-48252-033-0	01	1	0403-		●
2	CHAMBER; EMERGENCY REARWARD	1-48252-040-0	01	1	0006-0402		●
2	CHAMBER; EMERGENCY	1-48252-031-0	01	1	0403-		●
2	CHAMBER; EMERGENCY REARWARD	1-48252-031-0	01	1	0403-		●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	0006-	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	0006-	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	08	1	0006-		●
5	NUT; SHELL (A)	1-48259-054-0	02	1	0006-	●
5	NUT; SHELL (A)	1-48259-054-0	02	1	0006-	●
5	NUT; SHELL (B)	1-48259-074-0	02	1	0006-	●
5	NUT; SHELL (B)	1-48259-074-0	02	1	0006-	●
5	NUT; SHELL (A)	1-48259-054-0	04	1	0006-		●
5	NUT; SHELL (B)	1-48259-074-0	04	1	0006-		●
7	GASKET RWD LH	1-09623-095-0	01	1	0403-		●
7	GASKET	1-48259-055-0	02	1	0006-	●
7	GASKET	1-48259-055-0	02	1	0006-	●
7	GASKET	1-48259-055-0	04	1	0006-0402		●
7	GASKET FWD,RWD RH	1-48259-055-0	03	1	0403-		●
8	SHELL; CYL,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-069-0	01	1	0006-	●	●
8	SHELL; CYL,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-069-0	01	1	0006-	●
8	SHELL; CYL,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-070-0	01	1	0006-	●	●
8	SHELL; CYL,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-070-0	01	1	0006-	●
8	SHELL; CYL,SPR CHAMBER RWD	1-48251-043-0	02	1	0006-		●
9	PIPE ASM; SHELL	1-48259-076-0	02	1	0006-	●
9	PIPE ASM; SHELL	1-48259-076-0	02	1	0006-	●
9	PIPE ASM; SHELL	1-48259-076-0	04	1	0006-		●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	04	1	0006-	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	04	1	0006-	●
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	04	1	0006-	●
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	04	1	0006-	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	08	1	0006-		●
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	08	1	0006-		●
11	BOLT; CLAMP RING	1-48259-035-0	08	1	0006-	●
11	BOLT; CLAMP RING	1-48259-035-0	08	1	0006-	●
11	BOLT; CLAMP RING	1-48259-035-0	16	1	0006-		●
12	WASHER; LK,CLAMP RING FVZ;FWD	1-48259-046-0	08	1	0006-	●	●
12	WASHER; LK,CLAMP RING FVZ;FWD	1-48259-046-0	08	1	0006-	●
12	WASHER; LK,CLAMP RING RWD ID=10.2	9-09150-510-0	08	1	0006-		●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	0006-0402	●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	0006-0402	●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	0403-	●	●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	0403-	●
13	NUT; CLAMP RING M10	9-09110-510-0	12	1	0006-0402		●
13	NUT; CLAMP RING M10	9-09110-510-0	04	1	0403-		●
14	SPRING & SEAT SET	1-48259-037-1	02	1	0006-	●
14	SPRING & SEAT SET	1-48259-037-1	02	1	0006-	●
14	SPRING & SEAT SET (B)	1-48259-037-1	04	1	0006-		●
14	SPRING & SEAT SET (A)	8-83315-080-0	04	1	0006-		●
15	PISTON	1-48262-005-0	02	1	0006-	●
15	PISTON	1-48262-005-0	02	1	0006-	●
15	PISTON	1-48262-005-0	04	1	0006-		●
16	GASKET	1-48259-048-0	02	1	0006-	●
16	GASKET	1-48259-048-0	02	1	0006-	●
16	GASKET	1-48259-048-0	04	1	0006-		●
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	0006-	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	0006-	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	04	1	0006-		●
19	COVER; PISTON	1-48269-011-0	02	1	0006-	●
19	COVER; PISTON	1-48269-011-0	02	1	0006-	●
19	COVER; PISTON	1-48269-011-0	04	1	0006-		●
20	RING; RET	1-48259-060-0	02	1	0006-	●
20	RING; RET	1-48259-060-0	02	1	0006-	●
20	RING; RET	1-48259-060-0	04	1	0006-		●
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	0006-	●
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	0006-	●
21	GASKET; SPR CHAMBER	1-48259-049-0	04	1	0006-		●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	0006-	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	0006-	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	04	1	0006-		●
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	0006-	●
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	0006-	●
23	GASKET; SPR CHAMBER	1-48259-047-0	04	1	0006-		●
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	0006-	●
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	0006-	●
24	BEARING; SPR CHAMBER	1-48259-020-0	04	1	0006-		●
25	PLATE; PRESSURE,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-087-0	01	1	0006-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-087-0	01	1	0006-	●
25	PLATE; PRESSURE,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-088-0	01	1	0006-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-088-0	01	1	0006-	●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-138-0	01	1	0006-0402		●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-116-0	01	1	0403-		●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-140-0	01	1	0006-0402		●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-122-0	01	1	0403-		●
26	NUT; PRESSURE PLATE	1-48259-058-0	04	1	0006-0402	●
26	NUT; PRESSURE PLATE	1-48259-058-0	04	1	0006-0402	●
26	NUT; PRESSURE PLATE FVZ;FWD	1-48259-058-0	04	1	0403-	●	●
26	NUT; PRESSURE PLATE FVZ;FWD	1-48259-058-0	04	1	0403-	●
26	NUT; PRESSURE PLATE	1-48259-058-0	08	1	0006-0402		●
26	NUT; PRESSURE PLATE RWD M8	9-09111-508-0	04	1	0403-		●
27	WASHER; PRESSURE PLATE FVZ;FWD	1-48259-057-0	02	1	0006-	●	●
27	WASHER; PRESSURE PLATE FVZ;FWD	1-48259-057-0	02	1	0006-	●
27	WASHER; PRESSURE PLATE RWD ID=8.2	9-09150-508-0	02	1	0006-		●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	02	1	0006-	●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	02	1	0006-	●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	04	1	0006-		●
29	STUD; PRESSURE PLATE	1-48259-050-0	02	1	0006-	●
29	STUD; PRESSURE PLATE	1-48259-050-0	02	1	0006-	●
29	STUD; PRESSURE PLATE	1-48259-050-0	04	1	0006-		●
33	RETAINER; DIAPH FVZ;FWD	1-48259-044-0	04	1	0006-	●	●
33	RETAINER; DIAPH FVZ;FWD	1-48259-044-0	04	1	0006-	●
33	RETAINER; DIAPH RWD	1-48250-044-0	02	1	0006-		●
34	DIAPHRAGM FVZ;FWD	1-48252-011-0	02	1	0006-	●	●
34	DIAPHRAGM FVZ;FWD	1-48252-011-0	02	1	0006-	●
34	DIAPHRAGM RWD	1-48258-011-0	02	1	0006-		●
35	PLATE; ROD END,SPR CHAMBER FVZ;FWD	1-48253-011-0	02	1	0006-	●	●
35	PLATE; ROD END,SPR CHAMBER FVZ;FWD	1-48253-011-0	02	1	0006-	●
35	PLATE; ROD END,SPR CHAMBER RWD RH	1-48253-029-0	01	1	0006-0402		●
35	PLATE; ROD END,SPR CHAMBER RWD	1-48253-029-0	02	1	0403-		●
35	PLATE; ROD END,SPR CHAMBER RWD LH	1-48253-035-0	01	1	0006-0402		●
36	RETAINER; SPR CHAMBER (B)	1-48259-033-0	02	1	0006-	●
36	RETAINER; SPR CHAMBER (B)	1-48259-033-0	02	1	0006-	●
36	RETAINER; SPR CHAMBER (A)	1-48259-043-0	02	1	0006-	●
36	RETAINER; SPR CHAMBER (A)	1-48259-043-0	02	1	0006-	●
36	RETAINER; SPR CHAMBER (A)	1-48259-033-0	04	1	0006-		●
36	RETAINER; SPR CHAMBER (B)	1-48259-043-0	04	1	0006-		●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	02	1	0006-	●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	02	1	0006-	●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	04	1	0006-		●
38	COVER; ROD & PLATE	1-48259-066-0	02	1	0006-	●
38	COVER; ROD & PLATE	1-48259-066-0	02	1	0006-	●
38	COVER; ROD & PLATE	1-48259-066-0	04	1	0006-		●
39	COVER; ROD & PLATE	1-48259-065-0	02	1	0006-	●
39	COVER; ROD & PLATE	1-48259-065-0	02	1	0006-	●
39	COVER; ROD & PLATE	1-48259-065-0	04	1	0006-		●
40	COVER ASM; LWR,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-081-1	01	1	0006-	●	●
40	COVER ASM; LWR,SPR CHAMBER FVM;FWD RH,RWD LH FVZ;FWD RH	1-48259-081-1	01	1	0006-	●
40	COVER ASM; LWR,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-082-1	01	1	0006-	●	●
40	COVER ASM; LWR,SPR CHAMBER FVM;FWD LH,RWD RH FVZ;FWD LH	1-48259-082-1	01	1	0006-	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-137-0	01	1	0006-0402		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-115-0	01	1	0403-		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-139-0	01	1	0006-0402		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-119-0	01	1	0403-		●
41	PIPE ASM; LWR COVER	1-48259-080-0	02	1	0006-	●
41	PIPE ASM; LWR COVER	1-48259-080-0	02	1	0006-	●
41	PIPE ASM; LWR COVER	1-48259-080-0	04	1	0006-		●
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	0006-	●
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	0006-	●
67	GASKET; SPR CHAMBER	1-48259-053-0	04	1	0006-		●
69	HOSE; PRESSURE PLATE	1-48259-051-0	02	1	0006-	●
69	HOSE; PRESSURE PLATE	1-48259-051-0	02	1	0006-	●
69	HOSE; PRESSURE PLATE	1-48259-051-0	04	1	0006-		●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	02	1	0006-	●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	02	1	0006-	●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	03	1	0006-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
